Samsung AW0801B Manuel utilisateur

DB98-08496A(1)

AW0801B

AW1001B

AW1201B

AW1801B

Window-type Room Air Conditioner

(Cool)

OWNER’S

INSTRUCTIONS

E-2

The following safety precautions must be taken when installing

and using your air conditioner.

Safety Precautions

1The air conditioner must be plugged into its own specific power source, which must be

installed in compliance with national wiring, earthing and safety regulations.

Depending on national regulations and your specific installation, you may need to install:

◆ A circuit breaker

For further information on electrical requirements, contact a professional electrician.

This device must be installed according to the national electrical rules.

2Make sure that the unit is correctly ventilated at all times;

do NOT place clothing or other materials over it.

4Do NOT insert anything between the air outlet blades, as it may damage the inner fan

and you may be hurt. Keep children away from the unit.

5If the supply cord is damaged, it must be replaced by the manufacturer, its service agent

or similarly qualified persons in order to avoid a hazard.

6Do NOT attempt to repair the unit yourself. If it is damaged in any way, contact:

◆ An authorized service center

◆ The dealer from whom you purchased the air conditioner.

7Do NOT place any blocking objects in front of the unit.

3NEVER spill liquids of any kind into the unit.

Should this happen, unplug the unit and contact your installation specialist.

8If the remote control will not be used for a long time, remove the batteries.

9Before throwing out the device, it is necessary to pull back the battery cells

and get rid of them safely.

10 The appliance is not intended for use by young children or infirm person without supervision;

young children should be supervised to ensure that they do not play with the appliance.

11 Do NOT use an extension cord with this product.

The manufacturer does not assume responsibility for accidents or injury

caused by an incorrectly installed air conditioner. If you are unsure about

installation, contact an installation specialist.

CCAA

AAUU

UUTT

TTII

IIOO

OONN

E-3

Contents

◆PREPARING YOUR AIR CONDITIONER

■Safety Precautions ......................................................................................... 2

■Description of Each Component .................................................................... 4

■Remote Control - Buttons .............................................................................. 5

■Getting Started ............................................................................................... 6

■Inserting the Remote Control Batteries .......................................................... 7

◆OPERATING YOUR AIR CONDITIONER

■Cooling Your Room ........................................................................................ 8

■Ventilating Your Room .................................................................................... 9

■Removing Excess Humidity ............................................................................ 10

■Adjusting the Air Flow Direction Horizontally .................................................. 11

■Adjusting the Air Flow Direction Vertically....................................................... 11

◆PROGRAMMING YOUR AIR CONDITIONER

■Setting the On Timer ...................................................................................... 12

■Setting the Off Timer ...................................................................................... 13

■Setting the Sleep Timer .................................................................................. 14

■Selecting Energy Saving mode ...................................................................... 15

◆RECOMMENDATIONS FOR USE

■Temperature and Humidity Ranges ................................................................ 16

■Cleaning Your Air Conditioner ........................................................................ 17

■Solving Common Problems ............................................................................ 18

■Technical Specifications ................................................................................. 19

E-4

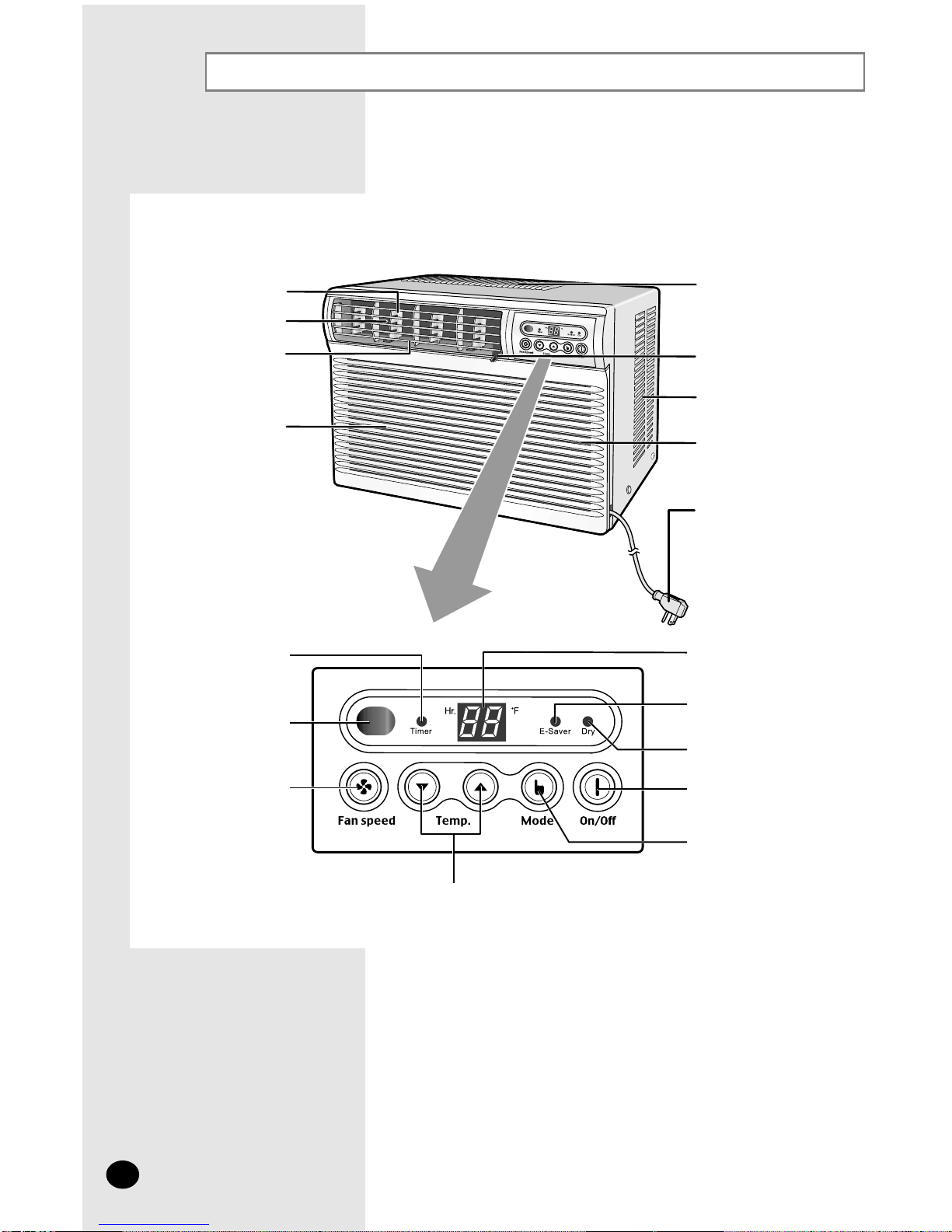

Description of Each Component

Inner air flow blades

(right/left orientation)

Air outlet

Outer air flow blades

(up/down orientation)

Air inlet (Inside)

Air inlet (Outside)

Ventilation lever

Air outlet

Air filter (Inside)

Power plug

(The type of power plug

may differ, depending on

the local power supply.)

❄The design and shape are subject to

change, depending on the model.

Temperature/Timer settings

Energy Saver indicator

Dry adjustment indicator

Fan speed

adjustment button

Timer indicator

Mode selection button

(Cool, Fan, Dry)

Temperature

adjustment buttons

On/Off button

Remote control sensor

E-5

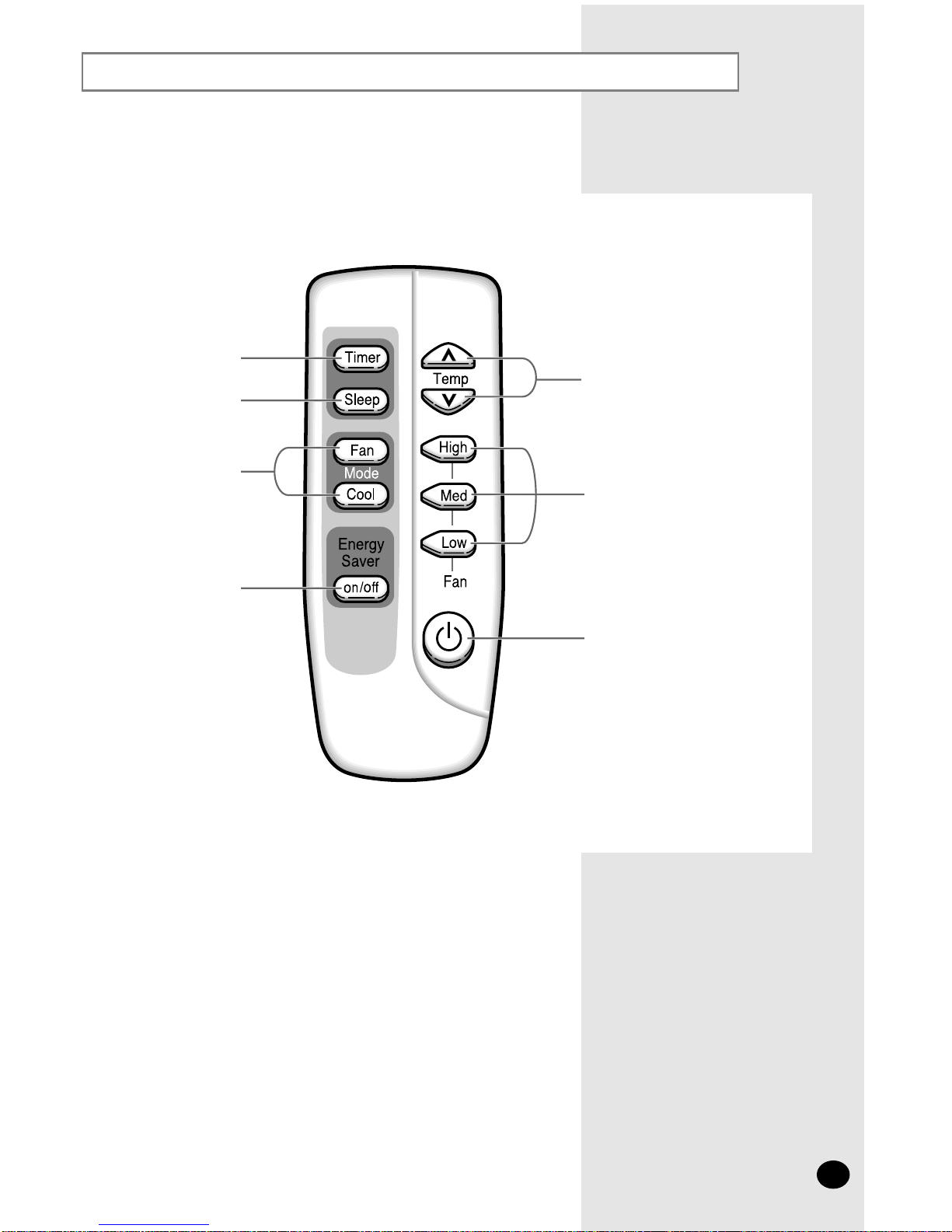

Remote Control - Buttons

Temperature adjustment

buttons

Fan speed

adjustment buttons

On/Off button

Timer setting button

Sleep timer setting button

Mode selection

buttons

Energy Saver button

E-6

Getting Started

IMPORTANT NOTE

You have just purchased a Samsung window-type room air conditioner which should be installed

following your installation manual.

Your Owner’s Instructions contain much valuable information on using your air conditioner.

Please take the time to read them as they will help you take full advantage of the unit’s features.

The booklet is organized as follows.

◆The following figures are shown on pages 4 and 5:

-Description of Each Component

-Remote control (buttons)

They will help you find the buttons and understand the symbols displayed.

◆In the manual, you will find a series of step-by-step procedures for each function

available.

The illustrations in the step-by-step procedures use four different symbols:

☛

➢

PRESS PUSH

E-7

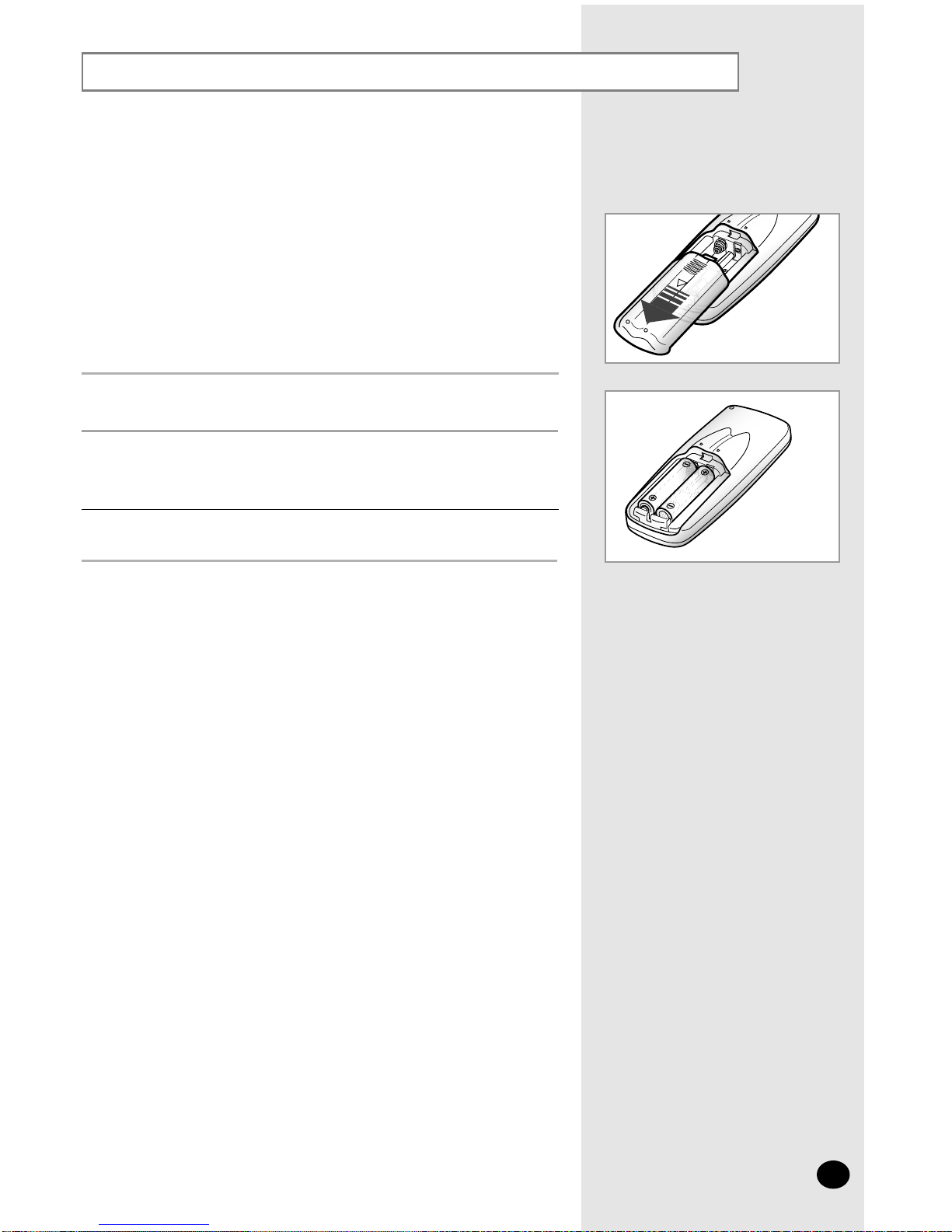

Inserting the Remote Control Batteries

Push the battery cover on the rear of the remote control with your thumb

in the direction of the arrow and remove it.

Insert the two batteries, taking care to respect the polarities :

◆+ on the battery with + on the remote control.

◆- on the battery with - on the remote control.

Close the cover by sliding it back until it clicks into place.

◆Use two AAA, LR03 1.5V batteries.

◆Do not use old batteries or different kinds of batteries together.

◆Batteries may be completely discharged after 12 months, even

if they have not actually been used.

You must insert or replace the remote control batteries when :

◆You purchase the air conditioner

◆The remote control does not work correctly

➢

E-8

Remote Control Control Panel

Cooling Your Room

To adjust the temperature, press the or buttons on the remote

control or unit one or more times until the desired temperature is displayed.

The temperature can be set between 64°F and 86°F.

Result:

◆

Each time you press the or buttons:

– The temperature is adjusted by 1°F and displayed on

the control panel

– The unit beeps

◆

The air conditioner starts cooling, if the room temperature is

higher than the selected temperature.

◆

If the room temperature reaches the set temperature, the air

conditioner stops cooling, but the fan is still operating.

Press the (On/Off) button.

Result: ◆ The air conditioner starts up in the mode selected when the

unit was last used.

◆ The unit beeps twice.

☛The air conditioner is fitted with a protection mechanism to prevent

the unit from being damaged when it is started immediately after

being:

◆ Plugged in

◆ Stopped

It will start up normally after three minutes.

If the temperature is not displayed on the control panel:

◆

Press the button on the remote control

◆

Press the button on the unit one or more times until the

temperature is displayed.

Result:

◆

The unit beeps each time you press the / button.

◆

The air conditioner starts up in the Cool mode.

➢

You can change modes at any time.

You must select the Cool mode if you wish to lower the temperature

in your room. You can also set the Fan speed.

To set the fan speed:

◆

Press the , or button on the remote control as desired.

◆

Press the button on the unit one or more times until the

desired Fan speed(F1, F2 or F3) is displayed.

Low

Medium

High

To control the direction of the air flow, refer to page 11.

E-9

Ventilating Your Room

To set the fan speed:

◆

Press the , or button on the remote control as desired.

◆

Press the button on the unit one or more times until the

desired fan speed(F1, F2 or F3) is displayed.

Low

Medium

High

To control the direction of the air flow, refer to page 11.

If the fan speed(F1, F2 or F3) is not displayed on the control panel:

◆ Press the button on the remote control

◆ Press the button on the unit one or more times until the fan speed

(F1, F2 or F3) is displayed.

Result: ◆ The unit beeps each time you press the / button.

◆The air conditioner starts up in Fan mode.

➢

◆You can change modes at any time.

◆When the air conditioner is in the Fan mode, the temperature

cannot be set or displayed.

Remote Control Control Panel

If necessary, press the (On/Off) button.

Result: ◆

The air conditioner starts up in the mode selected when

the unit was last used.

◆The unit beeps twice.

If the air in your room is stale, you can ventilate the room using

the Fan feature.

If you wish to discharge stale air, push the ventilation lever on the front of the

unit to the right and open position ( ).

Result: ◆

The air inside the room circulates and stale air is discharged

outside.

Otherwise, push the ventilation lever to the left and closed position ( ).

Result: ◆

The air simply circulates inside the room.

E-10

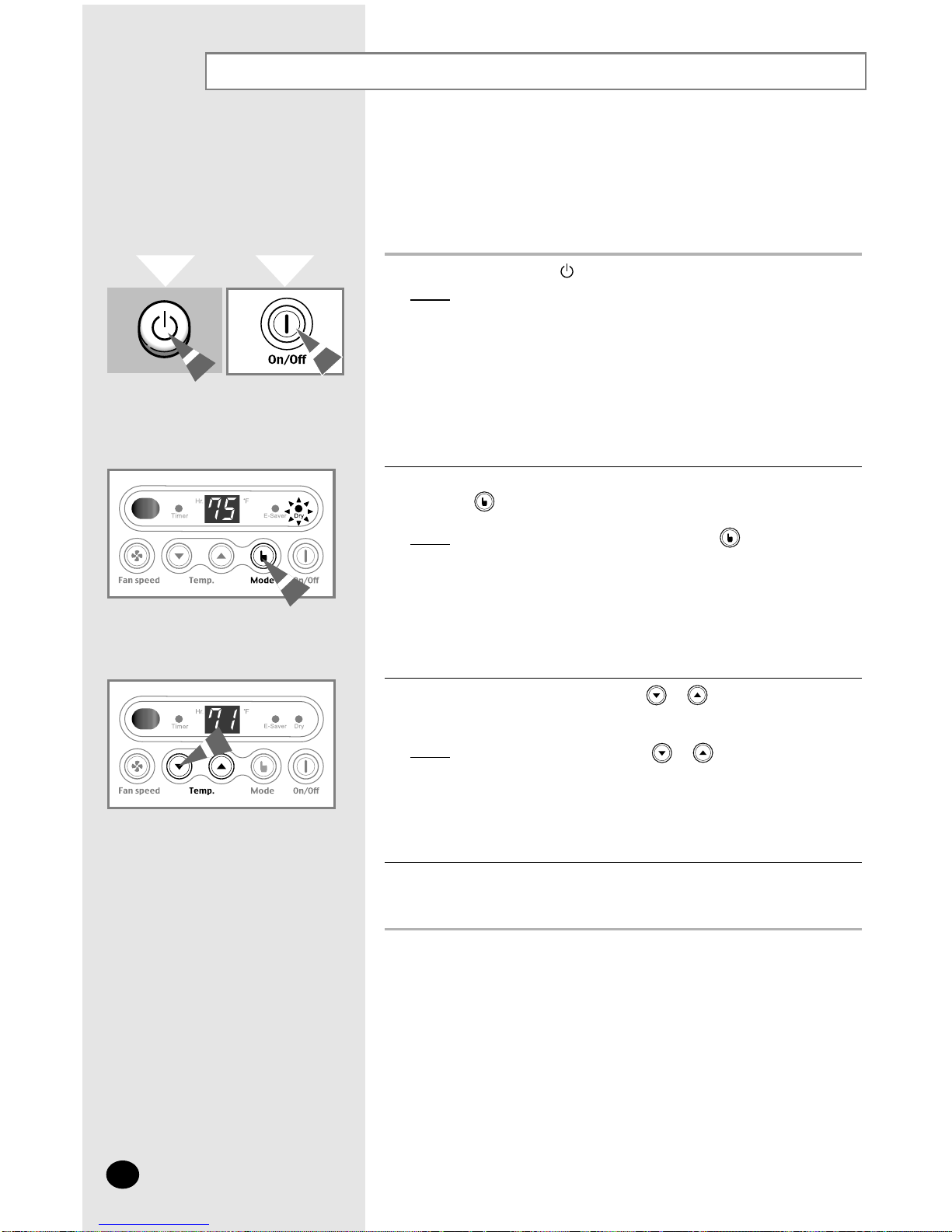

Removing Excess Humidity

If the atmosphere in your room is very humid or damp, you can remove

excess humidity without lowering the room temperature too much.

You can operate the Dry mode only by using the control panel.

1If necessary, press the (On/Off) button.

Result: ◆The air conditioner starts up in the mode selected when

the unit was last used.

◆The unit beeps.

The air conditioner is fitted with a protection mechanism to

prevent the unit from being damaged when it is started

immediately after being:

◆Plugged in

◆Stopped

It will start up normally after three minutes.

2If the dry indicator is not displayed at the top of the control panel,

press the button on the control panel one or more times until it

appears.

Result:◆

The unit beeps each time you press the button.

◆

The air conditioner runs in Dry mode.

➢

You can change modes at any time.

3To adjust the temperature, press the

buttons one or

more times until the required temperature is displayed.

Possible temperatures are between

64°F and 86°F

inclusive.

Result:◆Each time you press the

buttons:

- The temperature is adjusted by 1°F

- The unit beeps

◆The air conditioner starts removing the excess humidity;

the quantity of air is adjusted automatically.

4To control the direction of the air flow, refer to page 11.

Remote Control Control Panel

☛

Autres manuels pour AW0801B

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Samsung Climatiseur

Samsung

Samsung NJ***1HXCA Manuel utilisateur

Samsung

Samsung AWT18S1WDCG Manuel utilisateur

Samsung

Samsung AQ30C2BC Manuel utilisateur

Samsung

Samsung AC HCADKH Series Manuel utilisateur

Samsung

Samsung AS24B1 Manuel utilisateur

Samsung

Samsung AM009FN1DCH/AA Manuel utilisateur

Samsung

Samsung AP80S0A Series Mode d’emploi

Samsung

Samsung EH035EAV Manuel utilisateur

Samsung

Samsung IDH1800E Manuel utilisateur

Samsung

Samsung PC4NUFMAN Manuel utilisateur

Samsung

Samsung AQ12A2VC Manuel utilisateur

Samsung

Samsung AW05B05A Manuel utilisateur

Samsung

Samsung MXD-E32K300A Manuel utilisateur

Samsung

Samsung MH026FNCA Manuel utilisateur

Samsung

Samsung AQV12F2VE Manuel utilisateur

Samsung

Samsung PL-50D4H Manuel utilisateur

Samsung

Samsung SH09AW8 Manuel utilisateur

Samsung

Samsung AR RXFP Series Manuel utilisateur

Samsung

Samsung AQT18PJG Series Manuel utilisateur

Samsung

Samsung AW12P0 Series Manuel utilisateur

Samsung

Samsung AM***FN*D series Manuel utilisateur

Samsung

Samsung AW0750 Guide de configuration

Samsung

Samsung AR09JVSSEWKNED Manuel utilisateur

Samsung

Samsung AW0690A Guide de configuration

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur

Webasto

Webasto Frigo Top 25 DS Manuel utilisateur

Frigidaire

Frigidaire FAZ12ES2A Manuel utilisateur
