Samsung AW2402B Manuel utilisateur

DB98-15116A(1)

AW2402B

Window-type Room Air Conditioner

(Cool)

OWNER’S

INSTRUCTIONS

E-2

The following safety precautions must be taken when installing

and using your air conditioner.

Safety Precautions

The air conditioner must be plugged into its own specific power source, which must be

installed in compliance with national wiring, earthing and safety regulations.

Depending on national regulations and your specific installation, you may need to install:

A circuit breaker

For further information on electrical requirements, contact a professional electrician.

This device must be installed according to the national electrical rules.

Make sure that the unit is correctly ventilated at all times;

do NOT place clothing or other materials over it.

Do NOT insert anything between the air outlet blades, as it may damage the inner fan

and you may get hurt. Keep children away from the unit.

If the supply cord is damaged, it must be replaced by the manufacturer

its service agent

or similarly qualified persons in order to avoid a hazard.

Do NOT attempt to repair the unit yourself. If it is damaged in any way, contact:

An authorized service center

The dealer from whom you purchased the air conditioner.

Do NOT place any blocking objects in front of the unit.

NEVER spill liquids of any kind into the unit.

Should this happen, unplug the unit and contact your installation specialist.

If the remote control will not be used for a long time, remove the batteries.

Before throwing out the device, it is necessary to pull back the battery cells

and get rid of them safely

The appliance is not intended for use by young children or infirm person without supervision;

young children should be supervised to ensure that they do not play with the appliance.

11 Do NOT use an extension cord with this product.

The manufacturer does not assume responsibility for accidents or injury

caused by an incorrectly installed air conditioner. If you are unsure about

installation, contact an installation specialist.

CCAA

AAUU

UUTT

TTII

IIOO

OONN

E-

Contents

PREPARING YOUR AIR CONDITIONER

Safety Precautions ......................................................................................... 2

Description of Each Component .................................................................... 4

Remote Control - Buttons .............................................................................. 5

Getting Started ............................................................................................... 6

Inserting the Remote Control Batteries .......................................................... 7

OPERATING YOUR AIR CONDITIONER

Cooling Your Room ........................................................................................ 8

Ventilating Your Room ..................................................................................... 9

Removing Excess Humidity ............................................................................ 10

Adjusting the Air Flow Direction Horizontally .................................................. 11

Adjusting the Air Flow Direction Vertically ...................................................... 11

PROGRAMMING YOUR AIR CONDITIONER

Setting the On Timer ...................................................................................... 12

Setting the Off Timer ...................................................................................... 13

Setting the Sleep Timer .................................................................................. 14

Selecting Energy Saving mode ...................................................................... 15

RECOMMENDATIONS FOR USE

Temperature and Humidity Ranges ................................................................ 16

Cleaning Your Air Conditioner ........................................................................ 17

Solving Common Problems ............................................................................ 18

Technical Specifications ................................................................................. 19

Temp.

Power

Swing

Fan Speed

Mode

Cool/Dry/Fan

E.Saver

Sleep

Timer

E-4

Temperature/Timer

settings

Temperature adjustment

buttons

On/Off button

Mode selection button

(Cool,Fan, Dry)

Sleep timer setting button

Timer setting button

Fan speed adjustment button Remote control sensor

Energy Saver button

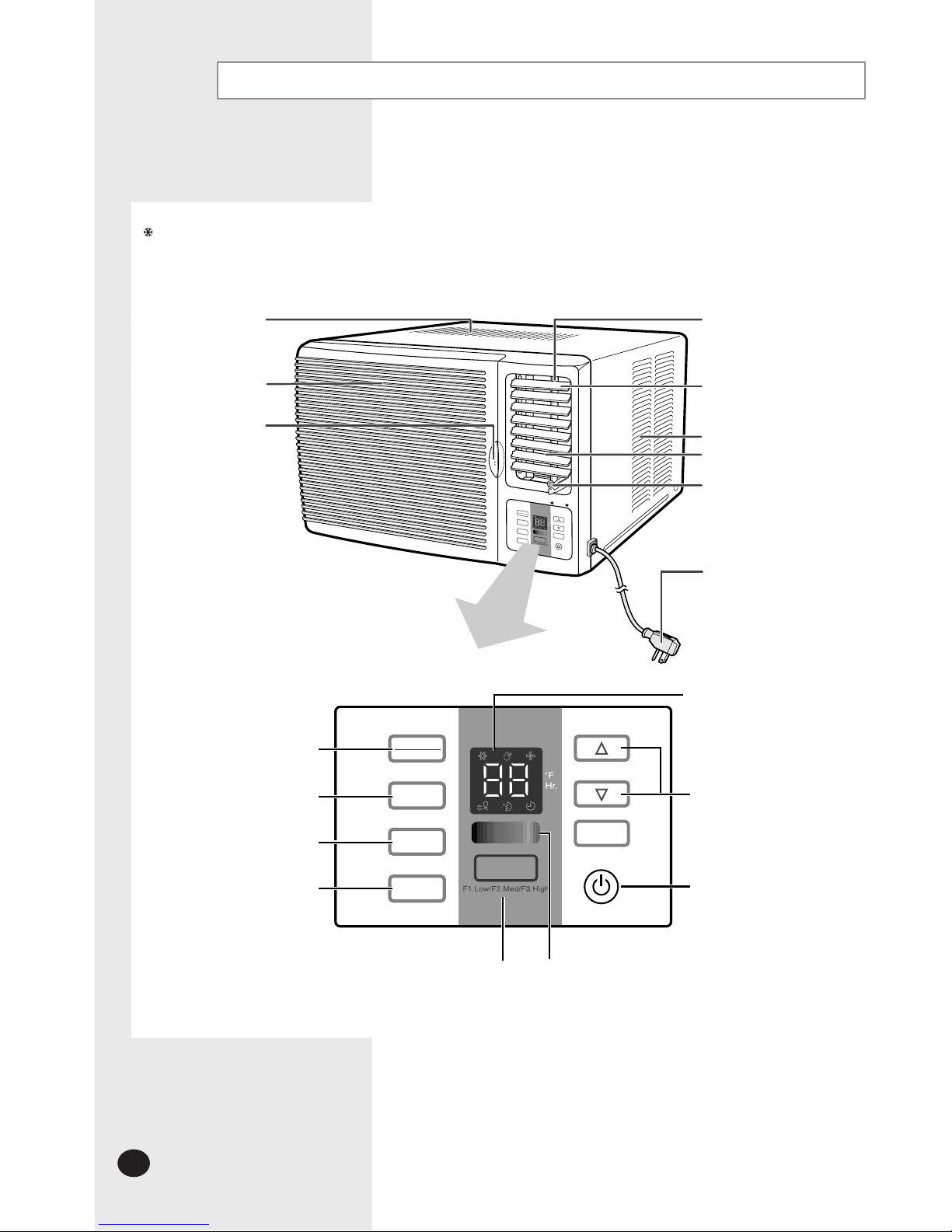

Description of Each Component

The design and shape are subject to

change.

Air filter

(The air filter is

located in inside.)

Air inlet (Inside)

Air outlet

Outer air flow blades

(up/down orientation)

Air inlet (Outside)

Air outlet

Ventilation lever

Power plug (The type of

power plug may differ,

depending on the local

power supply.)

Inner air flow blades

(right/left orientation)

Temp.

Power

Swing

Mode

Cool/Dry/Fan

E.Saver

Sleep

Timer

Fan Speed

E-5

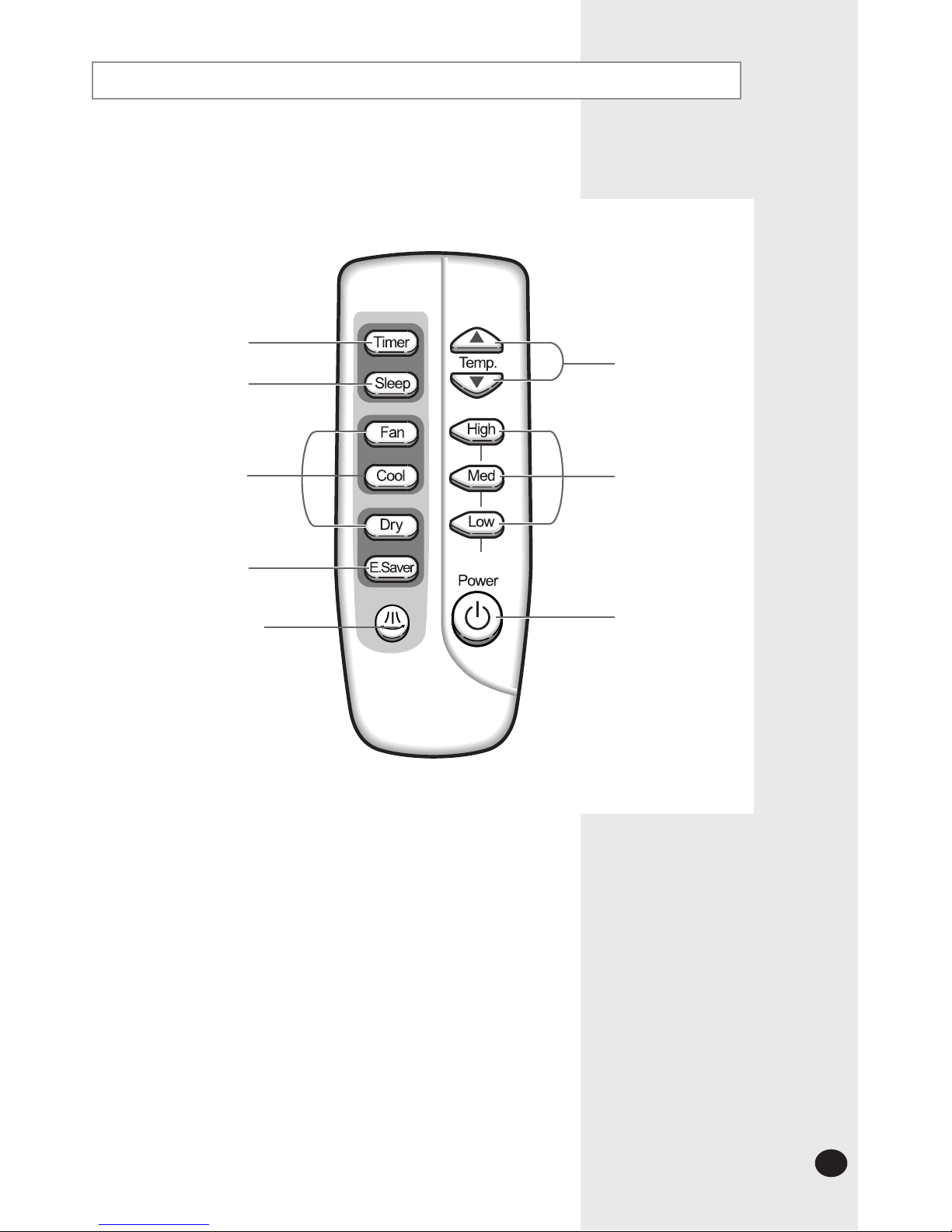

Remote Control - Buttons

Timer setting button

Temperature

adjustment buttons

Fan speed

adjustment buttons

On/Off button

Sleep timer setting

button

Mode selection

buttons

Energy Saver button

Swing

Air flow blade swing button

E-6

PRESS PUSH IMPORTANT NOTE

Getting Started

You have just purchased a Samsung window-type r oom air conditioner which should be installed

following your installation manual.

Your Owner’s Instructions contain much valuable information on using your air conditioner.

Please take the time to r ead them as they will help you take full advantage of the unit’s features.

The booklet is organized as follows.

The following figures are shown on pages 4 and 5:

-Description of Each Component

-Remote control (buttons)

They will help you find the buttons and understand the symbols displayed.

In the manual, you will find a series of step-by-step procedures for each function

available.

The illustrations in the step-by-step procedures use four different symbols:

E-

Inserting the Remote Control Batteries

Push the battery cover on the rear of the remote control with your thumb

in the direction of the arrow and remove it.

Insert the two batteries, taking care to respect the polarities :

+ on the battery with + on the remote control.

- on the battery with - on the remote control.

Close the cover by sliding it back until it clicks into place.

Use two AAA, LR03 1.5V batteries.

Do not use old batteries or different kinds of batteries together.

Batteries may be completely discharged after 12 months, even

if they have not actually been used.

You must insert or replace the remote control batteries when :

You purchase the air conditioner

The remote control does not work correctly

E-8

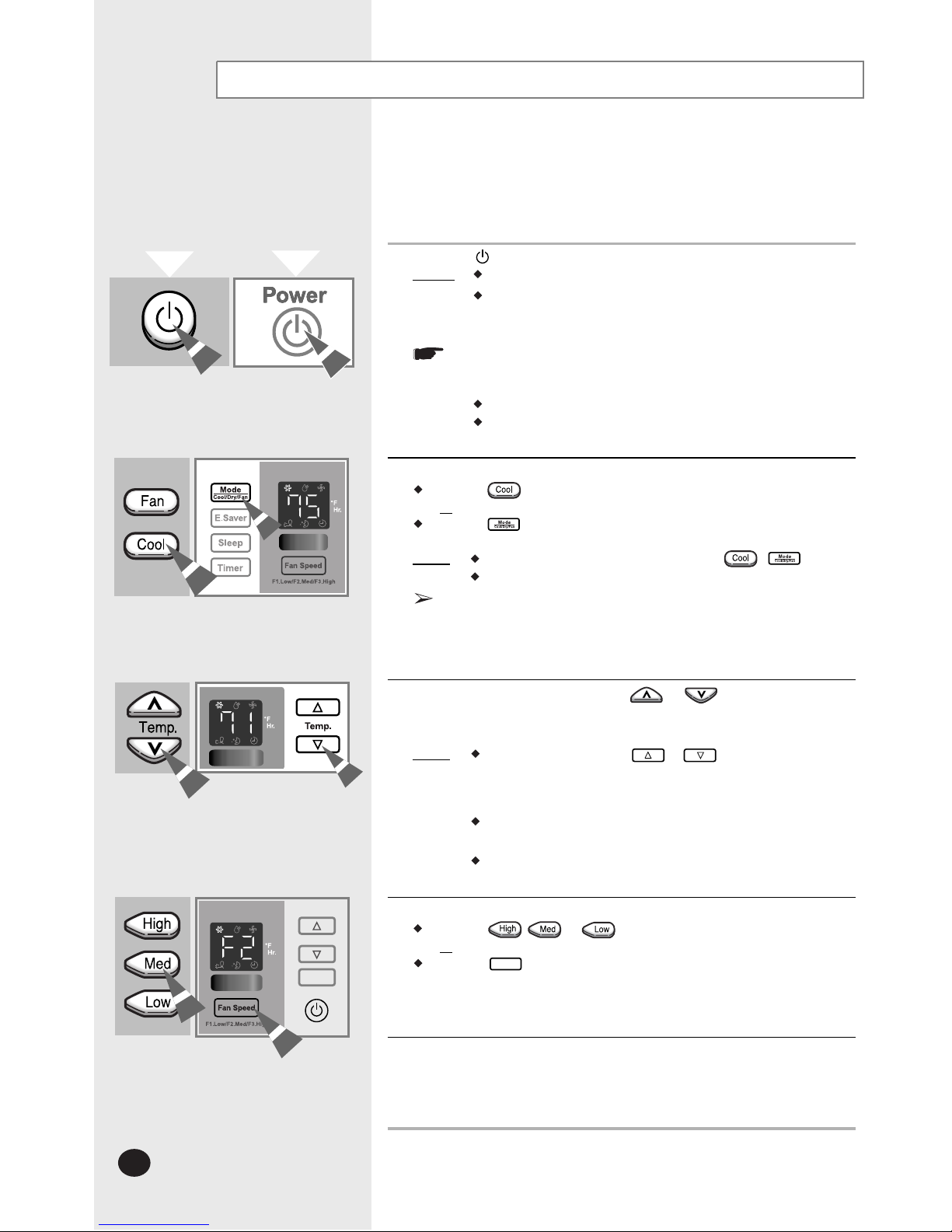

Cooling Your Room

To adjust the temperature, press the or buttons on the remote

control or unit one or more times until the desired temperature is displayed.

The temperature can be set between 64

F and 86

Result: Each time you press the or buttons:

– The temperature is adjusted by 1

F and displayed on

the control panel

– The unit beeps

The air conditioner starts cooling, if the room temperature is

higher than the selected temperature.

If the room temperature reaches the set temperature, the air

conditioner stops cooling, but the fan is still operating.

Press the (On/Off) button.

Result: The air conditioner starts up in the Cool mode.

The unit beeps twice.

The air conditioner is fitted with a protection mechanism to prevent

the unit from being damaged when it is started immediately after

being:

Plugged in

Stopped

It will start up normally after three minutes.

If the temperature is not displayed on the control panel:

Press the button on the remote control

Press the button on the unit one or more times until the

temperature is displayed.

Result: The unit beeps each time you press the / button.

The air conditioner starts up in the Cool mode.

You can change modes at any time.

You must select the Cool mode if you wish to lower the temperature

in your room. You can also set the Fan speed.

To set the fan speed:

Press the , or button on the remote control as desired.

Press the button on the unit one or more times until the

desired Fan speed(F1, F2 or F3) is displayed.

To control the direction of the air flow, refer to page 11.

Fan!Speed

Remote Control Control Panel

Temp.

Power

Swing

E-

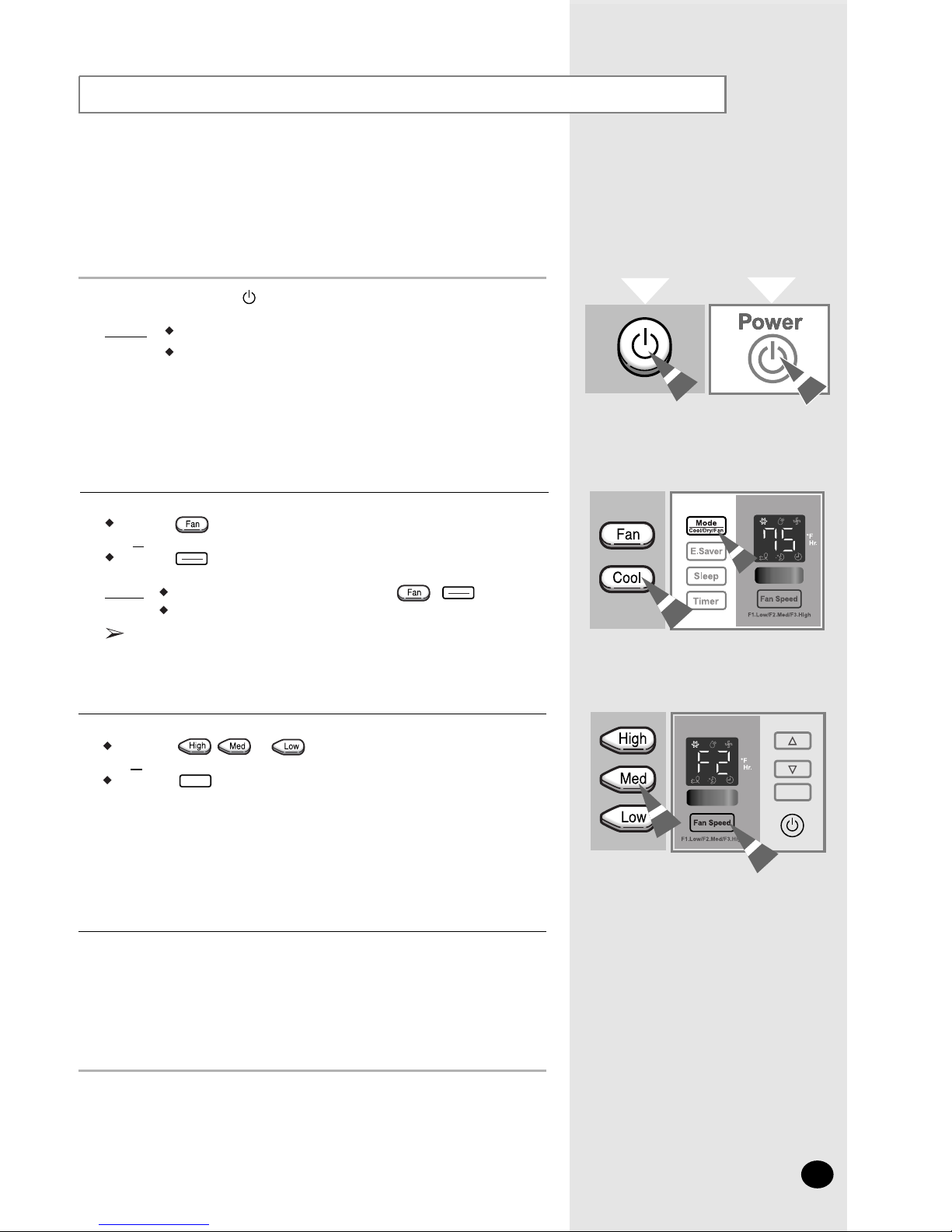

If you want to provide air circulation without cooling, you can use

the Fan mode.

If necessary, press the (On/Off) button.

Result: The air conditioner starts up in the Cool mode

The unit beeps twice.

To set the fan speed:

Press the , or button on the remote control as desired.

Press the button on the unit one or more times until the

desired fan speed(F1, F2 or F3) is displayed.

To control the direction of the air flow, refer to page 11.

If the fan speed(F1, F2 or F3) is not displayed on the control panel:

Press the button on the remote control

Press the button on the unit one or more times until the fan speed

(F1, F2 or F3) is displayed.

Result: The unit beeps each time you press the / button.

The air conditioner starts up in Fan mode.

You can change modes at any time.

When the air conditioner is in the Fan mode, the temperature

cannot be set or displayed.

Mode

Cool/Dry/Fan

Fan!Speed

Mode

Cool/Dry/Fan

Airing Your Room

Remote Control Control Panel

Temp.

Power

Swing

E-

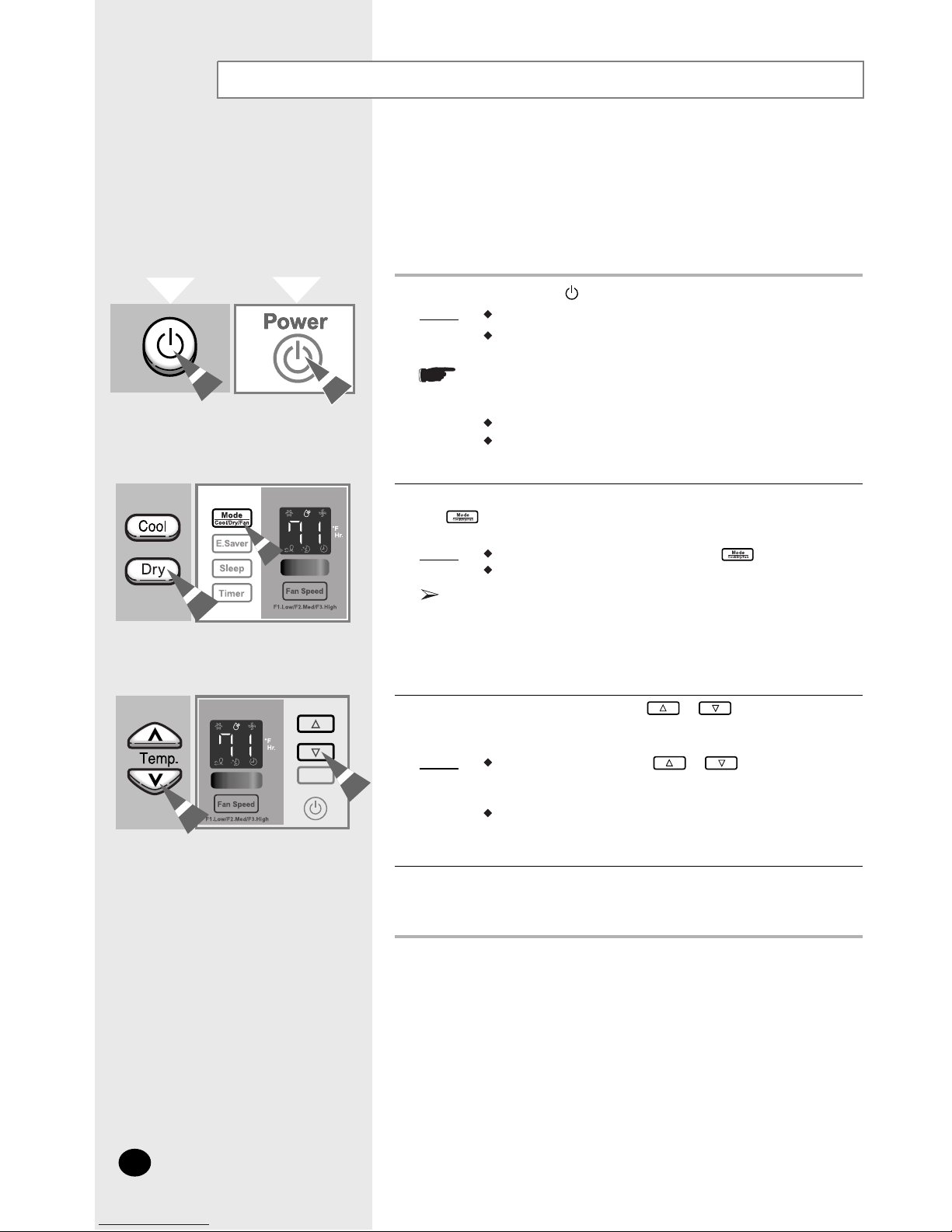

Removing Excess Humidity

If the atmosphere in your room is very humid or damp, you can remove

excess humidity without lowering the room temperature too much.

1If necessary, press the (On/Off) button.

Result: The air conditioner starts up in the Cool mode.

The unit beeps.

The air conditioner is fitted with a protection mechanism to pre-

vent the unit from being damaged when it is started immediately

after being:

Plugged in

Stopped

It will start up normally after three minutes.

2If the

temperature

is not displayed at the top of the control panel, press

the button on the control panel one or more times until it

appears.

Result:

The unit beeps each time you press the button.

The air conditioner runs in Dry mode.

You can change modes at any time.

3To adjust the temperature, press the

buttons one or

more times until the required temperature is displayed.

Possible temperatures are between

F and 86

inclusive.

Result: Each time you press the

buttons:

- The temperature is adjusted by 1

- The unit beeps

The air conditioner starts removing the excess humidity;

the quantity of air is adjusted automatically.

4To control the direction of the air flow, refer to page 11.

Remote Control Control Panel

Temp.

Power

Swing

Table des matières

Autres manuels Samsung Climatiseur

Samsung

Samsung AR TSFY WKNCV Series Manuel utilisateur

Samsung

Samsung RC071DHXEA Mode d’emploi

Samsung

Samsung AC TXQR H Series Manuel utilisateur

Samsung

Samsung AC BN4PKG Series Manuel utilisateur

Samsung

Samsung DH105CAV Manuel utilisateur

Samsung

Samsung AR TX AWKNEU Series Manuel utilisateur

Samsung

Samsung AW07A0NEB Manuel utilisateur

Samsung

Samsung AC NN4SEC Series Mode d’emploi

Samsung

Samsung AQ09MSBN Manuel utilisateur

Samsung

Samsung AS09P8GD/XSV Manuel utilisateur

Samsung

Samsung SH09AI8VX Manuel utilisateur

Samsung

Samsung AR-KP/JP Series Mode d’emploi

Samsung

Samsung AVMXC023B1A-GB Manuel utilisateur

Samsung

Samsung AVMKH035EA0 Manuel utilisateur

Samsung

Samsung AHT18F1HBA Manuel utilisateur

Samsung

Samsung AJTNLDCH Series Manuel utilisateur

Samsung

Samsung AQV36J Manuel utilisateur

Samsung

Samsung AW0750 Guide de configuration

Samsung

Samsung AC BN6DCH Series Manuel utilisateur

Samsung

Samsung AJ009JNNDCH FJM series Manuel utilisateur

Samsung

Samsung Smart Whisper AR KS Series Mode d’emploi

Samsung

Samsung CH070EAV1 Manuel utilisateur

Samsung

Samsung AR18NSWXCWKNCV Manuel utilisateur

Samsung

Samsung AR BY Z Series Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur

Webasto

Webasto Frigo Top 25 DS Manuel utilisateur

Frigidaire

Frigidaire FAZ12ES2A Manuel utilisateur
