Samsung AWT18Q1HDA Manuel utilisateur

Window-type Room Air Conditioner

(Cool)

DB98-15142A(1)

OWNER’S

INSTRUCTIONS

AWT18Q1HDA

E-2

The manufacturer does not assume responsibility for accidents or injury

caused by an incorrectly installed air conditioner. If you are unsure about

installation, contact an installation specialist.

CCAA

AAUU

UUTT

TTII

IIOO

OONN

The following safety precautions must be taken when using your air conditioner.

Safety Precautions

1 The unit must be plugged into an independent circuit.

The air conditioner must be installed in accordance with national wiring regulations and

safety regulations wherever applicable.

2 Some installation locations may require installation of a short circuit breaker or grounding.

4 MAKE sure that the unit is correctly ventilated at all times ;

do NOT place clothing or other materials over it.

5 NEVER spill any kind of liquid into the unit. Should this happen, unplug the unit and contact

an authorized service center.

6 Do NOT insert anything between the air outlet blades because the inner fan may be damaged

and could cause injury. Keep children away from the unit.

7 Do NOT place any obstacles in front of the unit.

8 Users of this product are cautioned not to attempt repairs.

Instead, they are requested to directly contact a designated service center or the outlet

at which the product was purchased.

9 Do not use an extension cord with this product.

10 The appliance is not intended for use by young children without supervision ;

young children should be supervised to ensure that they do not play with the appliance.

11 Never store or ship the air conditioner upside down or sideways to avoid damage to the

compressor.

12 Max current is measured according to IEC standard for safety

and current is measured according to ISO standard for energy efficiency.

3 If the supply cord is damaged, it must be replaced by a special cord or assembly available

from the manufacturer or its service agent.

◆PREPARING YOUR AIR CONDITIONER

■Safety Precautions ......................................................................................... 2

■Air Conditioning Unit - Main Parts and Control Panel .................................... 4

◆OPERATING YOUR AIR CONDITIONER

■Cooling Your Room ........................................................................................ 5

■Airing Your Room ........................................................................................... 6

■Switching the Air Conditioner Off .................................................................... 6

■Adjusting the Air Flow Direction Horizontally .................................................. 7

■Adjusting the Air Flow Direction Vertically ...................................................... 7

◆RECOMMENDATIONS FOR USE

■Operating Recommendation ........................................................................... 8

■Temperature and Humidity Ranges ................................................................ 8

■Cleaning Your Air Conditioner ........................................................................ 9

■Solving Common Problems ............................................................................ 10

■Technical Specifications ................................................................................. 11

◆INSTALLATION ....................................................................................................... 12

E-3

The illustrations in the step-by-step procedures use four different symbols:

PRESS PUSH IMPORTANT NOTE

☛

➢

Contents

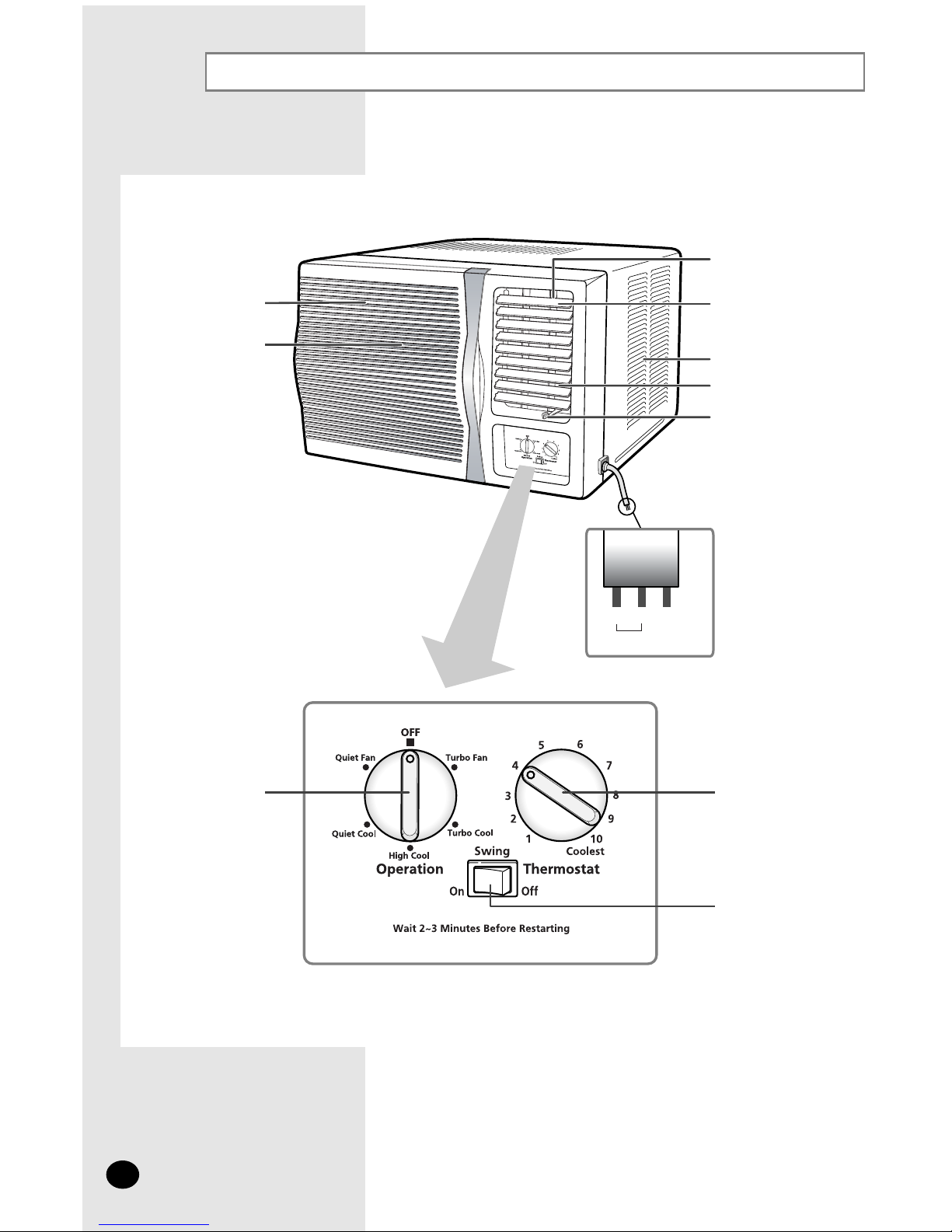

Air Conditioning Unit - Main Parts and Control Panel

Air filter

(The air filter is

located in inside.)

Air inlet (Inside)

Temperature

control dial

Air flow blade swing switch

Operating mode

selection dial

Outer air flow blades

(up/down orientation)

Air inlet

Air outlet

Ventilation lever

Inner air flow blades

(right/left orientation)

❄The design and shape are subject to change according to the model.

E-4

❈

Power cable connection

should be committed to

an installation engineer.

BLUE BROWN

YELLOW/GREEN

Main Power Earth

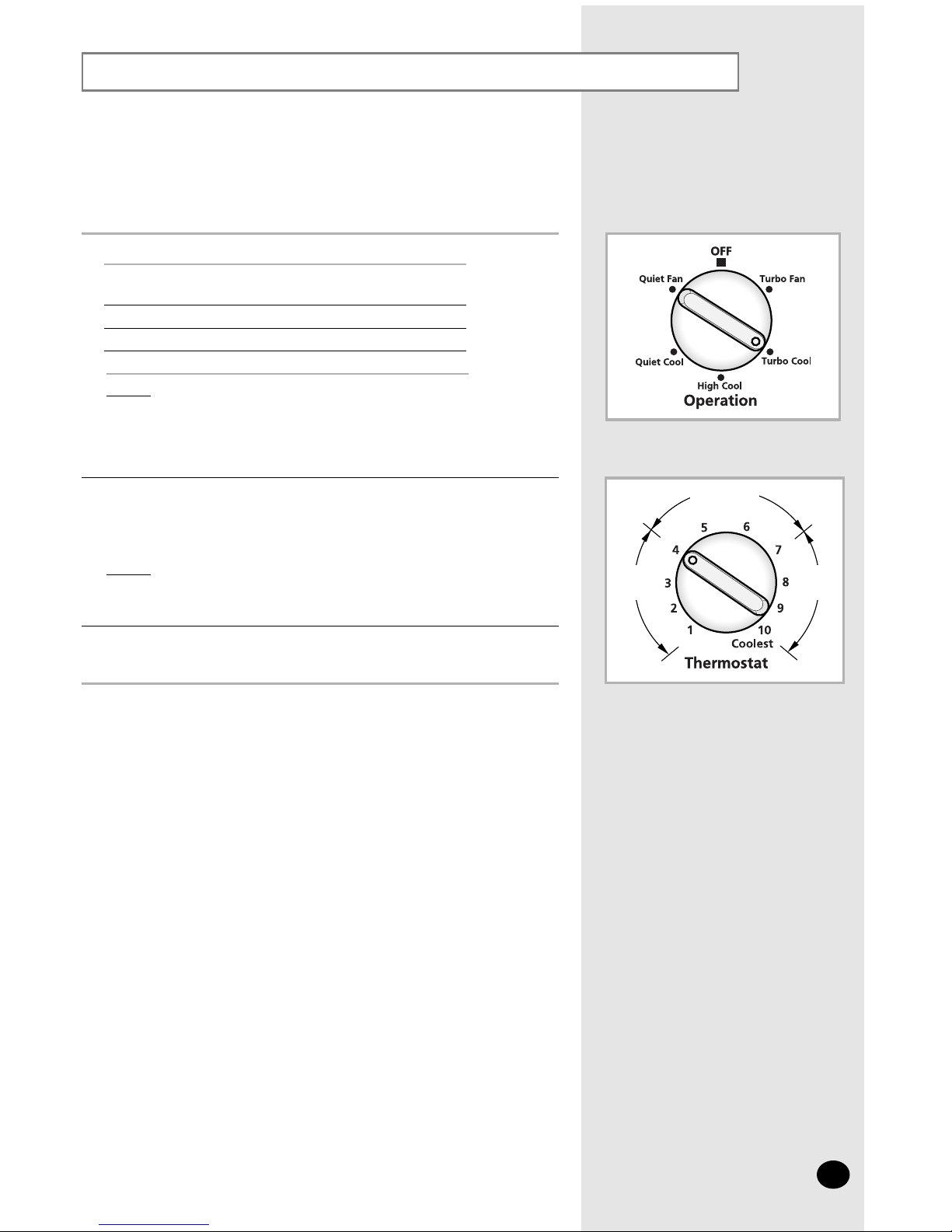

Cooling Your Room

To cool your room with a... Set the operating mode

selection dial to...

Turbo fan speed Turbo Cool

Between Turbo and Quiet High Cool

Quiet fan speed Quiet Cool

Select the operating mode and fan speed.

You can change modes at any time.

You must select the Cool mode if you wish to lower the temperature

in your room. You can also set the fan speed.

To control the direction of the air flow, refer to page 7.

To adjust the temperature, turn the temperature control dial

to the desired position.

Possible temperatures: Between 18°C and 29°C inclusive.

➢

Result: ◆ The air conditioner starts up in Cool mode.

◆ The fan starts up at the speed selected.

Result: ◆ The air conditioner starts cooling if the room temperature is

higher than the selected temperature.

27˚C ~ 23˚C

23˚C

~ 18˚C

29˚C

~ 27˚C

E-5

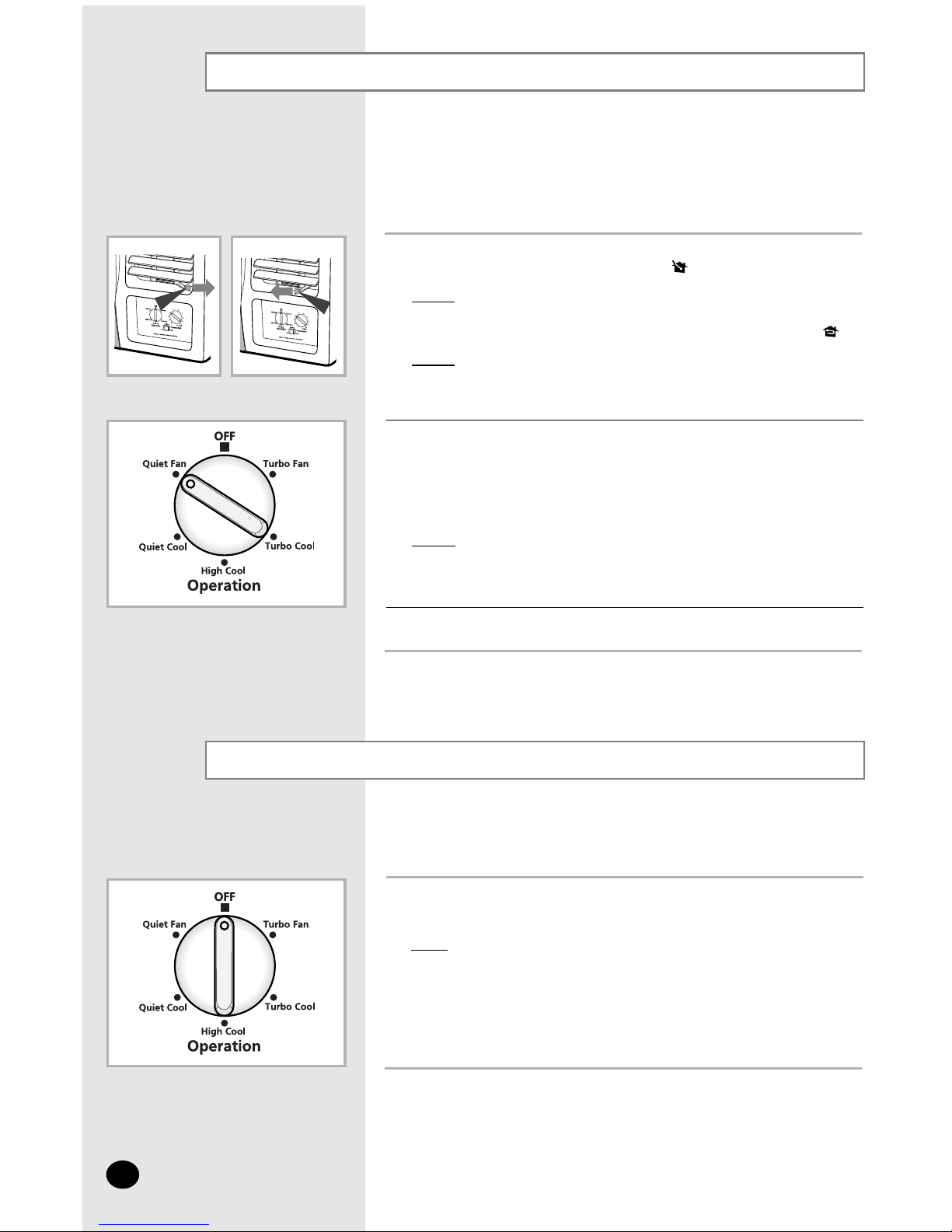

Airing Your Room

E-6

If the atmosphere in your room is stale, you can air it using

the Fan feature and if necessary, evacuate the stale air outside.

Set the operating mode selection dial to the Turbo Fan or Quiet Fan

position.

Turbo Fan : The fan turns rapidly.

Quiet Fan : The fan turns slowly.

Result: The air conditioner starts up in Fan mode.

To control the direction of the air flow, refer to page 7.

If you wish to evacuate stale air outside, push the ventilation lever on the front

of the unit to the right and the open position ( ).

Result:

The air inside the room circulates and stale air is evacuated outside.

Otherwise, push the ventilation lever to the left and the closed position ( ).

Result:

The air simply circulates inside the room.

➢

Switching the Air Conditioner Off

To switch the unit off, simply set the operating mode selection dial

to the OFF position.

Result:The air conditioner stops operating.

You can switch the air conditioner off whenever you want.

Adjusting the Air Flow Direction Horizontally

E-7

Depending on the position of the unit in your room, you can adjust the

orientation of the inner air flow blades on the right-hand side of the

unit, thus increasing the efficiency of the air conditioner.

To stop the blades moving left and right, set the air flow blade swing

switch to the Off position.

To stop the blades in a specific position and orient the air flow in

the corresponding direction, simply set the switch to the Off

position when the blades are in the desired position.

Set the air flow blade swing switch to the On position.

Result: The inner blades swing automatically left and right.

➢

Adjusting the Air Flow Direction Vertically

Again depending on the position of the unit in your room, you can adjust the

orientation of the outer air flow blades on the right-hand side of the unit.

RECOMMENDATION When...

Cooling

Adjust the blades to face...

Upwards.

Adjust the air flow blades to the desired position, by pushing them

upwards or downwards.

If you orient the air flow blades downwards and the unit operates

in Cool mode for long periods of time, dew may:

◆ Form on the surface of the blades

◆ Drip from the blades

➢

E-8

Operating Recommendation

If the air conditioner is used at... Then...

Higher temperature The automatic protection feature may be triggered

and the air conditioner stopped.

Lower temperature A water leakage or some other malfunction may happen

if the heat exchanger freezes.

Higher humidity levels Water may condense on and drip from the surface of the unit

if it is used for long periods.

The following table indicates the temperature and humidity ranges

within which the air conditioner can be used.

Mode Indoor

Temperature Outdoor

Temperature

Indoor Humidity

Cooling 21°C to 32°C approx. 21°C to 54°C approx. 80% or less

Here is a recommendation that you should follow when using your

air conditioner.

Topic Recommendation

If a power failure occurs when the air conditioner is

operating, the unit is switched off. When the power returns,

the air conditioner starts up again automatically.

Power failure

Temperature and Humidity Ranges

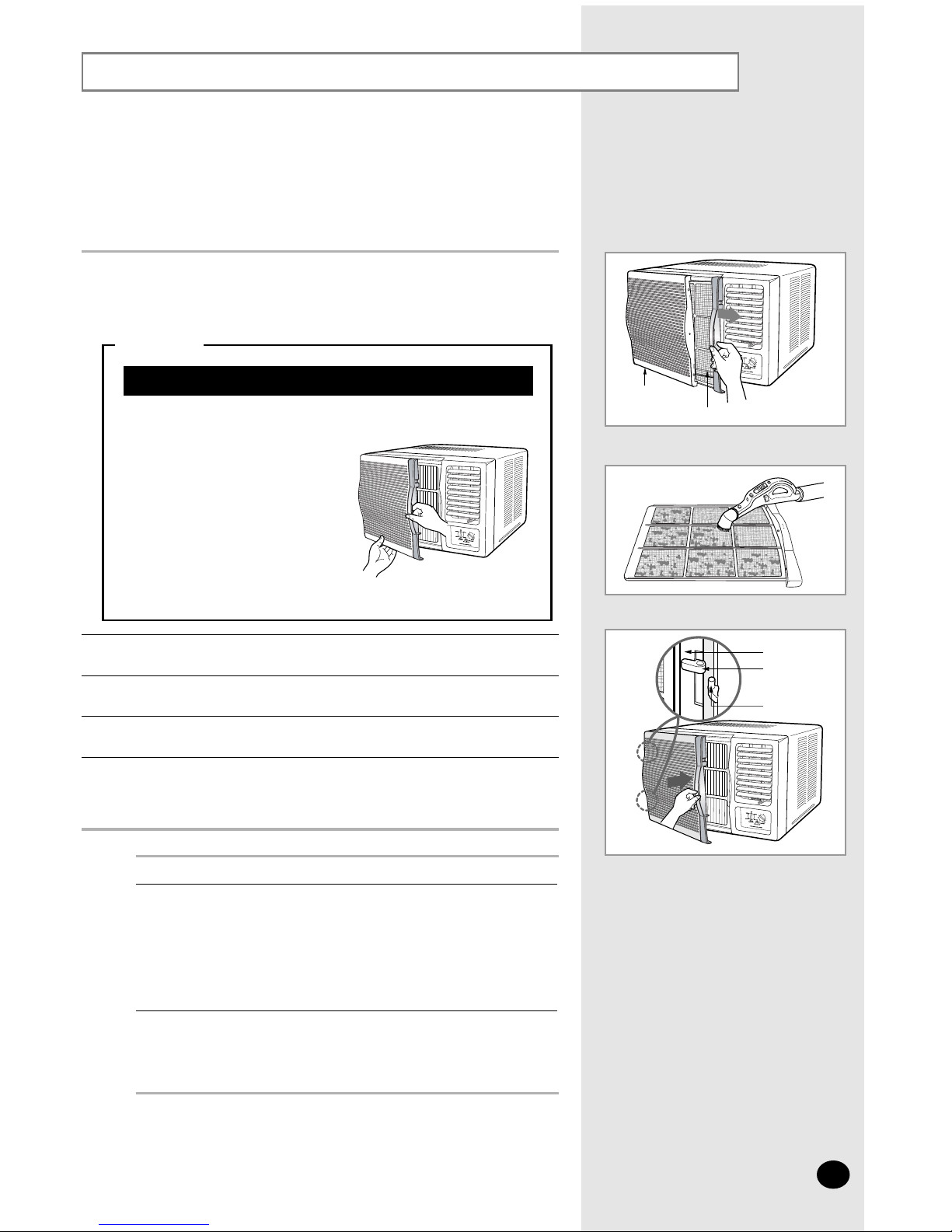

Cleaning Your Air Conditioner

E-9

If you...

Will not use the

air conditioner for a

long period of time

Have not used the air

conditioner for a long

period of time

Then...

◆ Set the operating mode selection dial

to “Quiet Fan” and let it run of a few

hours to dry the inside of the air

conditioner thoroughly.

◆ Switch the air conditioner off and

unplug it from the wall socket.

◆ Clean the filter and outer surfaces.

Set the operating mode selection dial

to “Quiet Fan” and let it run of a few

hours to dry the inside of the air

conditioner thoroughly.

Hold the air filter handle, slightly pull it to the left side and open the front grille.

Pull the air filter to the right side.

Remove all dust on the air filter with a vacuum cleaner or brush.

When you have finished, insert the air filter back into its original position.

Wipe the surface of the unit with a neutral detergent and then wipe it again

with dry cloth.

(Be sure not to use benzene, solvent or other chemical products.)

➢

The removal of the front grille makes it easier to clean the air

conditioner.

➢

Be sure to clean the air filter periodically to maintain the air conditioner

in the best condition for a long period of time.

When cleaning the air conditioner, turn it off and pull

out the power plug.

Removal and Reassembly of the Front Grille

Grasp the lower part of the front

grille and the air filter handle, then

open the grille. (The open angle

of front grille has not to be

exceeded 90 degree)

Lift up the front grille (10mm~15mm)

and remove it from front panel.

Reassembling of front grille

should be done in reverse

order of disassembly.

For user's safety, a safety clip has been installed in the front grille.

CCAA

AAUU

UUTT

TTII

IIOO

OONN

Front grille Air filter

Front grille

Grille groove

Body guide

☛

Solving Common Problems

EXPLANATION / SOLUTION

◆

Check that the circuit breaker used for the air conditioner

has not been triggered.

◆

Check that the power cable is plugged into a wall socket and the

socket is switched on, if necessary.

◆

Check that the correct operating mode has been selected

(cooling or airing).

◆

Check that the correct operating mode has been selected.

◆

The room temperature may be too low.

◆

Dust may be blocking the air filter;

refer to page 9 for cleaning instructions.

◆

Check that there is no obstacle blocking the air flow into or out of the unit.

PROBLEM

The air conditioner does not

operate at all

The air conditioner does not

cool

◆

Check that the air conditioner has been switched on;

if necessary, turn the operating mode selection dial

; refer to page 7.

The air flow direction does not

change when you set the air

flow blade swing switch to the

On position

◆

Air the room.

Odour is permeated in the

room during air conditioning

Before contacting the after-sales service, perform the following simple checks.

They may save you the time and expense of an unnecessary call.

E-10

Table des matières

Autres manuels Samsung Climatiseur

Samsung

Samsung MH18AP1(P2)-09 Manuel utilisateur

Samsung

Samsung ADN BDEH Series Manuel utilisateur

Samsung

Samsung AC TN4F Series Manuel utilisateur

Samsung

Samsung ASV18PULNXEA Manuel utilisateur

Samsung

Samsung AS09N Series Manuel utilisateur

Samsung

Samsung SC07AS2 Manuel utilisateur

Samsung

Samsung MH020FVEA Manuel utilisateur

Samsung

Samsung AD18A1C09 Manuel utilisateur

Samsung

Samsung SC05ZA8 Manuel utilisateur

Samsung

Samsung AE090JNYDEH Manuel utilisateur

Samsung

Samsung EH035CAV Manuel utilisateur

Samsung

Samsung AS09WHWE/XSH Manuel utilisateur

Samsung

Samsung AW0700B Manuel utilisateur

Samsung

Samsung AC MXAD Manuel utilisateur

Samsung

Samsung ACC2400C Manuel utilisateur

Samsung

Samsung AW05N0 Series Manuel utilisateur

Samsung

Samsung AM26A1C13 Manuel utilisateur

Samsung

Samsung AM048HNPDCH Series Manuel utilisateur

Samsung

Samsung NJ026LHXEA Manuel utilisateur

Samsung

Samsung AJ NB1DEH Series Manuel utilisateur

Samsung

Samsung AWT18SBWDB Manuel utilisateur

Samsung

Samsung AVXWVH022EE Manuel utilisateur

Samsung

Samsung AWT18WBHDE Manuel utilisateur

Samsung

Samsung AVXTJ series Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur

Webasto

Webasto Frigo Top 25 DS Manuel utilisateur

Frigidaire

Frigidaire FAZ12ES2A Manuel utilisateur
