ENGLISH

Window-type Room Air Conditioner (Cool)

Acondicionador de aire doméstico sistema de tipo ventana (Refrigeración)

Climatiseur de type Fenêtre (Refroidissement)

O ar Condicionado de Window-Type (Refrigeração)

Condizionatore d’aria per ambienti da finestra (Raffreddamento)

E S F P I

DB98-04664A(4)

ESPAÑOL

FRANÇAIS

PORTUGUÊS

ITALIANO

OWNER’S INSTRUCTIONS

MANUAL DE INSTRUCCIONES

MANUEL D’UTILISATION

MANUAL DE INSTRUÇÕES

ISTRUZIONI PER L’USO

AW07F0(1)(3)NAA/AB/BA/CA/DA/EA

AW08F0(1)(3)NAA

AW09F0(1)(3)NAA/BA/CA/DA/EA

AW10F0(1)(3)DAA/BA/CA

AW12F0(1)(3)DAA/BA/CA/DA/EA

AW14F0(1)(3)MAA/AB/BA/CA/DA/EA

AW18F0(1)(3)MBA/BB/BC/DA/EA/EB

AW18F0(1)(3)MCA/CB/CC

AWT18F0(1)(3)MBA/BB/DA/EA/EB

AW22F0(1)(3)MBA/CA/DA/EA

AW22F0(1)(3)MBB/CB/DB/EB

AW24F0(1)(3)MBA/CA/CB/CC/CD/DA/EA

AW24F0(1)(3)MBB/BC/BD/EB

AWT24F0(1)(3)MBA/CA/DA/EA

AWT24F0(1)(3)MBB/BC/EB/EC

AW07A(G)0(1)(3)NAA/AB/BA/CA/DA/EA

AW08A(G)0(1)(3)NAA

AW09A(G)0(1)(3)NAA/BA/CA/DA/EA

AW10A(G)0(1)(3)DAA/BA/CA

AW12A(G)0(1)(3)DAA/BA/CA/DA/EA

AW14A(G)0(1)(3)MAA/AB/BA/CA/DA/EA

AW18A(G)0(1)(3)MBA/BB/BC/DA/EA/EB

AW18A(G)0(1)(3)MCA/CB/CC

AWT18A(G)0(1)(3)MBA/BB/DA/EA/EB

AW22A(G)0(1)(3)MBA/CA/DA/EA

AW22A(G)0(1)(3)MBB/CB/DB/EB

AW24A(G)0(1)(3)MBA/CA/CB/CC/CD/DA/EA

AW24A(G)0(1)(3)MBB/BC/BD/EB

AWT24A(G)0(1)(3)MBA/CA/DA/EA

AWT24A(G)0(1)(3)MBB/BC/EB/EC

The following safety precautions must be taken when installing

and using your air conditioner.

Safety Precautions

1The air conditioner must be plugged into its own specific power source, which must be

installed in compliance with national wiring, earthing and safety regulations.

Depending on national regulations and your specific installation, you may need to install:

◆ A circuit breaker

For further information on electrical requirements, contact a professional electrician.

This device must be installed according to the national electrical rules.

2Make sure that the unit is correctly ventilated at all times;

do NOT place clothing or other materials over it.

4Do NOT insert anything between the air outlet blades, as the inner fan may be damaged

and you may be hurt. Keep children away from the unit.

5ALWAYS ensure that the power cable is in good condition.

Make sure that it is not walked on or damaged by items placed on or against it.

If the power cord is damaged in any way, it must be replaced by the manufacturer or its

service agent or a similarly qualified person in order to avoid a hazard.

6Do NOT attempt to repair the unit yourself. If it is damaged in any way, contact:

◆ An approved service center

◆ The outlet at which the air conditioner was purchased

7Do NOT place any obstacles in front of the unit.

3NEVER spill liquid of any kind into the unit.

Should this happen, unplug the unit and contact your installation specialist.

The manufacturer do not take the responsibility of the accident happened

because the air conditioner is not fixed firmly or installed securely, during

installing or using the product. In case you have difficulty in installation,

you must ask for an installation specialist help. The accident will be hap-

pened in case of installing improperly.

CCAA

AAUU

UUTT

TTII

IIOO

OONN

8The appliance is not intended for use by young children or infirm person without supervision;

young children should be supervised to ensure that they do not play with the appliance.

E-2

Contents

◆PREPARING YOUR AIR CONDITIONER

■Safety Precautions ......................................................................................... 2

■Air Conditioning Unit - Main Parts and Control Panel .................................... 4

◆OPERATING YOUR AIR CONDITIONER

■Cooling Your Room ........................................................................................ 5

■Airing Your Room ........................................................................................... 6

■Switching the Air Conditioner Off .................................................................... 6

■Adjusting the Air Flow Direction Horizontally .................................................. 7

■Adjusting the Air Flow Direction Vertically ...................................................... 7

■Selecting Energy Saving Mode (Only ✴✴✴✴F3/A3/G3✴✴✴ models) .......... 8

◆RECOMMENDATIONS FOR USE

■Operating Recommendation ........................................................................... 8

■Temperature and Humidity Ranges ................................................................ 8

■Cleaning Your Air Conditioner ........................................................................ 9

■Solving Common Problems ............................................................................ 11

■Technical Specifications ................................................................................. 12

◆INSTALLATION ....................................................................................................... 13

E-3

ENGLISH

CCAA

AAUU

UUTT

TTII

IIOO

OONN

The maximum permissible system impedance at the power junction box is 0.24 ohms.

Usually, the maximum permissible mains impedance will not be exceeded when the

branch to the power outlet is fed from a junction box with a rated current of 32A.

AW18✴✴

" The high inrush current of the starting compressor motor can have adverse effects to

the operation of other equipment under unfavorable mains conditions. This equipment

does not comply with the relevant technical standards for the limitation of voltage

fluctuations and flicker."

Before connecting this equipment to the power supply system, please report to your

supply authority and obtain the consent.

Do not connect other electric appliances to the same supply lines.

The illustrations in the step-by-step procedures use four different symbols:

PRESS PUSH IMPORTANT NOTE

☛

➢

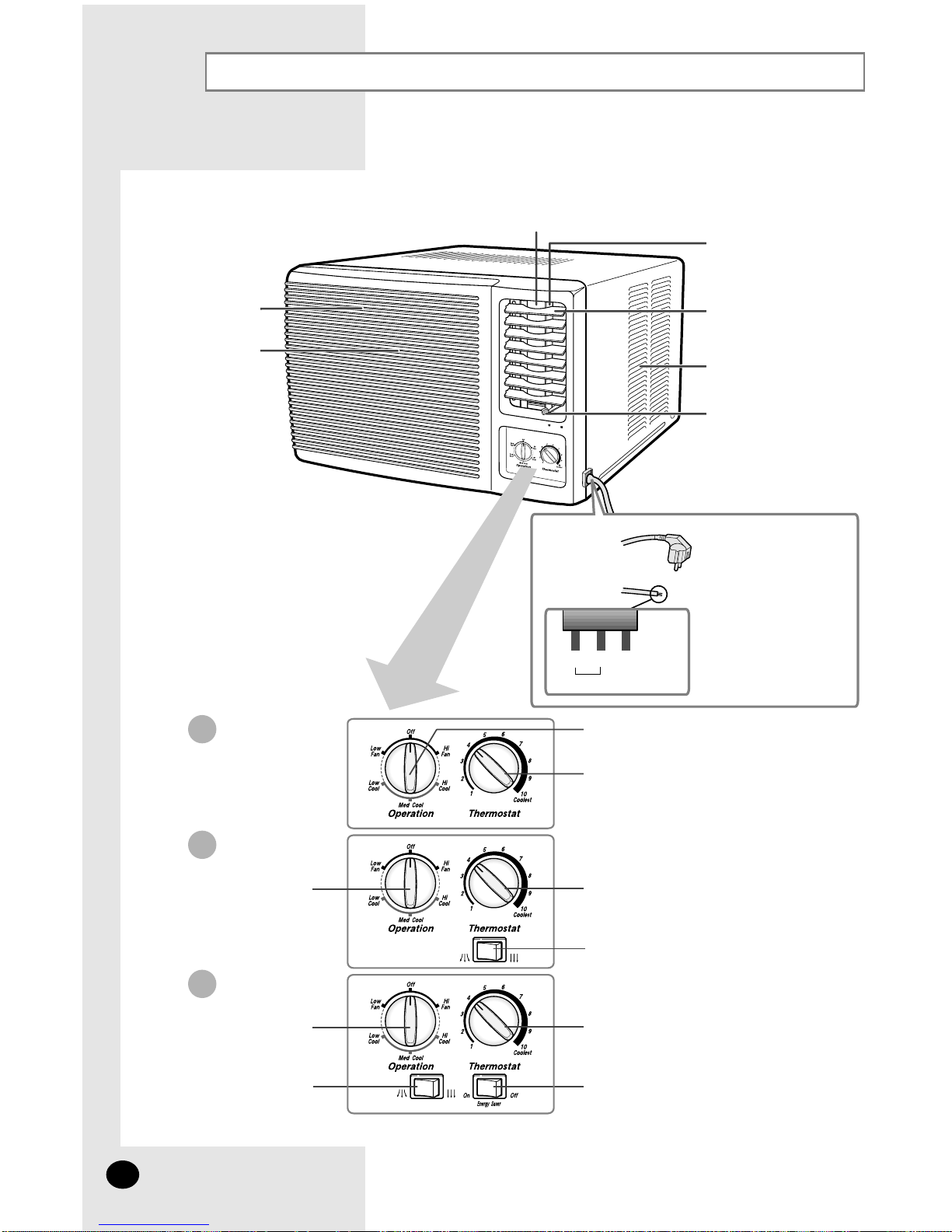

Air Conditioning Unit - Main Parts and Control Panel

Air filter

(The air filter is

located in inside.)

Air inlet (Inside)

Air outlet

Temperature

control dial

Operating mode

selection dial

Temperature

control dial

Operating mode

selection dial

Temperature

control dial

Air flow blade swing switch

Operating mode

selection dial

Energy Saver switch

Air flow blade swing

switch

Outer air flow blades

(up/down orientation)

Air inlet (Outside)

Ventilation lever

Inner air flow blades

(right/left orientation)

❄The design and shape are subject to

change according to the model.

E-4

✴✴✴✴F0/A0/G0✴✴✴

✴✴✴✴F1/A1/G1✴✴✴

✴✴✴✴F3/A3/G3✴✴✴

The type of the power plug

may differ according to the

type of local power supply.

◆The power plug may be not supplied

depending on the model.

Power plug

Power cable

Power cable connection

should be committed to

an installation engineer.

Blue Brown

Yellow/Green

Main Power Earth

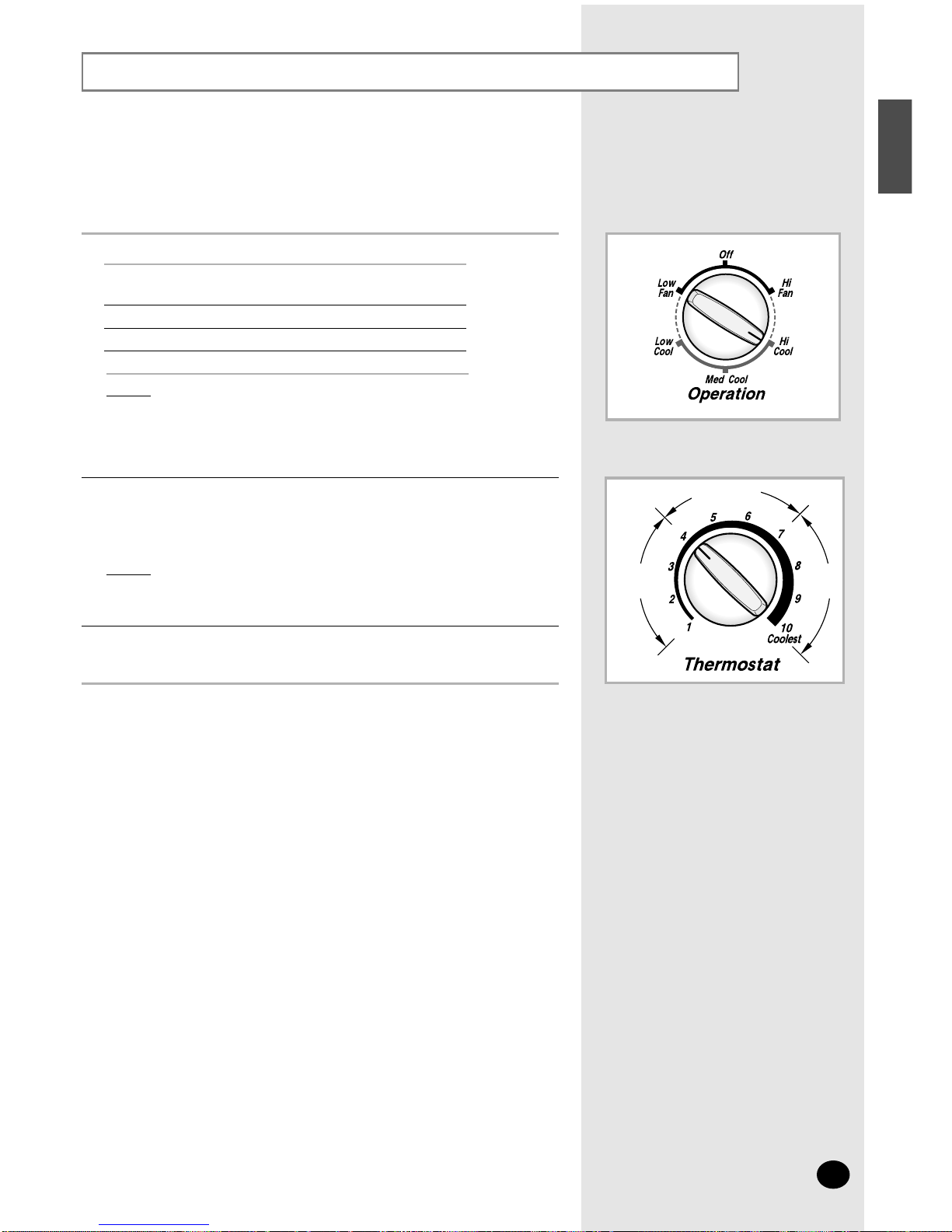

Cooling Your Room

To cool your room with a... Set the operating mode

selection dial to...

High fan speed HI COOL

Between HIGH and LOW MED COOL

Low fan speed LOW COOL

Select the operating mode and fan speed.

You can change modes at any time.

You must select the Cool mode if you wish to lower the temperature

in your room. You can also set the fan speed.

To control the direction of the air flow, refer to page 7.

To adjust the temperature, turn the temperature control dial

to the desired position.

Possible temperatures: Between 18°C and 29°C inclusive.

➢

Result: ◆ The air conditioner starts up in Cool mode.

◆ The fan starts up at the speed selected.

Result: ◆ The air conditioner starts cooling if the room temperature is

higher than the selected temperature.

27˚C ~ 23˚C

23˚C

~ 18˚C

29˚C

~ 27˚C

E-5

ENGLISH

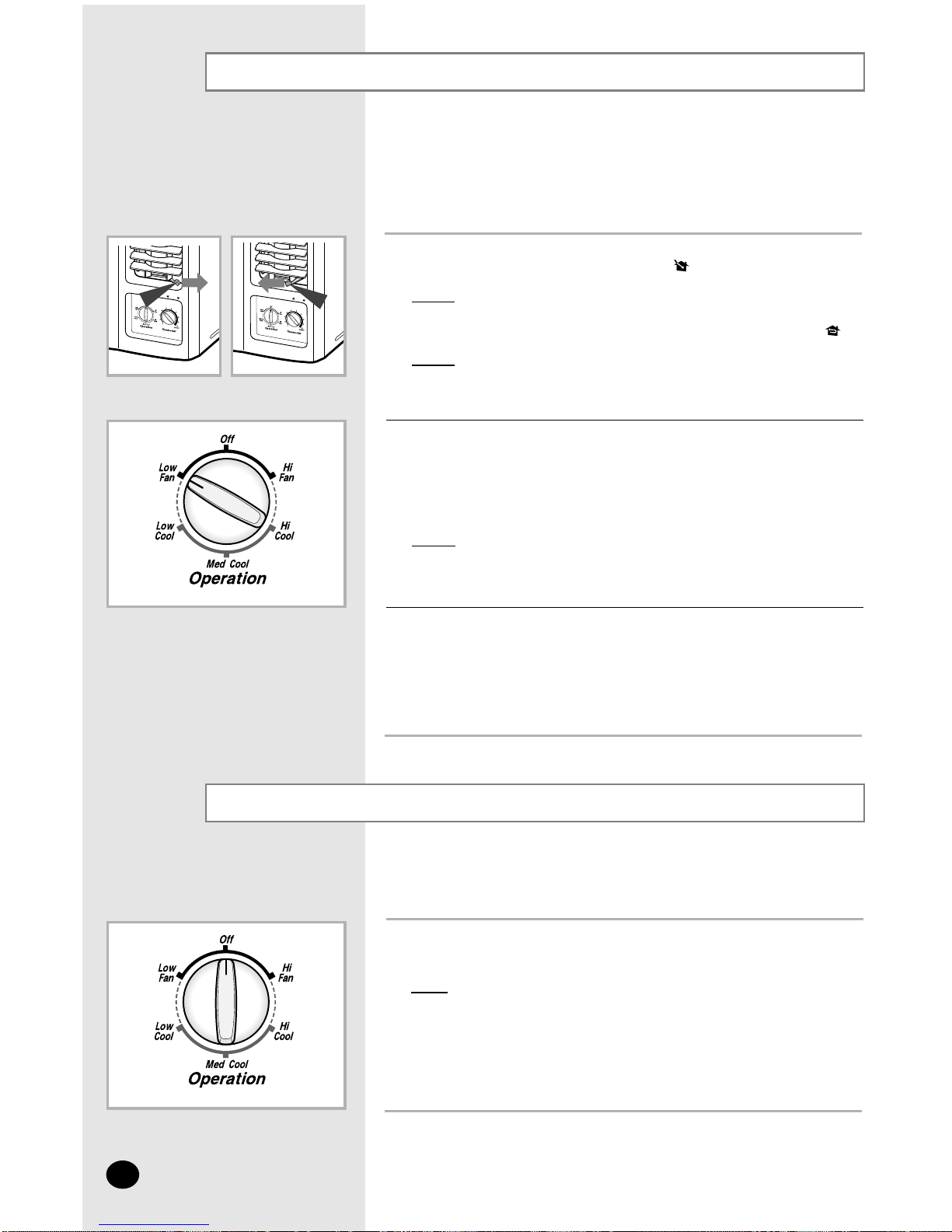

Airing Your Room

E-6

If the atmosphere in your room is stale, you can air it using

the Fan feature and if necessary, evacuate the stale air outside.

Set the operating mode selection dial to the HI FAN or LOW FAN

position.

HI FAN : The fan turns rapidly.

LOW FAN : The fan turns slowly.

Result: The air conditioner starts up in Fan mode.

To control the direction of the air flow, refer to page 7.

If you wish to evacuate stale air outside, push the ventilation lever on the front

of the unit to the right and the open position ( ).

Result:

The air inside the room circulates and stale air is evacuated outside.

Otherwise, push the ventilation lever to the left and the closed position ( ).

Result:

The air simply circulates inside the room.

➢

Switching the Air Conditioner Off

To switch the unit off, simply set the operating mode selection dial

to the OFF position.

Result: The air conditioner stops operating.

You can switch the air conditioner off whenever you want.

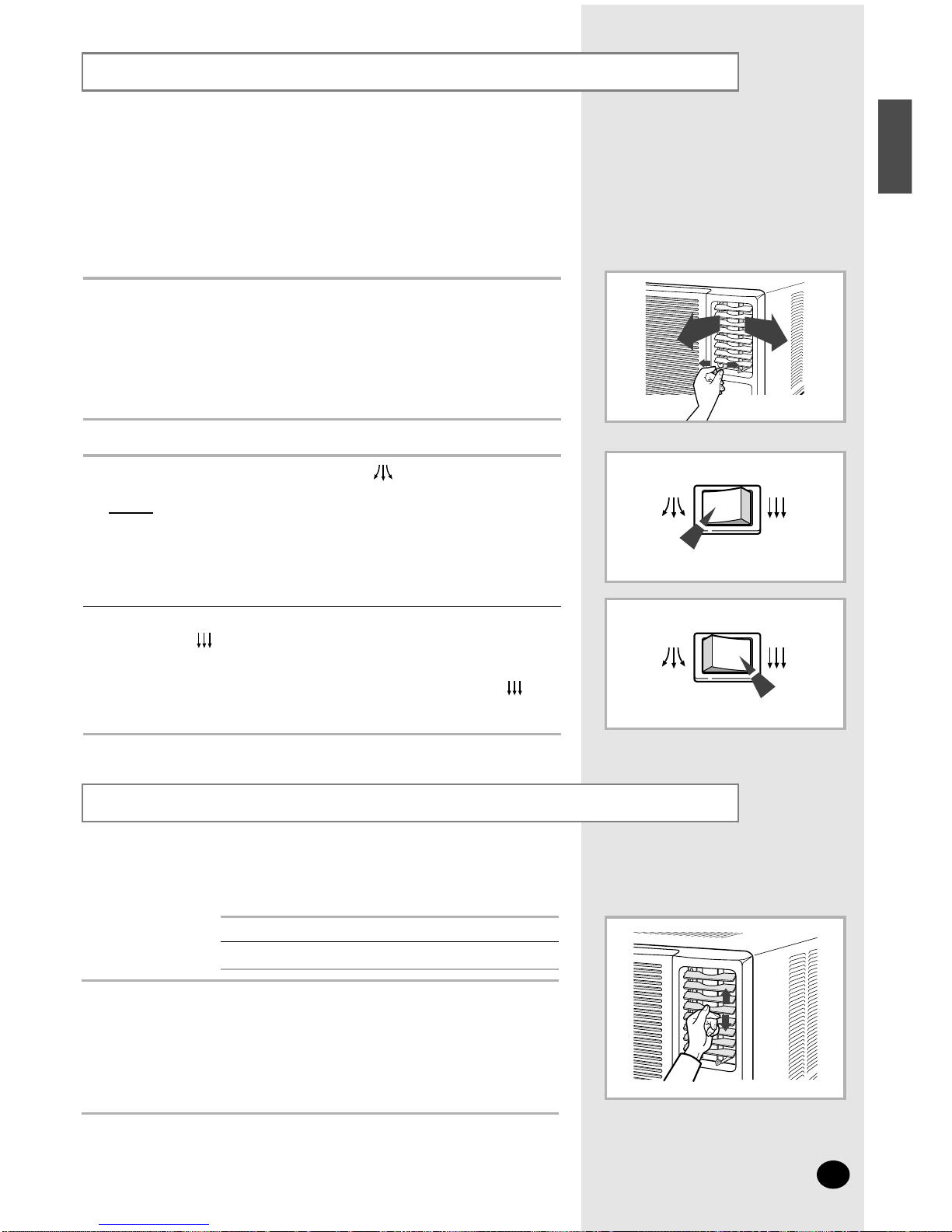

Adjusting the Air Flow Direction Horizontally

E-7

ENGLISH

Depending on the position of the unit in your room, you can adjust the

orientation of the inner air flow blades on the right-hand side of the

unit, thus increasing the efficiency of the air conditioner.

✦ ✴✴✴✴F1/F3/A1/A3/G1/G3✴✴✴ Models

✦ ✴✴✴✴F0/A0/G0✴✴✴ Models

To stop the blades moving left and right, set the air flow blade swing

switch to the position.

To stop the blades in a specific position and orient the air flow in

the corresponding direction, simply set the switch to the

position when the blades are in the desired position.

Hold the inner air flow blades, and adjust them to the desired direction.

Set the air flow blade swing switch to the position.

Result: The inner blades swing automatically left and right.

➢

Adjusting the Air Flow Direction Vertically

Again depending on the position of the unit in your room, you can adjust the

orientation of the outer air flow blades on the right-hand side of the unit.

RECOMMENDATION When...

Cooling

Adjust the blades to face...

Upwards.

Adjust the air flow blades to the desired position, by pushing them

upwards or downwards.

If you orient the air flow blades downwards and the unit operates

in Cool mode for long periods of time, dew may:

◆ Form on the surface of the blades

◆ Drip from the blades

➢

E-8

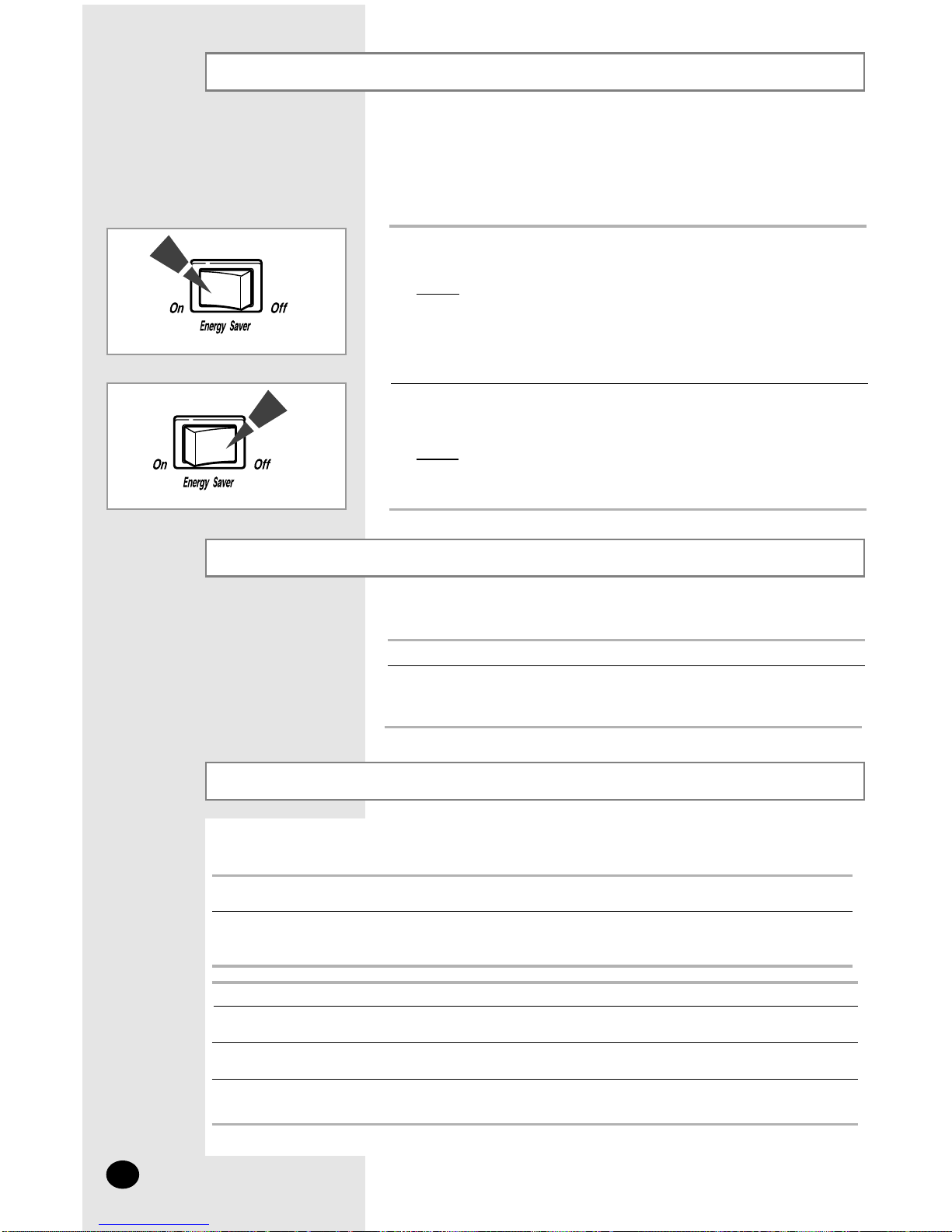

If you wish to save energy when using the air conditioner,

select the energy saving mode by using the Energy Saver switch.

This feature is normally used when the room is unoccupied.

To turn off the energy saving feature, set the Energy Saver switch to the

OFF position.

Result:

The fan runs at all times, while the compressor cycles on and off.

To select the energy saving mode, set the Energy Saver switch to the ON

position.

Result:

The fan and compressor cycle on and off simultaneously.

This results in wider variations of room temperature and humidity.

If you want to run the air conditioner in Fan mode, do not turn the

Energy Saver switch on. The Fan mode will not operate when the

Energy Saver switch is in the ON position.

Selecting Energy Saving Mode (Only ✴✴✴✴F3/A3/G3✴✴✴ models)

If the air conditioner is used at... Then...

Higher temperature The automatic protection feature may be triggered

and the air conditioner stopped.

Lower temperature A water leakage or some other malfunction may happen

if the heat exchanger freezes.

Higher humidity levels Water may condense on and drip from the surface of the unit

if it is used for long periods.

The following table indicates the temperature and humidity ranges

within which the air conditioner can be used.

Here is a recommendation that you should follow when using your

air conditioner.

Topic Recommendation

If a power failure occurs when the air conditioner is

operating, the unit is switched off. When the power returns,

the air conditioner starts up again automatically.

Power failure

Operating Recommendation

Temperature and Humidity Ranges

➢

Cooling 21°C to 32°C approx. 21°C to 43°C approx. 80% or less

21°C to 54°C approx.(Middle East)

Mode Indoor Temperature Outdoor Temperature Indoor Humidity

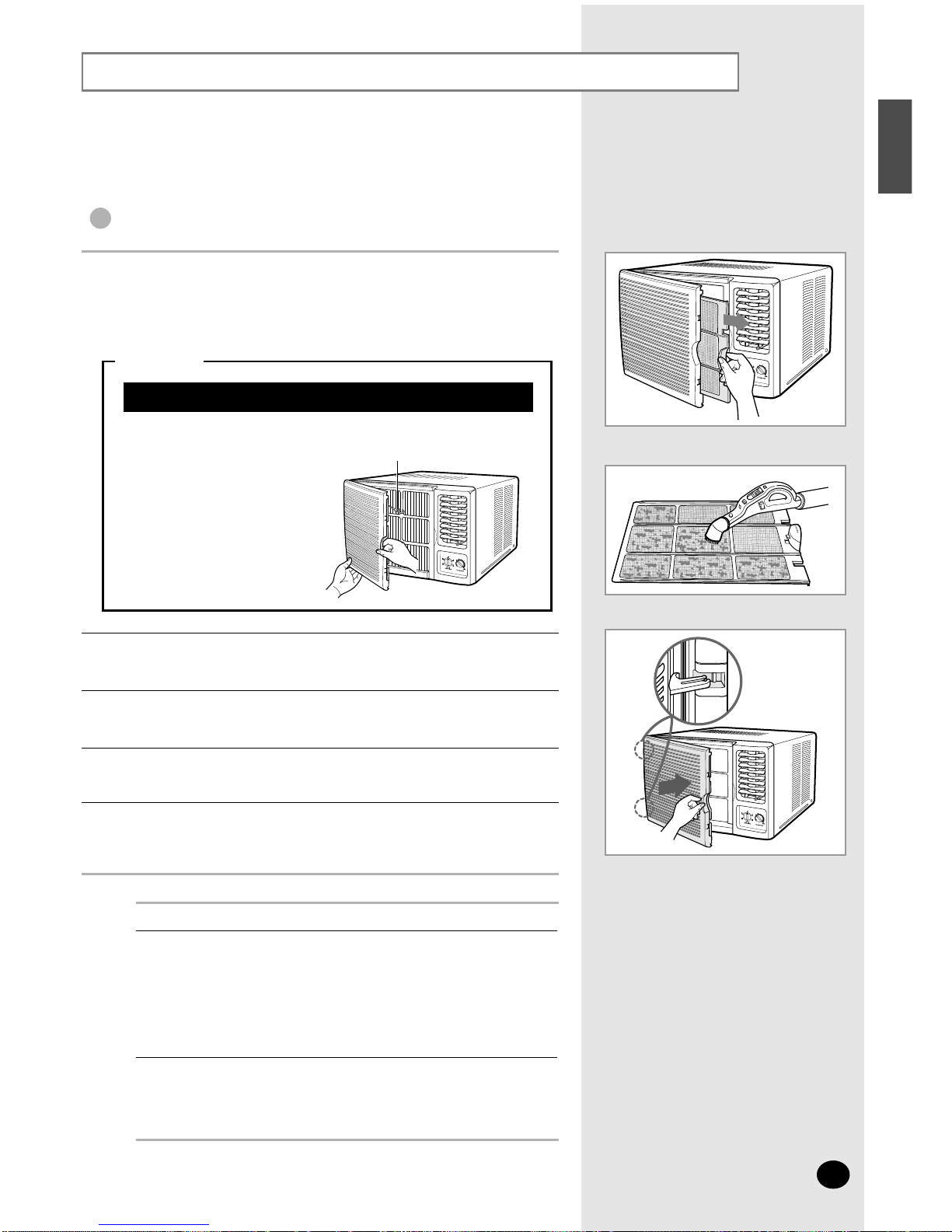

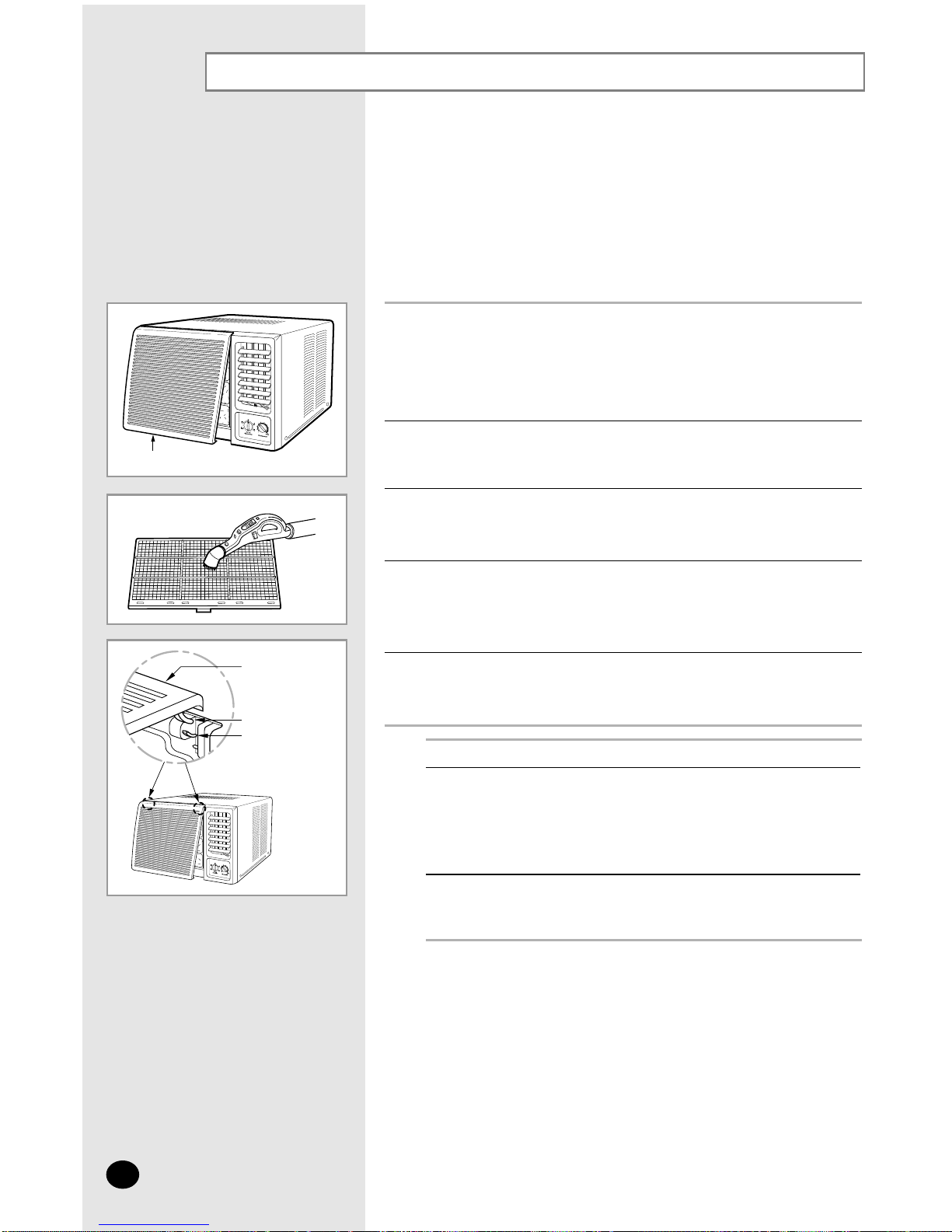

Cleaning Your Air Conditioner (✴✴✴✴F0/F1/F3✴✴✴ models)

E-9

ENGLISH

If you...

Will not be using the

air conditioner for a

long period of time

Have not used the air

conditioner for a long

period of time

Then...

◆ Set the operating mode selection dial

to “LOW FAN” and let it run of a few

hours to dry the inside of the air

conditioner thoroughly.

◆ Switch the air conditioner off and

unplug it from the wall socket.

◆ Clean the filter and outer surfaces.

Set the operating mode selection dial

to “LOW FAN” and let it run of a few

hours to dry the inside of the air

conditioner thoroughly.

Hold the air filter handle, slightly pull it to the left side and open the front grille.

Pull the air filter to the right side.

Remove all dust on the air filter with a vacuum cleaner or brush.

When you have finished, insert the air filter back into its original position.

Wipe the surface of the unit with a neutral detergent and then wipe it again

with dry cloth.

(Be sure not to use benzene, solvent or other chemical products.)

➢

The removal of the front grille makes it easier to clean the air

conditioner. Open the grille as much as possible.

➢

Be sure to clean the air filter periodically to maintain the air conditioner

in the best condition for a long period of time.

When cleaning the air conditioner, turn it off and pull out

the power plug.

IMPORTANT

Removal and Reassembly of the Front Grille

Grasp the lower part of the

front grille and the air filter

handle, then open the grille.

Remove the safety clip and

the front grille.

When reassembling the front

grille, you should install the

safety clip again.

For user's safety, a safety clip has been installed in the front grille.

Safety clip

CCAA

AAUU

UUTT

TTII

IIOO

OONN

The air conditioner has two or three

grille grooves depending on the model.

Cleaning Your Air Conditioner (✴✴✴✴A0/A1/A3/G0/G1/G3✴✴✴ models)

E-10

If you... Then...

Will not be using the ◆ Set the fan going for a few hours

air conditioner for a to dry the inside of the air conditioner

long period of time thoroughly.

◆ Switch the air conditioner off and

unplug it from the wall socket.

◆ Clean the filter and outer surfaces.

Have not used the air Set the fan going for a few hours to

conditioner for a long dry the inside of the air conditioner

period of time thoroughly.

To get the best possible use out of your air conditioner,

you must clean it regularly by two weeks to remove the dust on the air filter.

Before cleaning your air conditioner, ensure that it is

switched off and unplugged from the wall socket.

Open the front grille by pulling on the tabs of the unit.

The removal of the front grille makes it easier to clean the air

conditioner. After opening the front grille, lift it up as much as

possible, then pull down to release it.

Grasp the handle on the air filter and lift it slightly and then out to the front.

Remove all dust on the air filter with a vacuum cleaner or brush.

When you have finished, slide the air filter back into position.

Clean the outer surfaces with a damp cloth and mild detergent

(do NOT use benzene, solvents or other chemicals).

Wipe them dry with a clean, soft cloth.

☛

➢

Front grille

Grille groove

Body guide

Front grille

Ce manuel convient aux modèles suivants

170

Table des matières

Autres manuels Samsung Climatiseur

Samsung

Samsung AVXWVH022EE Manuel utilisateur

Samsung

Samsung AJ***JNADCH Series Mode d’emploi

Samsung

Samsung MOK-100LA Manuel utilisateur

Samsung

Samsung AM HNNDEH Series Manuel utilisateur

Samsung

Samsung AQV12ACME Manuel utilisateur

Samsung

Samsung AVXTFH056EA Manuel utilisateur

Samsung

Samsung AWT18WBHDE Manuel utilisateur

Samsung

Samsung AQ07A1VE Manuel utilisateur

Samsung

Samsung AVXWH series Manuel utilisateur

Samsung

Samsung PC1 WC Series Manuel utilisateur

Samsung

Samsung AWT18FAHBA Manuel utilisateur

Samsung

Samsung AM080FXWANR Manuel utilisateur

Samsung

Samsung DH105CAV Manuel utilisateur

Samsung

Samsung AP500PF Manuel utilisateur

Samsung

Samsung RS265TDBP Manuel utilisateur

Samsung

Samsung AQV09UWLNXSA Manuel utilisateur

Samsung

Samsung AMF12C2B/XAP Manuel utilisateur

Samsung

Samsung DC42GTVA Manuel utilisateur

Samsung

Samsung AQ18A1(A2)QE/B Manuel utilisateur

Samsung

Samsung Cassette Type Series Manuel utilisateur

Samsung

Samsung AQV18NS* Series Manuel utilisateur

Samsung

Samsung AVXDB*022** Manuel utilisateur

Samsung

Samsung SH18BP6 series Manuel utilisateur

Samsung

Samsung AR TSFA Series Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur

Webasto

Webasto Frigo Top 25 DS Manuel utilisateur

Frigidaire

Frigidaire FAZ12ES2A Manuel utilisateur
