Samsung AS09N8MD/AAE Manuel utilisateur

Split-type Room Air Conditioner

(Cool)

AS09N8MD

AS12NBMD

Indoor unit

OWNER'S INSTRUCTIONS

EDB98-16828A(1)

Safety Precautions

The following safety precautions must be taken when using your air conditioner .

Make sure that the indoor unit is correctly ventilated at all times; do NOT place clothing or other materials

over it.

NEVER spill liquid of any kind into the indoor unit. Should this happen, switch off the breaker used for your

air conditioner and contact your installation specialist.

Do NOT insert anything between the air flow blades, as the inner fan may become damaged and you may be

hurt. Keep children away from the indoor unit.

4 Do NOT place any obstacles in front of the outdoor unit.

5 If the remote control will not be used for a long time, remove the batteries.

Users of this product are cautioned not to attempt repair of this product at their own discretion.

Instead, they are requested to directly contact a designated service center or the outlet at which the

product was purchased.

If the supply cord is damaged, it must be replaced by a special cord or assembly available from the

manufacturer or its service centre.

8 This device must be installed according to the national electrical rules.

9 Before disposing of the remote control it is necessary to remove batteries.

The appliance is not intended for use by young children or infirm person without supervision;

young children should be supervised to ensure that they do not play with the appliance.

11 Max current is measured according to IEC standard for safety

and current is measured according to ISO standard for energy efficiency..

The manufacturer does not take any responsibility for any accidents that

occur because the air conditioner is not fixed firmly or installed securely,

during installing or using the product. In case you experience difficulty in

installation, you must use an installation specialist. An accident will occur

if the installation is not done as recommends in the installation guide.

E-2

CAU TIONCAU TION

E-3

ENGLISH

Contents

REPARING YOUR AIR CONDITIONER



Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2



View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4



Remote Control-Buttons and Display . . . . . . . . . . . . . . . . . . . . .5



Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6



Inserting the Remote Control Batteries . . . . . . . . . . . . . . . . . . . .7

PERATING YOUR AIR CONDITIONER



5 Way Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8



Selecting the Automatic Operating Mode . . . . . . . . . . . . . . . . . 9



Cooling Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10



Changing the Room Temperature Quickly . . . . . . . . . . . . . . . .11



Removing Excess Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . .12



Airing Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13



Adjusting the Air Flow Direction Vertically . . . . . . . . . . . . . . . .14



Adjusting the Air Flow Direction Horizontally . . . . . . . . . . . . . .14

ROGRAMMING YOUR AIR CONDITIONER



Setting the On Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15



Setting the Off Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16



Setting the Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

ECOMMENDATIONS FOR USE

Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . .18

Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . . .19

Cleaning Your Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . . .19

Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

ECHNICAL SPECIFICATIONS

E-4

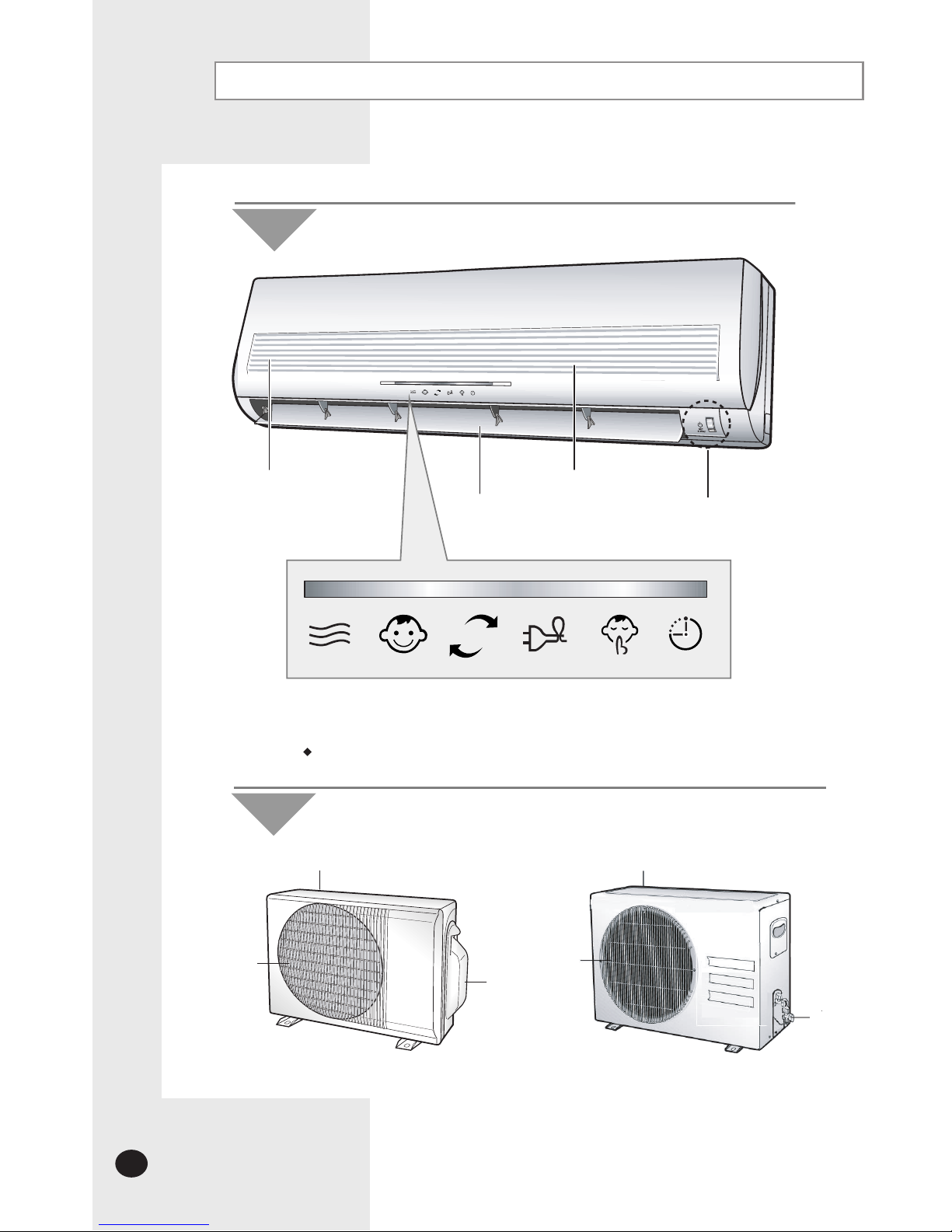

View of the Unit

The design and shape are subject to change according to the model.

Indoor Unit

Air filter

(under the grille) Air flow blades (outlet)

Air Inlet

On/Off & 5 Way

selection button/

Remote Control Sensor

For details on the 5 Way, refer to page 8.

NNoo

oott

ttee

The design and shape are subject to change according to the model.

Outdoor Unit

AS09(12)N8(B)MD

Power

Nature

Saving Silence

Standard

Timer

Power

Standard

Nature

SavingTimer

Silence

Air Inlet (Rear)

Air Outlet

Connection

Valve

(Inside)

Air Inlet(Rear)

Air Outlet

Connection

Valve

E-5

ENGLISH

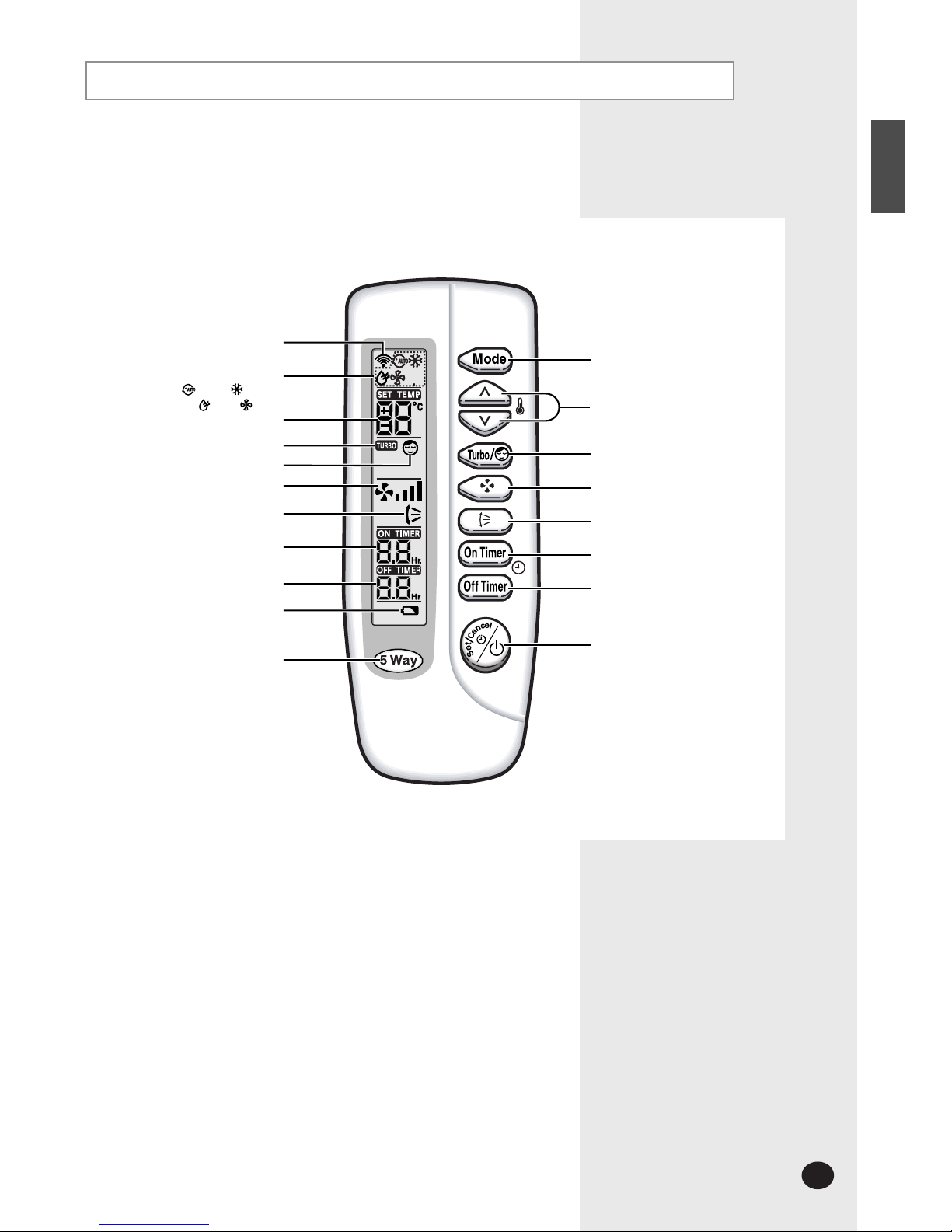

Remote Control - Buttons and Display

Operating mode

( AUTO, COOL,

DRY, FAN)

Remote control

transmission indicator Mode selection button

(AUTO, COOL, DRY, FAN)

Turbo/Sleep mode

selection button

Swing button

On Timer button

Off Timer button

On/Off &

Timer Set/Cancel button

Fan speed adjustment

button

Temperature adjustment

buttons

Temperature setting

Sleep mode

Turbo mode

Fan speed

Air flow direction

On Timer setting

Off Timer setting

Battery discharge indicator

5 Way selection button

E-6

etting Started

You have just purchased a split type air conditioner and it has been

installed by your installation specialist.

Your Owner’s Instructions contains valuable information on using your

air conditioner. Please take the time to read it as it will help you take full

advantage of the unit’s features.

The booklet is organized as follows.

The following figures are shown on pages from 4 to 5:

- Indoor and outdoor units

- Remote control(buttons and display)

They will help you find the buttons and understand the symbols displayed.

In the main part of the installation book, you will find a series of

step-by-step procedures for each function available.

The illustrations in the step-by-step procedures use three different symbols:

PRESS PUSH HOLD DOWN

E-7

ENGLISH

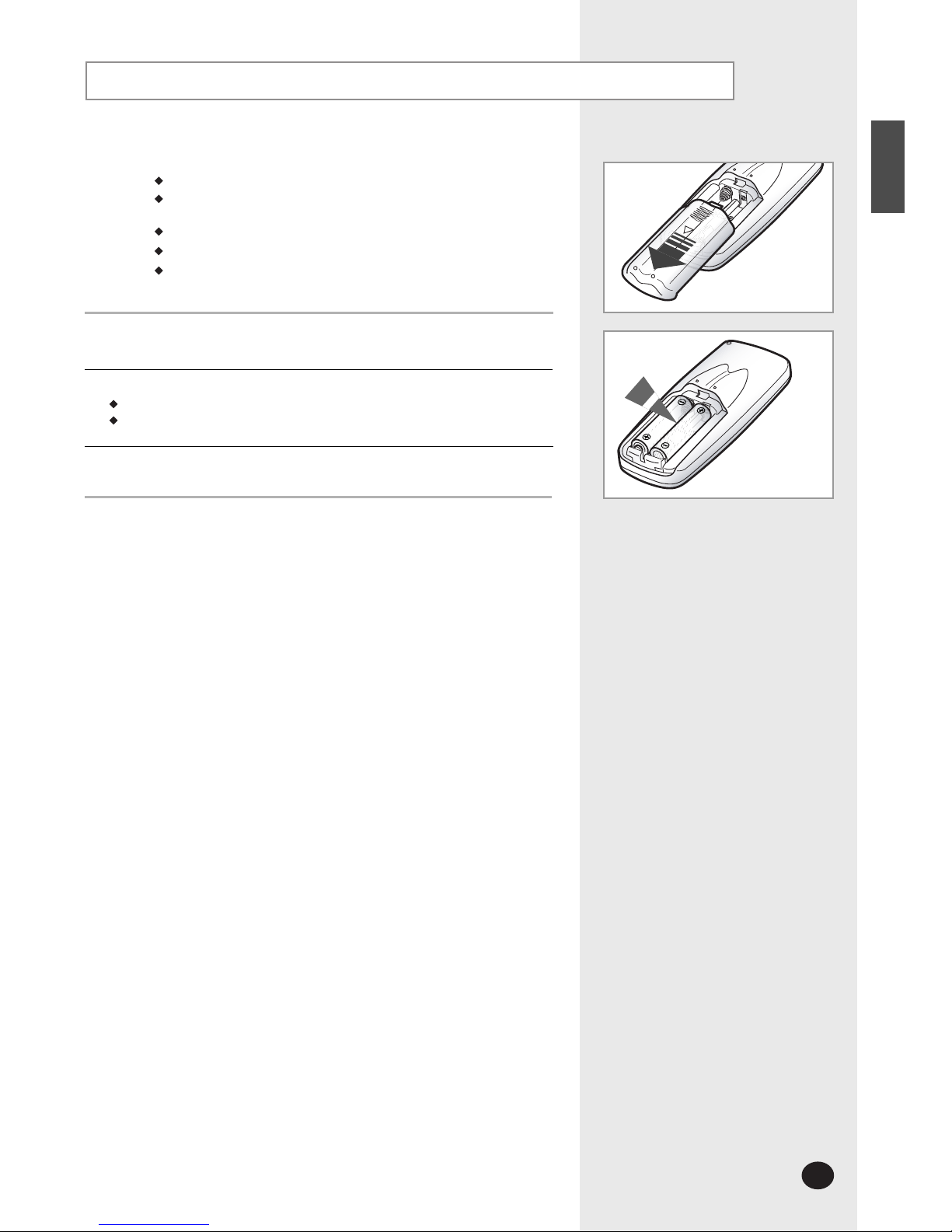

Inserting the Remote Control Batteries

Push the battery cover on the rear of the remote control with your thumb

in the direction of the arrow and remove it.

Insert the two batteries, taking care to respect the polarities :

+ on the battery with + on the remote control.

- on the battery with - on the remote control.

Close the cover by sliding it back until it clicks into place.

Use two AAA, LR03 1.5V batteries.

Do not use old batteries or different kinds of batteries together.

Batteries may be completely discharged after 12 months, even

if they have not actually been used.

You must insert or replace the remote control batteries when :

You purchase the air conditioner

The remote control does not work correctly

NNoo

oott

ttee

E-8

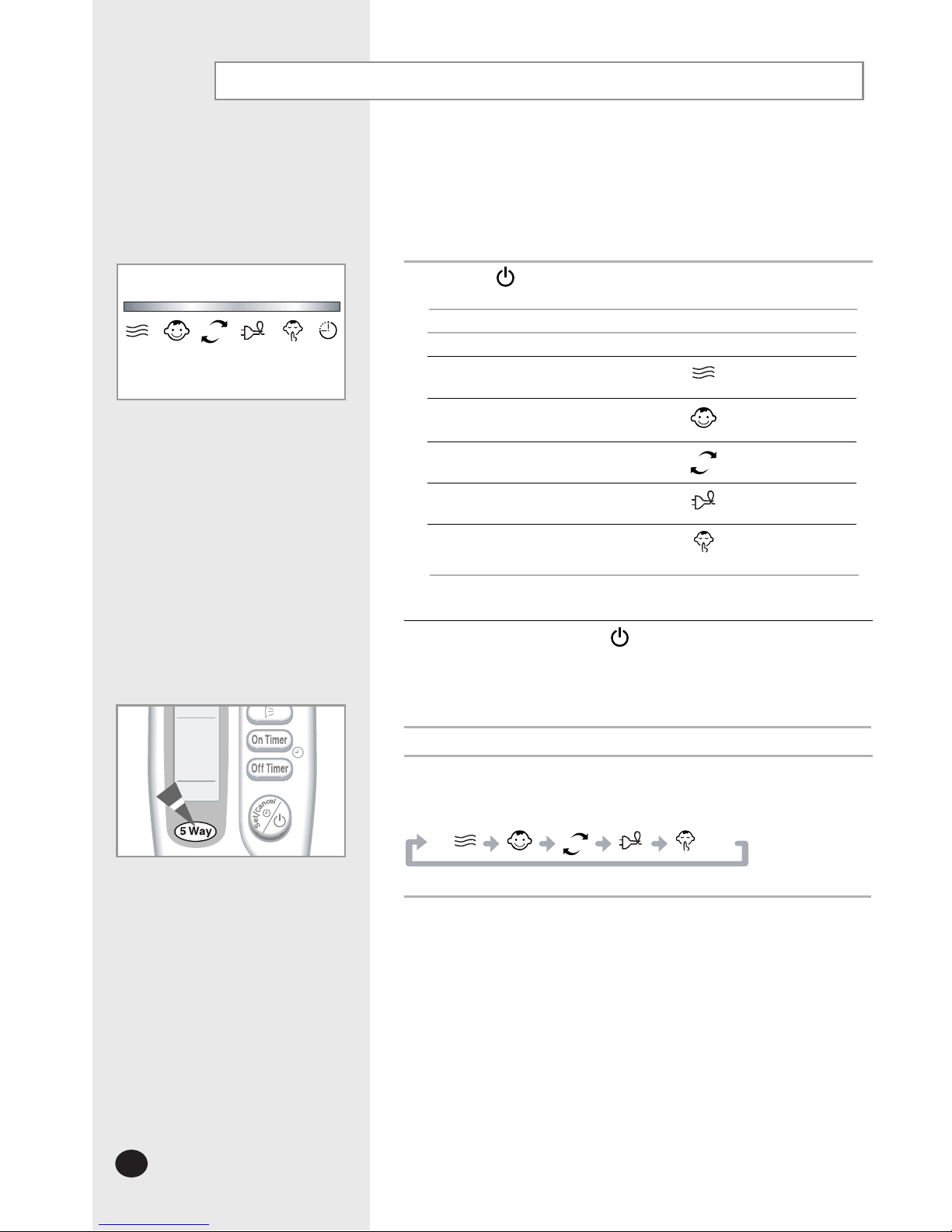

5 Way Function

Press the (ON/OFF) button one time and then select the desired

mode.

You can select the 5 Way function with operating mode of the air conditioner for

more comfortable circumstances. You can use the 5 Way function with the indoor

unit as well as the r emote contr ol. Thus, you can use this function

even though you have lost your remote contr ol.

Using with the indoor unit

To stop the operating, press the (ON/OFF) button until all indicators

turn off.

To select the 5 Way function with the remote control, press the 5 Way

button one or more times until the desired mode is selected.

Each 5 Way indicator on the indoor unit lights up in order.

Selecting with the Remote Control

Even if the air conditioner has been turned on via the ON/OFF

button on the unit, operations can still be controlled using the

remote control as usual.

NNoo

oott

ttee

To obtain a(n)...

Normal operating

Then select...

Reducing the uncomfortable

temperature gradually

High fan speed

Compressor run time reduced

Fan speed reduces as the temperature

decreases

AS09(12)N8(B)MD

Power

Nature

Saving Silence

Standard

Timer

Power

Standard

Nature

Saving

Silence

Power

Standard

Nature

Saving Silence

E-9

ENGLISH

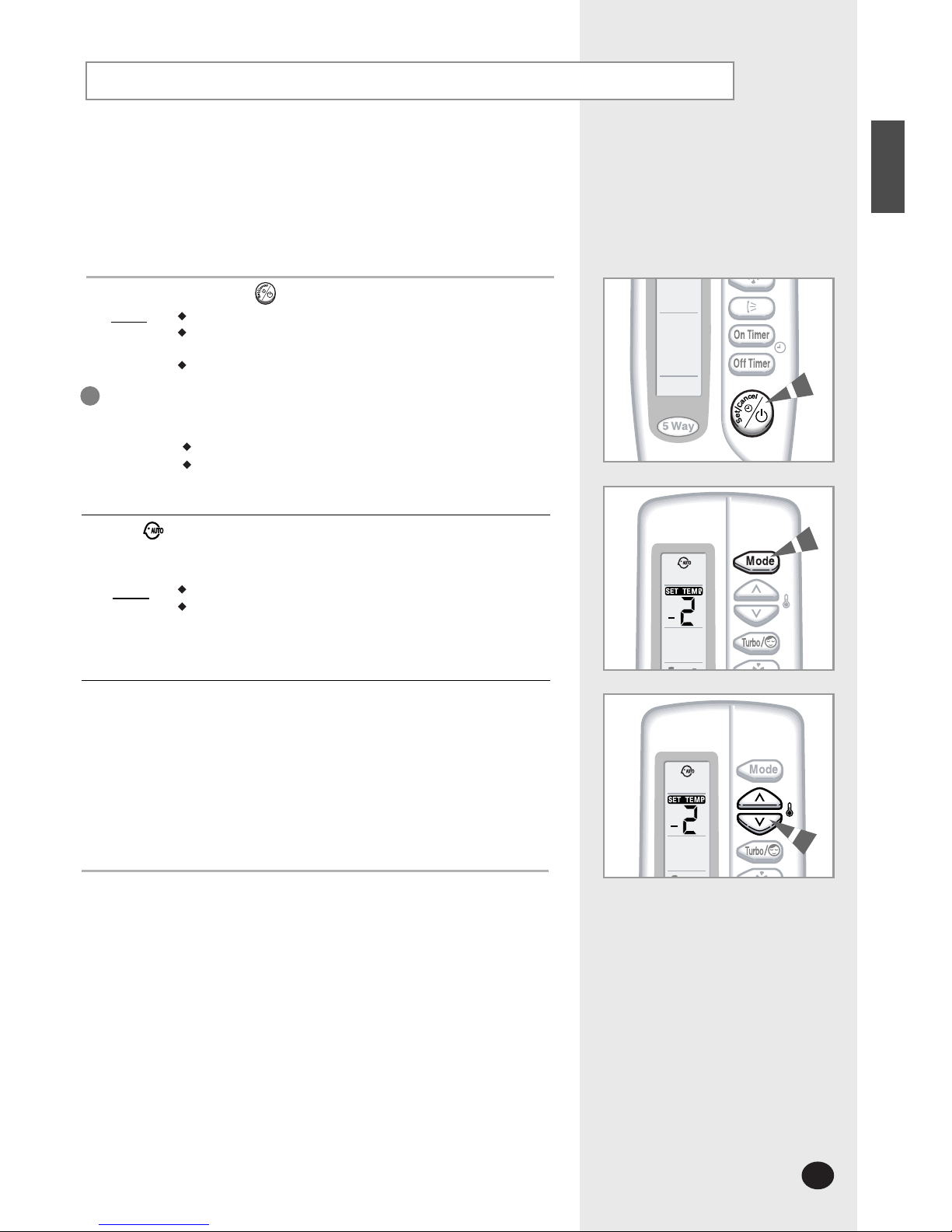

Selecting the Automatic Operating Mode

You can start the air conditioner in Automatic mode from your remote

control. In the Automatic mode, the standard temperature and the

optimum fan speed is selected automatically. You can adjust the

standard temperature but not the fan speed.

If the is not displayed at the top of the remote control,

press the MODE button on the remote control one or more times until it

appears.

Result

:The indoor unit beeps each time you press the MODE button.

The air conditioner runs in AUTO mode.

You can change modes at any time.

If necessary, press the (On/Off) button.

Result:The 5 Way indicator on the indoor unit lights up.

The air conditioner starts up in the mode selected

when the unit was last used.

The indoor unit beeps.

The air conditioner is fitted with a protection mechanism to

prevent the unit from being damaged when it is started

immediately after being:

Plugged in

Stopped

lt will start up normally after three minutes.

IMPORTANT

NNoo

oott

ttee

To adjust the standard temperature (The air conditioner automatically

set the standard temperature by the current room temperature.),

press the TEMPERATURE buttons one or more times.

SET TEMP. SET TEMP. -SET TEMP. SET TEMP.

-2

C-1

CStandard temperature +1

C +2

< When you feel hot > < When you feel chilly >

E-10

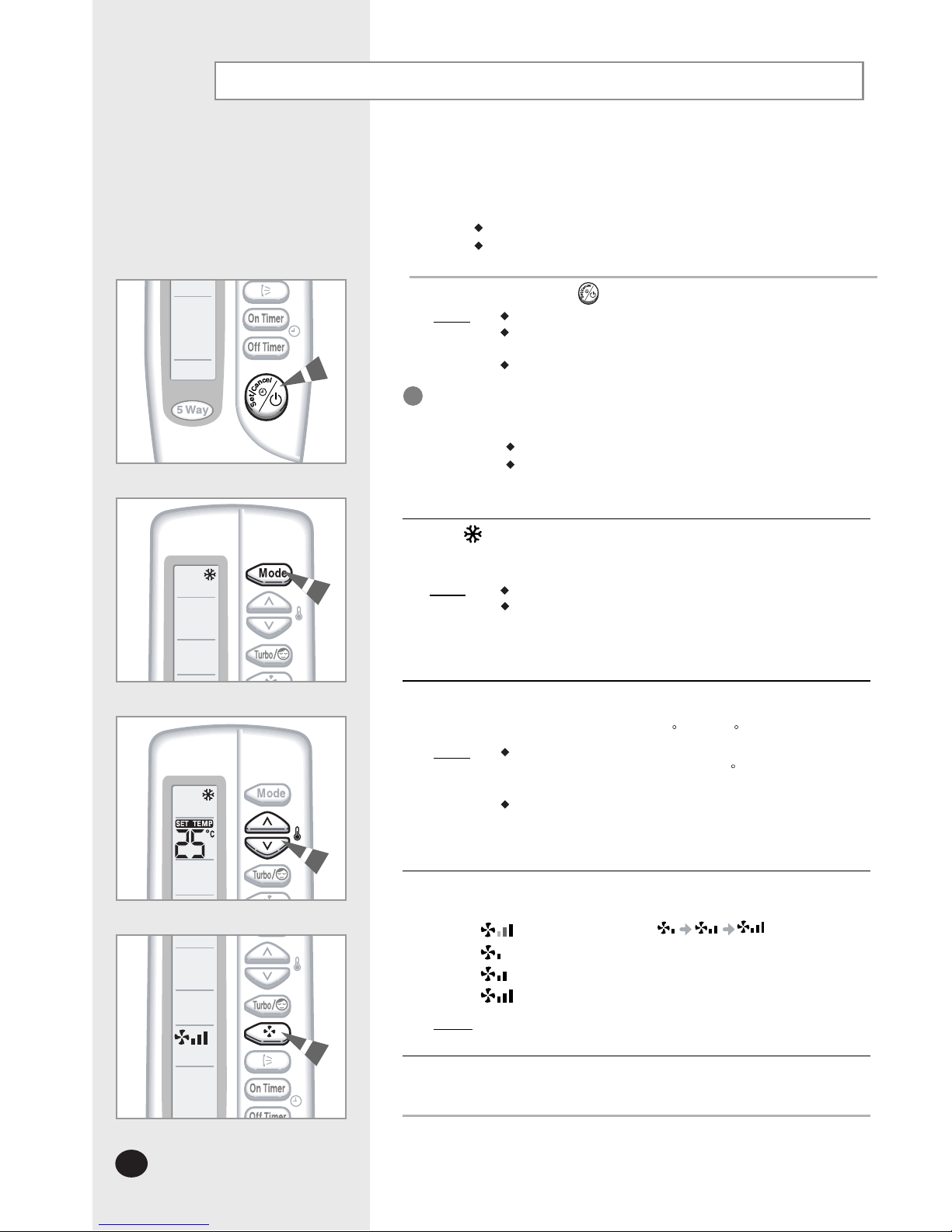

Cooling Your Room

1If necessary, press the (On/Off) button.

Result:The 5 Way indicator on the indoor unit lights up.

The air conditioner starts up in the mode selected

when the unit was last used.

The indoor unit beeps.

The air conditioner is fitted with a protection mechanism to

prevent the unit from being damaged when it is started

immediately after being:

Plugged in

Stopped

lt will start up normally after three minutes.

IMPORTANT

If the is not displayed at the top of the remote control,

press the MODE button on the remote control one or more times until it

appears.

Result:The indoor unit beeps each time you press the MODE button.

The air conditioner runs in COOL mode.

You can change modes at any time.

NNoo

oott

ttee

To adjust the temperature, press the TEMPERATURE buttons one or

more times until the required temperature is displayed.

Possible temperatures are between 18 C and 30 C inclusive.

Result:

Each time you press the TEMPERATURE buttons:

- The temperature is adjusted by 1 C

- The indoor unit beeps

The air conditioner starts cooling, provided that the room

temperature is higher than the selected temperature;

the fan will, however, operate.

Select the fan speed by pressing the FAN button one or more times

until the required setting is displayed:

Automatic (rotated : )

Low

Medium

High

Result: Each time you press the FAN button, the indoor unit beeps.

To control the direction of the air flow, refer to page 14.

You must select the Cool mode if you wish to adjust the:

Cooling temperature

Fan speed when cooling

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Samsung Climatiseur

Samsung

Samsung NS100SSXEA Manuel utilisateur

Samsung

Samsung AW07A(G)2NBA/DE/EA Guide de configuration

Samsung

Samsung AR JV5N Series Mode d’emploi

Samsung

Samsung AR TX AWKNEU Series Manuel utilisateur

Samsung

Samsung AWT18SBWDA Manuel utilisateur

Samsung

Samsung AM BN4PCH Series Manuel utilisateur

Samsung

Samsung EH035CAV Manuel utilisateur

Samsung

Samsung SH07AP4E Manuel utilisateur

Samsung

Samsung AHU Series Manuel utilisateur

Samsung

Samsung AVXWN022 Manuel utilisateur

Samsung

Samsung APC4082EC Manuel utilisateur

Samsung

Samsung AR**KSPD Series Manuel utilisateur

Samsung

Samsung AQB18J6WC Manuel utilisateur

Samsung

Samsung AR18NSFPEWQNEU Manuel utilisateur

Samsung

Samsung AQ09FDN Manuel utilisateur

Samsung

Samsung AQ12AAMC Manuel utilisateur

Samsung

Samsung MH020FVEA Manuel utilisateur

Samsung

Samsung AQ07XLN Manuel utilisateur

Samsung

Samsung AR24CSDADWKNCV Manuel utilisateur

Samsung

Samsung AR TVHA Series Manuel utilisateur

Samsung

Samsung AC BN4PKG Series Manuel utilisateur

Samsung

Samsung AVXC1H022 series Manuel utilisateur

Samsung

Samsung AC RXAD G Series Manuel utilisateur

Samsung

Samsung DIGIMAX A6 Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur

Webasto

Webasto Frigo Top 25 DS Manuel utilisateur

Frigidaire

Frigidaire FAZ12ES2A Manuel utilisateur
