Samsung AC026MNADKH/EU Manuel utilisateur

ECC F040

ECC Product Support

Technical Tip

Reference:

Issue No. 1

Issue Date: 20170419

Original / Supersedes

Supplements / :

Original

Title:

Quick guide for accessory connection to NASA high wall

units.

Compiled by: Joakim

Andersson

Approved by: Jimmy

Cederlund

For more information view the latest User or Service manuals.

If you have any questions please raise them via the QNA section of GSPN.

Page 1 of 5

Models

AC026MNADKH/EU, AC035MNADKH/EU , AC052MNADKH/EU

AC071MNADKH/EU, AC026KNADEH/EU, AC035KNADEH/EU

AC071KNADEH/EU

Issue

Installers asking for how to connect wired remote controllers and Wi-Fi

kits. Information is not in the indoor unit installation manual and the

controller manuals describe how to connect to units with connection plinth.

Description

Remove the caps and screws,

For more information view the latest User or Service manuals on GSPN. If you have any questions please

raise them via the Subsidiary Technical Support

Page 2 of 5

Unlock the side hooks 1 and 2 then the centre hooks attached to the fixing

plate.(If unit is already installed on the wall push it gently upwards to

unlock. Then unlock the bottom hooks, their possition is marked by arrows

on the outide of the lower cover.

For more information view the latest User or Service manuals on GSPN. If you have any questions please

raise them via the Subsidiary Technical Support

Page 3 of 5

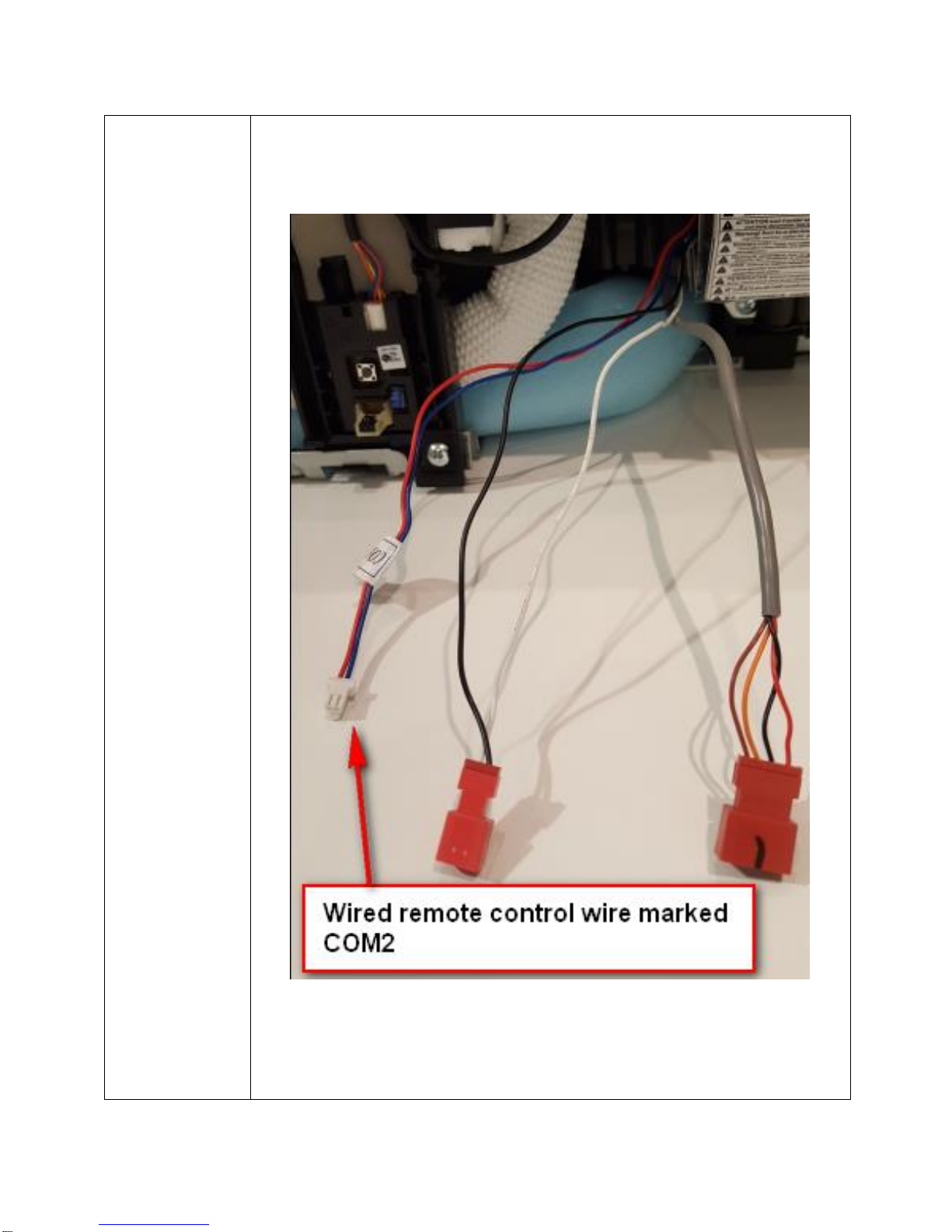

The wire harness for accesories will become visible after removing the

cover. Cut of the connector and connect a suitable cable length for the

wred controller, make sure power is off to avoid short contact during

work. Use cabel area 0.25-1,25mm2.

For more information view the latest User or Service manuals on GSPN. If you have any questions please

raise them via the Subsidiary Technical Support

Page 4 of 5

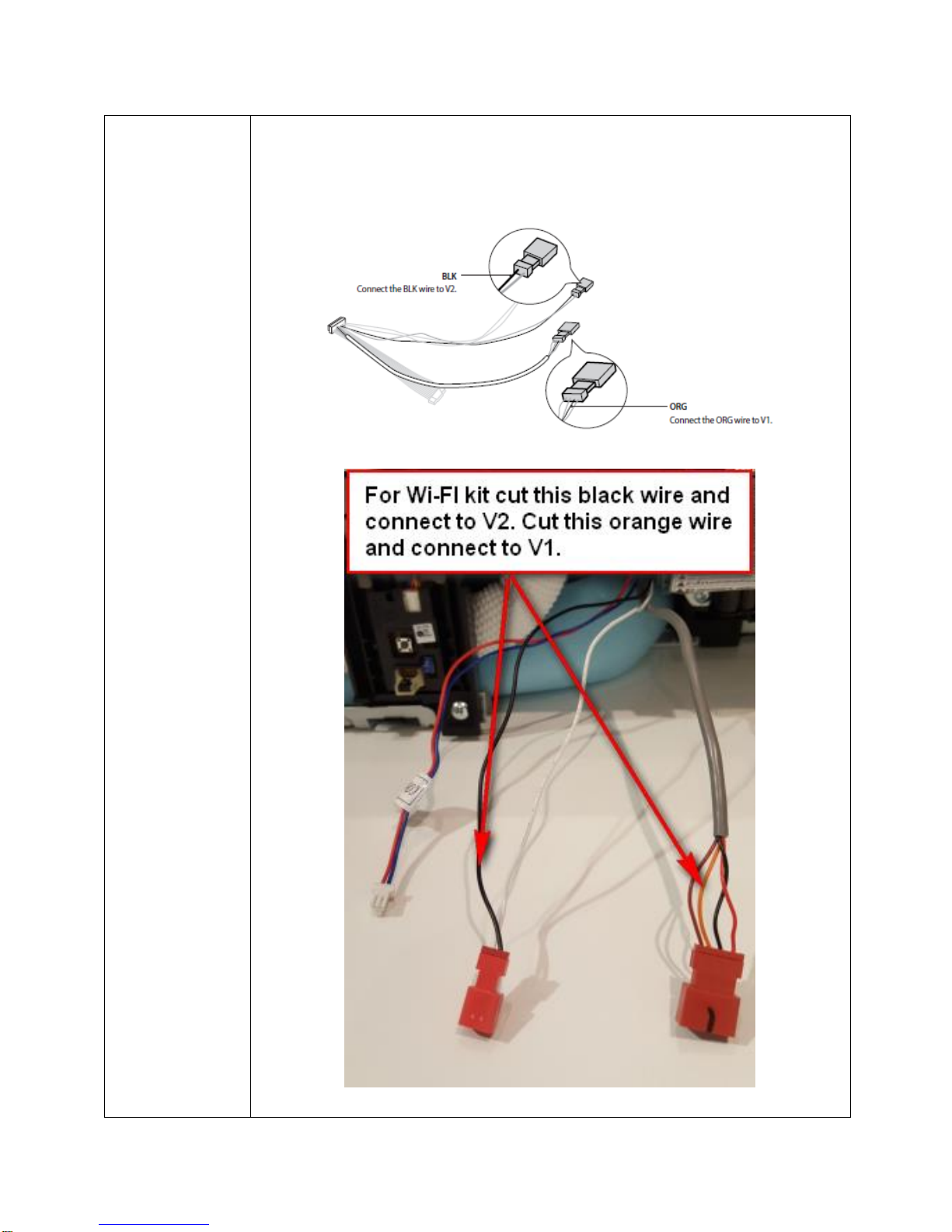

To connect a Wi-Fi kit MIM-H03N to a NASA high wall unit you need to find

the 12VDC power supply for the Wi-Fi kit. Please note that the

communication is connected to F1/F2 (Not remote control connector)

Picture from Wi-Fi kit installation manual.

Picture from real unit.

For more information view the latest User or Service manuals on GSPN. If you have any questions please

raise them via the Subsidiary Technical Support

Page 5 of 5

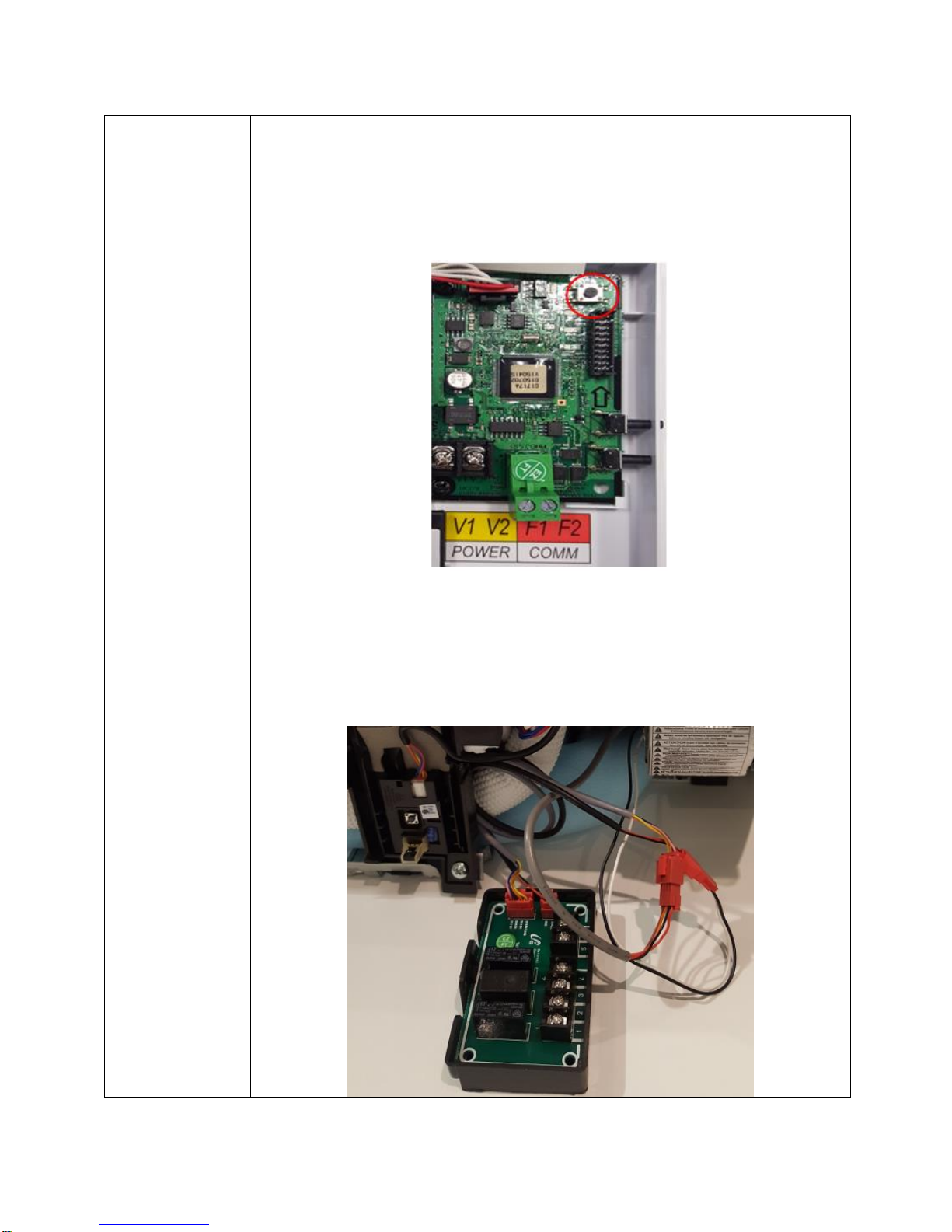

Make sure to change the installation option code #Seg5 for centralized

control prior to tracking of the Wi-Fi kit. If the W-Fi kit is installed prior to

doing this it needs to be tracked again, by pressing SW3 inside the Wi-Fi

kit shortly. (Holding SW3 down for over 5 seconds and releasing sets it

back to factory default). Do not set any RMC- addresses for a single

system or when the same user is to control all units in the same system.

Complete the set up by following instructions in the Smart Home App.

External contact interface MIM-B14 is connected as shown in the picture

below. Installation option codes #Seg14 and 15 set depending on functions

wanted. By using the holder without lid following MIM-B14 it can be fitted

on the inside of the lower cover.
