INSTALLER / USER MANUAL
iT600 VS05 Installer - User Manual_Layout 1 06/06/2014 10:03 Page 1
02 VS05 Installer Manual
Contents
1 x Installer / User manual VS05
Dial Thermostat
Models: VS05
INSTALLER / USER MANUAL
Fixing screws
Contents
Introduction.
Product Compliance.
Safety information.
Installer Parameters.
Thermostat Installation.
Mounting position and
installation.
System grouping and
communication.
System option 1.
All programmable
thermostats.
Parameter settings.
User interface.
LED indication when
following Group Master.

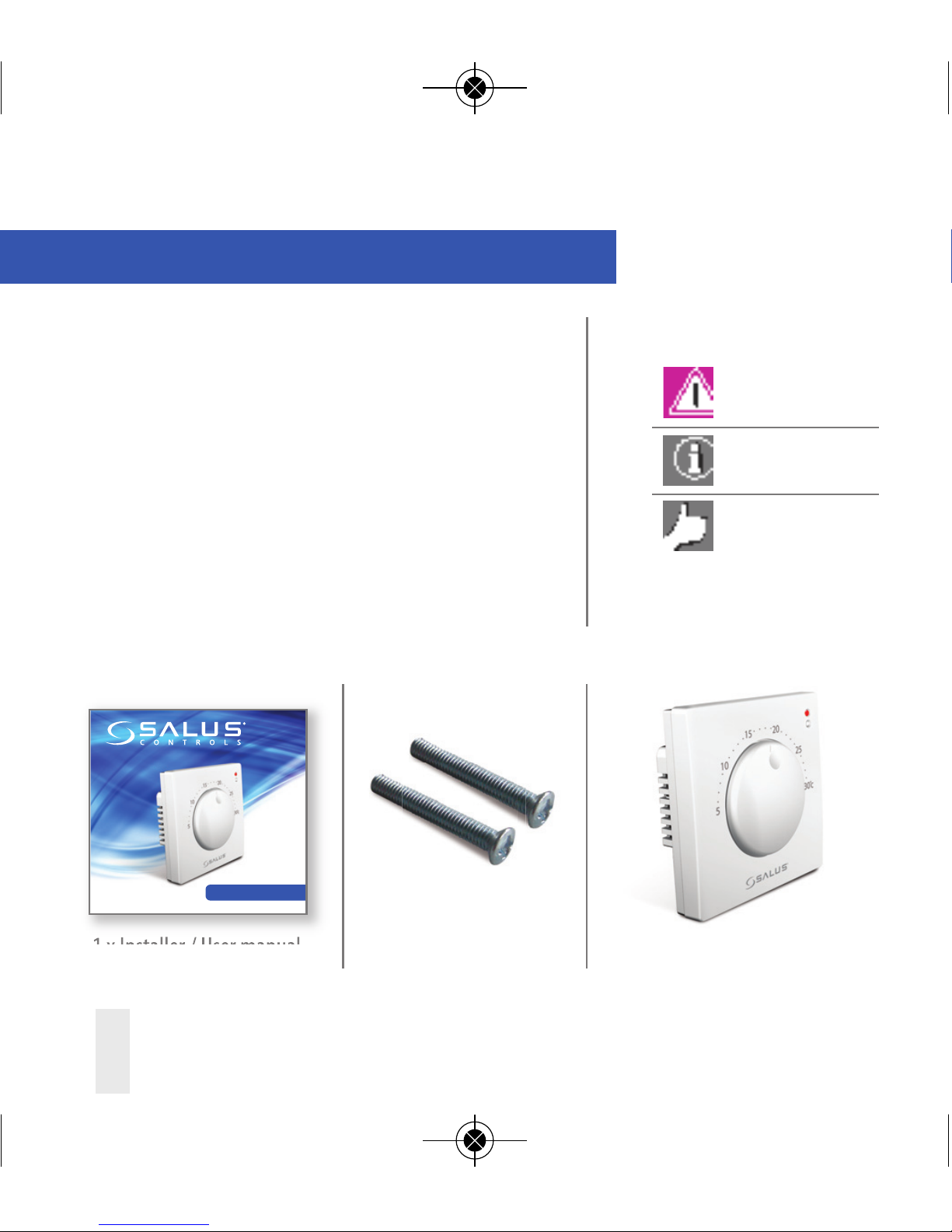

Box Contents
Icons used in this manual:
Safety
Important info
Your benet
iT600 VS05 Installer - User Manual_Layout 1 06/06/2014 10:03 Page 2
Product Compliance & Safety Information
We hope you enjoy this product...
VS05 Installer Manual 03
INTRODUCTION
Thank you for purchasing the SALUS room
thermostatVS05. TheVS05 is a 230V dial
thermostat which oers simple temperature
control of your heating system.
SALUS recommends that you use your VS05
with the SALUS KL10 and VS10. TheVS10 can be
used as a group master and connected using
the data cable see page xx.
Product Compliance
This product is CE compliant and meets the
following EC Directives Electro-Magentic
Compatibilty directive 2004/108/EC
Low voltage Directive 2006/95/EC
Safety Information
Use in accordance with the regulations
The SALUSVS05 is to be used for room
control of hot water heating systems
Inside the house
Installation
This product must be tted by a competent
person, and installation must comply with the
guidance, standards and regulations applicable
to the city, country or state where the product
is installed. Failure to comply with the
requirements of the relevant guidance,
standards and regulations could lead to injury,
death or prosecution.
Always isolate the AC mains supply
before installing or working on any components
that require 230V AC 50Hz supply.
iT600 VS05 Installer - User Manual_Layout 1 06/06/2014 10:03 Page 3
Product Compliance & Safety Information
Sources of danger
The thermostat must be disconnected from mains
supply before removing the cover.
230V AC
Emergency
Switch o the voltage to the indivdual thermostat
wiring centre or Complete system.
Installer parameter settings
The SALUSVS05 is equipped
with installer paramter section
this must only be entered
by the installer or comptent
Person. Changing these parameters
Can have a serious eect on
Your heating system.
For the installer
Please enter any parameter
Changes in the installer notes section
04 VS05 Installer Manual
iT600 VS05 Installer - User Manual_Layout 1 06/06/2014 10:03 Page 4
VS05 Installer Manual 05
Installation –Thermostat Mounting
Not to be positioned on an exterior wall.
Mounting position and installation

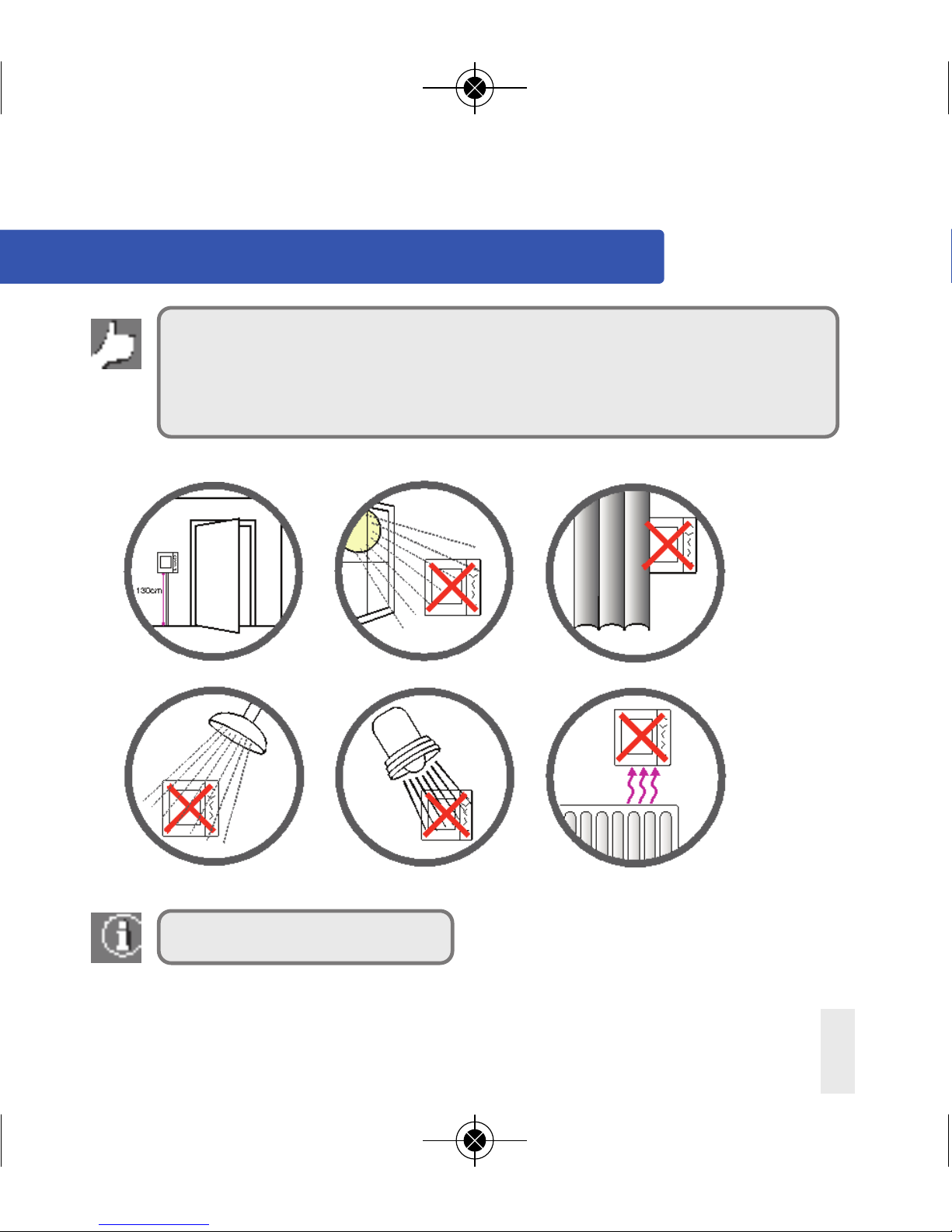

To ensure trouble free operation and ecient control, the unit is best positioned in a draft free
area and at 130cm from the oor. Do not position the thermostat near any heat source, behind
curtains, direct sunlight or an area of high humidity.
iT600 VS05 Installer - User Manual_Layout 1 06/06/2014 10:03 Page 5
06 VS05 Installer Manual

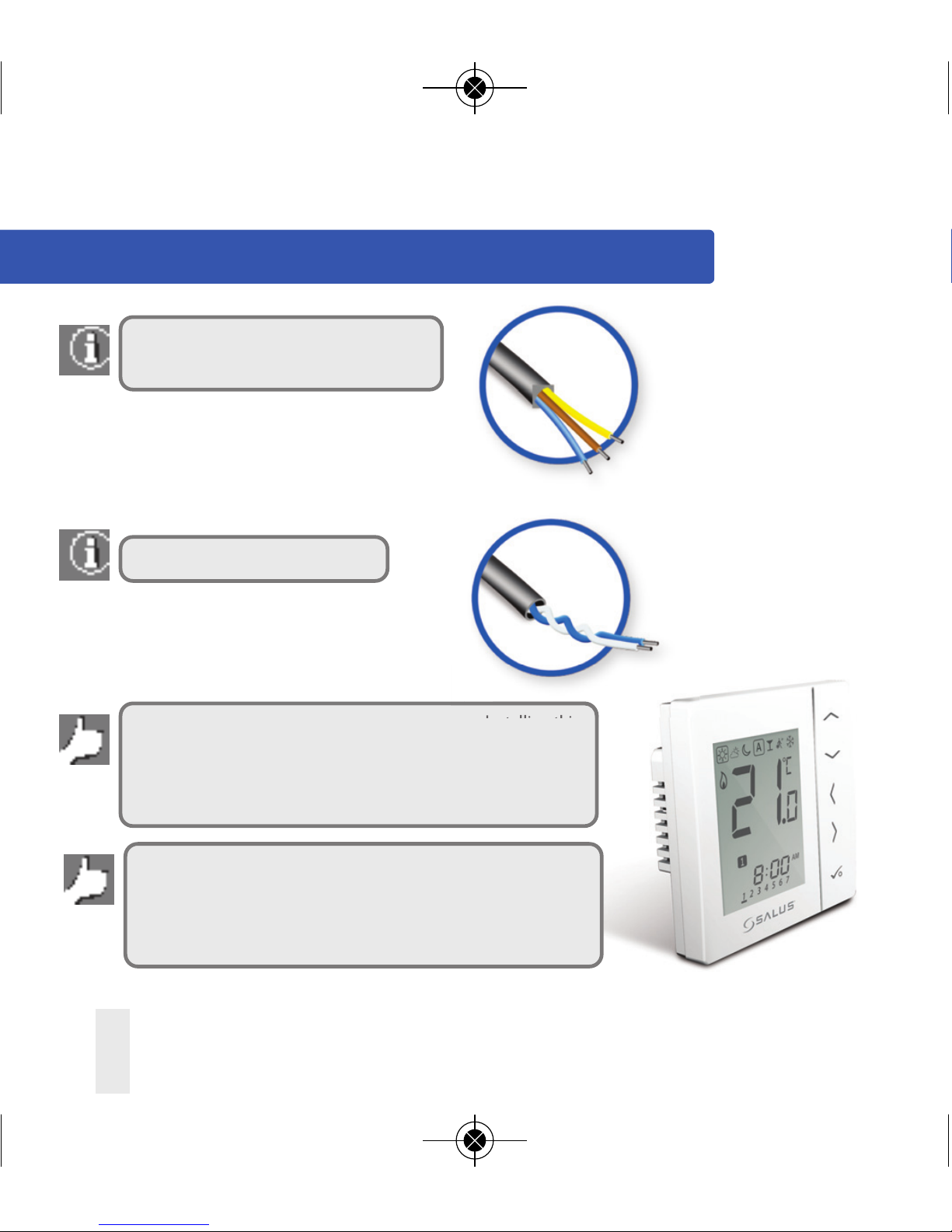

System Overview Grouping and Communication
Power and Switching Cable –
used to power thermostats and drive output
Grouping and Communication cable
While the thermostats can function as standalone , Installing this
Optional inexpensive Communication cable allows the thermostats
to communicate with the SALUSVS10 congured as a group master
through the SALUS KL06 WC( both sold separately).
The VS05 will follow instructions of the VS10 Bringing central
control of features such as Time control, Holiday & Party functions
as well as frost control.TheVS05 can leave or re-enter group control
at the slide of a switch.
VS10 Group master
(sold separately )
iT600 VS05 Installer - User Manual_Layout 1 06/06/2014 10:04 Page 6
VS05 Installer Manual 07
Introduction
The systems below although not exhaustive show the main options. The maximum number of groups per KL10
wiring centre is two. The group selection communication cable must correspond to the group terminals on the
KL10 WC. Please refer to note xx and the KL10 installation guide.
Group 1 – For Example Down stairs Group 2 – For Example upstairs
SALUS KL10
iT600 VS05 Installer - User Manual_Layout 1 06/06/2014 10:04 Page 7
08 VS05 Installer Manual
Installation –Thermostat Mounting
1
3
2
60mm
Wall Mounting

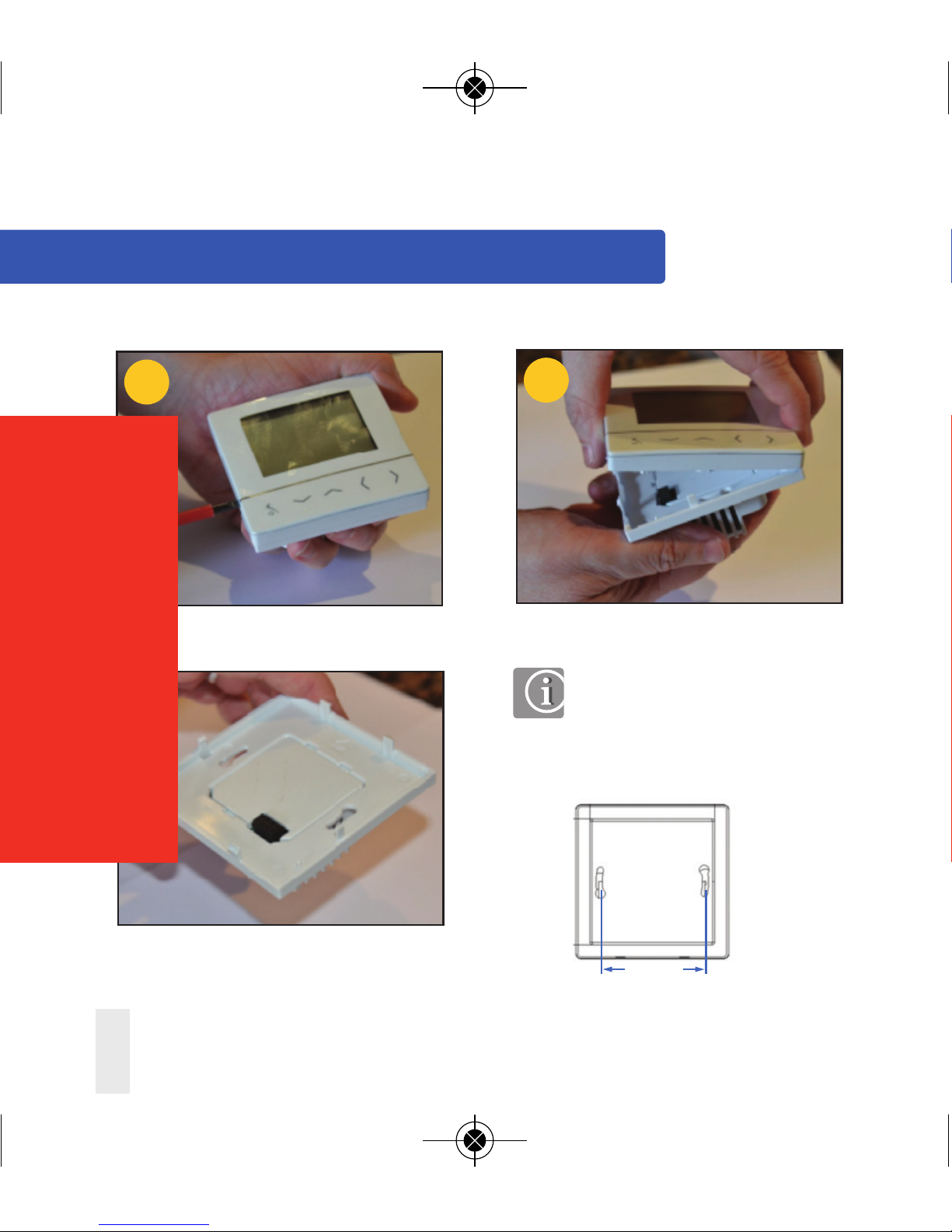

For wall mounting, mark and
mount the rear case to the wall.
TheVS05 is suitable for wall boxes
with a centre hole distance of :
Gently remove front housing.
iT600 VS05 Installer - User Manual_Layout 1 06/06/2014 10:04 Page 8
VS05 Installer Manual 09
Installation – Terminal Connections
Understanding your terminal connections
Rear of VS05
Power Terminals 230 Vac
Used for supplying power to the
unit and switched output.
Sensor Terminals
Can be used for external AIR,
Floor sensor when congured
as thermostat. Can also be
used for Cylinder thermostat
when calling for HW.
Communication Terms 12VDC
Two wire twisted pair
can be used for Grouping
Functions between
Programmable, Digital and HW,
Dial and also for Heat/Cool changeover
3
1
2
3 2 1
iT600 VS05 Installer - User Manual_Layout 1 06/06/2014 10:04 Page 9
10 VS05 Installer Manual

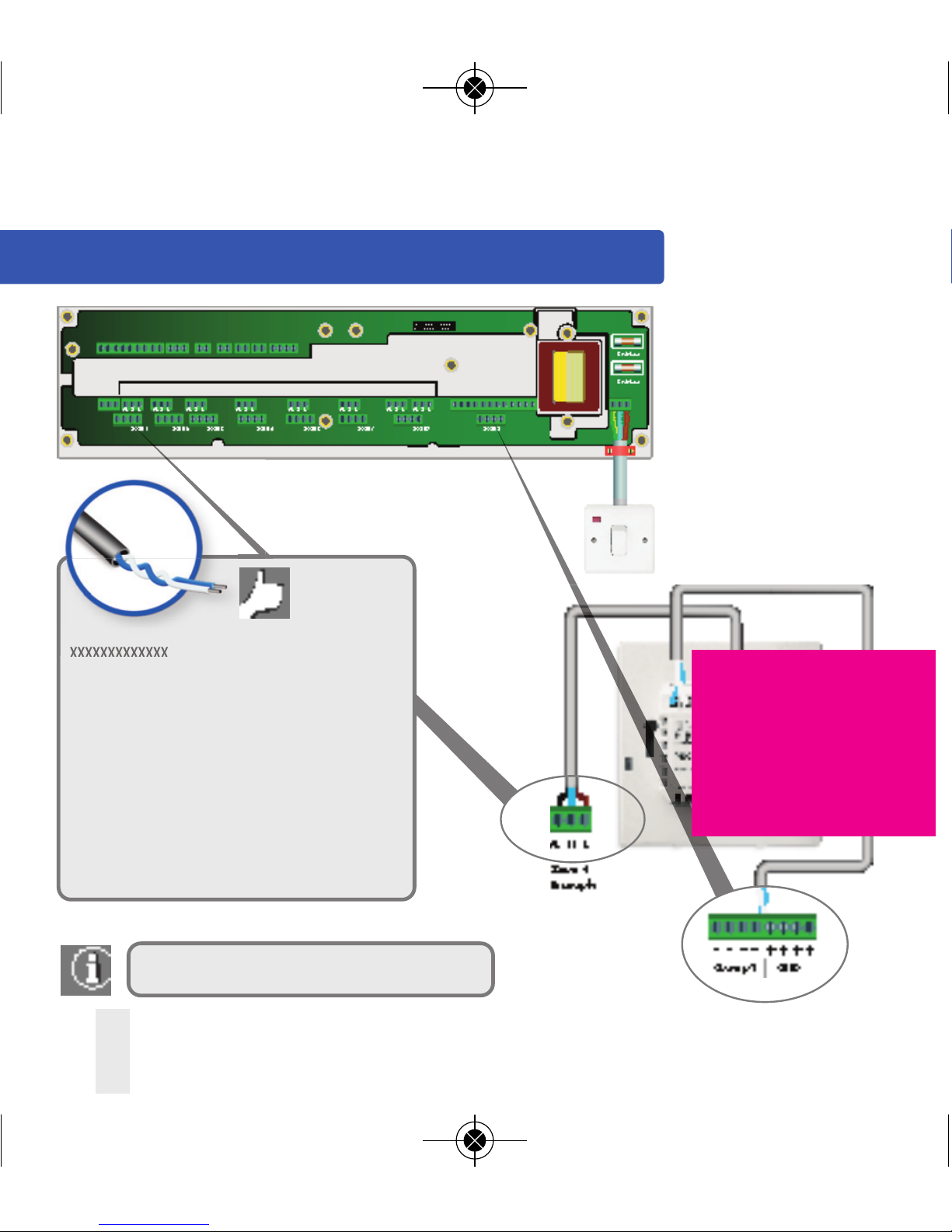

Installation –Thermostat Connections
xxxxxxxxxxxxx
Optional communication
connection 12VBC
xxxxxxxxxxx
LABEL
& TEXT
iT600 VS05 Installer - User Manual_Layout 1 06/06/2014 10:04 Page 10
