Salus QUANTUM SQ610RF Manuel utilisateur
IX 2019
2
Introduction
The SQ610RF Quantum is a ZigBee temperature controller for wireless control of iT600 series devices, such as
the KL08RF wiring centre, miniTRV head, RX10RF boiler control module.
In order to control SQ610RF over the Internet or via the SALUS Smart Home mobile app (ONLINE mode), it
must be installed together with the UGE600 Internet gateway (sold separately). From the application level, it is
possible to pair SQ610RF with other system elements, e.g. Smart Plug SPE600, Smart Relay SR600 or window/
door sensor OS600/SW600.
SQ610RF can be used locally without an Internet connection (OFFLINE mode), however, it’s communication
with other devices must be done using the CO10RF coordinator (sold separately).
Full manual in PDF format is available at www.salus-controls.eu site.
Useinaccordancetonationaland EU regulations.Usethe device as intended,keepingit in drycondition. Product for
indoor use only. Installation must be carried out by a qualied person in accordance to national and EU regulations.
Disconnect your equipment before cleaning it with a dry cloth.
Product Compliance
Safety Information
This product complies with the essential requirements and other relevant provisions of Directives 2014/30/ EU,
2014/35/EU, 2014/53/EU and 2011/65/EU. The full text of the EU Declaration of Conformity is available at the
following internet address: www.saluslegal.com.
Package Content:
1) SQ610RF QuantumThermostat
2)Wall mounting plate
3) Self-adhesive mounting tape
4) Mounting screws
5) Manual instruction
3
Polski
Русский
Český English
Before you start:
Charging to full battery level may take up to
24h maximum.
New SQ610RF Quantum Thermostat is partially
charged, however, we recommend you to fully
charge the battery before use.

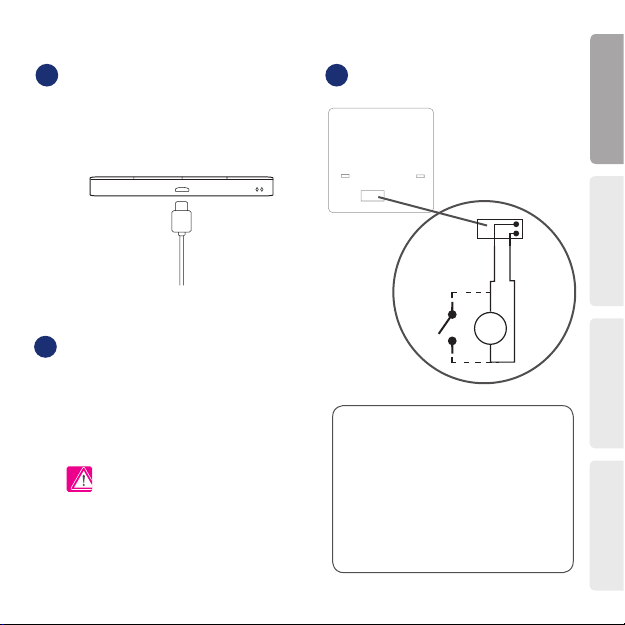

Connect charger to micro-USB Port which is at
the bottom of SQ610RF Quantum Thermostat to
charge the device.
Wiring diagram (S1, S2 Input)
Symbols explanation:
S – volt-free contact
T – temperature sensor
S1,S2 Terminals:
- air or oor temperature sensor
- external volt-free contact to connect any ON/
OFF switch or occupancy sensor (Hotel card)
Mounting: to mount thermostat you can use
included accesories (mounting screws or self-
adhesive tape). Remove back cover to mount the
plate to the wall. After this just attach thermostat
to the plate (it has built-in magnet).
Please note:
Theideal position to thermostat mountingisabout
1,5m under oor level far from heating or cooling
sources. Thermostat can’t be exposed to sunlight
or any extreme conditions like for example draft.
1 2
3
S1
S2
T
S
4
1. Menu/Settings description + Clock
2. AM/PM
3. Temperature unit
4. Heating indicator (icon is animating when
there is heating demand)
5. Cooling indicator (icon is animating when
there is cooling demand)
6. RF Connection indicator
7. Internet connection indicator
8. Occupancy sensor (hotel card)
9. Key lock function
10. Standby mode icon
11. CurrentTemperature / Setpoint Temperature
12. Holiday mode
13. Temporary override mode
14. Settings icon
15. Baterry status indicator
16. External / Floor temp sensor indicator
17. Schedule program number
18. Schedule mode icon
19. Day indicator/ SET information
20. Current Humidity value
2
8
9
10111214
15
20
19
18
17
16
1
3
4
5
6
7
13
LCD Icon Description
5
Polski English
Русский
Český
Buttons Description
1) Menu button / Return button.
2) In the MAIN SCREEN: Press and hold for 3 sec to change the thermostat operating mode
(Schedule mode / Permanent mode /Temporary override mode).
3) In the SETTINGS SCREEN:
Press and hold for 3 sec to go back without saving the changes.
4) In the PAIRING SCREEN (in SYSTEM TYPE Menu): Press and hold for 3 sec to see other
pairing options.
+
In the MAIN SCREEN - press and hold these buttons together for 3 seconds to LOCK / UNLOCK
the Thermostat keys).
“Up”Button (Increase parameter value/moving on the menu in‘UP’direction)
„Down”Button (Decrease parameter value/moving on the menu in‘DOWN’direction)
1) Press and hold for 3 seconds to POWER UP new device
2)“OK / Tick”Button (Conrm parameter value / Go to the next menu / Save settings)
3) In the MAIN SCREEN: Press and hold for 3 seconds to enter Standby mode
4) In the SETTINGS SCREEN: Press and hold for 3 sec to go back to the MAIN SCREEN & SAVE all the changes.
5) During PAIRING process – hold button for 3 seconds to POWER OFF or REBOOT the thermostat.
Button Function
6
COMPATIBILTY WITH OTHER SALUS CONTROLS DEVICES
QuantumThermostat can work in ONLINE or OFFLINE mode.
At rst step you need to decide in which mode your thermostat will work.
ONLINE MODE OFFLINE MODE
Universal Gateway is
CONNECTED TO THE INTERNET
You can congure and use all your
devices in the Smart Home App
Download the Smart Home
App on your iOS or Android
device for remote access to your
SALUSequipment. SALUS
Smart Home
CO10RF Coordinator - You can use
standard ZigBee network coordinator
toinstall and useyour devices.
Universal Gateway is NOT
CONNECTED TO THE INTERNET
You can use your devices locally
without the SmartHome App.
Gateway works in this mode as
standard ZigBee coordinator.
OR
Compatibile devices:
KL08RF – Wiring Centre for
8-zone underoor heating
(UFH).
TRV (Thermostatic
Radiator Valve) with
wireless communication.
RX10RF
receiver
SR600*
Smart Relay SPE600*
Smart Plug
Only with Online Mode*
GET IT ON
Download on the
7
Polski English
Русский
Český
First power up sequence
To power on the Thermostat hold
button for 3 seconds...
3 sec.
For easier installation, please make sure you have already added other devices to your ZigBee network, such as
Underoor Heating Control Box (KL08RF) or Radiator heads (TRV’s) etc.
Please note:
Now, choose your language by
„” or „ ” buttons. Conrm
your language by button.
...display will show all icons...
...then thermostat will display
the software version.
MENU / Press for 3 sec
to POWER UP
For more information
scan this code or visit:
www.salus-controls.com
3 sec
Removetheprotection foil
3
2
5
1
4
8
Installation in ONLINE mode
AfterLanguage selection follow below stepstoadd your devicetothe SmartHomeappand pair with other devices:
2
8
7
4
1
SALUS
SmartHome
Go to SALUS Smart Home app
3
Once your thermostat is added to
the app you will see above screen
on the LCD.
9
56
9
Русский
Český Polski English
11 1210
13 14
Name this equipment
SQ610RF Thermostat
Connect equipment
Finish
3
After that thermostat will display
main screen.
Congratulations!You succesfully
congured SQ610RF Quantum
Thermostat.
15
10

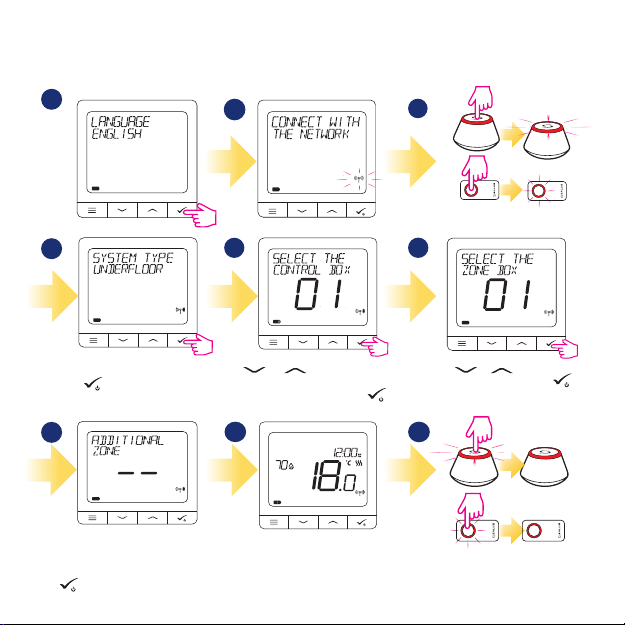

Installation in OFFLINE mode
Pairing with Wiring Centre / Control Box (Install the Wiring Centre / Control Box according to the
instructions included with product)
1
23
Open the ZigBee network
4
7
56
Select system type: UNDERFLOOR,
press button to conrm.
Using and buttons select theControl
Box number (press PAIR button on the Control
Box to see its address number). Press
button to conrm.
Use or buttons to select
the zone number and press
button to conrm.
8
Now you can pair your thermostat
with additional zones. Select one
more zone or nish the pairing process
by button.
OR
5 sec.
5 sec.
9
Close the ZigBee network
OR
3
3
5 sec.
5 sec.
