iT500 Internet Thermostat

INSTALLER MANUAL

1. Product compliance & safety information

These instructions are applicable to the SALUS Controls model stated on the front cover of this manual

only, and must not be used with any other make or model.



This accessory must be fitted by a competent person, and installation must comply with the guidance

provided in the current IEE Wiring Regulations and current Building Regulations. Failure to comply with

the requirements of these publications could lead to prosecution.



When fitting batteries, do not mix old and new batteries together.

Do not use rechargeable batteries.



Please leave these instructions with the end user where they should be kept in a safe place for future

reference.

02 iT500 Installer Manual

Always isolate the AC Mains supply before installing or working

on any components that require 230 VAC 50Hz supply.

Wire up the receiver using one of the

schematics on pages 4 and 5

Clip the front of the unit back on by aligning the

fittings and pushing into place.

Securely screw the front of the receiver in place.

4 5 6

Loosen the screws at the bottom

of the receiver unit.

Unclip the front of the unit. Fit the back of the receiver unit to the wall

using the fittings supplied.

1 2 3

2. Installation of the iT500RX Receiver

iT500 Installer Manual 03

230V

BOILER

Volt Free - Combination Boiler

BOILER

230V230V

2 x CH Zones - Volt Free Combination Boiler

BOILER

OV - 230v

OV 230

230V

0V System Boiler 1 x CH Zone and 1 x HW Zone

BOILER

230V

BOILER

Volt Free - Combination Boiler

BOILER

230V230V

2 x CH Zones - Volt Free Combination Boiler

BOILER

OV - 230v

OV 230

230V

0V System Boiler 1 x CH Zone and 1 x HW Zone

BOILER

230V

BOILER

230V Switching - Combination Boiler

BOILER

230V230V

230V Combination Boiler 2 x CH Zones -

Potential Volt Free Switching

BOILER

OV - 230v

OV 230

230V

0V System Boiler 1 x CH Zone and 1 x HW Zone

BOILER

04 iT500 Installer Manual

Two central heating zones.

iT300 Sensor required for this configuration.

C+

One central heating zone only.

3. WIRING SCHEMATICS FOR SYSTEM CONFIGURATIONS

230V

230 V Switching

BOILER

230

Permanent

230

BOILER

230

Potential Free Switching

BOILER

230V0-230V

230V

2 x CH Zones - 230 V Switching Combination Boiler

BOILER

230

Permanent

230

230V230V

Potential Free Switching

BOILER

230

BOILER

230

230V

Potential Free Switching - S Plan

BOILER

230V

230 V Switching - S Plan

BOILER

230

rmanent

230V

3. WIRING SCHEMATICS FOR SYSTEM CONFIGURATIONS

One central heating zone

plus hot water.

D+

One central heating zone

plus hot water.

Two central heating zones.

iT300 Sensor required for this configuration.

iT500 Installer Manual 05

230V 230V

230V

230 V Switching - Y Plan

BOILER

230

BOILER

230

Potential Free Switching

BOILER

230V0-230V

230V

230 V Switching

BOILER

230

Permanent

230

230V230V

Potential Free Switching

BOILER

230

BOILER

230

230V

Potential Free Switching

BOILER

2 1 C

230V 230V

230V

230 V Switching - Y Plan

BOILER

230

BOILER

230

Potential Free Switching

BOILER

230V0-230V

230V

230 V Switching

BOILER

230

Permanent

230

230V230V

Potential Free Switching

BOILER

230

BOILER

230

230V

Potential Free Switching

BOILER

2 1 C

12 3

4. Installation of wall bracket docking (optional)

5. Desk mount option iT500

Attach the wall mounting bracket to a

suitable wall using the fittings supplied

and the built in level.

For the desk mounted option, simply clip

the clear stand supplied separately into

the back of the unit.

After first ensuring that the bracket

is secure, clip the iT500 into place by

aligning the recess on the back of the unit

to the bracket and clipping into place.

Once clipped into place, ensure the unit is

securely seated on the bracket.

06 iT500 Installer Manual

For best results mount the

iT500 1.5m from ground level.

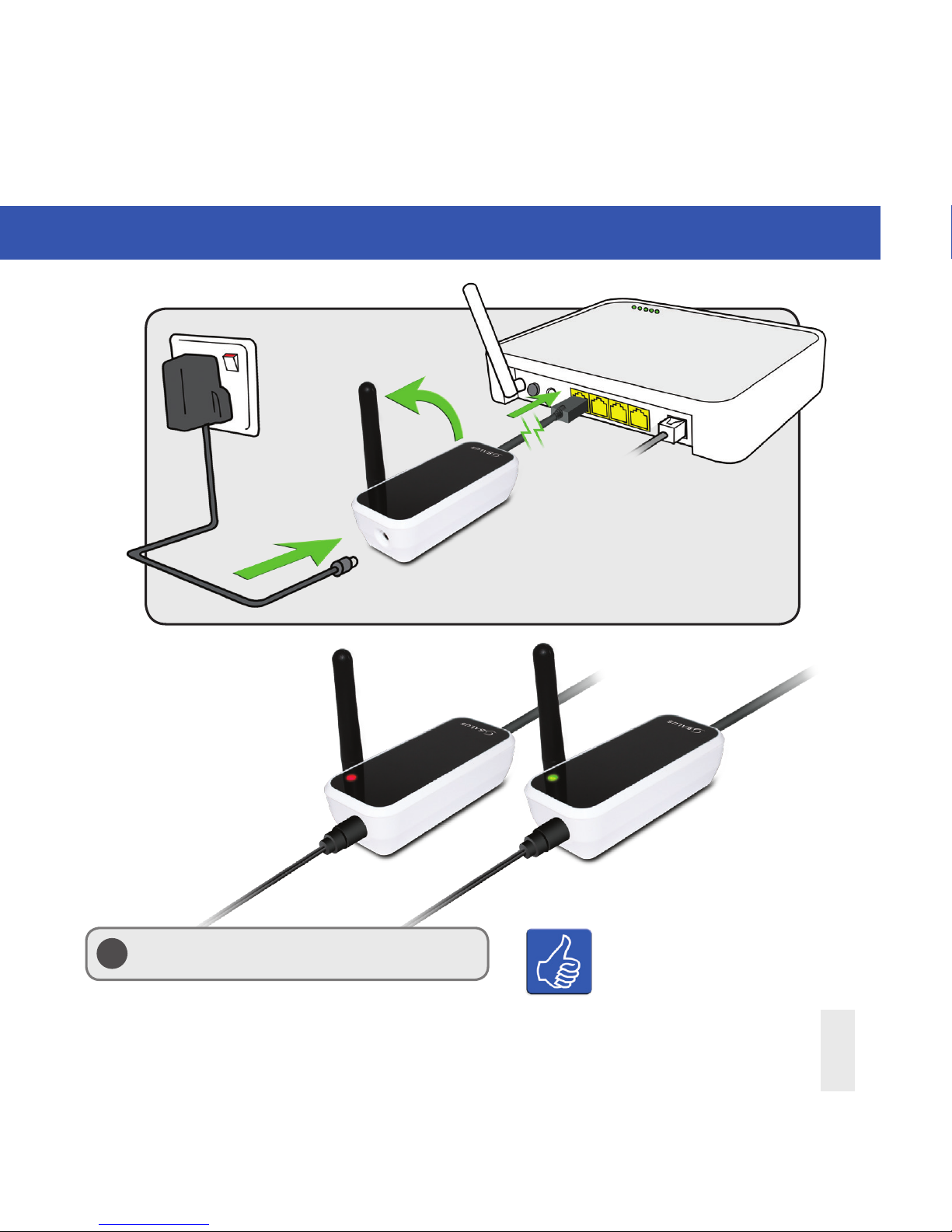

6. Connecting the Gateway to your existing router

Flashing red light

on setup.

Constant green light when the iT500 is

connected to the SALUS Controls Server.

iT500 Installer Manual 07

You require port 80 and 2165 UDP open on the router

1 2 3

4 5 6

Insert the second battery supplied into the left

hand side of the base of the iT500 Thermostat.

Replace the battery cover to the

base of the iT500 Thermostat.

Ensure the batteries are fitted securely

in the base of the iT500 Thermostat.

Remove the battery cover from

the base of the iT500 Thermostat.

Make a note of the serial number printed

in the base of the iT500 Thermostat.

With the unit face down, insert the first

battery supplied into the right hand side

of the base of the iT500 Thermostat.

7. Inserting the batteries in the iT500 Thermostat

08 iT500 Installer Manual

STA

Why not make a note of your STA

number here for future reference.

8. Setting up the iT500 Thermostat

After powering up iT500 for the first time the display will go through the following sequence.

OTA* Revision number

iT500 Software revision

The globe icon will appear when the unit

automatically connects to the internet via the

SALUS iTG500 Gateway.

This should take approximately 20 seconds.

* Over The Air operated software

iT500 Installer Manual 09

9. LCD Overview

10 iT500 Installer Manual

LCD ICONS DESCRIPTION FUNCTION

Day of the week Displays the number of the day of the week. 1 being Monday

Temperature indicator Displays set or measured temperature

Clock display Displays time

Program number indicator Displays the number of the active (selected) program

Heat mode indicator Indicates heating output is turned on*

Heat zone indicator Indicates heating zone*

Hot water indicator Indicates hot water control*

Hot water mode indicator Indicates hot water output is turned on*

RF signal indicator Indicates the unit is transmitting a wireless signal to the

iT500RX or is receiving the signal from the iT300*

Touch lock indicator Indicates touch lock is activated

Battery status Indicates battery is low

Holiday indicator Indicates holiday operation mode is selected

Internet indicator Indicates connection to iTG500 and SALUS server

Cooling indicator Indicates cooling output is on*

ON indicator Hot water continuously on*

Once indicator Hot water is on once*

AUTO indicator Automatic program mode

OFF indicator Off mode

Setting indicator Manual override or settings mode

* System configuration specific.
