87480 Digital Camera
Owner’s Manual
© 2006 Sakar International, Inc. All rights reserved.
Windows and the Windows logo are registered trademarks of Microsoft Corporation.
All other trademarks are the property of their respective companies.
- 2 -
Table of Contents
Key Features. ...................................................................................................... .3
What your camera includes: ................................................................................. 3
Computer System Requirements .......................................................................... 4
A Quick Look at Your Camera .............................................................................. 5
Preparing Your Camera for Use ........................................................................... 9
Starting Your Camera ......................................................................................... 11
Camera Mode ..................................................................................................... 11
Video Mode......................................................................................................... 16
Playback Mode ................................................................................................... 17
Setup Mode ........................................................................................................ 25
Installing PhoTags Express Software ................................................................. 34
Transferring Images to your PC.......................................................................... 38
Viewing Videos on Your Computer ..................................................................... 44
Maintenance of Your Digital Camera .................................................................. 44
Technical Support ............................................................................................... 44
Appendix A: Technical Specifications ................................................................. 45
Appendix B: Troubleshooting............................................................................. 45
- 3 -
Introduction
Thank you for purchasing a 87480 digital camera. Everything you need to take quality digital
photos is included with your camera. Please read this manual carefully FIRST in order to get the
most out of your digital camera.
Key Features
Digital Video (QVGA) 320 x 240 Pixels
6 Mega Pixel camera with choice of 6 digital camera resolutions - 2720 x 2048 Pixels,
2592 x 1944 Pixels, 2048 x 1536 Pixels,1600 x 1200 Pixels, 1280 x 1024 Pixels, 640 x
480 Pixels.
1.5 Inch TFT Color LCD monitor and photo viewer
4x Digital zoom
32MB Built-in SDRAM Memory
SD Memory Card Slot accepts SD/MMC Cards.
Built in Flash
PhoTags Express software for managing and enhancing your photos, printing, sending
photos by e-mails and much more.
What your camera includes:
Camera
PhoTags Express CD
USB cable
User’s Manual
Strap
- 4 -
Computer System Requirements for windows:
To be able to download photos to your PC you will need the following minimum configuration:
˙ Pentium processor or above with MS Windows ME, NT Service Pack 6, 2000, XP
˙ 128 MB RAM, 80 MB free disk space
˙ Available USB Interface
˙ CD-ROM Drive
˙ Recommended screen resolution 1024 X 768 pixels or greater
˙ 256-color or higher display adaptor
Computer System Requirements for Macintosh:
˙ Power Macintosh G3 500 MHz or higher
•Mac OS X version 10.2.6 or later
•128 MB or more available system RAM (256 MB recommended),150 MB free disk space
•800 x 600 or higher-resolution monitor displaying millions of co
Caution:
˙ Formatting will delete all the data on the SD Memory Card.
˙ Do not remove the SD Memory Card during formatting as this may damage the card and
render it unusable.
˙ Formatting will delete protected data too.
˙ SD Memory Cards formatted on a PC or device other than the camera cannot be used. Be sure
to format the card with the camera.
˙ When you change batteries, all the data in the built-in memory will be deleted if no SD Memory
- 5 -
Card has been inserted in the camera.
˙ DO NOT switch modes or rotate the Mode dial if your camera is connected to the printer when
using PictBridge.

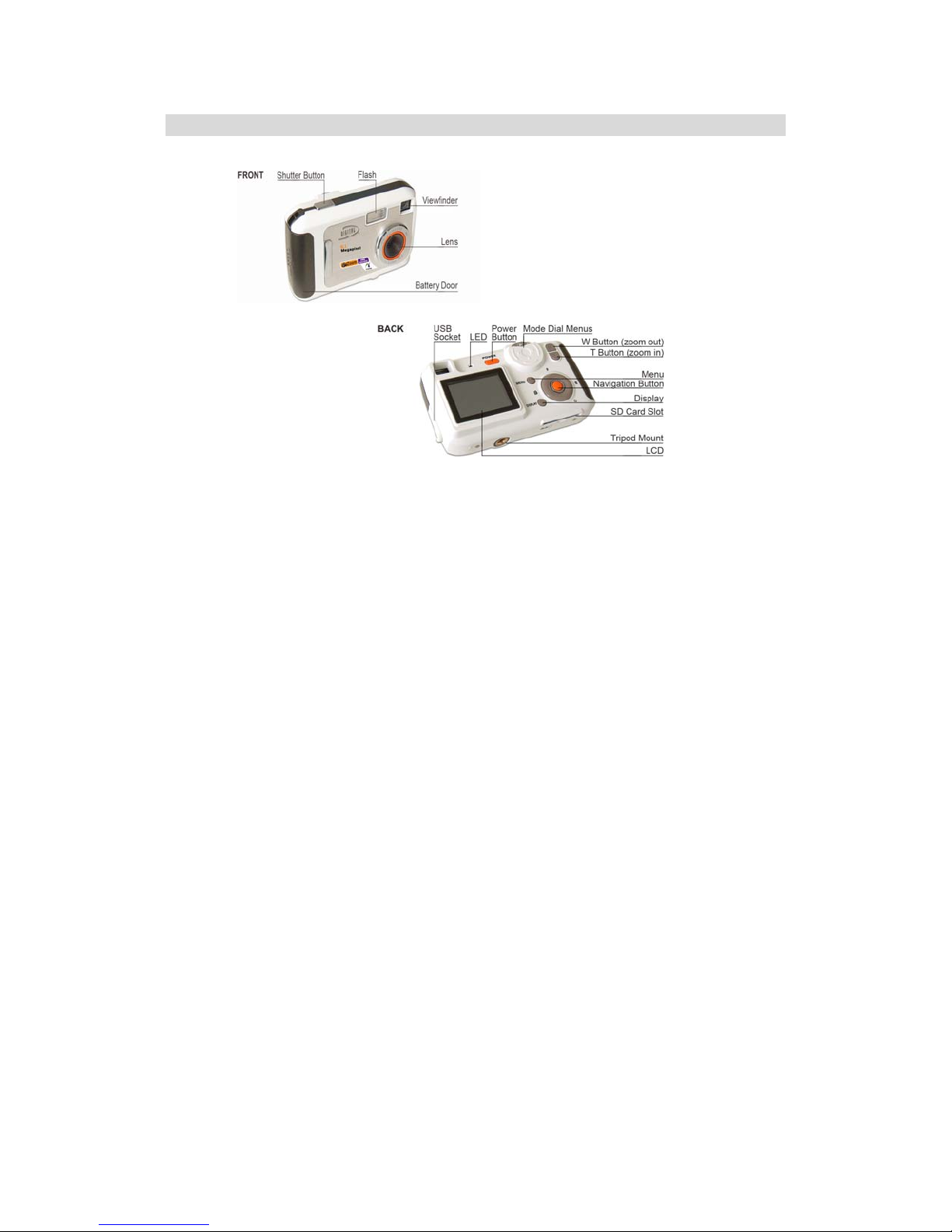

A Quick Look at Your Camera
- 6 -
The LCD Screen
Icons on the LCD Screen
The Mode Dial
There are 4 modes on your DV camera. To select mode turn the dial so the
correct icon is visible.
- 7 -
Camera Mode: Take still photos
Video Mode: Capture video
Playback Mode: View, print and edit photos and view videos
Setup Mode: Set date and time, exposure, white balance, sharpness, photo quality,
frequency format and auto off time, format a memory card.
Battery power level
Full battery power
Medium battery power
Low battery power
Photo quality
Standard quality
High quality
Self-timer
Self-timer On
Mode
Camera
Video
Date
Flash
Force Flash
Auto
No Flash
Digital Zoom
4.00X 4 x
Digital Zoom
3.00X 3 x
Digital Zoom
2.00X 2 x
Digital Zoom
1.00X 1 x
Digital Zoom
Protect
Protect On
- 8 -
The Main Buttons
Power on/off:
Turn your camera On/Off . Press the button
once to turn your camera on. Pressing it again
will turn your camera off.
Navigation buttons
The Navigation buttons are used to navigate
and select functions.
Up/Flash
Down/ Self –Timer
Left/Date
Right/Delete
OK/Enter
Display
Menu
Zoom
9
Preparing Your Camera for Use
Battery Installation
Your camera requires two AA batteries. Insert the batteries into the camera:
1. Slide the cover of the battery compartment open.
2. Please make sure that the correct battery is inserted with the correct polarity facing up.
3. Please refer to the diagram below for the correct insertion method
4. Close battery door
WARNING: Unless you are using an SD memory card, opening the battery compartment and/or
removing the battery will erase the photos currently stored in the camera. Download your photos
as often as possible. Photos may be lost when the battery runs low.
10
When the Low Battery icon is flashing, you need to replace your camera’s batteries. If you do
not have an SD memory card in the camera, please download any photos you have on the camera
before opening the battery compartment.
Note: If you do not intend to use your camera for an extended period, remove the batteries to avoid
battery leakage and corrosion.
Installing an Optional Memory Card
Your camera has a memory card slot that enables
you to insert any “SD” compatible memory card.
Adding a memory card will allow you to increase
the capacity of your DV camera before you have
to transfer photos/videos to a PC. Photos and
videos stored in this manner will not be lost
regardless of any change in battery power.
Note: Limited internal memory is provided for test images. Those images may be deleted when
camera power is turned off. SD memory card is required for normal use.
Installing the SD Memory Card:
1. Locate the Memory card slot (on the bottom of the camera) as illustrated above.
2. Insert the memory card into the slot, label side down and metal contacts up.
3. Push the card in until you feel it "click" into position. The top of the card should be flush
with the surface of the camera. A “C” icon will be visible on the LCD screen (to the left of
the battery indicator) indicating that an external memory card is installed.
