SAI HVAC Compact Comfort VRF12 Manuel

Compact Comfort by SAI HVAC

VRF12 Controls Install Manual

Series 2

Publisher

SAI HVAC

Phone 1300 844 429

Internet www.compactcomfort.com

Revision V21.2

This Technical Manual describes the installation and operation of the Compact Comfort VRF12 controls system

and air conditioning maintenance for the installer.

reproduced, stored in any retrieval system or transmitted, in any form or by any means, electronic,

mechanical, photocopying, recording or otherwise, without the prior written permission of SAI HVAC.

Disclaimer

SAI HVAC reserves the right to make changes and improvements to any of the products described in this

document without prior notice. Under no circumstances shall SAI HVAC be responsible for any loss of income

or any special, incidental, consequential or indirect damages howsoever caused.

Warranty

The contents of this document are provided “as is”. Except as required by applicable law, no warranties of any

kind, either express or implied, including, but not limited to, the implied warranties of merchantability and

fitness or a particular purpose, are made in relation to the accuracy, reliability or contents of this document,

SAI HVAC reserves the right to revise this document or withdraw it at any time without prior notice.

Sourcing

Proudly designed and manufactured in Australia by SAI HVAC, an independent Australian-owned company.







Copyright. SAI HVAC 2021 TM_VRAF_VAV12.19.001
Contents
About your VRF12 Controls System....................................................................................................................5
1 Compatibility ................................................................................................................................................5
2 Simple and Upgradable ................................................................................................................................5
3 Plug & Play....................................................................................................................................................5
4 Html User Interface ......................................................................................................................................5
5 Remote Access .............................................................................................................................................5
How to Connect to the System...........................................................................................................................6
1 Direct Connection via Wi-Fi..........................................................................................................................6
2a Wi-Fi Connection via your Wi-Fi Router .....................................................................................................7
2b Direct Connection via your LAN .................................................................................................................9
3 Connection via Mothership (Recommended) ..............................................................................................9
4 Using the Mothership Cloud Service ..........................................................................................................10
VRF12 Operating Instructions Using the User Interface...................................................................................11
1 Changing the System Mode .......................................................................................................................11
2 Notes on Dynamic Energy Recovery ..........................................................................................................11
3 Set the Optional Countdown Timer ...........................................................................................................11
4 Optional “Cooling” and “Economy” Settings..............................................................................................11
5 Setting the Global Time Schedules.............................................................................................................12
6 Leaving Global Time Schedules Page..........................................................................................................13
7 Accessing Individual Zone ..........................................................................................................................13
8 Return to Overview Page ...........................................................................................................................13
9 Browse to Other Systems ...........................................................................................................................13
10 Adjusting the Settings on a Zone..............................................................................................................13
11 Setting Time Schedule for Individual Zones .............................................................................................13
SAI HVAC VRF12 Controls .................................................................................................................................14
1 SAI HVAC VRF12 Navigator.........................................................................................................................14
1.1 Turning the System ON and OFF.........................................................................................................14
1.2 Turning a Zone ON and OFF ................................................................................................................14
1.3 Browsing to a Zone .............................................................................................................................15
1.4 Changing the Temperature in a Zone .................................................................................................15
2 Using the Single Button Capacitive Touch Room Controller ......................................................................15
3 Surface 7 Touchpad....................................................................................................................................16
Manufacturers Recommendations...................................................................................................................17
1 Return Air Filter Cleaning ...........................................................................................................................17
2 Outdoor Unit ..............................................................................................................................................17
3 Vents & Return Air Grill..............................................................................................................................17
4 Controllers..................................................................................................................................................17

6. Troubleshooting................................................................................................................................................18

7. Other Documents in this Series ........................................................................................................................19

1. About your VRF12 Controls System

1.1 Compatibility

A User Interface (UI) has been developed to simplify the commissioning, use and change of operating

parameters for the SAI HVAC range of products. A click of “Other Systems” at the top of the user page switches

between the various SAI HVAC systems.

1.2 Simple and Upgradable

The VRF12 architecture allows for remote upgrade of many features so as development continues new

features can be added via an internet connection.

1.3 Plug & Play

You can also add one of the other SAI HVAC systems such as climate control and lighting control. SAI HVAC

systems are “plug and play” you don’t need to call in a programmer, automation specialist or specialist

technician. Once the systems are connected on the same LAN they recognise each other and the appropriate

interface is loaded without the need for you to do anything.

1.4 Html User Interface

The html user interface can be used on most devices with a browser from a Smartphone or tablet to PC. The

display results vary slightly depending on your device and browser type used. Many people choose the iPad

mini as their UI platform but a laptop, PC or even your iPhone/Samsung can be used to control your SAI HVAC

product.

1.5 Remote Access

Providing your system is connected to a Local Area Network (LAN) with an internet connection, The system

allows you to remotely access your SAI HVAC systems remotely. This feature can be convenient for many

reasons and is achieved by a secure connection through the SAI HVAC Mothership (MS) global server. You first

Your mothership account can provide access to your SAI HVAC devices at multiple locations so if you are a

building manager you can have access to all your sites at your fingertips through this one convenient and

simple access point.

Figure 1 –Select SAI-VRF network in

Wi-Fi settings

Figure 2 –Enter the password –

“chatterbox”

(All lowercase)

2. How to Connect to the System

There are three different methods for connecting to the AC system. The method you choose will depend on

your location and the type of installation you are working on. Although you can connect to the inbuilt Wi-Fi

(see 2.1) a LAN connection is RECOMMENDED for optimal performance for the client (see 2.2)

2.1 Direct Connection via Wi-Fi

NOTE: The service Wi-Fi is for use when commissioning the system and only when no LAN connection is

available. Some warranty terms are affected when connecting using only this Wi-Fi service solution.

Each VRF12 controls system creates its own network via Wi-Fi. This means you can connect the clients smart

device/computer to the system.

1. Open your Wi-Fi settings on your device and select the SAI VRF network (Figure 1) –if multiple

chatterboxes ion site check for the Mac Address on the device you are connecting to.

2. The Password is “chatterbox”(Figure 2)

3. Once connected to the controls network you can open your browser and browse to the system IP

address 192.168.2.11

4. You may wish to bookmark the page or add a link to your home screen on your device, so that you

can press the link instead of having to refer back to the IP address each time you wish to connect.

(Figure 4)

5. Direct connection requires your personal device/PC to be within range of the controls network. As

this range can vary significantly depending on building conditions, the preferred method of

connection is via a LAN as discussed in the following paragraph.

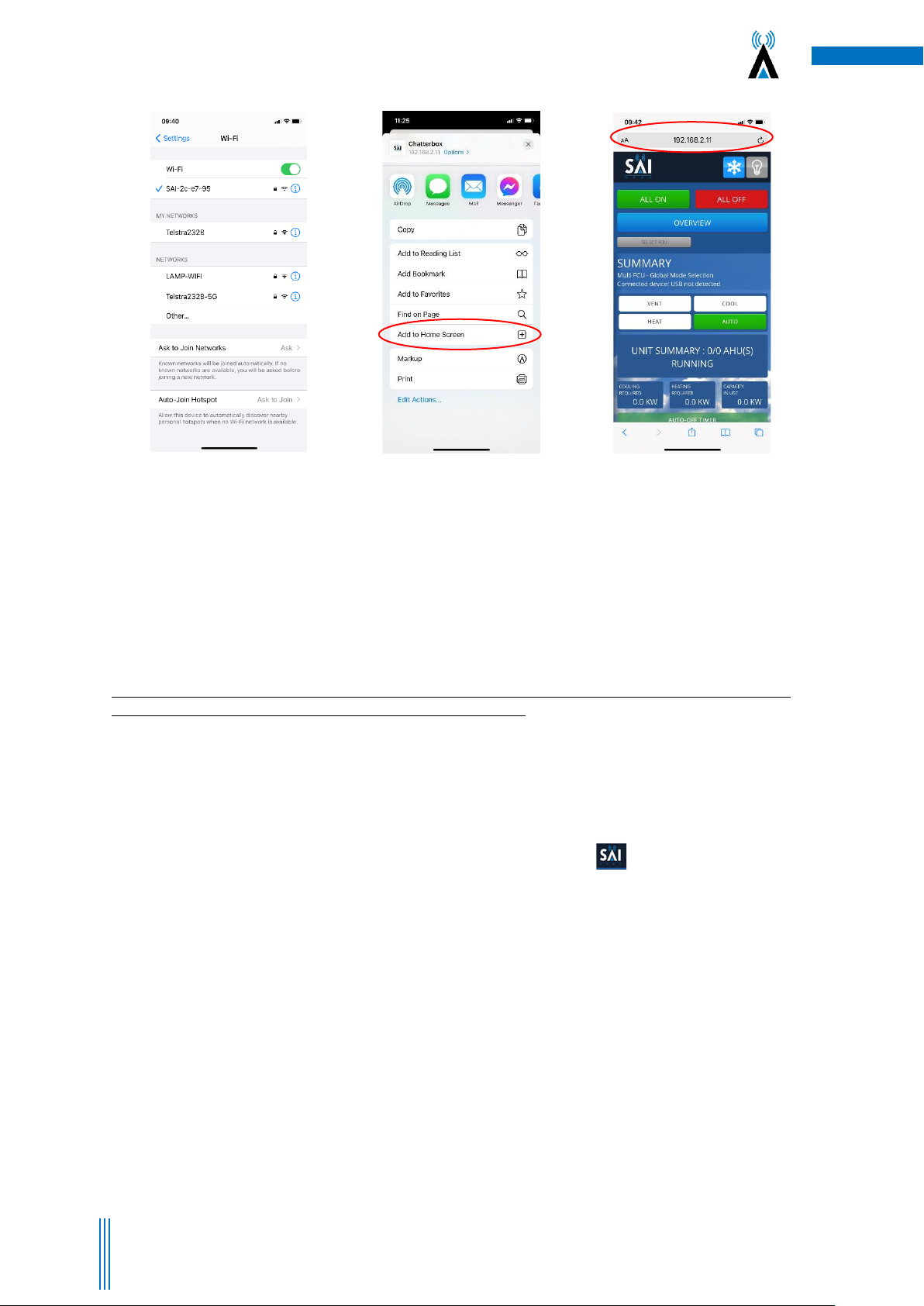

Figure 3 –Logged onto

network

Figure 4 –Type IP address into

browser & add to home screen or

book mark

Figure 5 –User Interface

launches

2.2a Wi-Fi Connection via your Wi-Fi Router

NOTE: There must be Wi-Fi signal at the location of the VRF 12 Controller and the client’s Wi-Fi must have

internet connection for the controller to connect to Mothership.

Each VRF12 controls system can connect to client Wi-Fi Network via using the onboard Wi-Fi. This means you

can connect the clients smart device/computer to the system.

1. Follow the steps listed above (2.1 Direct Connection via Wi-Fi) to get to the User interface.

2. Select SAI HVAC Logo (located in the top left corner of screen)

3. The Technical information window appears on the screen. →select “Network Settings”

4. Enter the SSID and Password for the client’s Wifi Network

5. Check the test above the SSID to see if you are connected to the network. Close browser and follow

the steps listed in section (2.3 Connection via Mothership).

6. Wi-Fi Connection requires your VRF 12 Controller to be within range of the client’s Wi-Fi network.

As this range can vary significantly depending on building conditions, the preferred method of

connection is via ethernet connection as described in section 2.2b Direct Connection via your LAN.

Figure 6a –User interface

Figure 7a –Technical

information window –select

“Network Settings”

Figure 8a –SAI –Network

Settings

Figure 9 –Select SSID and

enter SSID as per the client

Wi-Fi Network.

Then select Password and

enter the client network

password associated with the

SSID

This line will show you when you

are connected to the Wi-Fi

Network

2.2b Direct Connection via your LAN

Connecting the system to the local LAN via a network cable connected from the VRF12 MPM module to the

client’s router or a switch connected to the router is the preferred and best method for regular connection.

You can then access the system from anywhere the client has LAN coverage. (Figure 6)

When a connection is made the router will assign a unique IP address to the system. You can find this IP by

checking in the router settings, but we recommend you download one of the free programs for your apple of

android device such as FING (Figure 7). Such programs search your LAN and list all connected devices. This will

enable you to find your system IP, typically look something like 192.168.1.12 or similar number (Figure 8). By

typing this number into your browser, you will be able to access the Opening page of your system.

NOTE: Some older routers ship with UPNP disabled. You should check the router instruction manual for details

on how to check this setting. Without UPNP enabled, the system cannot connect. Remember that after power

failure the router may assign a different IP number to your system. In this case you will need to scan the

network with FING or similar program to find the new IP. It is possible to set a fixed IP in your router settings

however the method varies depending on your router brand and model. Your IT specialist should be able to

help. Connecting your system to your router using a cable gives a level of access control as access can only be

achieved by persons or devices having your LAN access password.

2.3 Connection via Mothership (Recommended)

Providing the clients system is connected to the building LAN and that the LAN has an internet connection, you

can setup an account on the SAI Mothership global server to allow remote connection to the system via MS.

1. Open your browser and browse to https://chatterboxmothership.com.au and click the register

button on the login page. (Figure 9)

2. The client can fill out registration details and we will send their registration name and password

within 24 hours together with instructions on how to access their system via the Mothership.

3. If you are within the LAN, i.e. at home and your device is connected to the same network the

system is running on, there will be a link at the bottom of the log in page titled “Your Local Devices”

with the Mac Address and system description. You can click this link to go straight to the User

Interface without having to log in. (Figure 9)

4. Once you have received notice of your User Name and Password, the client can go to the log in

page, enter the details, then press Login.

5. The next screen that launches will have a list of your AC systems. (Figure 10)

6. To access the User interface for any of the systems press the Launch button on the right hand side.

This will launch the interface and you can start to control your device. (Figure 11)

Figure 6b –Connecting

via Ethernet cable

Figure 7b –Use FING or similar to

scan network

Figure 8b –User Interface Launches.

Note IP Address is same as listed on

the FING Scan. (bottom of middle

image)

CS-VRF12-MPM

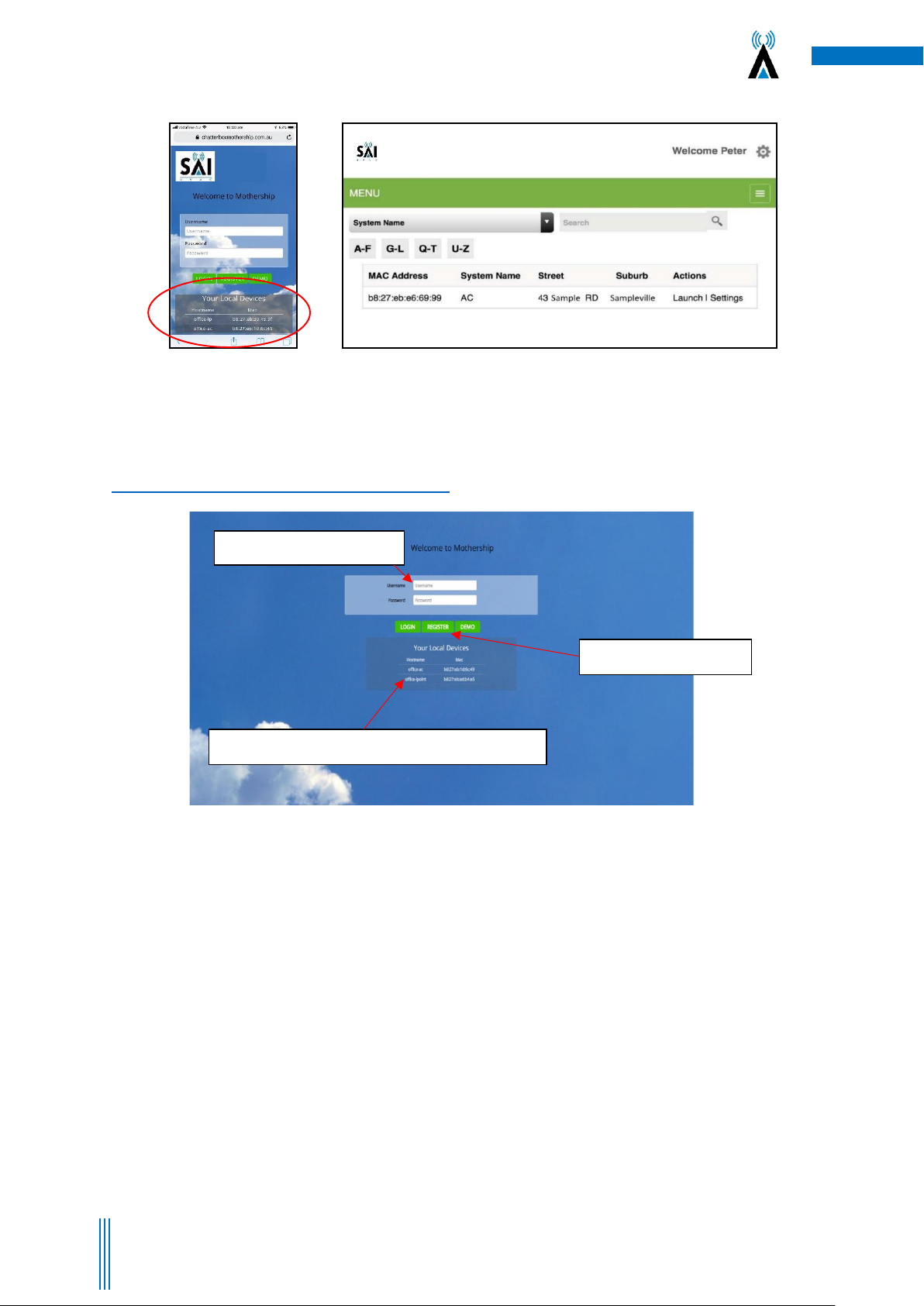

Figure 10 –Welcome/Login/Registration Page.

Note the links at bottom of page when on the

LAN

2.4 Using the Mothership Cloud Service

https://chatterboxmothership.com.au

Figure 11 –Your devices will be listed on the control centre

screen. Press Launch for the device you wish to interact with.

Your local devices (on your network (LAN)

Table des matières

Autres manuels SAI HVAC Système de contrôle

SAI HVAC

SAI HVAC Compact Comfort VAV12 Manuel

Manuels Système de contrôle populaires d'autres marques

Pentair Pool Products

Pentair Pool Products Compool Manuel utilisateur

ComfortNET

ComfortNET CTK04 Manuel utilisateur

Fireye

Fireye InSight II 95DSS3 Manuel utilisateur

CAME

CAME G3000 Manuel utilisateur

Idemia

Idemia MorphoAccess VP MD Manuel utilisateur

Axis

Axis P1445-LE-3 Manuel utilisateur

HEIDENHAIN

HEIDENHAIN TNC 150 B Manuel utilisateur

CNC-Step

CNC-Step High-Z T-Series Manuel utilisateur

Doosan

Doosan DVF Series Manuel utilisateur

Honeywell

Honeywell KAP 140 Manuel utilisateur

Honeywell

Honeywell vk41 series Manuel utilisateur

AirBench

AirBench FPW Guide d'installation

Cypress

Cypress HHR-3160 Manuel utilisateur

CAME

CAME GLT40AOS Manuel utilisateur

Zonex

Zonex GEN II -VVT Guide de l'utilisateur

Altronics

Altronics K 9650 Manuel utilisateur

micro-trak

micro-trak RoadMaster Manuel utilisateur

micro-trak

micro-trak Calc-An-Acre II Manuel utilisateur
