Sage BTM800 Manuel utilisateur

the Tea Maker ™

BTM800 / STM800

EN USER GUIDE

SAGE®

RECOMMENDS

SAFETY FIRST

At Sage®we are very safety

conscious. We design and

manufacture consumer

products with the safety of

you, our valued customer,

foremost in mind. In addition

we ask that you exercise a

degree of care when using

any electrical appliance

and adhere to the following

precautions.

IMPORTANT

SAFEGUARDS

READ ALL INSTRUCTIONS

BEFORE USE AND SAVE

FOR FUTURE REFERENCE

• A downloadable version of this

document is also available at

sageappliances.com

• Before using for the rst

time please ensure that your

electricity supply is the same

as shown on the rating label on

the underside of the appliance.

If you have any concerns

please contact your local

electricity company.

• Remove and safely discard

any packaging materials

before rst use.

• To eliminate a choking hazard

for young children, safely

discard the protective cover

tted to the power plug.

• This appliance has been

designed specically for the

purpose of heating and boiling

quality drinking water and tea

only. Under no circumstances

should this product be used

to heat or boil any other liquids

or foodstus.

• Position the appliance on a

stable, heat resistant, level,

dry surface away from the edge

and do not operate on or near a

heat source such as a hot plate,

oven or gas hob.

• Do not place the appliance

on or near a hot gas burner,

electric element or where it

could touch a heated oven.

• Position the appliance at least

20cm from walls or heat/steam

sensitive materials and provide

adequate space above and on

all sides for air circulation.

2Important Safeguards

6Components

8Functions

11 Care & Cleaning

13 Troubleshooting

15 Guarantee

Contents

• Do not operate the kettle on

sink drain board.

• Always ensure the appliance

is properly assembled before

connecting to a power outlet

and operating. Follow the

instructions provided in

this book.

• The installation of a residual

current safety switch is

recommended to provide

additional safety when using

all electrical appliances.

Safety switches with a rated

operating current not more

than 30mA are recommended.

Consult an electrician for

professional advice.

• The glass jug must be used only

with the power base supplied.

Do not use on a range top.

• The appliance is not intended

to be operated by means of

an external timer or separate

remote control system.

• Do not touch hot surfaces.

Use the handle for lifting and

carrying the glass jug.

• Attach the jug lid securely to

the glass jug before operation.

• Do not place anything on top

of the lid.

• Do not open the jug lid

during operation as scalding

may occur.

• Extreme caution must be

used when moving the glass

jug containing hot liquid.

• Use caution when pouring water

from the glass jug as boiling

water and steam will scald. Do

not pour the water too quickly.

• To avoid scalding, never ll

the glass jug past the ‘WATER

MAX’ (when heating water) or

‘TEA MAX’ (when brewing tea)

line markings.

• Do not operate the appliance

without water. Always ll the

glass jug to at least the ‘MIN’

marking. Should it be operated

without water, the boil-dry

protection will shut the power

o automatically. Allow the

appliance to cool before relling.

WARNING

• Do not remove the glass jug

from the power base during

heating or when the basket is

in operation. Ensure the

appliance has completed the

water heating or tea brewing

cycle before removing the

glass jug from the power base.

• The use of accessory

attachments not

recommended by Sage®

may result in re, electric

shock or injury to persons.

• To turn OFF the appliance,

press the TEA/Cancel button

(when brewing tea) or the

HOT WATER/Cancel button

(when heating water) on the

power base.

• Always ensure the appliance

is turned OFF, unplugged at

the power outlet and has been

allowed to cool before cleaning,

attempting to move or storing.

• When the appliance is not in

use or when left unattended,

disconnect the power cord

from the wall outlet.

• Allow the appliance to cool down

in between brewing cycles.

• Keep the glass jug clean.

Follow the cleaning instruction

provided in this book.

• Do not use harsh abrasives

or caustic cleaners when

cleaning this appliance.

• Children should not play

with the appliance.

• The glass jug has been specially

treated to make it stronger,

more durable and safer than

ordinary glass, however it is

not unbreakable. If dropped or

struck extremely hard, it may

break or weaken, and could at a

later time shatter into many small

pieces without apparent cause.

• Any maintenance other than

cleaning should be performed

by an authorised Sage®

service centre.

• The appliance can be used

by children aged 8 or older

and persons with reduced

physical, sensory or mental

capabilities or a lack of

experience and knowledge,

only if they have been given

supervision or instruction

concerning use of the appliance

in a safe way and understand

the hazards involved.

• Children should not play with

the appliance.

• Always turn the appliance to

the OFF position, switch o

at the power outlet and unplug

at the power outlet when the

appliance is not in use.

WARNING

• Do not wash jug exterior under

running water.

IMPORTANT SAFEGUARDS

FOR ALL ELECTRICAL

APPLIANCES

• Fully unwind the power cord

before operating.

• This appliance is for household

use only. Do not use the

appliance for anything other

than its intended use. Do not

use in moving vehicles or boats.

Do not use outdoors. Misuse

may cause injury.

• Do not let the power cord hang

over the edge of a bench or

table, touch hot surfaces or

become knotted.

• Close supervision is necessary

when any appliance is used by

or near children.

• Cleaning of the appliance

should not be carried out by

children unless they are 8 years

or older and supervised.

• The appliance and its cord

should be kept out of reach

of children aged 8 years

and younger.

• Do not use the appliance if the

power cord, power plug, or

appliance becomes damaged

in any way. If damaged and

maintenance other than

cleaning is required please

contact Sage Customer Service

or go to sageappliances.com

WARNING

• Do not operate the appliance on

an inclined surface.

• Do not move the appliance

while it is switched on.

The symbol shown

indicates that this appliance

should not be disposed of

in normal household waste.

It should be taken to a local

authority waste collection centre

designated for this purpose or

to a dealer providing this service.

For more information, please

contact your local council oce.

To protect against electric

shock, do not immerse

the glass jug base, power base,

power cord or power plug in

water or allow moisture to come

in contact with these parts.

Avoid spilling water onto the

power base’s connector.

Do not immerse the glass jug

or the power base for cleaning.

SAVE THESE INSTRUCTIONS

FOR HOUSEHOLD USE ONLY

Components

A. Jug lid

B. Stainless steel scale lter

C. Tea basket lid

D. Stainless steel tea basket

E. Jug post

F. Glass jug

G. Immersed temperature sensor

H. Tea scoop

I. Power base

J. Cord storage

Rating Information

220–240V ~ 50-60Hz 1680–2000W

N O QP R

K. AUTO START button

L. KEEP WARM button

M. BASKET button

N. TEA TYPE button

O. Variable temperature control

P. Backlit LCD

Q. Variable time control

R. TEA STRENGTH button

S. HOT WATER / CANCEL button

T. TEA / CANCEL button

Rating Information

220–240V ~ 50-60Hz 1680–2000W

Functions

BEFORE FIRST USE

In order to remove any dust or protective

residues from the manufacturing process,

it is recommended to run a boiling cycle then

discard the water.

1. Unwind the power cord completely and

insert the power plug into a grounded

wall outlet.

2. Press the left ARROW UP

button until the LCD screen

displays 100°C.

3. Press the HOT WATER / Cancel button

to start the cycle.

4. Discard the water.The Tea Maker™

is now ready to use.

USE THE TEA MAKER™

FOR BREWING TEA

1. Fill with desired amount of water. Ensure

you do not ll past the tea maximum mark

(1200mL TEA MAX).

2. Place the basket on a at, dry surface.

Remove basket lid by lifting from the

sides.

3. Use the provided tea scoop to ll the

basket with tea leaves. As a general

guide, use 1 scoop of tea leaves

per cup/250ml of water.

Selecting the tea type

Press the TEA TYPE button and toggle

through until the desired tea.

Selecting the tea strength

The desired tea strength determines the

brew time.

1. Press the TEA STRENGTH button and

toggle through until the desired tea

strength.

2. Press the TEA / Cancel button to start

the tea brewing cycle.

3. Once the selected brew temperature

is reached the assembled basket will

automatically lower into the heated water.

4. Once the basket reaches the bottom of

the glass jug, the LCD screen will indicate

the brewing progress.

5. At the end of the tea brewing cycle,

the basket will automatically rise to

the top of the glass jug.

WARNING

The tea basket is hot to touch after tea is

brewed. Ensure the tea basket handle has

cooled before handling.

Selecting the ‘Keep Warm’ Feature

This feature allows the brewed tea or heated

water to remain warm for up to 60 minutes.

1. Press the KEEP WARM button before,

during or after completion of the tea

brewing or water heating cycle.

2. If the glass jug is removed from the

Power Base, the ‘Keep Warm’ feature will

automatically switch o. You can re-select

the ‘Keep Warm’ feature by pressing the

KEEP WARM button.

Selecting the ‘Basket Cycle’ Feature

This feature continuously auto lifts and lowers

the basket during the tea brewing cycle.

To activate the ‘Basket Cycle’ feature, press

the BASKET button once.

USE AS A VARIABLE TEMPERATURE

KETTLE

1. Fill the glass jug with the desired amount

of water.

2. a) To boil water (100°C):

Press the left ARROW UP button

to increase the temperature to 100°C.

b) To heat water to a customised

temperature:

Press the left ARROW UP button

to increase the temperature, or the

left ARROW DOWN button to

decrease the temperature.

3. Press the HOT WATER / Cancel button

to start the cycle.

4. Once the selected temperature is

reached, the tea alert will sound three

times.The LCD screen will automatically

display the‘Time Since Brew’ function.

This function counts up to a maximum of

60 minutes, allowing you to monitor when

the water heating cycle was complete.

It does not activate the heating elements.

CUSTOMISING BREW

TEMPERATURE

Press the left ARROW UP button to

increase the temperature, or the left

ARROW DOWN button to decrease the

temperature.

NOTE

This product is not calibrated for commercial

or scientic use. Temperatures may vary

± 3˚C, which is within range for optimal

brewing for each tea variety.

TEA TYPE

PRESET

BREW TEMP

PRESET

BREW TIME

GREEN

TEA

WHITE

TEA

OOLONG

TEA

HERBAL

TEA

BLACK

TEA

3:00

85˚C80˚C

3:00

90˚C

3:00

100˚C

4:00

100˚C

2:00

CUSTOMISING BREW TIME

Brew time less than 10 minutes

Press the right ARROW UP button to

increase the time, or the right ARROW

DOWN button to decrease the time.

Manual mode-brew times

over 10 minutes

i) Press the right ARROW UP button

to increase the time up to the maximum

10 minutes.

ii) Continue to press the right ARROW

UP button.The LCD screen will display

‘MANUAL LIFT’ and ‘- - : - -‘ on the right

side of the LCD.

iii) Once the Tea Maker™is activated and

the correct water temperature is reached,

the basket will automatically lower.

iv) Once the desired brew time has elapsed,

press and hold the BASKET button for 2

seconds.The basket will rise.

AUTO START FEATURE

1. Press and hold the AUTO START button

for 2 seconds.

2. To set the CURRENT TIME, press the

left ARROW UP button to increase

the time, or the left ARROW DOWN

button to decrease the time in 1 minute

increments.

3. To set the START TIME, press the right

ARROW UP button to increase the

time, or the right ARROW DOWN

button to decrease the time.

4. Once current time and start time are

programmed, press either the ashing

HOT WATER / Cancel or TEA / Cancel

button to select which feature you would

like to start at the programmed time.

5. Ensure that the Tea Maker™is prepared

with:

a) Sucient water in the glass jug and

tea leaves in the basket for the tea

brewing cycle or,

b) Sucient water in the glass jug for the

water heating cycle.

NOTE

Insucient water may discolour your

Tea Maker™base!

NOTE

The ‘Auto Start’ feature can be cancelled

anytime by pressing the AUTO START button.

Autres manuels pour BTM800

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Sage Bouilloire

Sage

Sage Smart Tea Infuser Compact STM500 Manuel utilisateur

Sage

Sage the Smart Kettle Pure SKE840 Manuel utilisateur

Sage

Sage the Soft Top Pure Series Manuel utilisateur

Sage

Sage BTM600 Manuel utilisateur

Sage

Sage SKE395 Manuel utilisateur

Sage

Sage Crystal Clear SKE750CLR Manuel utilisateur

Sage

Sage Smart Kettle SKE825 Manuel utilisateur

Sage

Sage Smart Tea Infuser STM600 Manuel utilisateur

Sage

Sage The Compact Kettle BKE320BSS Manuel utilisateur

Sage

Sage Smart Kettle SKE825BSS Manuel utilisateur

Sage

Sage the Smart Kettle BKE825 Manuel utilisateur

Sage

Sage Tea Maker Manuel utilisateur

Sage

Sage Smart Kettle SKE825 Manuel utilisateur

Sage

Sage Crystal Clear BKE750 Manuel utilisateur

Sage

Sage Soft Top Pure SKE700 Manuel utilisateur

Sage

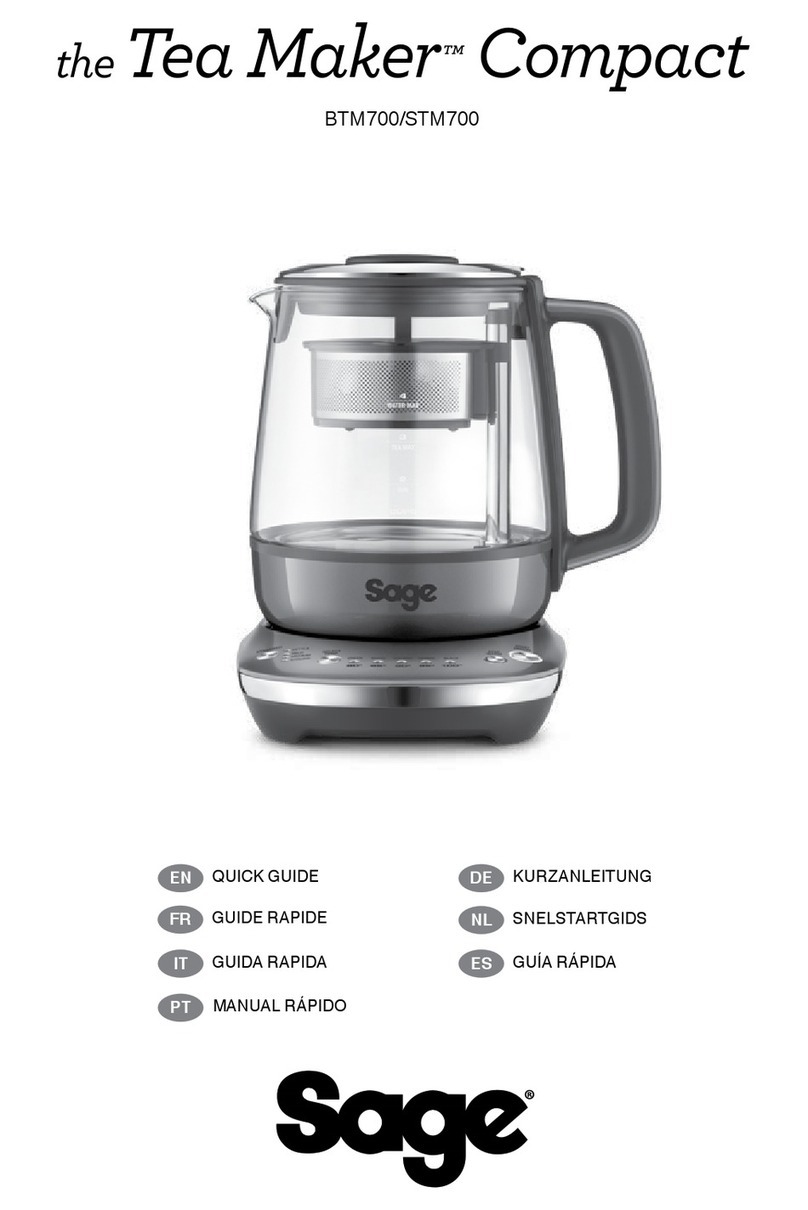

Sage BTM700 Manuel utilisateur

Sage

Sage BKE820UK Manuel utilisateur

Sage

Sage BKE395UK Manuel utilisateur

Sage

Sage Compact Kettle Pure Manuel utilisateur

Sage

Sage BKE590UK Manuel utilisateur

Sage

Sage Smart Kettle SKE825 Manuel utilisateur

Sage

Sage Crystal Clear BKE750 Manuel utilisateur

Sage

Sage Soft Top Luxe SKE735SHY Manuel utilisateur

Sage

Sage Smart Tea Infuser Compact BTM500 Manuel utilisateur

Manuels Bouilloire populaires d'autres marques

IKEA

IKEA UPPHETTA Manuel utilisateur

Krups

Krups BW500B55 Manuel utilisateur

Clas Ohlson

Clas Ohlson KE7086-BH Manuel utilisateur

Brock

Brock WK 0902 GR Manuel utilisateur

inventum

inventum CBW010 Manuel utilisateur

Westfalia

Westfalia Retro 81 48 86 Manuel utilisateur

Ovente

Ovente KS88 Series Dimensions

HUSLOG

HUSLOG AK-0832 Manuel utilisateur

Saturn

Saturn ST-EK840 Manuel utilisateur

Wilfa

Wilfa TK-1200B Manuel utilisateur

HOME ELEMENT

HOME ELEMENT HE-KT150 Manuel utilisateur

Breville

Breville Crystal Clear BKE290 Manuel utilisateur

ECG

ECG RK 1745 Manuel utilisateur

cecotec

cecotec THERMOSENSE 600 TOUCH BLACK Manuel utilisateur

Kalorik

Kalorik JK 39825 Manuel utilisateur

tomado

tomado TM-1971 Manuel utilisateur

Cosori

Cosori CS108-NK Manuel utilisateur

Electrolux

Electrolux E7K1-6BP Manuel utilisateur
