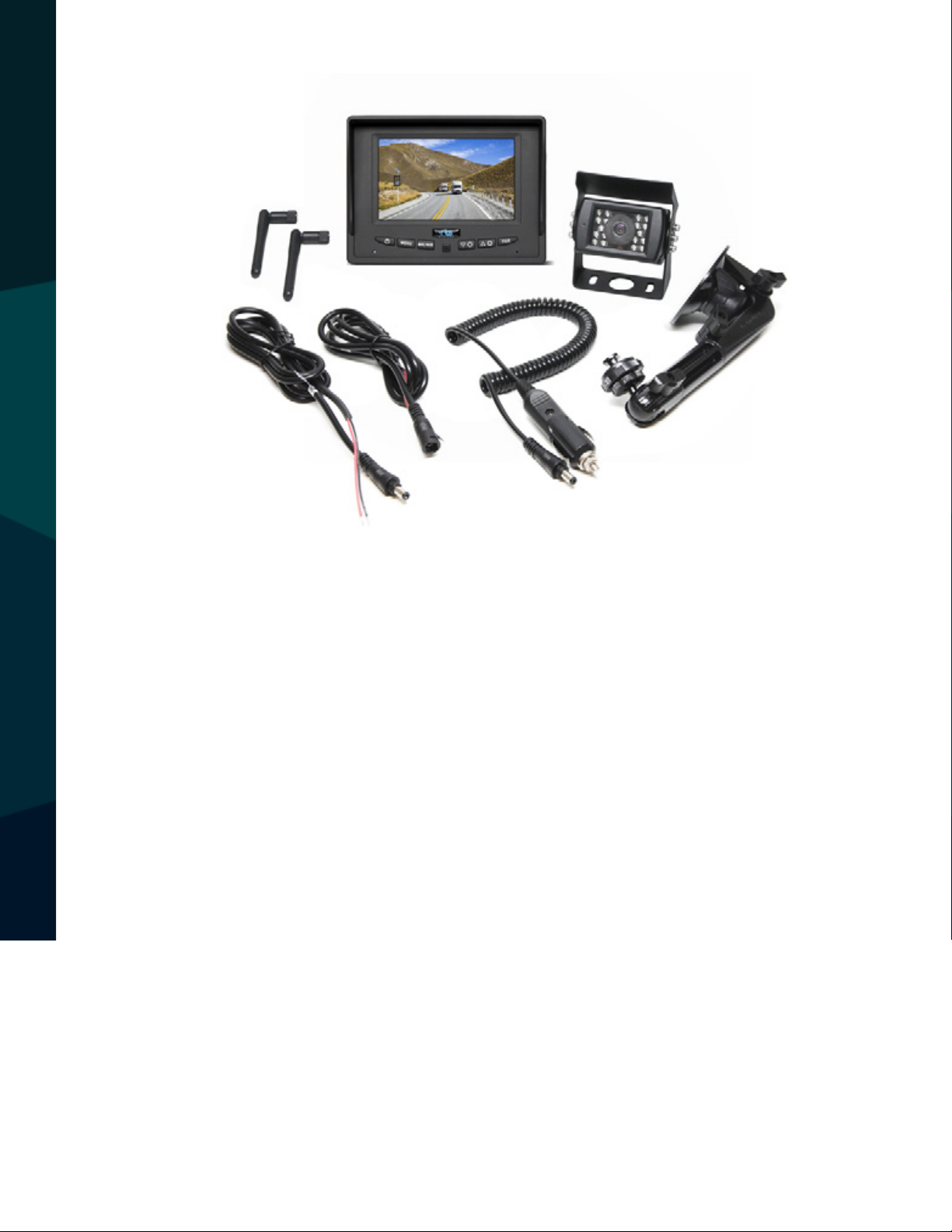

Safe Fleet RVS-651153 Manuel utilisateur

Reverse With Condence ™ 1

Wireless Backup Camera System

with 5" Single Screen Monitor

RVS-651153

Instruction Manual

RVS Systems

Introduction.............................. 03

SafetyInformation.............................. 04-06

BeforeBeginningInstallation ....................... 07-08

MonitorDimensions............................. . 09

ConnectionOptions.. .............................10

CameraDimensions...............................11

Monitor Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Camera Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Warranty.......................... . . . . . 14

Disclaimer.......................... . . . . . 15

TABLE OF CONTENTS

Reverse With Condence ™ 3

NOTE! Please read all of the installation instructions

carefully before installing the product. Improper

installation will void manufacturer’s warranty.

Congratulations on purchasing a RearView Backup

Camera System!

With this manual you will be able to properly install and

operate the unit.

The Backup Camera System is intended to be installed as a

supplement aid to your standard rear view mirror that already exists

in your vehicle. The Backup Camera System should not be used as a

substitute for the standard rear view mirror or for any other mirror

that exists in your vehicle.

In some jurisdictions, it is unlawful for a person to drive a

motor vehicle equipped with aTV viewer or screen located forward of

the back of the driver’s seat or in any location that is visible, directly

or indirectly, to the driver while operating the vehicle.

INTRODUCTION

RVS Systems

Please read the entire manual and follow the instructions and

warnings carefully. Failure to do so can cause serious damage and/or

injury, including loss of life. Be sure to obey all applicable local

trac and motor vehicle regulations as it pertains to this product.

Improper installation will void manufacturer’s warranty.

• The Rear View Camera System is

designed to help the driver safe-

ly detect people and/or objects

helping to avoid damage or injury.

However, you the driver, must use it

properly. Use of this system is not a

substitute for safe, proper or legal

driving.

• Never back up while looking at the

monitor alone. You should always

check behind and around the vehi-

cle when backing up, in the same

way as you would if the vehicle did

not have the Rear View Camera

System.Ifyoubackupwhilelooking

only at the monitor, you may cause

damage or injury. Always back up

slowly.

•The Rear View Camera System is

not intended for use during exten-

sive back-up maneuvers or backing

into cross trac or pedestrian walk-

ways.

•Please, always remember, the area

displayed by the Rear View Camera

Systemis limited.Itdoes notdisplay

the entire panorama that is behind

you.

USAGE:

SAFETY INFORMATION

Reverse With Condence ™ 5

•Electric shock or product

malfunction may occur if this

product is installed

incorrectly.

• Use this product within

the voltage range specied. Failure

to do so can cause

electronic shock or product

malfunction.

• Take special care when

cleaning the monitor.

•Make sure to rmly ax the prod-

uct before use.

• If smoke or a burning smell

is detected, disconnect the

system immediately.

• Where the power cable may touch

a metal case, cover the cable with

friction tape. A short circuit

or disconnected wire may cause a

re.

• While installing the RearView Sys-

tem be careful with the wire posi-

tioning in order to avoid wire dam-

age.

• The Rear View System should only

be used when the vehicle is in

reverse.

• Do not watch movies or

operate the monitor while driving;

as it may cause an

accident.

• Do not install the monitor

where it may obstruct drivers

view or obstruct an air bag

device.

• Dropping the unit may cause

possible mechanical failure.

INSTALLATION:

SAFETY INFORMATION

RVS Systems

If you have questions about this product, contact:

RVS Systems

1797 Atlantic Avenue

Brooklyn, NY 11233

Tel: 1.800.764.1028

IN NO EVENT SHALL SELLER OR MANUFACTURER BE

LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF

ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM

ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.

SAFETY INFORMATION

Reverse With Condence ™ 7

Before drilling please check that no cable or wiring is on the other side

of the wall. Please clamp all wires securely to reduce the possibility

of them being damaged while vehicle is in use. Keep all cables away

from hot/moving parts and electrical noisy components.

We recommend doing a benchmark test before installation

to insure that all components are working properly.

Step 1: Choose the monitor and camera locations.

Step 2: Install all cables in vehicle, when necessary a 0.8 (20mm)

hole should be drilled for passing camera cable through vehicles

walls. Install split grommets where applicable.

Step 3: Once all cables and wiring have been properly routed, perform

a system function test by temporarily connecting the system.

BEFORE YOU BEGIN

RVS Systems

BEFORE YOU BEGIN

1. This monitor is high voltage. Only professionals should open the

monitor's case.

2. Do not watch the video while driving unless you are monitoring the

rear view camera display.

Warning!

Press "POWER ON" to turn monitor on. Press "MENU" to access main

menu. Use the arrow keys to navigate the menu and use the "MENU"

button to conrm your selection. To toggle back a screen, press

the"MENU" button.

System Operation

Instant Pair

1. Connect camera to power

2. Short press"PAIR"

3. The system will automatically pair

NOTE: Make sure camera is receiving power when pairing

Reverse With Condence ™ 9

MONITOR DIMENSIONS

Monitor Dimensions

RVS Systems

CONNECTION OPTIONS

Connection Options

ME NU

MIR/NOR

PAI R

1 2 3

PUT IN TWIST &

TIGHTEN WATERPROOF

WATERPROOF CONNECTION

HARDWIRE

OR CIGARETTE LIGHTER PLUG

FEMALE TO MALE

MONITOR

CAMERA

MALE TO FEMALE

LOOSE

POWER

CABLE

LOOSE

POWER

CABLE

FEMALE PLUG

MALE PLUG
