Safco 8921 Manuel utilisateur
Insert the A Lower Post into
the B Base and fasten with
the C Bolt (fully threaded)
from the underside of the
Base.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
MODEL NUM-
BER 8921
8921-37: 1 of 2; 06/02
TOOLS REQUIRED: Phillips Screwdriver, Flat Screwdriver
Adjustable Speaker Stand
ASSEMBLED UNIT
MODEL 8921
For questions or concerns, please call
Safco Consumer Hot Line 1-800-664-0042
available Monday-Friday 8:00 AM to 4:30 PM (Central Time)
(English-speaking operators)
ASSEMBLY INSTRUCTIONS
Safco Products Company, New Hope, MN 55428
1
Lower Post 1 8921-04
Base 1 8921-05
Bolt (fully threaded) 1 8921-27
Upper Post 1 8921-03
Knob, Long Stem 2 8921-25
Adjustment Bracket 1 8921-02
Retaining Bracket 1 8921-09
Top Platform 1 8921-01
Small Screw 6 8921-22
Paper Stop/Pencil Ledge 1 8921-08
Pivot Bolt 1 8921-23
Nut 1 8921-24
Star Washer 1 8921-21
Knob, Short Stem 1 8921-26
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
Q
LETTER
CODE DESCRIPTION QTY. PART NO.
PARTS LIST
Sort and count your parts!
When ordering replacement parts, please specify color.
Insert the D Upper Post into
the Lower Post, line up the
holes in one post with the
holes in the other post at an
appropriate height, and fasten
with two E Knobs with Long
Stems.
2Q
Q
Q
Q
Q
USE TWO HOLES
Q
N
Q
A
Q
B
Q
E
Q
D
Q
C
Q
H
Q
I
Q
J
Q
L
Q
K
Q
F
Q
M
Q
A
Q
B
Q
C
Q
D
Q
E
Q
G
Align the hole in the Adjustment Bracket with the
top hole in the Upper Post; then insert the K Pivot
Bolt through the holes. Fasten with the L Nut, but
do not overtighten (the Top Platform must be able
to tilt freely).
Place the M Star Washer onto the stem of the
N Knob with Short Stem, and screw the Knob
through the slot in the Adjustment Bracket and into
the hole in the Upper Post.
8921-37: 2 of 2; 06/02 Safco Products Company, New Hope, MN 55428
Attach the F Adjustment Bracket and the G
Retaining Bracket to the H Top Platform, using
four I Small Screws. Be sure that the slot of the
Adjustment Bracket is facing the two small holes
along the front edge of the Top Platform.
3Attach the J Paper Stop/Pencil
Ledge to the Top Platform, using the
two remaining Small Screws.
4
5Level the unit using the levelers on the
Base.
Adjust the height by removing the
two Knobs, aligning the Posts to the
desired height, and reinserting the
Knobs.
Loosen the uppermost Knob, adjust
the Top Platform angle, and retighten.
6
QQ
Q
Q
Q
Q
Q
Q
SMALL HOLES
SLOT
Q
F
Q
H
Q
I
Q
J
Q
K
Q
L
Q
M
Q
N
Q
Q
G
Autres manuels Safco Support et étagère
Safco

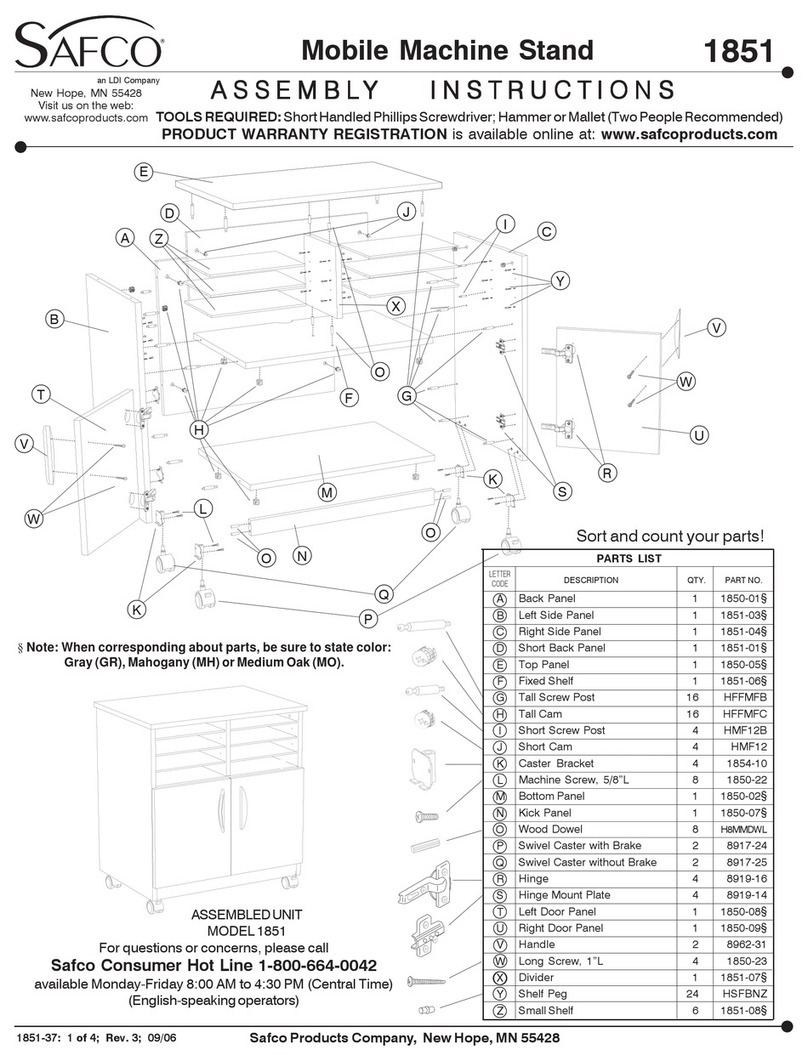

Safco Focal 2260 Manuel utilisateur
