Sabrent DS-U301 Manuel utilisateur
USB 3.0 SATA 2.5”/3.5” SSD
HDD Docking Station + USB Ports
DS-U301
USER MANUAL
With a Sabrent USB 3.0 SATA 2.5”/3.5” SSD/HDD Docking Station + USB Ports you can
Hot-Swap 2.5”/3.5” SATA Hard Drives when connected to your Desktop or Notebook. Tool free
Plug & Play installation makes for an easy setup. You can now transfer data quickly and easily
through USB Type-A 3.0 at high speeds up to 5Gbps. Featuring three USB 3.0 Type-A ports you
can simultaneously connect your other devices with transfer speeds of 5Gbps.
DS-U301
1
System requirements
• Windows OS
• Mac OS
Package contents
• HDD Docking Station + USB Ports
• Type-A USB cable
• Power adapter
• User Manual
Product Overview
Type-A USB 3.0 Port to computer
USB 3.0 PORTS Power LED
Power Port ON/OFF Switch
DS-U301
2

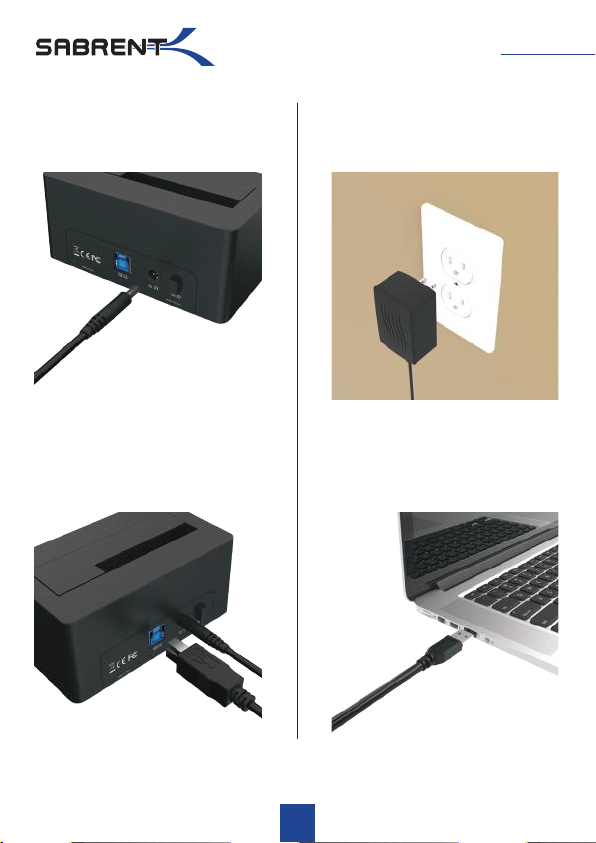

1
Connect the Power Adapter
to the back of the dock
2
Connect the AC Power
to a power outlet
3
Connect the USB Cable to
the back of the dock
4
Connect the other end of the USB Cable to
your Computer USB Port
DS-U301
3
7
The Power LED should illuminate
5
Insert your hard into the HDD bay
6
Press the Power Switch to the
ON position
DS-U301
Windows PC hard drive with DATA/Files
Click on the Start Icon located on the bottom left of the screen and then click on Computer
Note:
You can also click on the File Explorer Icon
and then click on This PC or Computer
4
DS-U301
5
You should get a new drive letter every time you insert a hard drive with data/files
Click on the Start Icon located on the bottom left of the screen
and then RIGHT click on Computer
Windows PC new hard drive setup (Hard drive with no DATA/Files)
Note:
You can also click on the File Explorer Icon
and then click on This PC or Computer
DS-U301
6
Click on Manage
DS-U301
7
Click on Disk Management
Note: Disk 0 should be your internal hard drive
Disk 1 should be your external hard drive but SETUPS MAY DIFFER
RIGHT click on Unallocated and click on New Simple Volume
DS-U301
8
Go through the Setup Wizard to assign a drive letter
DS-U301
9
A new Icon should pop up on your main screen each time you insert a hard drive with DATA/Files
Click on the Search icon on your toolbar
Type in Disk Utility and click on it
Click on the Icon to view your hard drive
Note: You can also click on the Finder icon and select your hard drive under Devices
Mac OS hard drive with DATA/Files
Mac OS new hard drive setup (Hard drive with no DATA/Files)
