INSTRUCTIONS AND WARRANTY

MODEL NO. RHI802

RUSSELL HOBBS STEAM IRON

Congratulations on purchasing our Russell Hobbs Steam Iron. Each unit is

manufactured to ensure safety and reliability. Before using this appliance for the first

time, please read the instruction manual carefully and keep it for future reference.

IMPORTANT SAFEGUARDS

When using any electrical appliance, basic safety precautions should always be followed

including the following:

1. Please read the instructions carefully before using any appliance.

2. Always ensure that the voltage on the rating label corresponds to the mains

voltage in your home.

3. Incorrect operation and improper use can damage the appliance and cause injury

to the user.

4. The appliance is intended for household use only. Commercial use invalids the

warranty and the supplier can not be held responsible for injury or damage

caused when using the appliance for any other purpose than that intended.

5. Avoid any contact with moving parts.

6. This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction concerning

use of the appliance by a person responsible for their safety.

7. Children should be supervised to ensure that they do not play with the appliance.

8. Check the power cord and plug regularly for any damage. If the cord or the plug

is damaged, it must be replaced by the manufacturer or a qualified person in

order to avoid an electrical hazard.

9. Do not use the appliance if it has been dropped or damaged in any way. In case

of damage, take the unit in for examination and/or repair by an authorised service

agent

10. To reduce the risk of electric shock, do not immerse or expose the motor

assembly, plug or the power cord to water or any other liquid.

11. Never immerse the unit in water or any other liquid for cleaning purposes.

12. Remove the plug from the socket by gripping the plug. Do not pull on the cord to

disconnect the appliance from the mains. Always unplug the unit when not in

use, before cleaning or when adding or removing parts.

13. The use of accessory attachments that are not recommended or supplied by the

manufacturer may result in injuries, fire or electric shock.

14. A short cord is provided to reduce the hazards resulting from becoming

entangled in or tripping over a longer cord.

15. Do not let the cord hang over the edge of a table or counter. Ensure that the cord

is not in a position where it can be pulled on inadvertently.

16. Do not allow the cord to touch hot surfaces and do not place on or near a hot gas

or electric burner or in a heated oven.

17. Do not use the appliance on a gas or electric cooking top or over or near an open

flame.

18. Use of an extension cord with this appliance is not recommended. However, if it

is necessary to use an extension lead, ensure that the lead is suited to the power

consumption of the appliance to avoid overheating of the extension cord,

appliance or plug point. Do not place the extension cord in a position where it can

be pulled on by children or animals or tripped over.

19. This appliance is not suitable for outdoor use. Do not use this appliance for

anything other than its intended use.

20. DO NOT carry the appliance by the power cord.

21. Do not leave this appliance unattended during use. Always unplug the unit when

not in use or before cleaning.

22. Always operate the appliance on a smooth, even, stable surface. Do not place

the unit on a hot surface.

23. Ensure that the switch is in the “Off” position after each use.

24. The manufacturer does not accept responsibility for any damage or injury caused

by improper or incorrect use, or for repairs carried out by unauthorised

personnel.

25. In case of technical problems, switch off the machine and do not attempt to repair

it yourself. Return the appliance to an authorised service facility for examination,

adjustment or repair. Always insist on the use of original spare parts. Failure to

comply with the above mentioned pre-cautions and instructions, could affect the

safe operation of this machine.

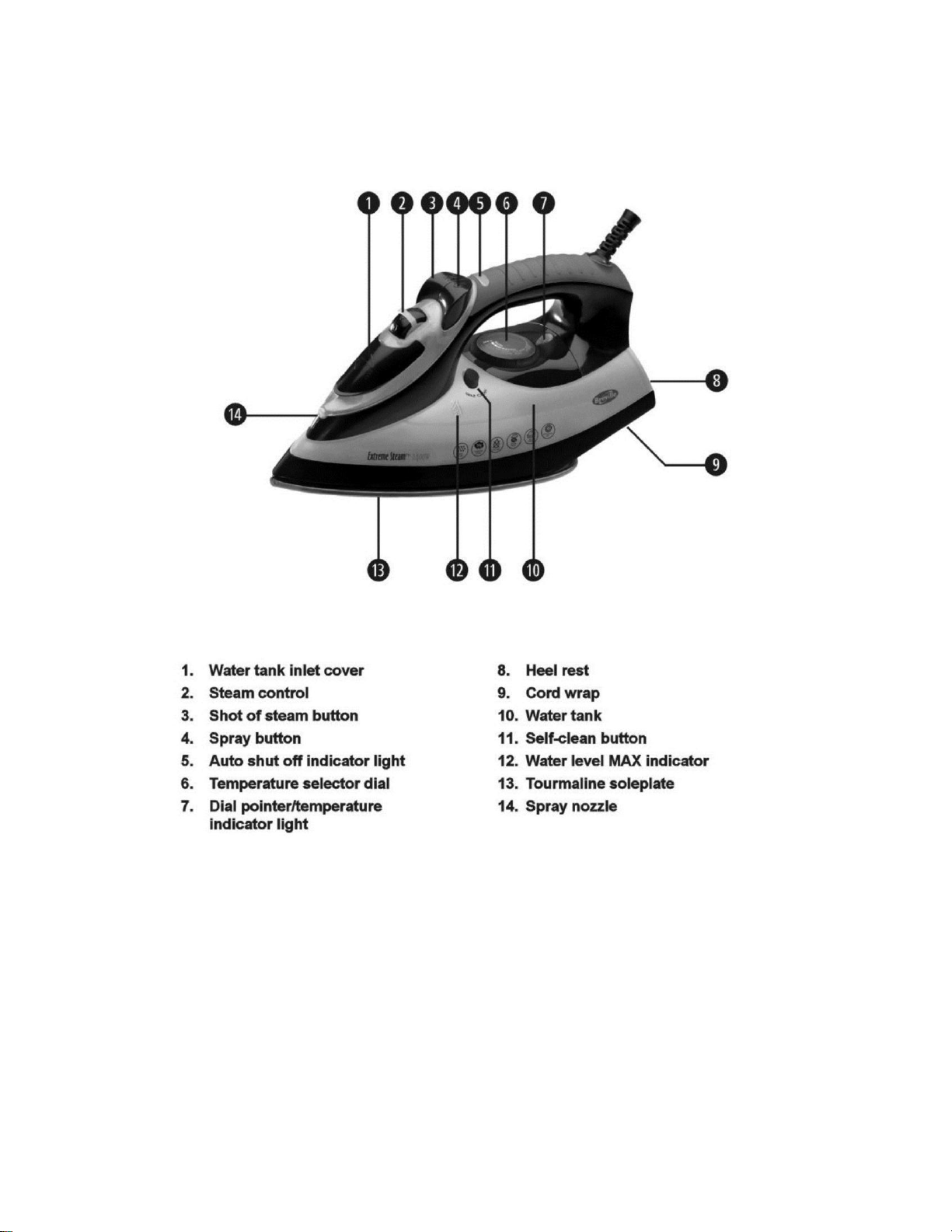

PARTS DIAGRAM

OPERATING INSTRUCTIONS

It is normal for a small amount of smoke to be seen the first time the iron is used,

this will quickly disappear.

When using the steam function for the first time, do not direct the steam towards

the laundry, as there could be debris from the steam vents.

FILLING WITH WATER

We recommend the use of distilled or kettle water.

Make sure that both the Steam Control turning Knob and Temperature Control

Dial are in the “OFF” position.

Hold the iron upright so that the water-filling inlet is in a horizontal position.

Fill with water through Water Filling Inlet until the water reaches the “MAX” mark

indicated on the side of the iron, and never fill above this mark.

SETTING TEMPERATURE

Follow the ironing instructions on the garment label. If there is no instruction but you do

know the kind of fabric, please consult the following table.

Note: If the fabric consists of various kinds of fabrics, always select the temperature

required by the most delicate fabrics.

Fabric

Temperature control

Temperature requirement

Synthetic

●

Low temperature

Silk, wool

●●

Medium temperature

Cotton, linen

●●●

High temperature

STEAM IRONING

Place the iron in a vertical position and set the temperature control dial to the

minimum/lowest heat setting.

Insert the plug into the socket, and then turn the temperature control dial to the

“high heat” marking. The pilot light will come on, indicating that the iron is heating

up.

When the pilot light turns off, the set temperature has been reached and the iron

is ready to use.

During ironing, the pilot light on the iron automatically switches on/off as the

thermostat maintains the set temperature (you may continue ironing during this

process).

Turn the steam control turning knob to the required position.

Steam is produced as soon as the iron is held horizontally.

SPRAYING

Press the spray button to spray water on clothes, as often as required.

Please Note: When using the water spray function, ensure that there is enough water in

the water tank, and you may have to pump the spray button several times at first in order

to start the spraying function.

BURST OR VERTICAL STEAM IRONING

Press the burst of Steam button to generate a powerful burst of steam that can

penetrate the fabrics and smooth the most difficult and tough creases. Wait for a

few seconds before pressing again.

By pressing the Burst of Steam Button you can also iron vertically (e.g. curtains)

Please Note: The burst steam function can only be used at high temperature. Stop the

emission when the pilot light turns on, and then start ironing again only after the pilot

light has turned off.

DRY IRONING

For ironing without steam, follow the instruction in section “steam ironing”, however, the

steam control turning knob should remain in position “O” (no steam).

FABRIC & TEMPERATURE INDICATOR

Use the Electronic Temperature Control to select the desired fabric setting. The lights in

the water tank will light up, at the same time lights will start to flash; they will stop

flashing when the iron reaches the selected temperature.

CLEANING AND MAINTENANCE

This appliance is for household use only and is not user-serviceable.

Do not open or change any parts by yourself. Please refer to a qualified electrical

service department or return to the supplier if servicing is necessary.

Always remember to unplug the unit from the electrical outlet when not in use

and before cleaning. Ensure that the speed control is set to “0”.

It is much easier to clean the accessories directly after they have been used.

Wash them in warm, soapy water, rinse and dry well.

The body of the appliance and the stand should be cleaned with a damp cloth.

Do not let water enter the appliance or the stand.

Do not use bleach or other abrasive substance or solvents to clean your

appliance as it can be damaging to the finish.

Do not immerse the appliance in water or any other liquid, or hold it under a

running tap to clean.

To remove stubborn spots/marks, wipe the surfaces with a cloth slightly

dampened in soapy water or mild non-abrasive cleaner. Rinse and dry a clean,

dry, soft cloth.

After using, lift the iron with the filling hole downwards to empty the remaining

water from the Water tank.

Insert the plug into the socket, and set the Temperature Control Dial to “MAX” for

1-2 minutes to evaporate the remaining water, and then unplug the iron and let it

cool down before storing it.

SELF-CLEANING

The iron needs to be self-cleaned every 10-15 days:

Push the steam control turning knob (C) to “O” position.

Set the temperature control dial (I) in “MAX” position and plug the power plug in

until the pilot light (G) lights up.

Unplug the power plug, and hold the iron over a sink or basin immediately.

Hold the self-cleaning button (L), the water will drip down from the steam spray

holes in the soleplate.

After the water tank is empty and no more water drip down, put the iron on a

shelf until it is dry.

STORING THE APPLIANCE

Unplug the unit from the wall outlet and clean all the parts as instructed above.

Ensure that all parts are dry before storing.

Store the appliance in its box or in a clean, dry place.

Never store the appliance while it is still wet or dirty.

Never wrap the power cord around the appliance.

SERVICING THE APPLIANCE

There are no user serviceable parts in this appliance. If the unit is not operating

correctly, please check the following:

You have followed the instructions correctly

That the unit has been wired correctly and that the wall socket is switched on.

That the mains power supply is ON.

That the plug is firmly in the mains socket.

If the appliance still does not work after checking the above:

- Consult the retailer for possible repair or replacement. If the retailer fails to resolve the

problem and you need to return the appliance, make sure that:

The unit is packed carefully back into its original packaging.

Proof of purchase is attached.

A reason is provided for why it is being returned.

If the supply cord is damaged, it must be replaced by the manufacturer or an authorised

service agent, in order to avoid any hazard. If service becomes necessary within the

warranty period, the appliance should be returned to an approved Home of Living

Brands (Pty) Limited service centre. Servicing outside the warranty period is still

available, but will, however, be chargeable.

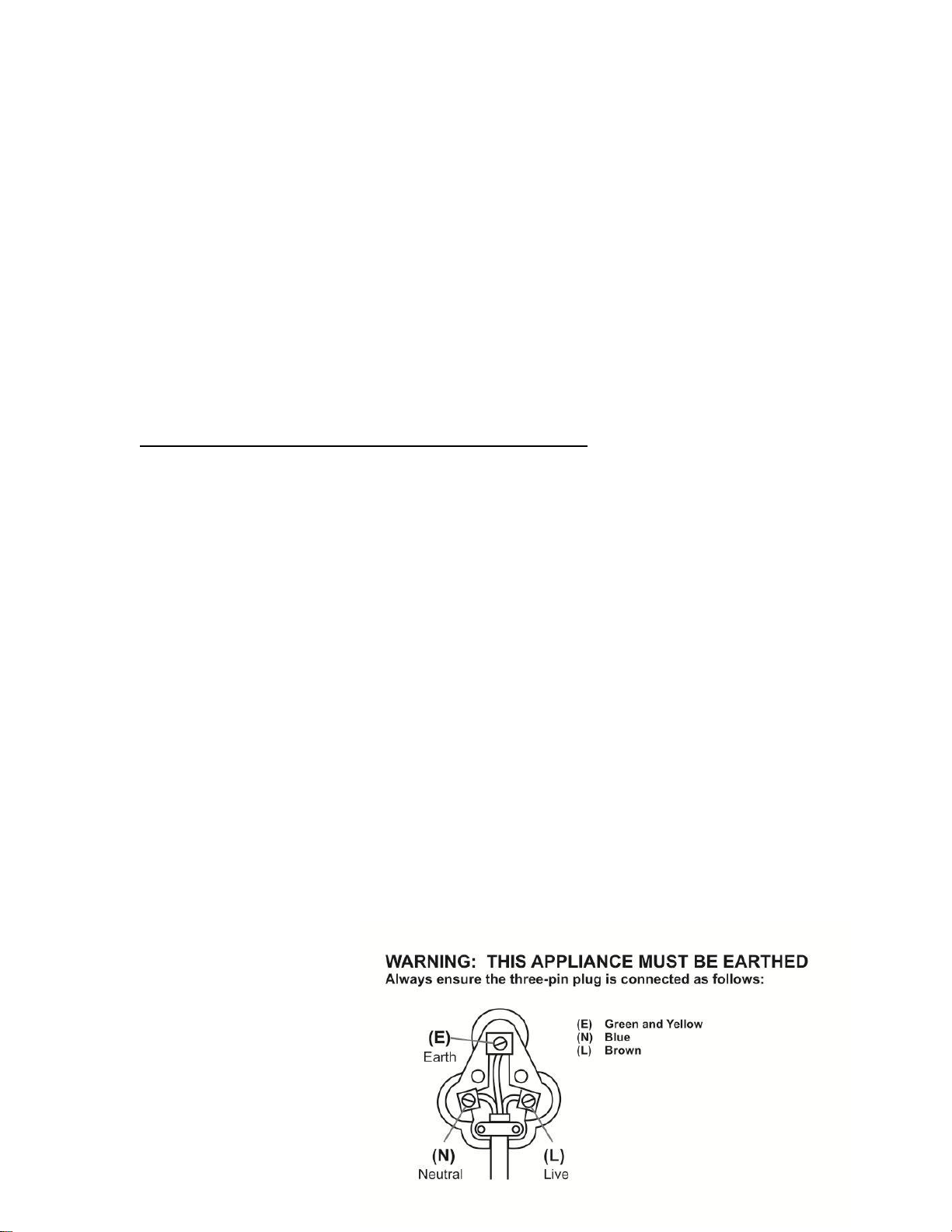

CHANGING THE PLUG

Should the need arise to change the fitted plug, follow the instructions below.

This unit is designed to operate on the stated current only. Connecting to other

power sources may damage the appliance. Connect a three-pin plug as follows:

The wires in this mains lead are coloured in accordance with the following code:

Green/Yellow = Earth

Blue = Neutral

Brown = Live

PLEASE AFFIX YOUR PROOF OF PURCHASE/RECEIPT HERE

IN THE EVENT OF A CLAIM UNDER WARRANTY THIS RECEIPT MUST BE PRODUCED.

W A R R A N T Y

1. Home of Living Brands (Pty) Limited (“Home of Living Brands”) warrants to the

original purchaser of this product (“the customer”) that this product will be free

of defects in quality and workmanship which under normal personal, family or

household use and purpose may manifest within a period of 1 (one) year from

the date of purchase (“warranty period”).

2. Where the customer has purchased a product and it breaks, is defective or

does not work properly for the intended purpose, the customer must notify the

supplier from whom the customer bought the product (“the supplier”) thereof

within the warranty period. Any claim in terms of this warranty must be

supported by a proof of purchase. If proof of purchase is not available, then

repair, and/or service charges may be payable by the customer to the supplier.

3. The faulty product must be taken to the supplier's service centre to exercise the

warranty.

4. The supplier will refund, repair or exchange the product in terms of this warranty

subject to legislative requirements. This warranty shall be valid only where the

customer has not broken the product himself, or used the product for something

that it is not supposed to be used for. The warranty does not include and will not

be construed to cover products damaged as a result of disaster, misuse,

tamper, abuse or any unauthorised modification or repair of the product.

5. This warranty will extend only to the product provided at the date of the

purchase and not to any expendables attached or installed by the customer.

6. If the customer requests that the supplier repairs the product and the product

breaks or fails to work properly within 3 (three) months of the repair and not as

a result of misuse, tampering or modification by or on behalf of the customer,

then the supplier may replace the product or pay a refund to the customer.

7. The customer may be responsible for certain costs where products returned are

not in the original packaging, or if the packaging is damaged. This will be

deducted from any refund paid to the customer.

HOME OF LIVING BRANDS (PTY) LTD (JOHANNESBURG)

JOHANNESBURG TEL NO. (011) 490-9600

CAPE TOWN TEL NO. (021) 552-5161

DURBAN TEL NO. (031) 792-6000

www.russellhobbs.co.za

Félicitations pour l'achat de notre fer à repasser à vapeur Russell Hobbs. Chaque unité

est fabriquée avec un souci de sécurité et de fiabilité. Avant d’utiliser cet appareil pour

la première fois, merci de lire le manuel d’instructions et de le conserver afin de pouvoir

vous y reporter à l’avenir.

MESURES DE SECURITE IMPORTANTES

Lorsque vous utilisez n’importe quel appareil électrique, les précautions de sécurité de

base devraient toujours être suivies, y compris les points suivants :

1. Merci de lire les instructions avec attention avant d’utiliser un appareil quel qu’il

soit.

2. Toujours vous assurer que le voltage inscrit sur l’étiquette de classification

correspond aux voltages principaux de votre habitation.

3. Un mauvais fonctionnement et une utilisation inappropriée peuvent

endommager l’appareil et peuvent entraîner des blessures pour l’utilisateur.

4. L’appareil est uniquement destiné à un usage domestique. Une utilisation

commerciale annule la garantie et le fournisseur ne peut pas être tenu pour

responsable en cas de blessures ou de dommages causés lors d’une utilisation

différente de celle pour laquelle cet appareil est destiné.

5. Eviter tout contact avec les parties articulées.

6. Cet appareil n’est pas conçu pour être utilisé par des personnes (y compris les

enfants) dont les capacités physiques, sensorielles ou mentales sont déficientes,

ou bien, ne possédant pas assez d’expérience ou de connaissance, à moins

qu’elles n’aient été supervisées ou qu’elles aient reçu des instructions relatives à

l’utilisation de l’appareil, par une personne responsable de leur sécurité.

7. Les enfants devraient être supervisés afin de s’assurer qu’ils ne jouent pas avec

l’appareil.

8. Vérifier le cordon d’alimentation et le brancher régulièrement afin d’éviter tout

endommagement. Si le cordon ou la prise sont endommagés, ils doivent être

remplacés par le fabricant ou par une personne qualifiée, afin d’éviter un risque

électrique.

Table des matières

Langues :

Autres manuels Russell Hobbs Fer

Russell Hobbs

Russell Hobbs 23975-56 Manuel utilisateur

Russell Hobbs

Russell Hobbs Turbo Steam RHC925 Manuel d'instructions d'installation

Russell Hobbs

Russell Hobbs STEAMGLIDE ULTRA RHC940 Guide d'installation

Russell Hobbs

Russell Hobbs COLOUR CONTROL SUPREME Manuel utilisateur

Russell Hobbs

Russell Hobbs 18465 Manuel utilisateur

Russell Hobbs

Russell Hobbs 14773 Manuel utilisateur

Russell Hobbs

Russell Hobbs 20630-56 Manuel utilisateur

Russell Hobbs

Russell Hobbs RHI002 Guide d'installation

Russell Hobbs

Russell Hobbs RHST102 Manuel d'instructions d'installation

Russell Hobbs

Russell Hobbs Supreme Steam 23393 Manuel utilisateur

Russell Hobbs

Russell Hobbs 20551AU Manuel utilisateur

Russell Hobbs

Russell Hobbs Steam Iron Manuel utilisateur

Russell Hobbs

Russell Hobbs 15131 Manuel utilisateur

Russell Hobbs

Russell Hobbs RHSIR 127V Manuel utilisateur

Russell Hobbs

Russell Hobbs RHC455 Manuel d'instructions d'installation

Russell Hobbs

Russell Hobbs Diamond Elite RHC590 Guide d'installation

Russell Hobbs

Russell Hobbs Rapidsteam RHC902 Manuel d'instructions d'installation

Russell Hobbs

Russell Hobbs 25580-56 Manuel utilisateur

Russell Hobbs

Russell Hobbs 14995 Manuel utilisateur

Russell Hobbs

Russell Hobbs 14863 Manuel utilisateur

Russell Hobbs

Russell Hobbs 14584 Guide d'installation

Russell Hobbs

Russell Hobbs RHC280 Guide d'installation

Russell Hobbs

Russell Hobbs LIGHT AND EASY 23590-56 Manuel utilisateur

Russell Hobbs

Russell Hobbs Easy Store Manuel utilisateur

Manuels Fer populaires d'autres marques

Clatronic

Clatronic DB 3703 Manuel utilisateur

TEFAL

TEFAL FV4093Z0 Manuel utilisateur

Gorenje

Gorenje SIH 2200 BS Manuel utilisateur

Philips

Philips GC6012 Manuel utilisateur

Bosch

Bosch 2 Series Manuel utilisateur

Riffel

Riffel Catena KB-819 Manuel utilisateur

Texi

Texi Hestia Manuel utilisateur

Maxwell

Maxwell MW-3010 Manuel utilisateur

TREVIDEA

TREVIDEA Girmi ST60 Manuel utilisateur

Philips

Philips HI5914/30 Manuel utilisateur

Primula

Primula Vapormat Manuel utilisateur

Magio

Magio MG-541 Manuel utilisateur

Scarlett

Scarlett SC-1334S Manuel utilisateur

Bosch

Bosch Sensixx B22L Manuel utilisateur

Philips

Philips GC651 Manuel utilisateur

Vitek

Vitek VT-1247 VT Manuel utilisateur

Cleanmaxx

Cleanmaxx 3397 Manuel utilisateur

Philips

Philips GC800 Manuel utilisateur
