INSTRUCTIONS AND WARRANTY

MODEL NO. 14584

RUSSELL HOBBS STEAM IRON

Congratulations on purchasing our Russell Hobbs Steam Iron. Each unit is

manufactured to ensure safety and reliability. Before using this appliance for the first

time, please read the instruction manual carefully and keep it for future reference.

IMPORTANT SAFEGUARDS

Follow basic safety precautions, including:

1. Please read the instructions carefully before using any appliance.

2. Always ensure that the voltage on the rating label corresponds to the mains

voltage in your home.

3. Incorrect operation and improper use can damage the appliance and cause injury

to the user.

4. The appliance is intended for household use only. Commercial use invalids the

warranty and the supplier cannot be held responsible for injury or damage

caused when using the appliance for any other purpose than that intended.

5. Avoid any contact with moving parts.

6. This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction concerning

use of the appliance by a person responsible for their safety.

7. Children should be supervised to ensure that they do not play with the appliance.

8. Check the power cord and plug regularly for any damage. If the cord or the plug

is damaged, it must be replaced by the manufacturer or a qualified person in

order to avoid an electrical hazard.

9. Do not use the appliance if it has been dropped or damaged in any way. In case

of damage, take the unit in for examination and/or repair by an authorised service

agent

10. To reduce the risk of electric shock, do not immerse or expose the motor

assembly, plug or the power cord to water or any other liquid.

11. Never immerse the unit in water or any other liquid for cleaning purposes.

12. Remove the plug from the socket by gripping the plug. Do not pull on the cord to

disconnect the appliance from the mains. Always unplug the unit when not in

use, before cleaning or when adding or removing parts.

13. The use of accessory attachments that are not recommended or supplied by the

manufacturer may result in injuries, fire or electric shock.

14. A short cord is provided to reduce the hazards resulting from becoming

entangled in or tripping over a longer cord.

15. Do not let the cord hang over the edge of a table or counter. Ensure that the cord

is not in a position where it can be pulled on inadvertently.

16. Do not allow the cord to touch hot surfaces and do not place on or near a hot gas

or electric burner or in a heated oven.

17. Do not use the appliance on a gas or electric cooking top or over or near an open

flame.

18. Use of an extension cord with this appliance is not recommended. However, if it

is necessary to use an extension lead, ensure that the lead is suited to the power

consumption of the appliance to avoid overheating of the extension cord,

appliance or plug point. Do not place the extension cord in a position where it can

be pulled on by children or animals or tripped over.

19. This appliance is not suitable for outdoor use. Do not use this appliance for

anything other than its intended use.

20. DO NOT carry the appliance by the power cord.

21. Do not leave this appliance unattended during use. Always unplug the unit when

not in use or before cleaning.

22. Always operate the appliance on a smooth, even, stable surface. Do not place

the unit on a hot surface.

23. Ensure that the switch is in the “Off” position after each use.

24. The manufacturer does not accept responsibility for any damage or injury caused

by improper or incorrect use, or for repairs carried out by unauthorised

personnel.

25. In case of technical problems, switch off the machine and do not attempt to repair

it yourself. Return the appliance to an authorised service facility for examination,

adjustment or repair. Always insist on the use of original spare parts. Failure to

comply with the above mentioned pre-cautions and instructions, could affect the

safe operation of this machine.

ADDITIONAL SAFEGUARDS

1. Don’t iron clothing while it’s being worn – you’ll burn or scald the wearer.

2. Don’t touch the soleplate, and keep away from the steam coming from it.

3. Take care when emptying the iron –it may contain hot water.

4. Don’t use the iron in the vicinity of children.

5. Use the iron on a stable, level, heat-resistant surface, preferably an ironing

board.

6. Don’t leave the iron unattended while plugged in, or while it’s standing on the

ironing board. It could be knocked over by you, by a child, or by a pet.

7. Unplug the iron before filling, before cleaning, and after use.

8. Don’t fill the iron directly from the tap, use the jug.

9. Don’t fill past max, or water may escape in use.

10. Sit the iron upright when you’re not ironing, and when you store it away.

11. Leave the iron upright to cool before cleaning.

12. Unplug the iron when not in use, before moving and before cleaning. Let it cool

down fully before cleaning and storing away.

13. Don’t fit any attachment or accessory other than those we supply.

14. Keep the iron and the cable away from hotplates, hobs or burners.

15. Don’t use the iron for any purpose other than those described in these

instructions.

16. Take care not to scratch the soleplate –avoid buttons, zips, etc.

17. The iron has a protective thermal fuse, which will blow if it overheats. If this

happens, the iron will stop working, and must be returned for repair.

18. Don’t use the iron if it’s dropped or damaged, or if it malfunctions or leaks.

19. If the cable is damaged, return the iron, to avoid hazard.

Household use only

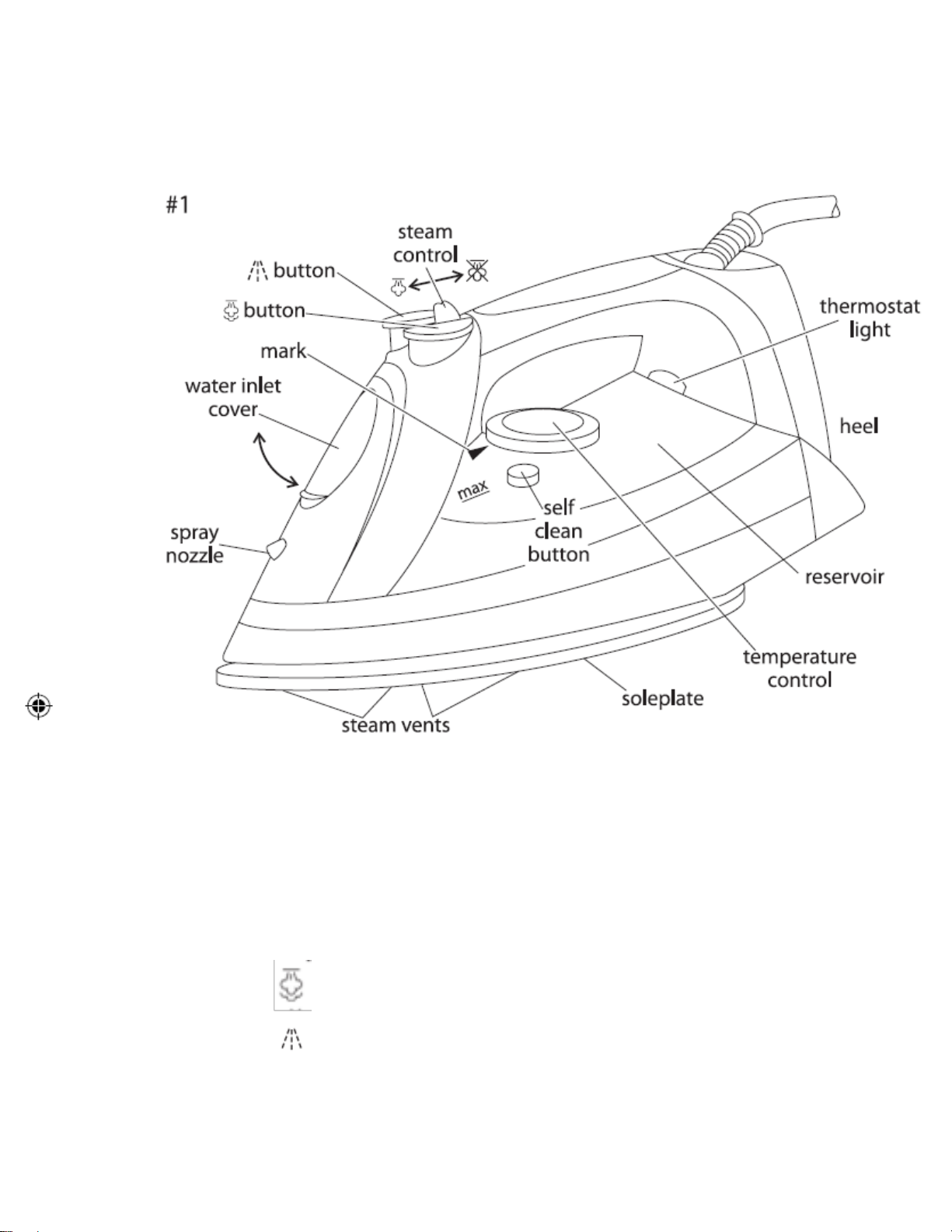

PARTS DIAGRAM

OPERATING INSTRUCTIONS

BEFORE USING FOR THE FIRST TIME

Don’t worry if the iron smokes a bit at first, it’ll stop as the element cures.

Iron an old piece of cotton fabric, to clean the soleplate.

Press the button 3 or 4 times, to check it out.

ANTI-DRIP FUNCTION

The anti-drip function uses a separate thermostat, to shut off the flow of water if the

temperature is not high enough to produce steam.

This means that in addition to the click of the normal thermostat, which coincides with

the thermostat light going on and off, you’ll hear the anti-drip thermostat clicking, but you

won’t see anything happening. Do not worry about it –just keep on ironing.

Preparation

Check for textile care symbols ( ).

Iron fabrics needing low temperatures first, then those that need medium

temperatures , and finish with those needing high temperatures .

Filling (#2)

The iron may be used with tap-water, but if you live in a

hard water area, you should use distilled water (not

chemically descaled water).

If you buy distilled water, check that it’s marketed as

suitable for use in irons.

Unplug the iron.

Turn the temperature control to ●, slide the steam

control to (#3).

Hold the iron with the soleplate down (#2).

Lift the bottom of the water inlet cover to open it.

Pour slowly, to allow the air in the reservoir to escape, otherwise you’ll cause an

air lock and the water will overflow.

Don’t fill past max, or water will escape in use.

Wipe up any spillage.

Switch on

Turn the temperature control to ●.

Place the iron on its heel.

Put the plug into the power socket (switch the socket on, if it’s switchable).

Turn the temperature control to bring the setting you want next to the mark (#3).

The thermostat light will come on.

When the iron reaches the temperature you set, the thermostat light will go off.

It’ll then cycle on and off as the thermostat operates to maintain the temperature.

If the instructions on the fabric label differ from this guide, follow the instructions on the

label.

Reducing temperature

Reducing the temperature takes a bit longer, as the element has to lose the heat

it has built up, so be patient. It’s best to organise your ironing so that you don’t

need to reduce the temperature).

Steam ironing

When steam ironing, you must set the temperature control at or higher.

If you don’t, you’ll get water on your clothes, not steam.

Move the steam control to the setting you want, = no steam, = high steam

(#3).

Wait until the thermostat light goes out and then start ironing.

Spray

Please Note: Water spotting affects some fabrics. Test this out on a hidden part of the

fabric.

This works with dry or steam ironing, as long as there’s water in the reservoir.

Check that there’s water in the reservoir.

Lift the iron off the fabric.

Aim the spray nozzle at the fabric.

Press the button.

You may have to press it 2 or 3 times to

pump water through the system.

Shot of steam

This works with dry or steam ironing, as long as there’s

water in the reservoir, and the temperature is above .

Check that there’s water in the reservoir.

Check that the temperature control is at or higher.

Lift the iron off the fabric.

Press the button.

You may have to press it 2 or 3 times to pump water through the system.

Leave 4 seconds between shots, to let the temperature build

up.

Dry ironing

If you’re going to be dry ironing for 20 minutes or more,

empty the reservoir first, to avoid spontaneous bursts of

steam.

Move the steam control to .

Wait till the thermostat light goes out, then start ironing.

Vertical steaming

Remove wrinkles from hanging clothes, hanging curtains, and furnishing fabrics.

Check that there’s adequate ventilation behind the fabric, otherwise moisture

may build up, causing mildew.

Check that there’s nothing behind the fabric that may be damaged by the steam.

Check that pockets, turn-ups, and cuffs are empty.

Check that there’s water in the reservoir.

Turn the temperature control to max, move the steam control

to .

Hold the iron close to (but not touching) the fabric.

Press the button.

You may have to press it 2 or 3 times to pump water through

the system.

Leave 4 seconds between shots, to let the temperature build up.

After use

Turn the temperature control to ●, turn the steam control to .

Unplug the iron.

Lift the bottom of the water inlet cover to open it.

Hold the iron over a sink, turn it upside down, and drain the

water from the reservoir.

Caution: The water may be hot.

Place the iron on its heel.

Leave it to cool down completely.

When it’s cold, wipe off any moisture, and close the water inlet cover.

Store the iron on its heel, to avoid corrosion and damage to the soleplate.

Self clean

To prevent scale building up, use the self clean function

regularly, at least monthly in normal water areas, more

often in hard water areas.

You’ll need a basin or a large bowl to catch the water

coming out of the soleplate.

Fill the reservoir to the max mark.

Turn the temperature control to max, move the steam

control to .

Place the iron on its heel.

Put the plug into the power socket, and wait till the thermostat light goes out.

Now hold the iron over the basin or bowl, with the soleplate down (#9).

Press the self clean button, keep it pressed, and gently move the iron to and fro,

over the basin or bowl.

Caution: Keep clear of the escaping water and steam

Water and steam will wash scale and dust through the soleplate, and into the

sink.

When the reservoir is empty, release the self clean button.

Unplug the iron, and place it on its heel to cool.

When it’s cold, wipe off any moisture.

Store the iron on its heel, to avoid corrosion and damage to the soleplate.

Anti-scale

The anti-scale agent incorporated in the iron helps prevent the build-up of scale.

Don’t use a descaling solution, or you’ll destroy the anti-scale agent.

CLEANING AND MAINTENANCE

Unplug the iron when not in use, before moving and before cleaning. Let it cool

down fully before cleaning and storing away.

Remove spots from the soleplate with a little vinegar.

This appliance is for household use only and is not user-serviceable.

Do not open or change any parts by yourself. Please refer to a qualified electrical

service department or return to the supplier if servicing is necessary.

Table des matières

Langues :

Autres manuels Russell Hobbs Fer

Russell Hobbs

Russell Hobbs Diamond Elite RHC590 Guide d'installation

Russell Hobbs

Russell Hobbs Steam Iron Manuel utilisateur

Russell Hobbs

Russell Hobbs 26020-56 Manuel utilisateur

Russell Hobbs

Russell Hobbs Light & Easy Brights Manuel utilisateur

Russell Hobbs

Russell Hobbs Supreme Steam 23393 Manuel utilisateur

Russell Hobbs

Russell Hobbs RHC909 Manuel d'instructions d'installation

Russell Hobbs

Russell Hobbs 26482-56 Manuel utilisateur

Russell Hobbs

Russell Hobbs 26481-56 Manuel utilisateur

Russell Hobbs

Russell Hobbs 14993 Manuel utilisateur

Russell Hobbs

Russell Hobbs Light and Easy Brights Rose Manuel utilisateur

Russell Hobbs

Russell Hobbs Easyfill Manuel utilisateur

Russell Hobbs

Russell Hobbs Steam Iron Manuel utilisateur

Russell Hobbs

Russell Hobbs 15207 Manuel utilisateur

Russell Hobbs

Russell Hobbs RHI2010BL Mode d’emploi

Russell Hobbs

Russell Hobbs 25090 Manuel utilisateur

Russell Hobbs

Russell Hobbs 22523-56 Manuel utilisateur

Russell Hobbs

Russell Hobbs 12290 Guide d'installation

Russell Hobbs

Russell Hobbs Accusteam Plus RHC906 Guide d'installation

Russell Hobbs

Russell Hobbs 22520 Manuel utilisateur

Russell Hobbs

Russell Hobbs Impact 24650-56 Manuel utilisateur

Russell Hobbs

Russell Hobbs RHI901 Guide d'installation

Russell Hobbs

Russell Hobbs Steam Genie Manuel utilisateur

Russell Hobbs

Russell Hobbs Steam Iron Manuel utilisateur

Russell Hobbs

Russell Hobbs 20630 Manuel utilisateur

Manuels Fer populaires d'autres marques

Clatronic

Clatronic DB 3703 Manuel utilisateur

TEFAL

TEFAL FV4093Z0 Manuel utilisateur

Gorenje

Gorenje SIH 2200 BS Manuel utilisateur

Philips

Philips GC6012 Manuel utilisateur

Bosch

Bosch 2 Series Manuel utilisateur

Riffel

Riffel Catena KB-819 Manuel utilisateur

Texi

Texi Hestia Manuel utilisateur

Maxwell

Maxwell MW-3010 Manuel utilisateur

TREVIDEA

TREVIDEA Girmi ST60 Manuel utilisateur

Philips

Philips HI5914/30 Manuel utilisateur

Primula

Primula Vapormat Manuel utilisateur

Magio

Magio MG-541 Manuel utilisateur

Scarlett

Scarlett SC-1334S Manuel utilisateur

Bosch

Bosch Sensixx B22L Manuel utilisateur

Philips

Philips GC651 Manuel utilisateur

Vitek

Vitek VT-1247 VT Manuel utilisateur

Cleanmaxx

Cleanmaxx 3397 Manuel utilisateur

Philips

Philips GC800 Manuel utilisateur
