RSA Lighting Combo Mini Manuel utilisateur

102

COMBO MINI - Low proﬁle recessed architectural ﬁxtures

103

Combo Mini™ﬁxtures are low proﬁle recessed architectural

trims for downlighting and wall wash lighting applications.

A full range of ﬁxture types are offered including a one light

downlight, one light wall wash, and two and three light multi-

lamp adjustable conﬁgurations.

Each Combo Mini ﬁxture includes RSA’s rugged Combo Recessed

new construction housing with integral low voltage transformer

and j-box and adjustable plaster frame for ceiling thicknesses up

to 1”.

Combo Mini utilizes low voltage MR16 lamps and each lamp

holder can accommodate up to two (2) optical accessories. The

ﬁxed downlight trim is also available with a 120V PAR20 lamp.

Combo Mini is suitable for a wide range of retail, commercial,

hospitality and residential lighting applications.

COMBO MINI

One, Two or Three light adjustable ﬁxtures with housings

Combo Mini Recessed Housing with integral low voltage transformer (for MR16)

COMBO MINI - Low proﬁle recessed architectural ﬁxtures

THIS TRIM AVAILABLE IN MR16 OR PAR20

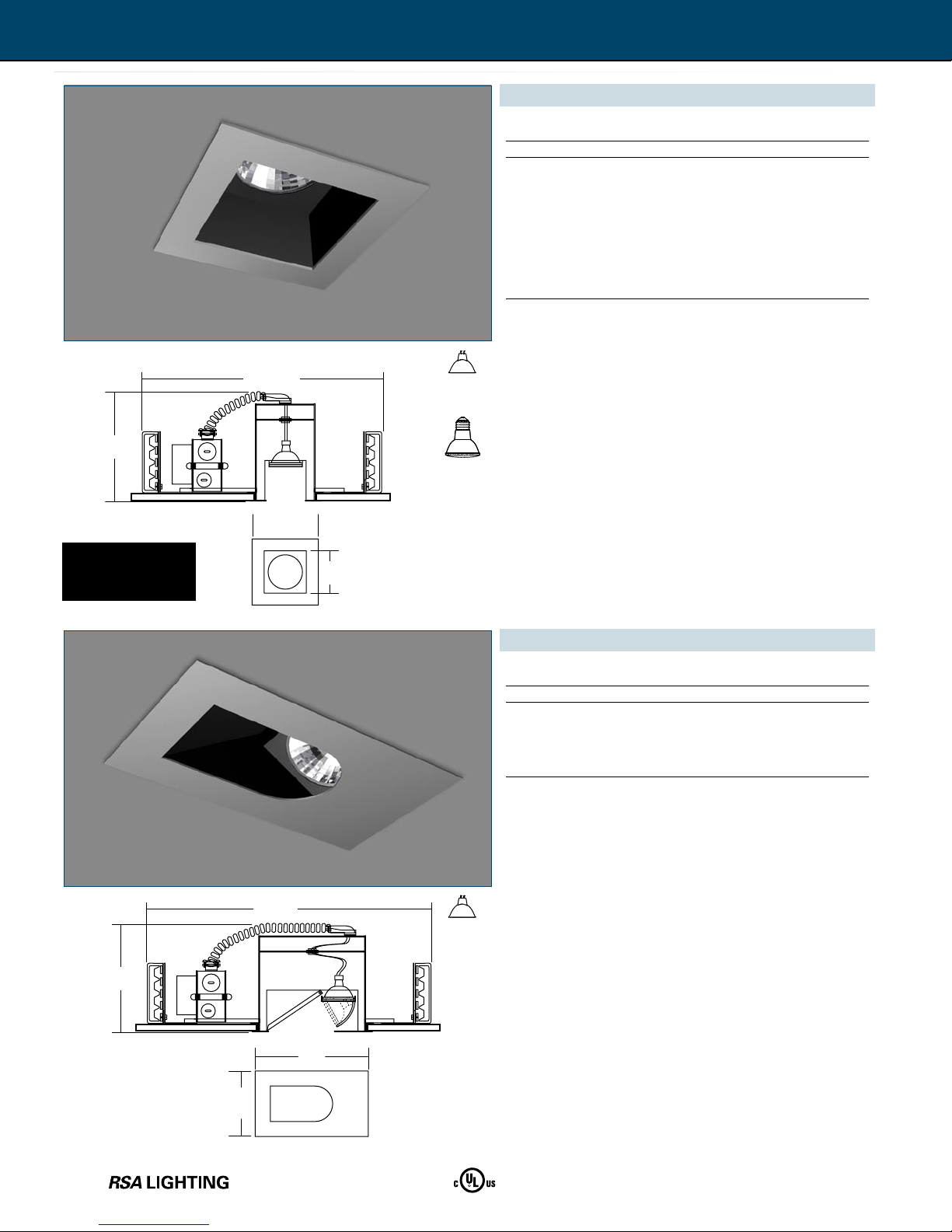

104

COMBO MINI

ONE LIGHT DOWNLIGHT TRIM

Ultra Low Proﬁle Square Fixed Downlight

12V Halogen MR16 12 volts 71 watts max. or 120V PAR20

Item #

CM0W One light ﬁxed downlight - MR16 - White

CM0B One light ﬁxed downlight - MR16 - Black

CM0S One light ﬁxed downlight - MR16 - Silver (shown)

CM0W-P One light ﬁxed downlight - PAR20 - White

CM0B-P One light ﬁxed downlight - PAR20 - Black

CM0S-P One light ﬁxed downlight - PAR20 - Silver (shown)

Voltage (for MR16 only)

120 120V (Standard)

277 277V

• 4.5” sq. (MR16) or 5” sq. (PAR20) trim secured in housing with

torsion spring retainers

• Flat black internal ﬁnish

• Housing adjusts vertically in plaster frame to accommodate

various ceiling thicknesses.

• Integral electronic transformer (MR16 only) accessible through

the ceiling opening.

• Transformers have thermal protection and operate at 11.5 volts

nominal.

• Primary leads: 120 volts.

• Transformer rated 180º Class H.

• Socket is pre-wired to the j-box with 18AWG SF-1 leads.

• J-box U.L. listed for through branch wiring for eight #12, 90ºC

supply wires or 60ºC supply wires for end of run.

• Includes butterﬂy brackets for black iron installations

ONE LIGHT ADJUSTABLE WALL WASH TRIM

Ultra Low Proﬁle Adjustable Wall Wash

12V Halogen MR16 12 volts 71 watts max.

Item #

CM1W One light wall wash - White

CM1B One light wall wash - Black

CM1S One light wall wash - Silver (shown)

Voltage

120 120V (Standard)

277 277V

• 4.5” x 7.68” trim secured in housing with torsion spring retain-

ers

• Flat black internal ﬁnish

• Lamp holder adjusts 0º to 60º tilt

• Housing adjusts vertically in plaster frame to accommodate

various ceiling thicknesses.

• Integral electronic transformer accessible through the ceiling

opening.

• Transformers have thermal protection and operate at 11.5 volts

nominal.

• Primary leads: 120 volts.

• Transformer rated 180º Class H.

• Socket is pre-wired to the j-box with 18AWG SF-1 leads.

• J-box U.L. listed for through branch wiring for eight #12, 90ºC

supply wires or 60ºC supply wires for end of run.

• Includes butterﬂy brackets for black iron installations

4.50" sq. (MR16)

5.00" sq. (PAR20)

15.00" (MR16)

17.14" (PAR20)

2.50" sq. (MR16)

2.86" sq. (PAR20)

7.13"

OVERALL PLASTERFRAME

WIDTH: 6.00”

4.19" x 2.45"

18.13"

7.13"

4.50"

7.68"

OVERALL PLASTERFRAME

WIDTH: 6.00”

MR16

PAR20

MR16

NEW

Now available with

PAR20 120V lamp

105

COMBO MINI

TWO LIGHT ADJUSTABLE TRIM

Ultra Low Proﬁle Two Light Adjustable

12V Halogen MR16 12 volts 71 watts max.

Item #

CM2W Two light adjustable - White (shown)

CM2B Two light adjustable - Black

CM2S Two light adjustable - Silver

Voltage

120 120V (Standard)

277 277V

• 4.5” x 7.68” trim secured in housing with torsion spring retain-

ers

• Flat black internal ﬁnish

• Lamp holders adjust 0º to 60º tilt

• Housing adjusts vertically in plaster frame to accommodate

various ceiling thicknesses.

• Integral electronic transformer accessible through the ceiling

opening.

• Transformers have thermal protection and operate at 11.5 volts

nominal.

• Primary leads: 120 volts.

• Transformer rated 180º Class H.

• Socket is pre-wired to the j-box with 18AWG SF-1 leads.

• J-box U.L. listed for through branch wiring for eight #12, 90ºC

supply wires or 60ºC supply wires for end of run.

• Includes butterﬂy brackets for black iron installations

THREE LIGHT ADJUSTABLE TRIM

Ultra Low Proﬁle Three Light Adjustable

12V Halogen MR16 12 volts 71 watts max.

Item #

CM3W Three light adjustable - White

CM3B Three light adjustable - Black (shown)

CM3S Three light adjustable - Silver

Voltage

120 120V (Standard)

277 277V

• 4.5” x 9.88” trim secured in housing with torsion spring retain-

ers

• Flat black internal ﬁnish

• Outside lamp holders adjust 0º to 60º tilt. Center lamp is ﬁxed

position.

• Housing adjusts vertically in plaster frame to accommodate

various ceiling thicknesses.

• Integral electronic transformer accessible through the ceiling

opening.

• Transformers have thermal protection and operate at 11.5 volts

nominal.

• Primary leads: 120 volts.

• Transformer rated 180º Class H.

• Socket is pre-wired to the j-box with 18AWG SF-1 leads.

• J-box U.L. listed for through branch wiring for eight #12, 90ºC

supply wires or 60ºC supply wires for end of run.

• Includes butterﬂy brackets for black iron installations

4.50"

2.45" x 2.95"

18.13"

7.13"

OVERALL PLASTERFRAME

WIDTH: 6.00” 7.68"

2.45" x 4.88"

7.13"

20.25"

4.50"

9.88"

OVERALL PLASTERFRAME

WIDTH: 6.00”

MR16
