RoyalTek RMP-8200 Manuel utilisateur

Cinema on–the–GO !

RMP-8200

User’s Manual

Table of Contents

Introduction........................................................................................ 3

What is inside the box:.......................................................................3

Overview.............................................................................................................3

System Requirement:.......................................................................................4

Getting Started.................................................................................4

Insert the battery...............................................................................................4

Power adaptor ...................................................................................................5

Connections....................................................................................... 7

Connecting to a Notebook or Perosonal Computer ..................................7

Via Micro SD card/T Flash card......................................................................9

Connecting to a Composite Video Device....................................................9

Remote control................................................................................................10

Intended Use....................................................................................................10

Powering Off....................................................................................................12

Adjusting Image Size......................................................................................11

Control the Brightness...................................................................................12

Control Volume................................................................................................13

Using ....................................................................................................15

Main Menu........................................................................................................15

Video and Audio File Support ...........................................................16

Photo View .................................................................................................18

Settings .......................................................................................................19

A/V in ...........................................................................................................22

Office Viewer ..............................................................................................23

Product Specification...................................................................28

Trouble Shooting.............................................................................29

Support................................................................................................30

Introduction

Thanks for purchasing RoyalTek’s product.

What is inside the box:

lRMP-8200 CINEMA ON-THE-GO

lAC/DC Power adaptor(EU/UK/US plugs)

lRechargeable battery

lUSB cable

lA/V cable

lTripod

lRemote control

lCarry Pouch

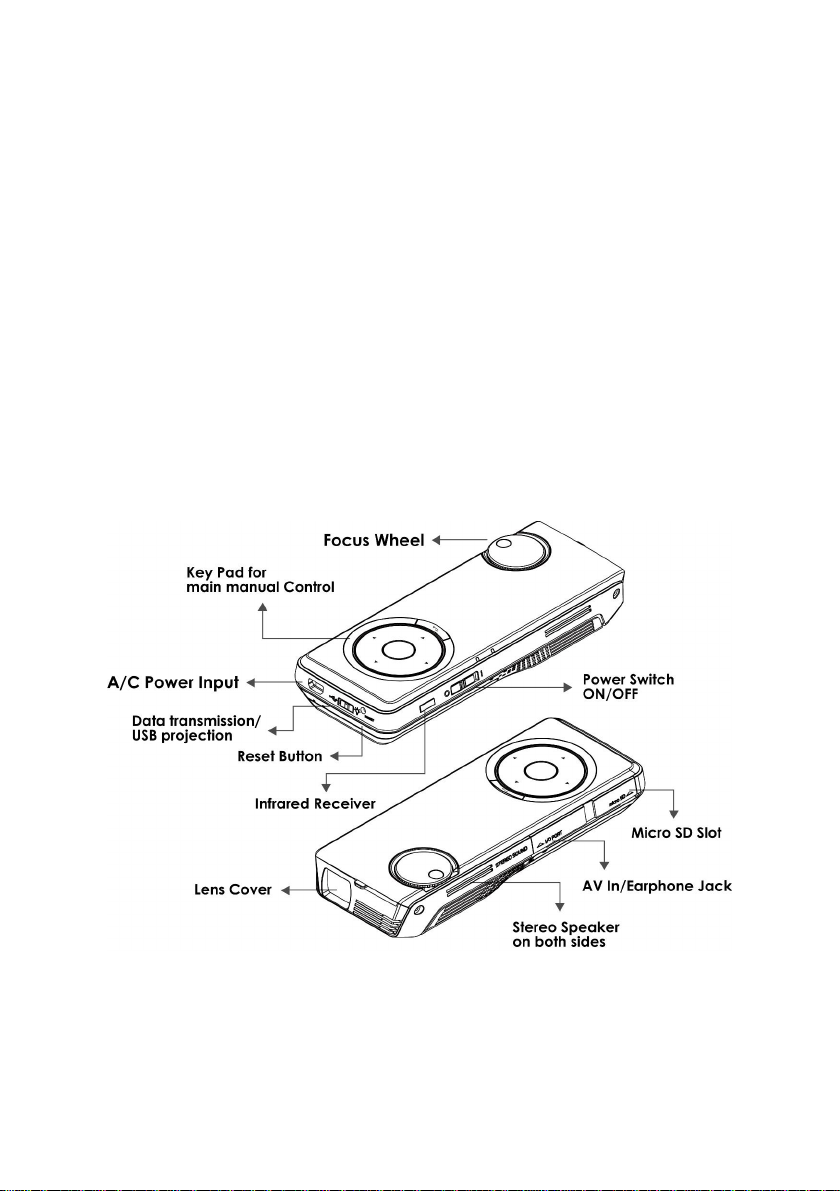

Overview

System Requirement:

lWindows 7, Vista (32bits & 64bits), XP (32bits & 64bits)

lUSB port (1.1 or above, 2.0 recommended)

Getting Started

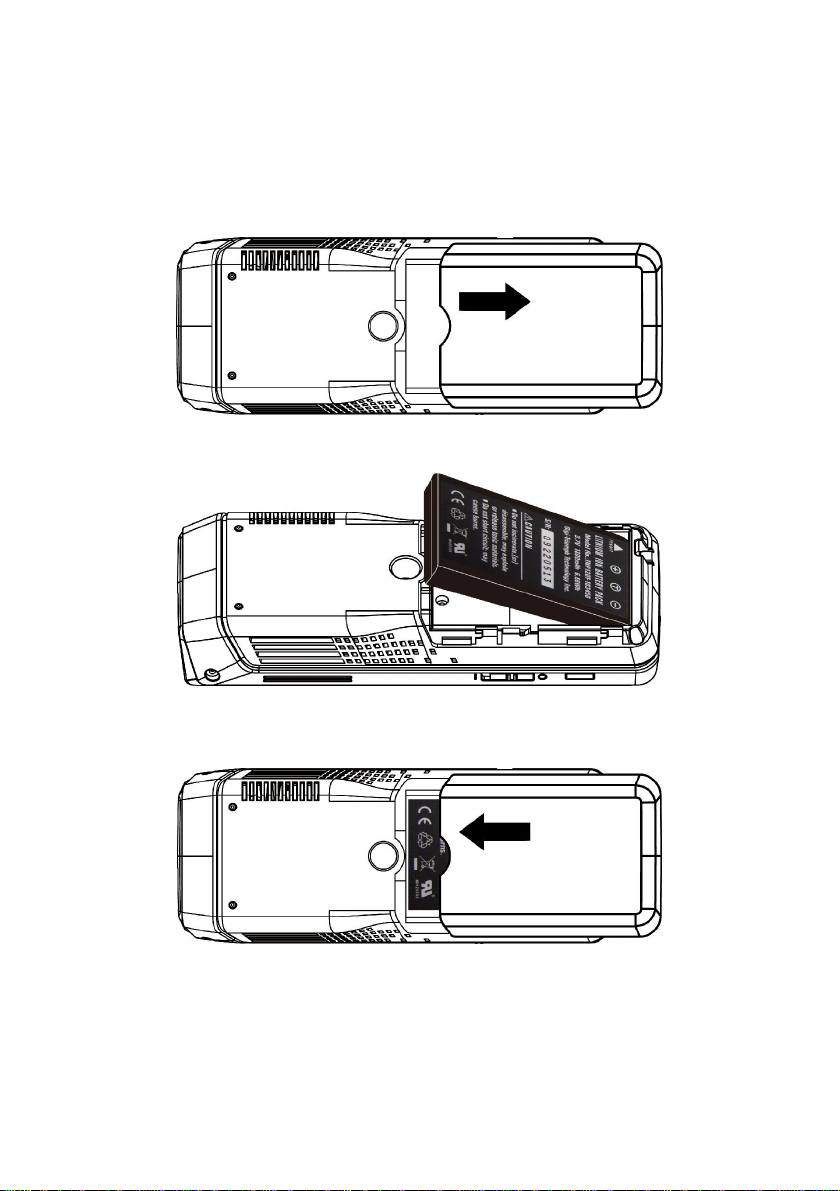

Insert the battery

1. Slide the battery cover.

2. Insert the battery.

3. Replace the battery cover and slide it up gently until hearing a click.

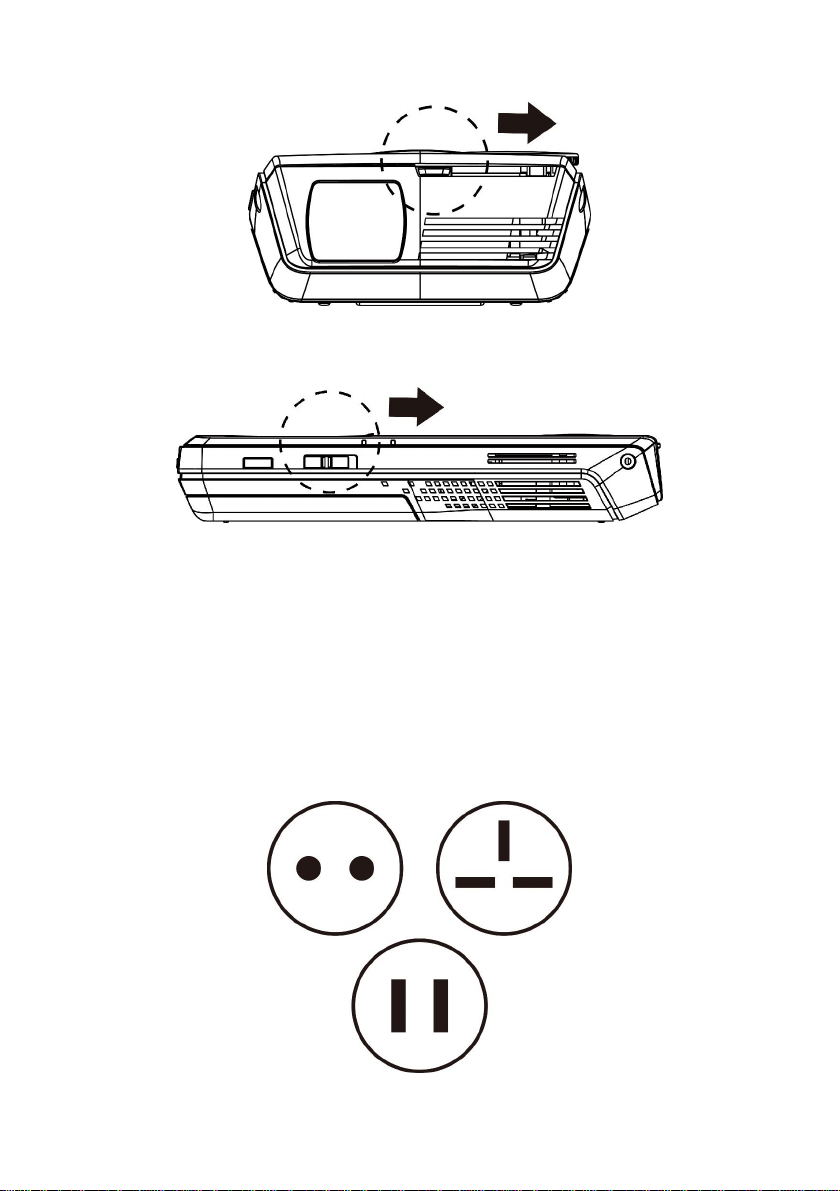

Slide the lens cover to the other side

Switch on the power button. From “O” side to “I”.

Before you use, we suggest you to fully charge the battery.

It will take around 2.5 hoursfor battery charging.

Power adaptor

1. Select the correct plug for your environment.

2. Connect the plug to the power adapter.

To disconnect, please push the button and push out the plug.

Notes:

If The RMP-8200 CINEMA ON-THE-GO power is off, allow 3 hours for the

battery to fully recharge. The battery will stop charging if The RMP-8200

CINEMAON-THE-GO power is on to avoid damage caused by high operating

temperature. The battery can also be charged by connecting The RMP-8200

CINEMAON-THE-GO to a computer USB port. This method will fully charge

the battery in six hours. The battery has a lifespan and ages every time it is

fully charged and discharged. The battery will gradually loose charge capacity

as it ages. Therefore, as the battery ages the battery life will decrease due to

natural loss.

Connections

The RMP-8200 CINEMAON-THE-GO is designed to project with built-in memory

or via expandable Micro SD card slot or connecting to other media devices.

Connecting to a Notebook or Personal Computer

Use the USB cable to connect The RMP-8200 CINEMA ON-THE-GO to

desktop computers, laptop computers, ultra-portable computers for data

transfer.

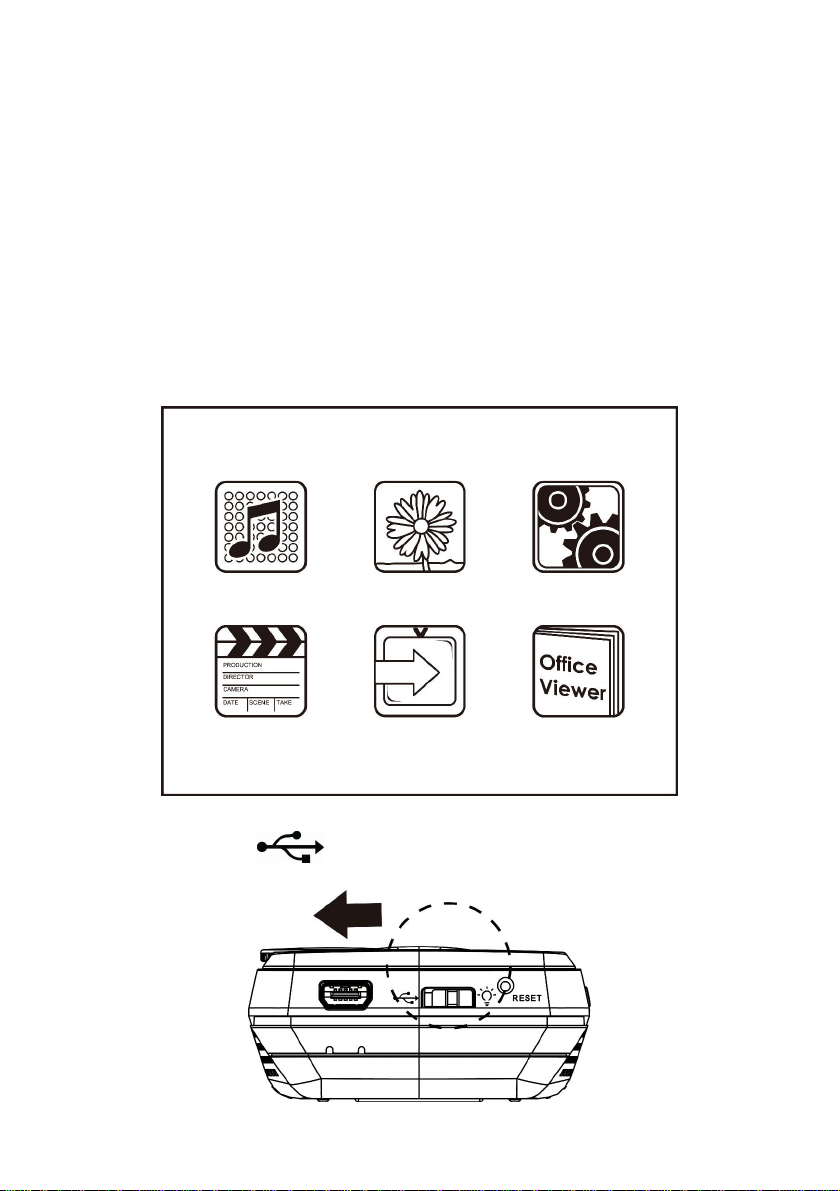

Turn on the power and read the main menu as follows:

Push the switch to side. Connect USB cable to your PC

When the main menu disappears, the connection succeeded and home screen

shows.

You can proceed with the data transfer.

Note:

To conserve power, The RMP-8200 CINEMA ON-THE-GO will stop projecting

an image while connected to a computer USB port.

Via Micro SD card/T Flash card

Store the files you wish to project in a Micro SD or T/F card.

lInsert the Micro SD Card/T Flash card

Pull back the cover and insert the memory card.

The memory card's electrical contacts should face up.

lRemove the memory card

Pull back the cover and push to release the memory card.

When the main menu disappears, the connection succeeded and you can

proceed with the data transfer.

Note:

To conserve power, The RMP-8200 CINEMA ON-THE-GO will stop projecting

an image while connected to a computer USB port.

To project, switch to side as and unplug USB cable.

The main menu will show.

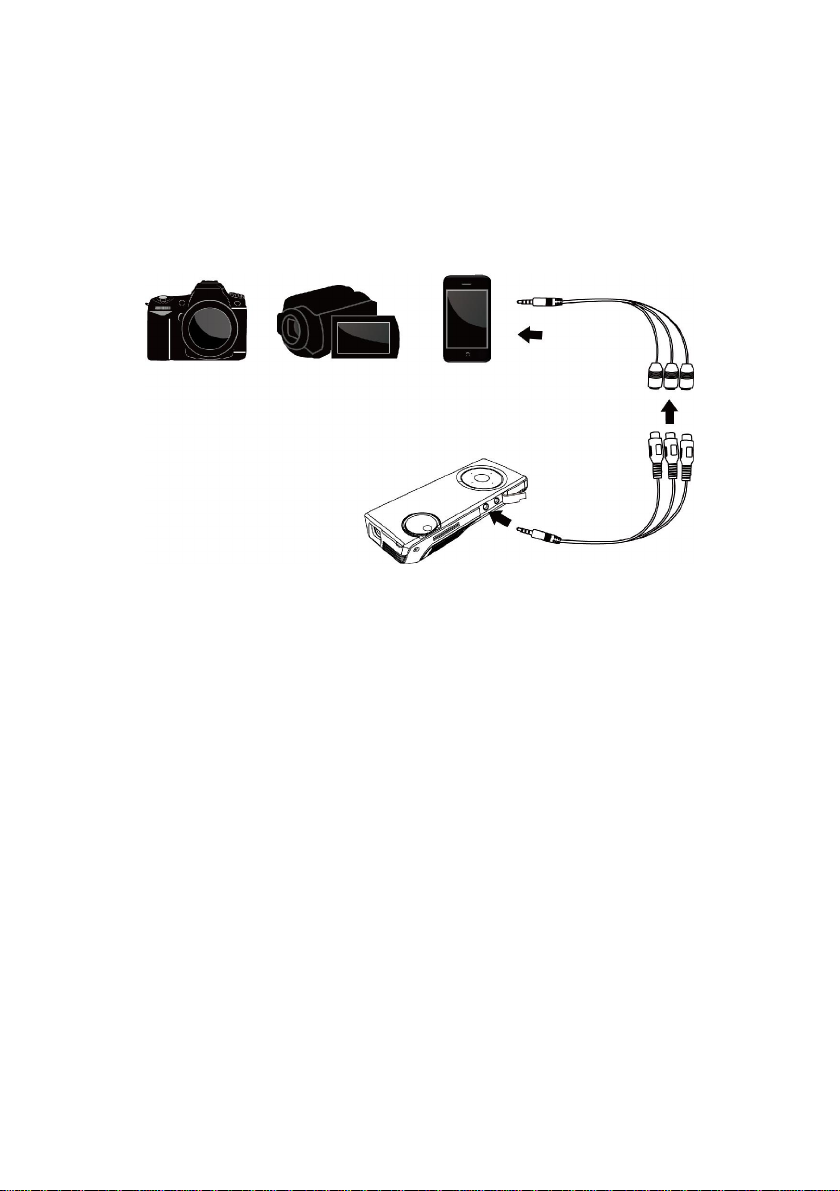

Connecting to a Composite Video Device

Use the A/V cable to input video from camcorders, digital cameras, DVD

players, smart phone with TV-out function and digital media players into the

AV input on The RMP-8200 CINEMA ON-THE-GO .

a. Connect the AV cable to The RMP-8200 CINEMA ON-THE-GO ’sAV input.

b. Connect the other end of theAV cable to the video device’s audio

and video outputs.

Some video devices do not have the standard audio and video connections

and may require anAV cable specified by the vendor. TheAV cable allows you

to connect yourvideo device to your TV monitor or your projector.Also may be

purchased from the video device vendor. When you have theAV cable, use

the cable adapter to connect the video device cable and The RMP-8200

CINEMAON-THE-GO cable.
