RoyalTek REB-4315 Guide de démarrage rapide

REB-4315 Operational Manual

Version 0.2

2010/09/23

This document contains information highly confidential to RoyalTek Company LTD

(RoyalTek). It is provided for the sole purpose of the business discussions between customer

and RoyalTek and is covered under the terms of the applicable Non-Disclosure Agreements.

Disclosure of this information to other parties is prohibited without the written consent of

RoyalTek.

Prepared by RoyalTek Company LTD.

4F., No.188, Wen Hwa 2nd Rd., Kuei Shan,

Tao Yuan 333, Taiwan

TEL: 886-3-3960001

FAX: 886-3-3960065

contact sales: http://www.royaltek.com/contact

RoyalTek Confidential

REB-4315 Operational Manual

Content

1. Introduction...........................................................................................................2

1.1 Product Applications.....................................................................................2

2. Product Pictures ...................................................................................................3

3. REB-4315 Block Diagram.....................................................................................3

4. REB-4315 Technical Specification.........................................................................4

5. Reference schematic:...........................................................................................5

6. Power Design Consideration ................................................................................6

7. Recommend layout PAD:......................................................................................7

8. Mechanical diagram .............................................................................................8

9. Interface document...............................................................................................9

10. Software Interface................................................................................................12

11. Package Specification and Order Information ......................................................16

12. Contact Royaltek..................................................................................................17

Revision History .........................................................................................................17

RoyalTek Confidential 2

REB-4315 Operational Manual

1 Introduction

RoyalTek REB-4315 is the newest generation of RoyalTek GPS module. The module is

provides you with stable and accurate navigation data. SiRF Star IV is the high sensitivity

navigation engine tracks as low as -163dBm. The smallest form factor and miniature design is

the best choice to be embedded in a device such as portable navigation device, personal

locator, speed camera detector and vehicle locator.

Product Features

48 track verification channels

Power supply 1.8 volts

SMT type with stamp holes

Small form factor with embedded SiRF Star IV technology.

Removes in-band jammers up to 80 dB-Hz, track up to 8 CW jammers

Embedded InstantFix CGEE and Reverse CGEE(3 days)

Enhanced algorithm for navigation stability

Excellent sensitivity for urban canyon and foliage environments.

1.1 Product Applications

Automotive navigation

Personal positioning and navigation

Mobile gaming

Cameras

Asset Tracking

Others location-aware consumer devices

RoyalTek Confidential 3

REB-4315 Operational Manual

2 Product Pictures

3 REB-4315 Block Diagram

System block diagram description:

a. External antenna.

b. 16 Mega bits flash memory

c. 22 pin I/O pins

Pin 1

RoyalTek Confidential 4

REB-4315 Operational Manual

4 REB-4315 Technical Specification

Impedance：50Ω

No Function Specification

GPS receiver

1 Chipset SiRF Star IV, GSD4e

2 Frequency L1 1575.42MHz.

3 Code C.A. Code.

4 Channels 48 track verification channels

5 Sensitivity (Acquisition) It shall show C/No ≧40 dB-Hz when external power

= -130dBm.

6 Cold start 35 sec (50% -130dBm Fu 0.5 ppm Tu ±2s Pu 30km)

7 Warm start 35 sec (50% -130dBm Fu 0.5 ppm Tu ±2s Pu 30km)

8 Hot start 1 sec (50% -130dBm Fu 0.5 ppm Tu ±2s Pu 30km)

9 Reacquisition 0.1sec typical

10 Position accuracy 2.5meters(50% 24hr static, -130dBm)

11 Maximum altitude 18288 m

12 Maximum velocity 514 m/s

13 Update rate 1Hz

14 Protocol setup NMEA0183 standard V3.01 and

backward compliance-Adjustable by firmware

Interface

15 I/O Pin 22pins

Power consumption

16 Vcc DC 1.8v(Max. 1.89v)

17 Current

GPS :

Typ.52mA@1.8V(Avg Acquisition w/o ext. Antenna)

Typ.41mA@1.8V(Avg Tracking w/o ext. Antenna)

18 Hibernate Mode T[email protected](Average w/o ext. Antenna)

Mechanical requirements

19 Dimension(mm) 13*15*2.2

20 Weight ≦3g

Environment

21 Operating temperature -30 ~ 85℃

22 Humidity ≦95%

RoyalTek Confidential 5

REB-4315 Operational Manual

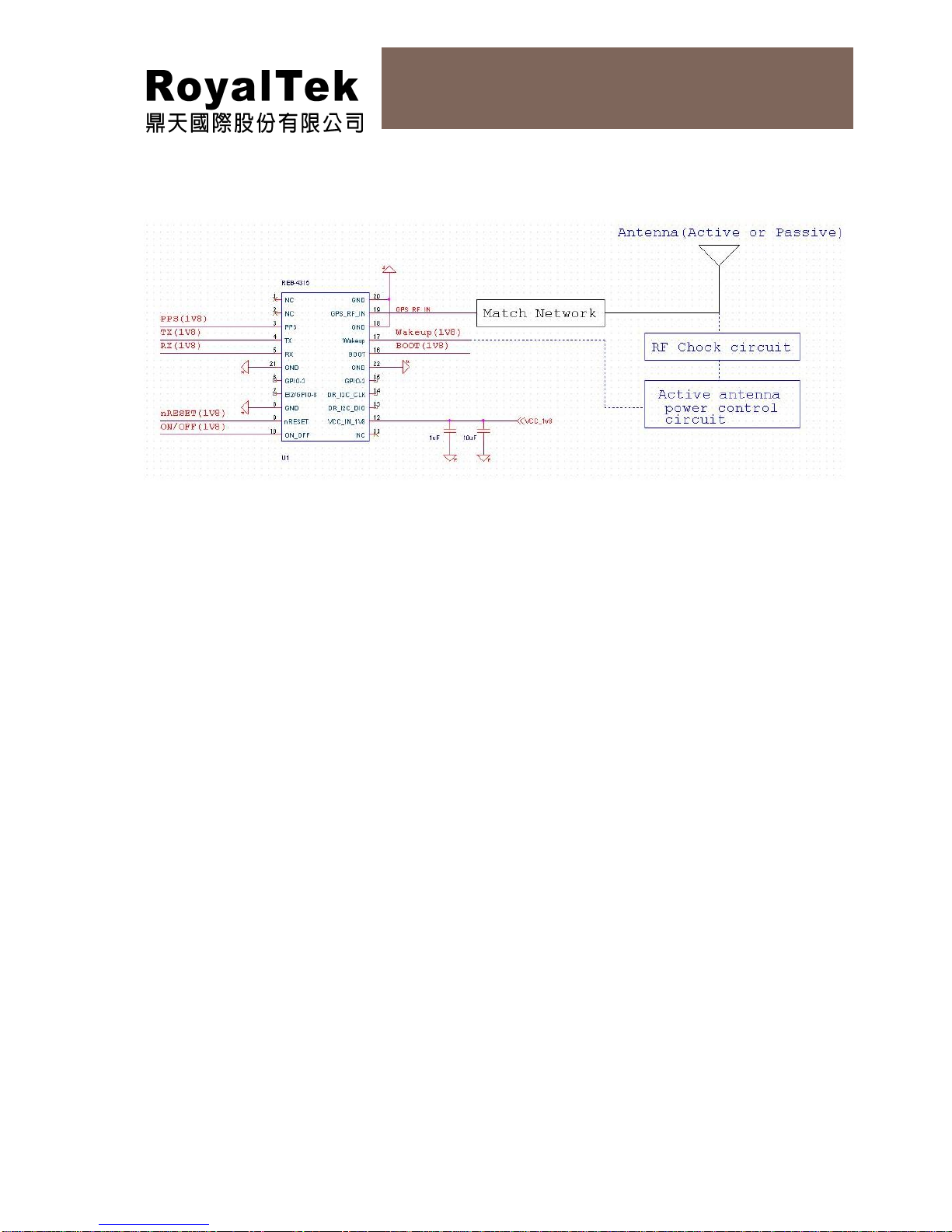

5 Reference schematic:

For example:

Note:

(1) Ground Planes:

These pin(8、18、20、21、22) should be connect to ground.

(2) Serial Interface:

(Ⅰ)The TX pin is the serial output data.<UART data transmit (TX)>

(Ⅲ)The RX pin is the serial input data.< UART data receive (RX)>

(3) RF_IN:

Connecting to the antenna has to be routed on the PCB. The transmission line must

to be control impedance from RF_IN pin to the antenna or antenna connector of

your choice. (Impedance 50Ω)

Recommend used Active antenna (Gain 27).

(4) Power:

Connect VCC_IN_1V8 pin to DC 1.8V. The power supply must add bypass

capacitor(10uF and 1uF).It can reduce the Noise from power supply and increase

power stability.

Shutdown

Shutdown the REB-4315 module, don’t remove the Vcc_IN_1V8 Pin, must be

use on/off pulse make it into Hibernate mode.(It’s will keep the Warm start

and Hot start function work well)

(5) nRESET：

External reset input with internal pull-up, active low.

(6) ON/OFF：

RoyalTek Confidential 6

REB-4315 Operational Manual

Input pulse is required to start the system, and switch the operation mode to

full-power mode or Hibernate mode.

(7) Wakeup：

Wakeup output indicate the chip states, when chip is working the output is high

level.

Wakeup output can control or enable the external regulator.(Ex. To control

external antenna power)

(8) Boot

Set this pin to high for programming flash.

Normal operation mode it is set to low voltage.

6 Power Design Consideration

Start the REB-4315(GSD4e)

After supply the 1.8v to the P12 VCC_IN_1V8,the REB-4315(GSD4e) awaits a pulse to

the ON_OFF input to start.

Switching to Hibernate State

By ON_OFF:assert an ON_OFF pulse when receiver is in full-power mode

Awakening from hibernate state

When the system is in simple hibernate state, an ON_OFF input pulse is required to start

the system.

Requirements:

‧The REB-4315(GSD4e) is intended to be used with an always-ON, single voltage supply of

1.8V

‧The REB-4315(GSD4e) requires an orderly shut-down process to properly stop internal

operation and complete any writes of critical data to BBRAM, EEPROM, or Flash memory

data area (if those functions are in use).

Cautions:

‧Abrupt removal or droop of main power while the system is running has risks ranging from

fatal corruption of flash memory code area with BGA parts to minor impact on TTFF from lost

data.

‧Complete removal of 1.8V even after orderly shutdown, will have performance

consequences

RoyalTek Confidential 7

REB-4315 Operational Manual

7 Recommend layout PAD:

Dimension：13mm*15mm*2.2mm(Tolerance：±0.2mm)

TOP View

Recommend paste mask pad

Recommend paste mask pad is shift outside the layout pad 0.2mm (See under figure)

Black Block is layout PAD、Blue Block(Gray region is paste mask pad recommend)

RoyalTek Confidential 8

REB-4315 Operational Manual

TOP View

8 Mechanical diagram

RoyalTek Confidential 9

REB-4315 Operational Manual

9 Interface document

Top View

Pin defined:

No. Name Input/

Output Description Characteristics

1 NC Non connect

2 NC Non connect

3 PPS Output

TM Time mark output.

Output pulse timing.

Vol Max：0.4v

Voh Min：1.35v

(CMOS I/O run from 1.8v)

4 TX Output UART data transmit.

Vol Max：0.4v

Voh Min：1.35v

(CMOS I/O run from 1.8v)

5 RX Input UART data receive.

Vil ：-0.4v~0.45v

Vih ：1.26v~3.6v

(CMOS I/O run from 1.8v)

6 GPIO-3 Reserved Reserved.

7 EI2/GPIO-8 Reserved Reserved.

8 GND Ground
