Royal Sovereign PL - 922 Manuel utilisateur

Royal Sovereign Laminator

Read all instructions carefully before use.

Royal Sovereign Int'l Inc.

OWNER'S MANUAL

PL - 922 /1302

EDNord - Istedgade 37A - 9000 Aalborg - Telefon 9633 3500

TOPICS

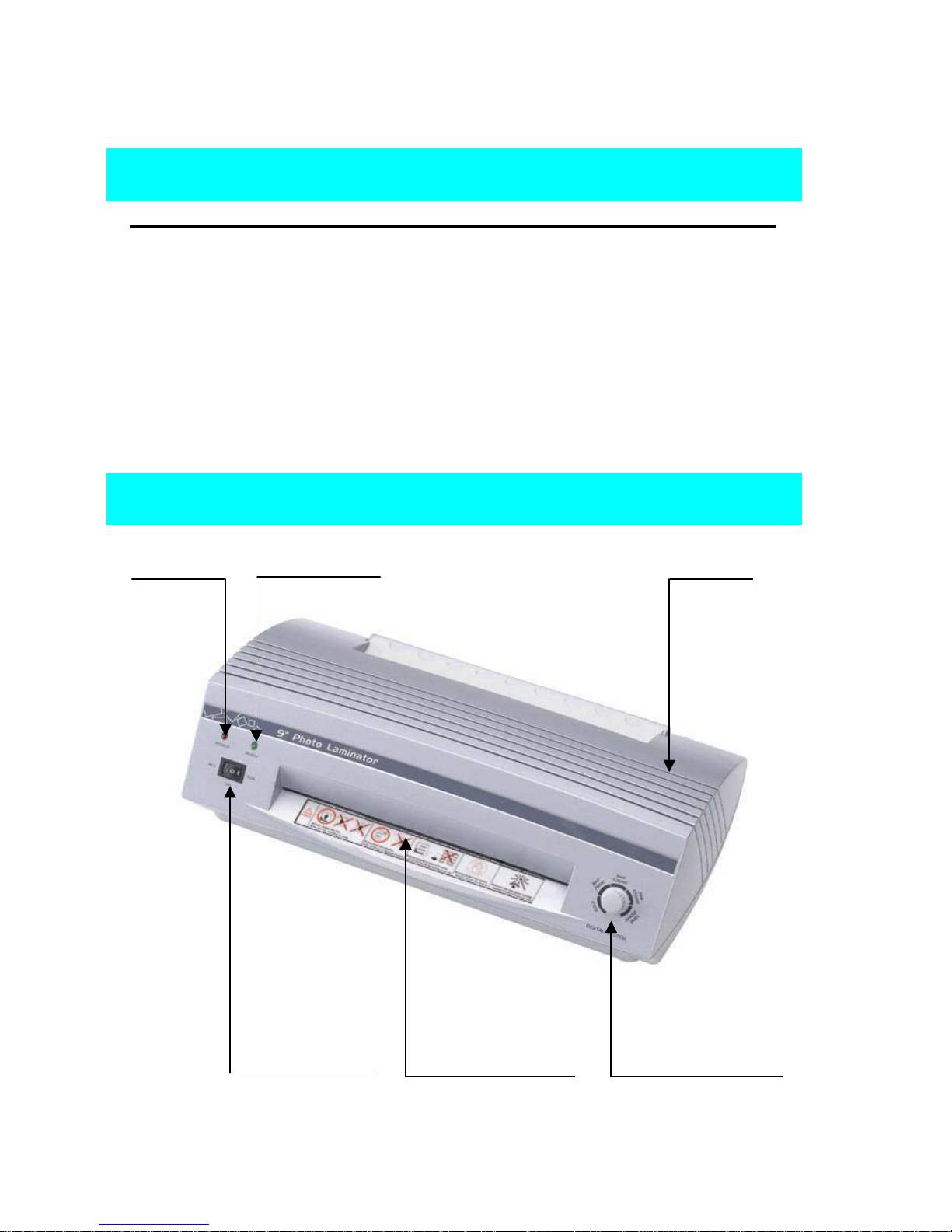

Power Light Ready Light Cover

Temperature

Power Switch Front Openings Controll Switch

MAJOR PARTS

TROUBLESHOOTING 6

OPERATNG INSTRUCTION 5

SPECIFICATION 6

OPERATING CAUTION 4

USING CLEANING PAPER 4

CHARACTERISTICS OF PL-SERIES 3

SAFETY PRECAUTIONS 3

TABLE OF CONTENTS

MAJOR PARTS 2

PAGE

EDNord - Istedgade 37A - 9000 Aalborg - Telefon 9633 3500

1. Hot Laminating Function

PL-Series are ideal for laminating all types of photos, documents,

digital prints and glossy papers without carrier

2. Cold Laminating Function

The cold function is perfect for heat sensitive prints.

3. Temperature Fuse

A temperature fuse in a PL-Series makes more safe.

4. Autoreverse Function

When films are jammed at a roller, PL-Series perfectly solve it by

automatic reverse function with convenience.

1. To prevent the possibility of electrical shock, do not immerse machine

in water or permit liquids to get inside.

2. To prevent the possibility of fire, do not allow articles of clothing

(neckties, scarves, paper etc.) to get inside.

3. Do not insert sharp objects (pin, clip, coin etc.) into front or rear openings

of the machine.

4. Do not attempt to laminate items that exceed total recommended

material thickness.

5. Do not operate machines for any other purpose other than its intended use.

6. Turn off the power when unattended or not in use. Unplug machine before

moving or when it is not in use for an extended period of time.

7. This machine is intended for indoor use only.

8. During an operation, a machine has high heat. Keep children away

from the machine.

9. That the socket-outletshall be Installed near the equipment and

shall be easlly accessible.

followed before operating machines. Keep this information for

future reference. Failure to comply with any of the following safety

procedures could result inserious injury.

CHARACTERISTICS OF PL-SERIES

SAFETY PRECAUTIONS

The safety precautions outlined in this section are to be read and

EDNord - Istedgade 37A - 9000 Aalborg - Telefon 9633 3500

1. Do not laminate a pouch film only without an item. Do not use unsealed

pouch film. (It causes jams)

2. When a material is reversing, lightly pull the material by a hand in order to

avoid jamming on the roller again.

3. Using a small pouch, put the film into the middle area (Sensor area)

of the machine. (There is only one sensor in the middle area of a machine.)

4. Putting an item to be laminated into a film, drive the item to a sealing

part of the film. (It prevents anti-jam system from not-running.)

5. When you start to laminate, put the material immediately.

(If you touch a front sensor more than 3 seconds, it could operates

anti-jam system. During operating a anti-jam system, rollers reversely

rotates and you can't laminate.)

6. Anti-jam system operates during 15seconds. Please, try laminating

after 15seconds.

7. When a laminated material is hot, it can be easily bent or deformed.

Cool a laminated material on a flat surface

8. Thanks to Auto Reverse Jam Free function in this machine, jam shall be

solved automatically.

Meanwhile, since the function is controlled by optical sensor, so it may

cause malfunction when operated in direct sunshine.

1. Turn on the machine, after READY light illuminated, remove dirt stuck

on a roller by passing a Cleaning Paper through a machine once or twice.

2. If the outside of a Cleaning Paper is getting dirty, use the inside folding

upside down. If you use the inside, the outside become stuck and

cannot use. Therefore, after full using the outside, use the inside.)

3. If a Cleaning paper is spoiled or you can not use both-sides of a Cleaning

Paper, get a new white coated paper at the nearest stationery shop and

use it.

OPERATING CAUTIONS

HOW TO USE CLEANING PAPER

EDNord - Istedgade 37A - 9000 Aalborg - Telefon 9633 3500

1. Place and use a laminator on a sturdy, flat work surface.

2. Plug the laminator into a power source that matches the laminator's

rate of voltage.

3. Turn the temperature control switch to 'COLD' position.

4. Press the power switch to 'RUN' position. (Please refer to Figure 'Power

Switch.) (Red 'POWER' light will illuminate and a motor starts to operate.)

5. Set the temperature control switch to a right position that matches the

thickness of your film.

6. Wait for a 'READY' light on.

7. After 'READY' light is on, put a material into a front opeening.

(Before laminating, do not let the material stay over 3 seconds at the front

opening. It could causes a anti-jam system's wrong operation.)

8. After a finished laminated item is completely fed out through the rear of the

laminator, insert another pouch into the front opening.

9. When cold laminating, turn the temperature control switch to 'COLD'

position. Be sure to confirm if the 'READY' light is completely lighted.

10. When a material is jammed at a roller, it will be automatically reversed.

And the jammed material will be automatically discharged. However, if you

want to reverse at any occasion, you can press the switch to REV.

mode and then remove the material by manual.

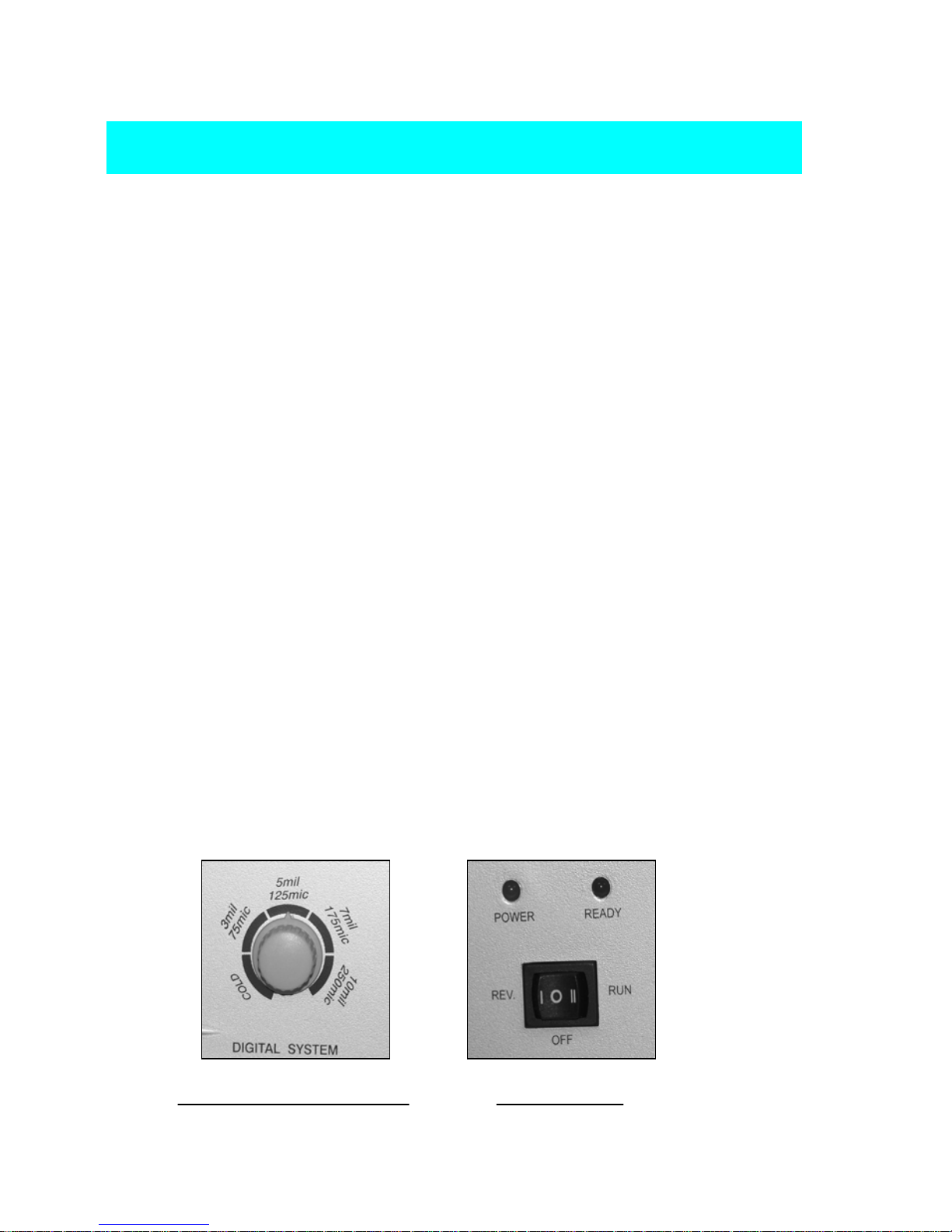

Temperature control switch Power switch

OPERATING INSTRUCTION

EDNord - Istedgade 37A - 9000 Aalborg - Telefon 9633 3500

Hot laminating function

doesn't work.

1. Check if the temperature control switch

is set to the hot laminating position.

Symptom Check Point

Motor doesn't work.

1. Check if the power cord is plugged in.

2. Check if the switch is on.

550 890

TROUBLE SHOOTING

Weight(Kg) 3.8 5.5

Voltage/Cycle AC 100V. 120V. 220~240V. 50/60Hz

Power Consumption(W)

Motor Type AC MOTOR

Laminating speed(mm/min) 520

Heat Source HOT SHOE

Pre-heating Time 4 Min

Max.Laminating Thickness(mm) 250 175

Number of Rollers(EA) 4

Dimension(W*D*H) 405×205×122 530×205×122

Max.Laminating Width(mm) 235 340

SPECIFICATION

Description PL-922 PL-1302

EDNord - Istedgade 37A - 9000 Aalborg - Telefon 9633 3500
