Royal Sovereign NPH-900N Manuel utilisateur
OWNER'S MANUAL
PROFESSIONAL PHOTO LAMINATOR
ROYAL SOVEREIGN INTL.INC.
PLEASE READ AND SAVE INSTRUCTIONS
NPH-1200 / 900
NPH-1200N/900N
1
EDNord - Istedgade 37A - 9000 Aalborg - Telefon 9633 3500
TOPICS PAGE
INTRODUCTION -----------------------------------------
-
SAFETY PRECAUTIONS -----------------------------------
-
CHARACTERISTICS OF NPH-1200N/900N ---------------------
-
SPECIFICATIONS ----------------------------------------
-
SETUP ------------------------------------------------
MAJOR PARTS IDENTIFICATION -----------------------------
-
CONTROL PANEL INSTRUCTIONS ----------------------------
1.CONTROL PANEL SETTINGS ----------------------------
2.LCD WINDOW --------------------------------------
-
3.BUTTON FUNCTIONS ---------------------------------
-
4.HOW TO SET THE BUTTONS ---------------------------
-
*SET TEMPERATURE --------------------------------
-
*SPEED CONTROLS ---------------------------------
-
*CHECK TEMPERATURE ON THE ROLLER -----------------
*MEMORY WORKING CONDITION AND
USING THE MEMORY SETTING ------------------
-
*COLD MODE --------------------------------------
LAMINATING STEPS --------------------------------------
-
1.HOT LAMINATING ------------------------------------
2.COLD LAMINATING -----------------------------------
3.COLOR FOIL LAMINATING -----------------------------
-
4.MOUNT BOARD LAMINATING ---------------------------
-
HOW TO CLEAN ROLLERS AND REMOVE STUCK
OR JAMMED FILMS ----------------
-
IMPORTANT SAFETY CONCERNS ----------------------------
-
MAINTENANCE ------------------------------------------
A/S PARTS --------------------------------------------
-
TROUBLE SHOOTING -------------------------------------
ONE YEAR LIMITED COMMERCIAL/PROFESSIONAL WARRANTY -----
-
16
17
17
18
15
17
17
5
6
7
10
8
7
10
11
13
14
11
12
12
3
3
4
10
9
10
5
TABLE OF CONTENTS
2
EDNord - Istedgade 37A - 9000 Aalborg - Telefon 9633 3500
Thank you for purchasing a Royal Sovereign Laminating Machine.
To insure high quality lamination, please read this instruction manual thoroughly.
For additional product support or factory-direct ordering information, call Royal
Sovereign Customer Service at (201)568-0830 or toll free call, (800)397-1025.
1. To prevent the possibility of electrical shock, do not immerse machine
in water or permit liquids to get inside.
2. Do not allow articles of clothing (neckties, scarves, etc.) or papers near
the front or rear of the machine while operating as they could get cought
by the rollers and be pulled inside, causing personal injury.
3. Do not attemp to laminate that exceed total recommended material
thickness.
4. Do not operate machine for any other purpose than its intended use.
5. Do not operate machine when electrical plug or power cord is damaged.
6. Turn off the power when not in use. Unplug machine
before movin
g
it or when it is not in use for an extended
p
eriod of time.
7. This machine is indoor use only.
8. Do not alter the electric plug in any use.
Keep this information for future reference. Failure to comply with any of
the following safety procedures could result in serious personal injuries
The safety recommendations outlined in this section are to be read,
INTRODUCTION
understood and followed before operating the machine.
SAFETY PRECAUTIONS
3
EDNord - Istedgade 37A - 9000 Aalborg - Telefon 9633 3500
This machine has been designed using the latest laminating technology.
1. This machine is controlled by a state-of-the-art Microprocessor.
a) Protect the rollers--When the power is off or a power failure occurs, rollers
continue to turn until the unit properly cools down.
b) Automatic overheating protection--If a temperature sensor should fail,
the heating elements will not heat up.
c) You can set your own operating conditions into "Memory".
2. Temperature and speed can be adjusted, to properly laminate various
film thickness.
3. A buzzer rings, alerting you that a butten has been pressed. This prevents
accidental setting changes.
4. Roller cover may be opened for easy access to clean the rollers.
5. Thermostats are used to economically maintain consistent temperature.
CHARACTERISTICS OF LAMINATOR NPH-1200N/900N
4
EDNord - Istedgade 37A - 9000 Aalborg - Telefon 9633 3500
Place laminator on a sturdy, flat work surface. Allow ample clearence behind laminator
for laminated document or photograph to exit completely without bending.
Connect laminator to an electrical outlet that matches laminator's rated voltage and
power requirements.
If an extension cord is required, use a cord rated higher than the laminator's capacity.
Max. Laminating Speed
1000W 850W
Weight
Power Consumption
11Kg
(24 lbs)
Heat Source
Description
Max.Laminating Width
Max.Lam. Thickness
Film Thickness
Transport Type
NPH - 900N
505x290x135mm
(19.9"x11.4"x5.3")
SETUP
Temp. Operating Range
Dimensions(w x d x h)
Pre-Heating Time
Cooling Fan Type
Motor Type
750mm/min
(29.5" per min)
2mm
(1/12")
580x290x135mm
(22.8"x11.4"x5.3")
NPH - 1200N
9Kg
(20 lbs)
330mm
(13")
240mm
(9.4")
75 ~ 250mic
(3 ~ 10 mil)
Four Roller (no carrier)
Hot Roller Type
Voltage / Cycle AC 120V/60Hz (AC230~240V ,50/60Hz)
SPECIFICATIONS
4 ~ 5 min
20 ~ 160℃
DC FAN
DC GEARED MOTOR
5
EDNord - Istedgade 37A - 9000 Aalborg - Telefon 9633 3500

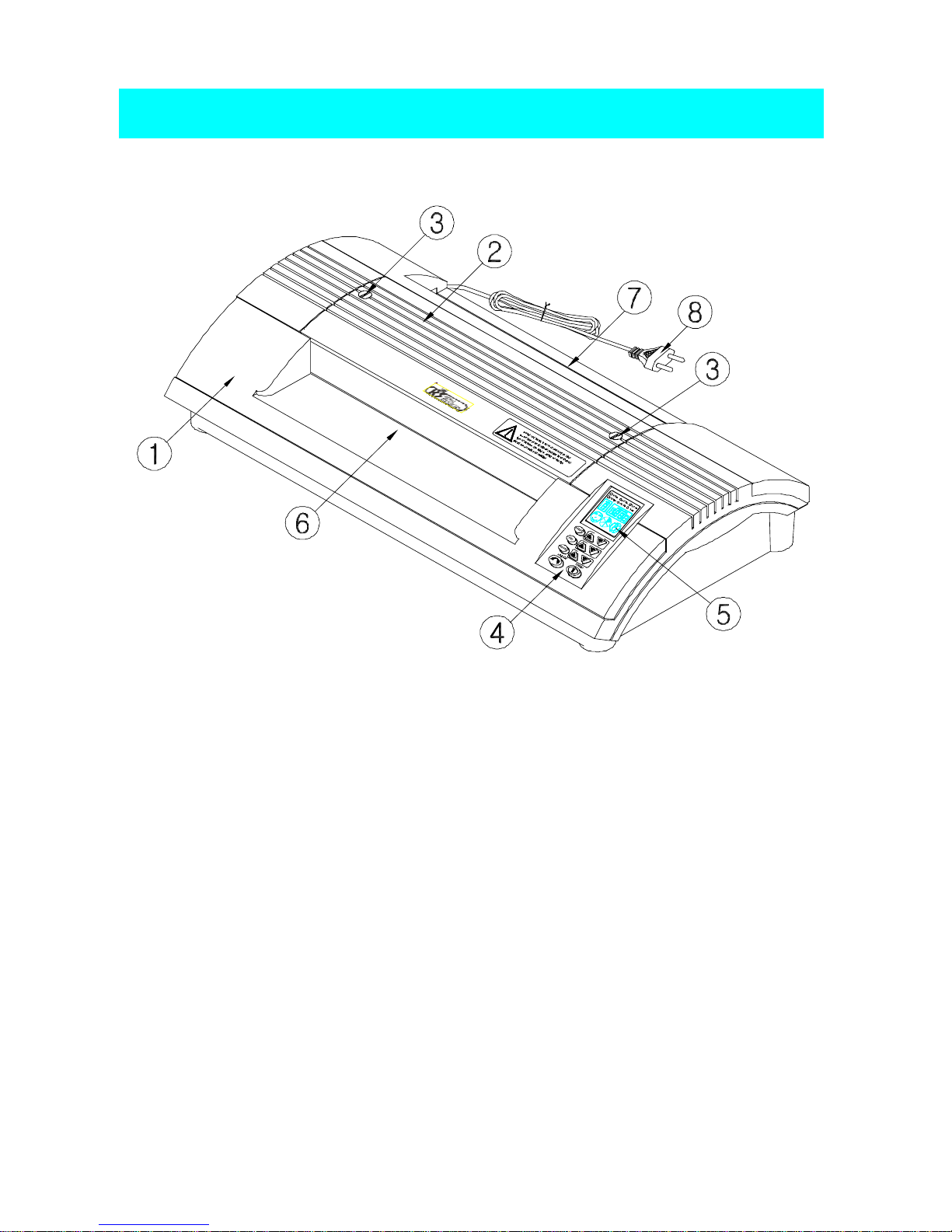

1. Top Cabinet
2. Roller Cover
3. Roller Cover Screws
4. Control Panel
5. LCD Window
6. Input
7. Output
8. Power Cord
MAJOR PARTS IDENTIFICATION
6
EDNord - Istedgade 37A - 9000 Aalborg - Telefon 9633 3500

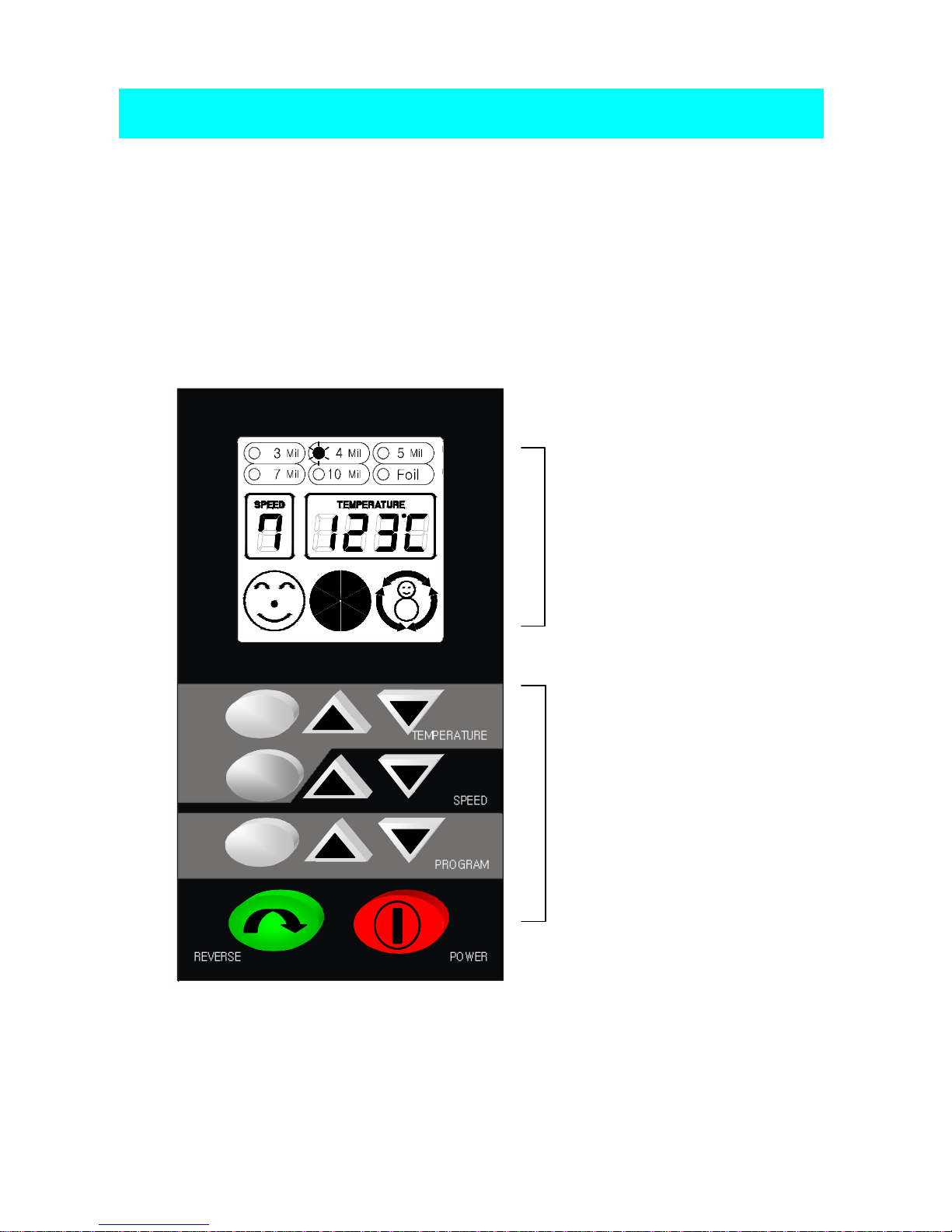

Appropriate speed and temperature may be set, using the LCD controller.
The LCD panel was designed for convenience, by incorporating the ability to program
your settings into "Memory".
1. CONTROL PANEL SETTINGS
LCD DISPLAY
BUTTONS
CONTROL PANEL INSTRUCTIONS
T-Check
COLD
MEMORY
HOT/COLD
7
EDNord - Istedgade 37A - 9000 Aalborg - Telefon 9633 3500

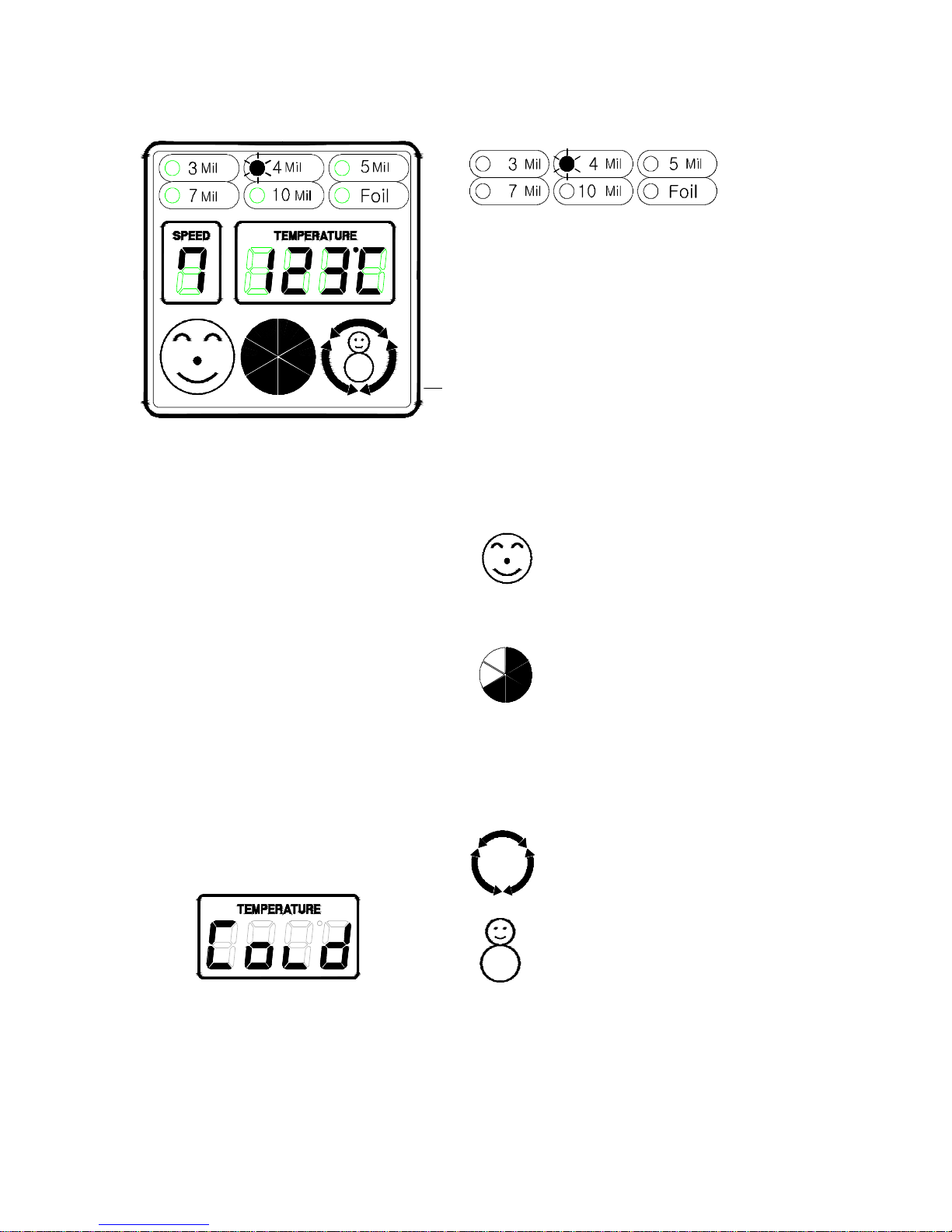

2. LCD WINDOW
1.
* 6 film thickness options
75 Mic=3 mil, 100 Mic=4 mil, 125 Mic=5 mil
2. SPEED
* 7 speed options
Setting 1 is slowest / Setting 7 is fastest
3. TEMPERATURE
Display the present temperature.
4. Is displayed when the
present temperature is
reached.
5. Indicates to wait till
blinking stops.
Current temperature is
higher or lower than the
preset temperature.
6. Displayes the direction
of the rollers.
7. Shows cold function.
175 Mic=7 mil, 250 Mic=10 mil
8
EDNord - Istedgade 37A - 9000 Aalborg - Telefon 9633 3500

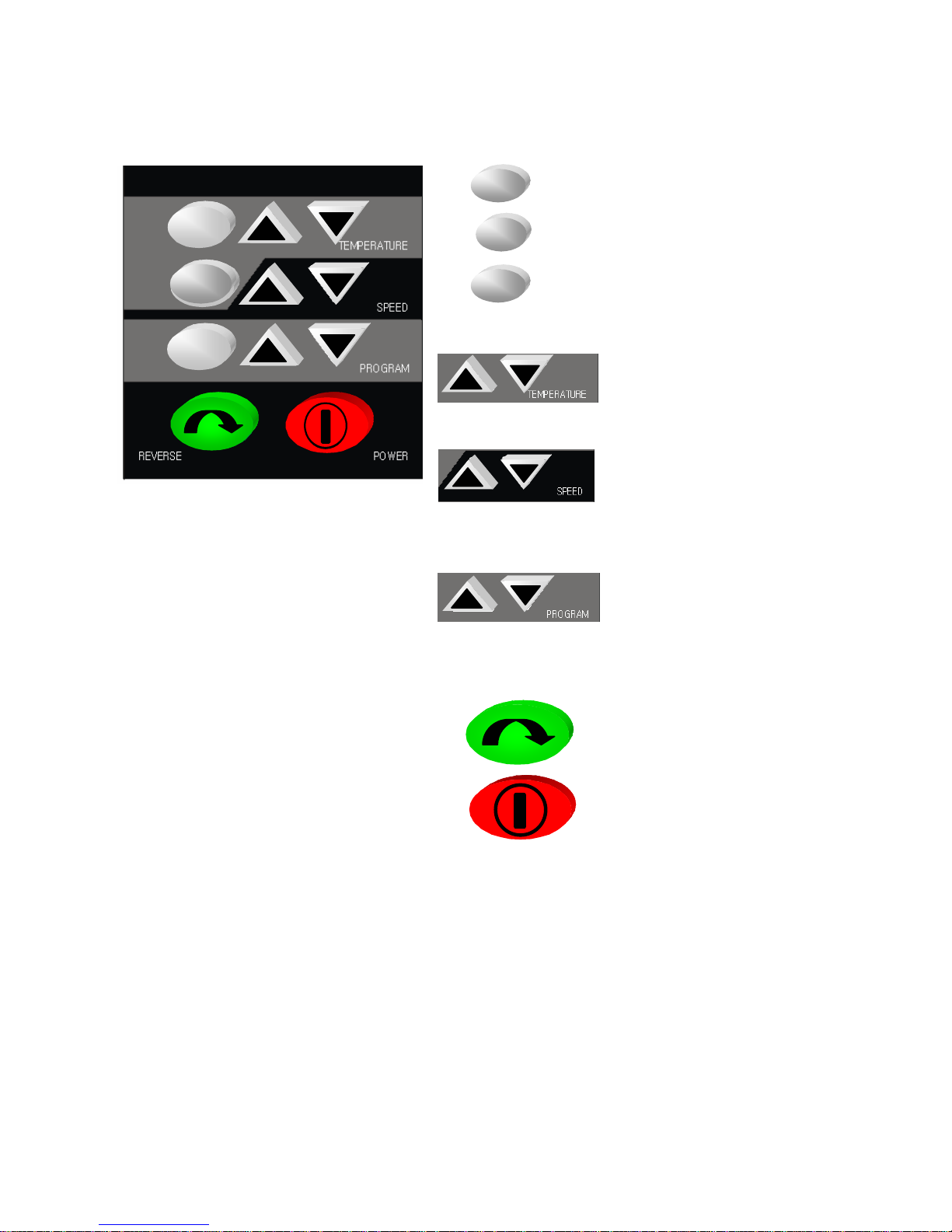

3. BUTTON FUNCTIONS
: Check current temperature
: Hot/Cold function
: Working condition and
Cold function cancel
: Increase temperature
: Decrease temperature
: Increase speed
: Decrease speed
: Restore the memorized
working setting
: Restore the memorized
working setting
: Reverse function
: Power On/Off
T-Check
MEMORY
HOT/COLD
T-Check
COLD
MEMORY
HOT/COLD
9
EDNord - Istedgade 37A - 9000 Aalborg - Telefon 9633 3500

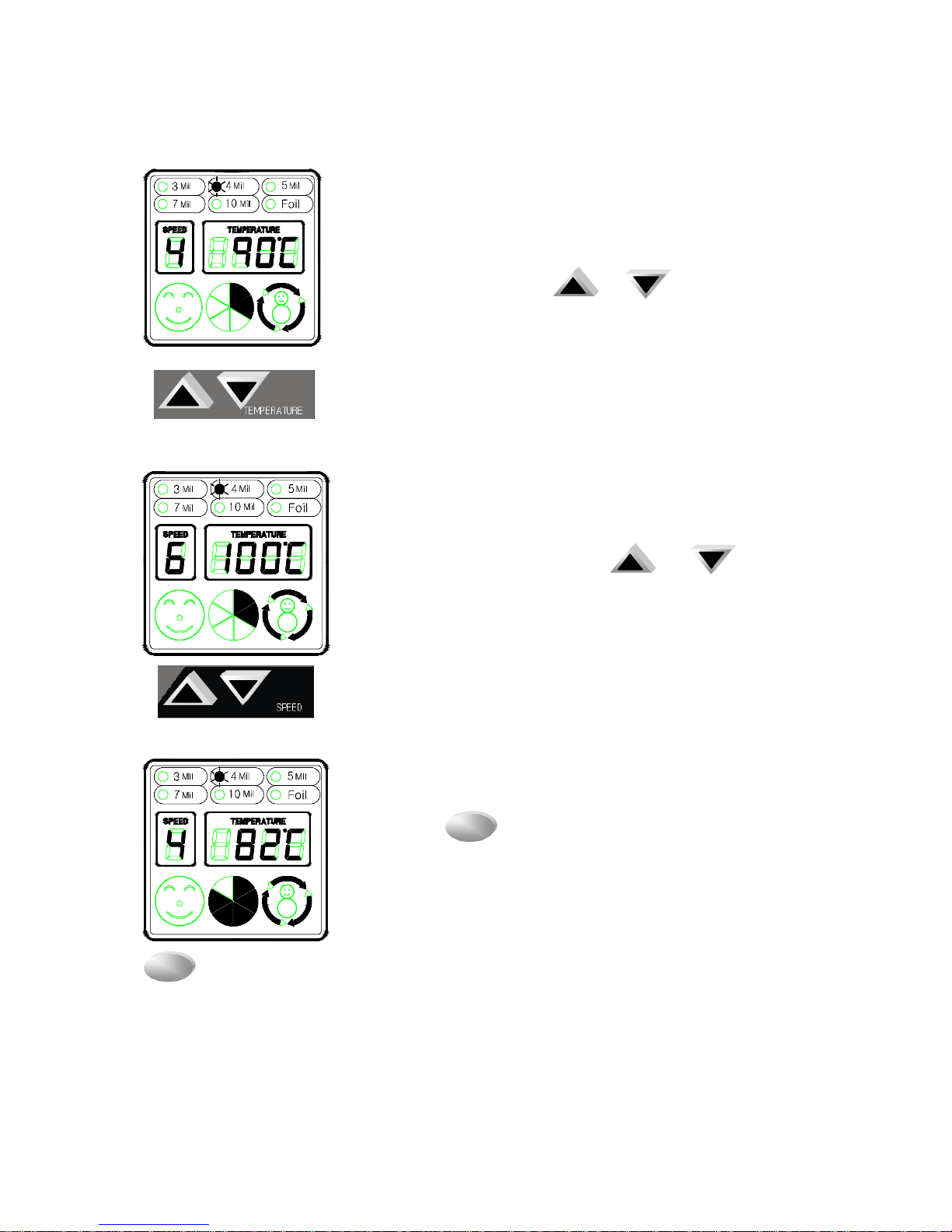

4. HOW TO SET THE BUTTONS
(Buzzer rings each time you press the button.)
1.Temperature available range from
20℃ to 160℃.
2.Each time you press or to set temperature,
it will change 1℃(1℉) at a time. If you press the
button for more than 2 seconds, temperature will
change automatically.
1.You can use 7 different lamination speed.
2.You can change speed with or
1. Press button when check the current temperature.
2. The current temperature will blink on the display
for a second and turns back to the setting mode.
***SET TEMPERATURE***
***SPEED CONTROLS***
***CHECK TEMPERATURE ON THE ROLLER ***
T-Check
T-Check
10
EDNord - Istedgade 37A - 9000 Aalborg - Telefon 9633 3500
