OWNER'S
MANUAL
LAMINATOR Model No. NPH-1200N/900N
Read all instructions carefully before use.
MAJOR PARTS 3
CHARACTERISTICS OF NPH SERIES 3
SAFETY PRECAUTIONS 4
CONTROL PANEL INSTRUCTIONS 5
HOT LAMINATING PROCEDURE 8
COLD LAMINATING PROCEDURE 8
COLOR FOIL LAMINATING PROCEDURE 9
POUCH BOARD LAMINATING PROCEDURE 9
MAINTENANCE 10
TROUBLESHOOTING 10
SPECIFICATIONS 11
POUCH FILM SETTINGS 11
NPH-1200N/900N
TABLE OF CONTENTS
TOPIC PAGE
NPH-1200N/900N
MAJOR PARTS
CHARACTERISTICS OF NPH-SERIES
3

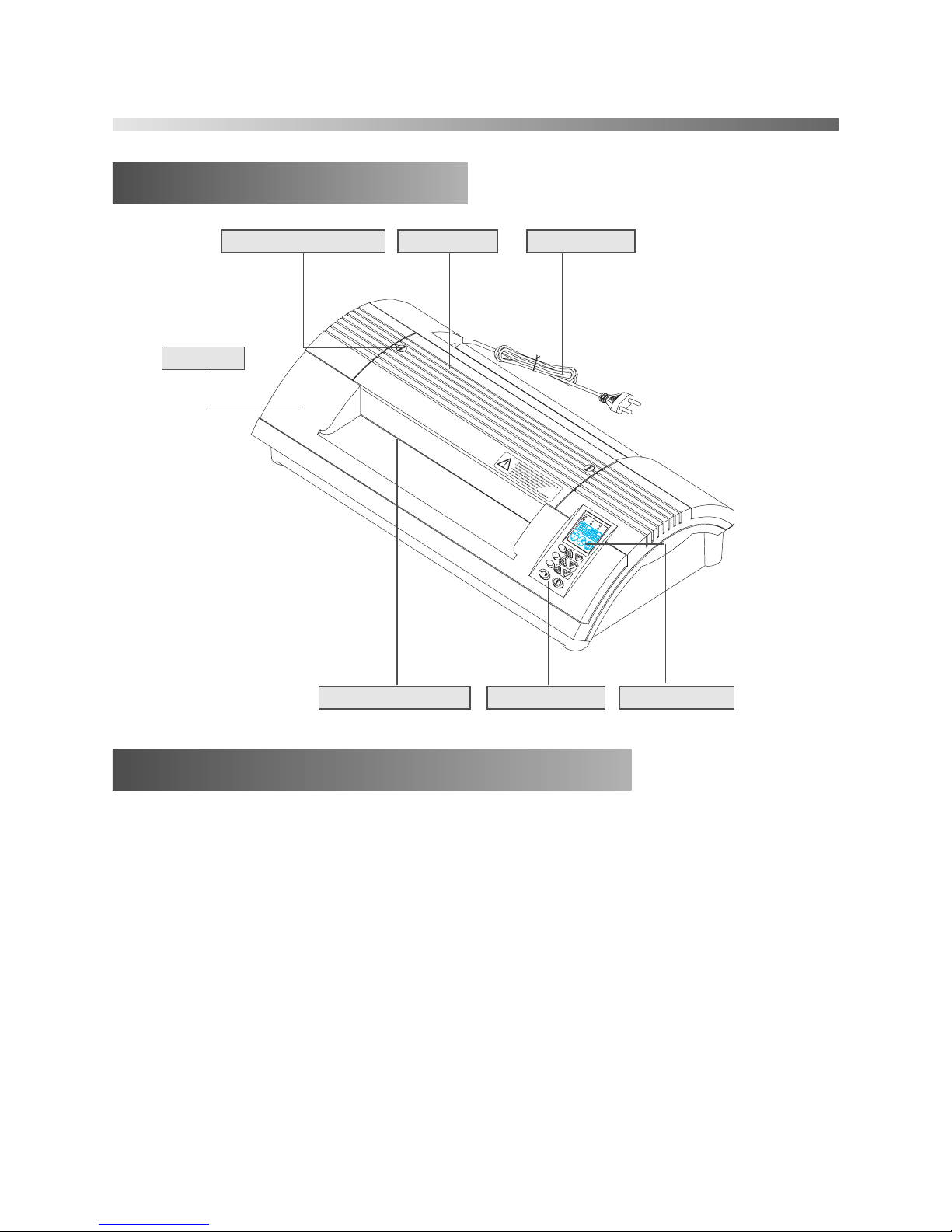

Cover Roller Screw Cover Roller Power Cord
Cover
Front Opening Control Panel LCD Panel
1. The NPH Series has been designed and manufactured to provide
Hot and Cold lamination for school, home and office needs.
2. Automatic cool down function- If the power is turned off or a power failure occurs the
rollers will continue to turn until they are cooled down.
3. Automatic overheating protection- If a temperature sensor were to fail the heating
elements will not heat up.
4. Digital control of speed, temperature and mil thickness with LCD display help ensure
professional results.
5. Laminates color foil.
6. Laminates over 2.5 feet per minute.
NPH-1200N/900N

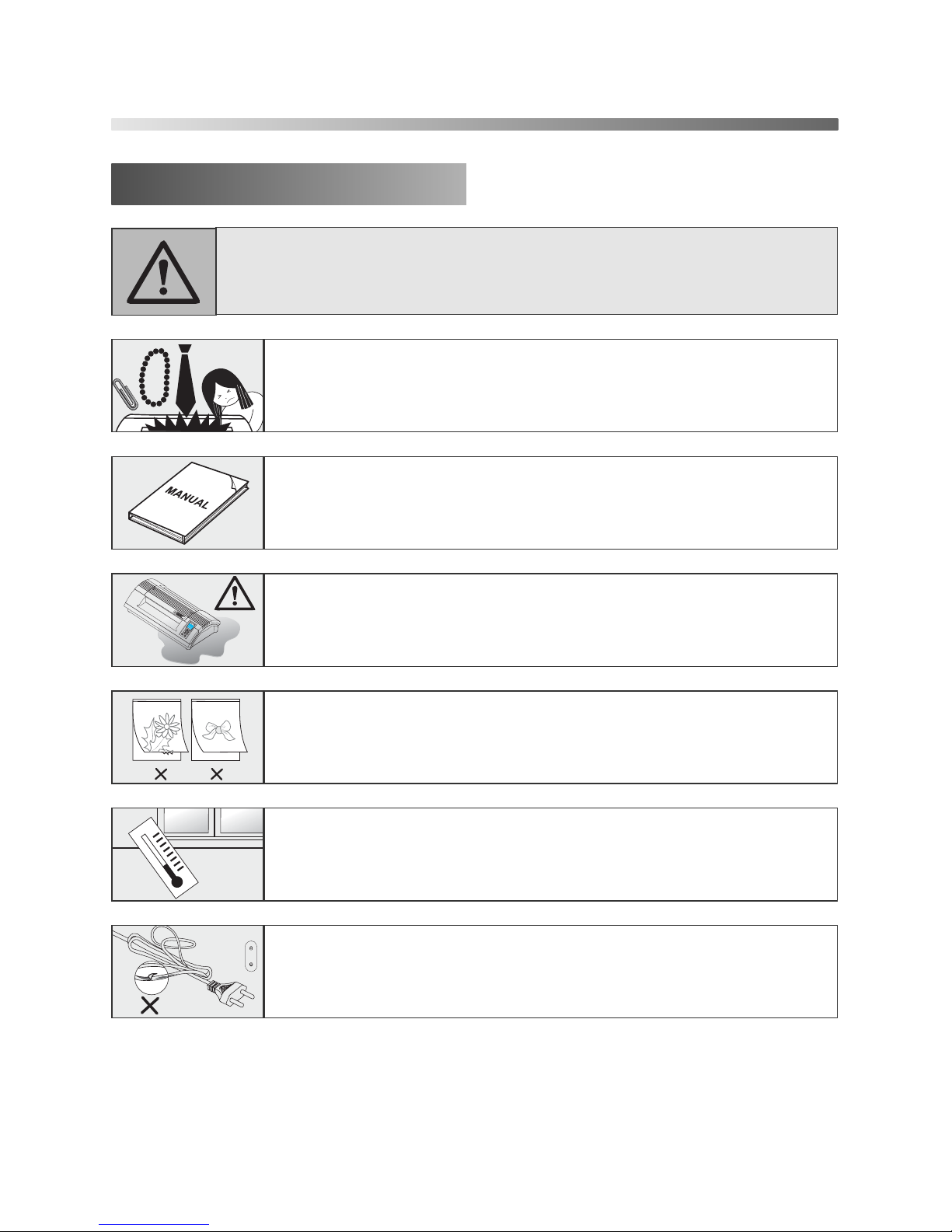

SAFETY PRECAUTIONS
Failure to comply with any of the following safety procedures could result
in serious injury. Keep this information for future reference.
1. To prevent the possibility of fire or injury, do not allow articles of
clothing (neckties, scarves, or paperclips etc.) inside the machine.
2. Do not attempt to laminate items that exceed total recommended
material thickness.
3. To prevent the possibility of electric shock, do not immerse the
laminator in water or permit liquids inside the machine.
4. Do not operate machine for any other purpose other than its
intended use.
5. This machine is for indoor use only.
6. Do not operate the machine if the outlet or power cord is
damaged. Contact a qualified electrician.
4
NPH-1200N/900N
CONTROL PANEL INSTRUCTIONS
5
Appropriate speed and temperature may be set, using the LCD controller. The LCD
panel was designed for convenience, by incorporating the ability to program your
settings into "Memory".

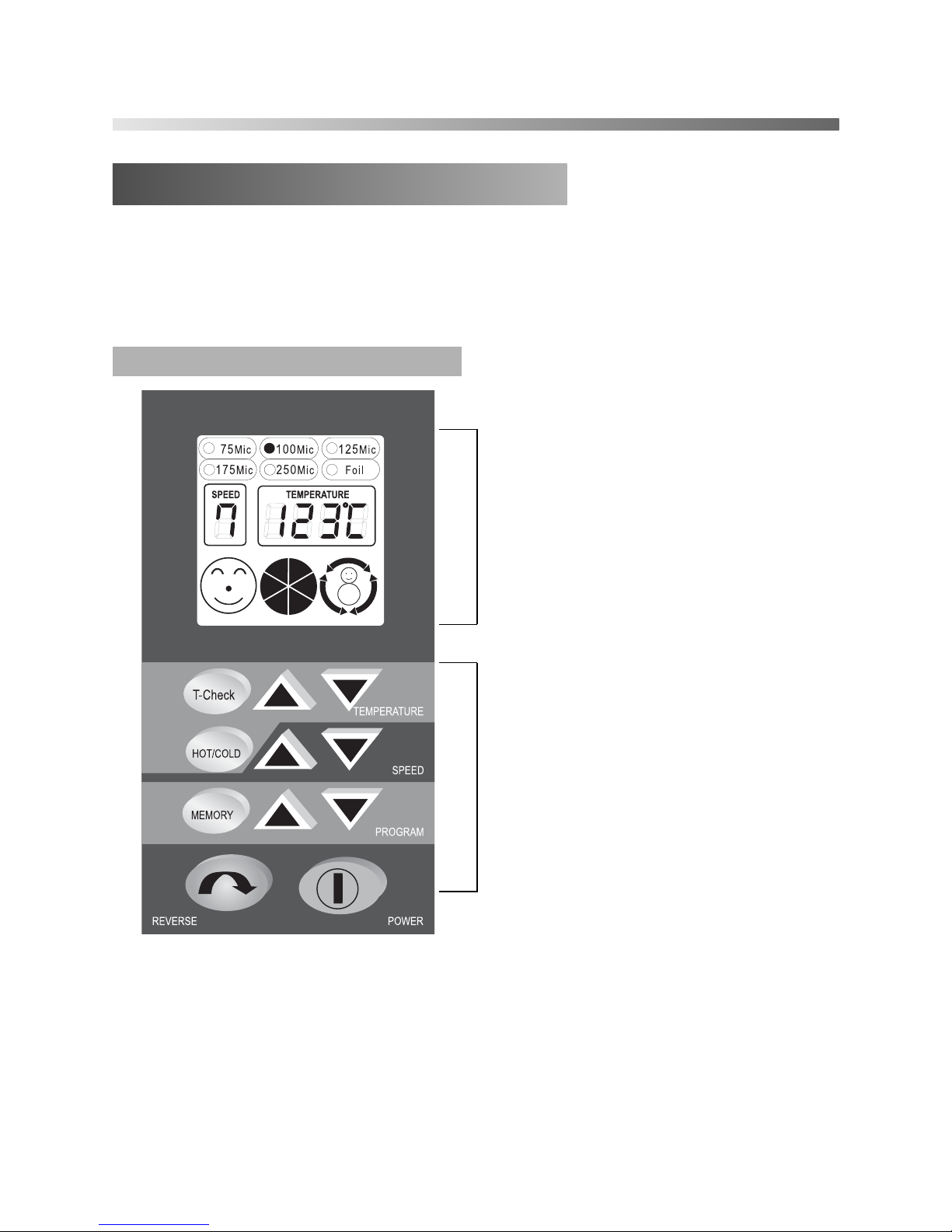

1. CONTROL PANEL SETTINGS
LCD DISPLAY
CONTROL PANEL
NPH-1200N/900N

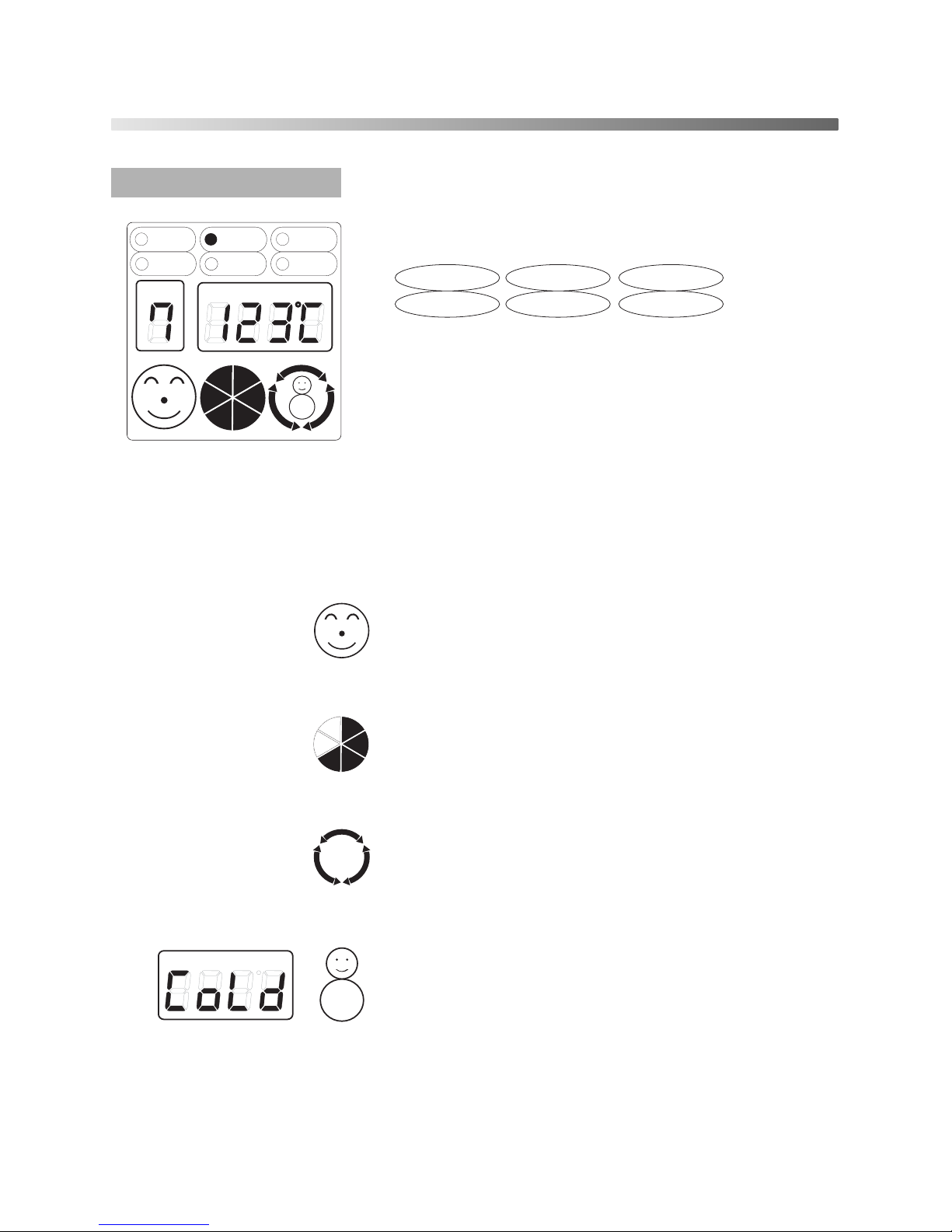

2. LCD WINDOW
75
Mic
125Mic
Foi l
250
Mic
175
Mic
100Mic
SPEED TEMPERATURE
1. Pouch Thickness
* 6 Pouch
Thickness Options
75 mic =3 mil, 100 mic =4 mil, 125 mic =5 mil
175 mic =7 mil, 250 mic =10 mil
2. SPEED
Seven speed options (1-7)
3. TEMPERATURE
Displays current temperature
4. Displayed when desired temperature
is met.
5. This indicates that the current temperature
is either higher or lower than the preset
temperature.Wait until the indicator stops
blinking.
6. Indicates what direction the rollers
are moving in (FWD/REV).
7. Displayed when the machine is in the cold
temperature mode.
75
Mic-
3mil
125
Mic-
5mil
Foil
250
Mic-
10mil
175
Mic-
7mil
100
Mic-
4mil
TEMPERATURE
6
NPH-1200N/900N

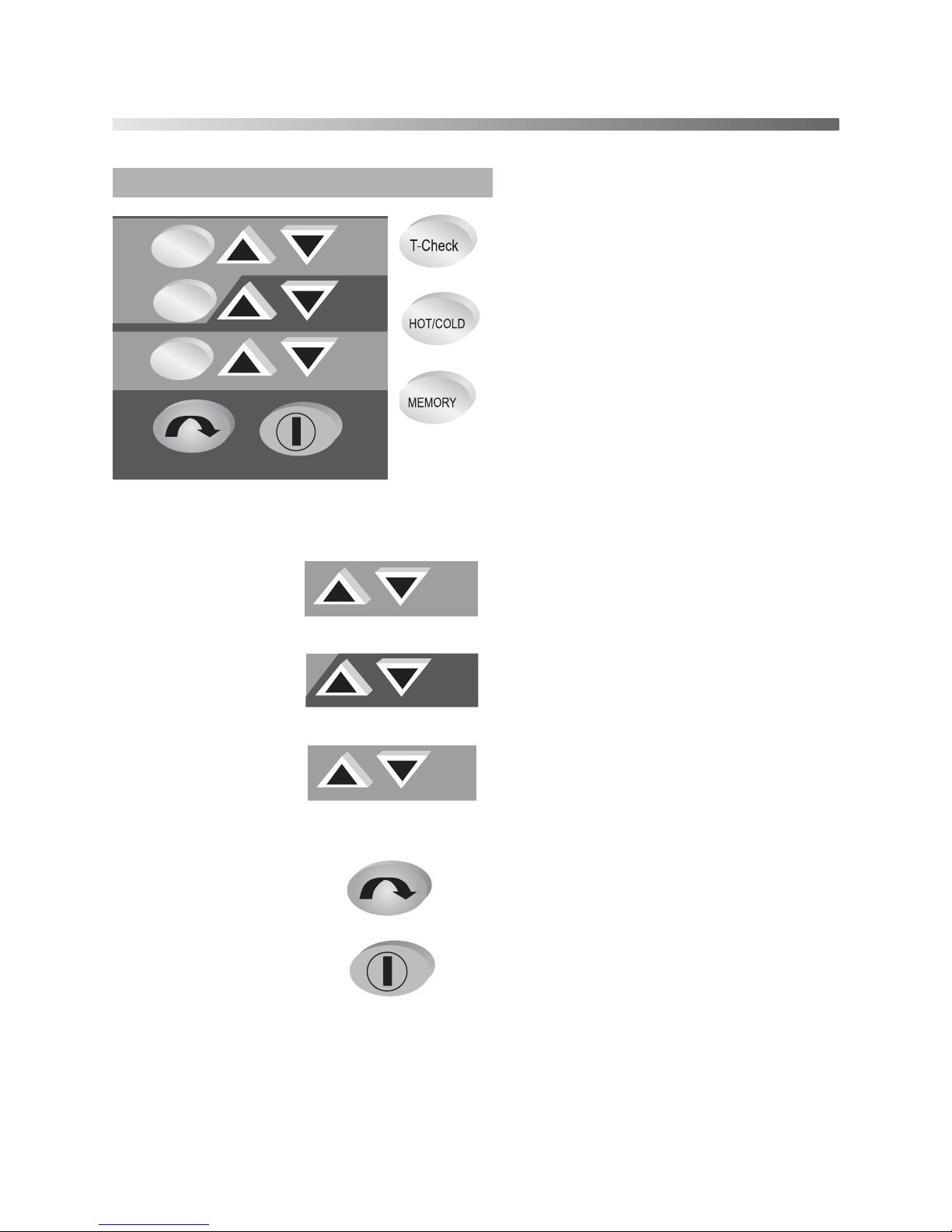

3. CONTROL PANEL FUNCTIONS
7
T-Check
HOT/COLD
MEMORY
TEMPERATURE
SPEED
PROGRAM
POWERREVERSE
: Press this to check the current
temperature
: Press this to choose Hot
or Cold function
: Press this to set current temperature
in memory (up to 6 memory settings)
or to recall preset temperature settings.
: Increase or Decrease Temperature
: Increase or Decrease Speed
: To scroll through preset temperature
settings
: Reverse Function
: Power ON/OFF
TEMPERATURE
SPEED
PROGRAM
1. Place and use the laminator on a sturdy, flat work surface.
2. Plug in the laminator after verifying the correct outlet voltage.
3. Press the power button.
4. Make sure the machine is in the hot lamination mode by pressing the
HOT/COLD button.
5. Select the correct pouch thickness by pressing the program buttons up or down.
6. Set the temperature and speed according to the pouch thickness.
Please refer to the SPECIFICATIONS section for recommended settings.
7. The symbol will stop blinking and a symbol will appear when your
desired temperature is met. The machine is now ready for lamination.
8. Place the item to be laminated into the laminating pouch.
9. Insert the pouch (sealed side first) into the front opening of the machine.
10. The laminated item will exit out the rear of the machine when completed.
11. If you laminate several items continuously the may disappear, please wait
until it is displayed again before continuing lamination.
NOTE: Your laminated item will be hot and can easily bend. To keep your
laminated item flat, place on a flat surface and allow it to cool.
NPH-1200N/900N
HOT LAMINATING PROCEDURE

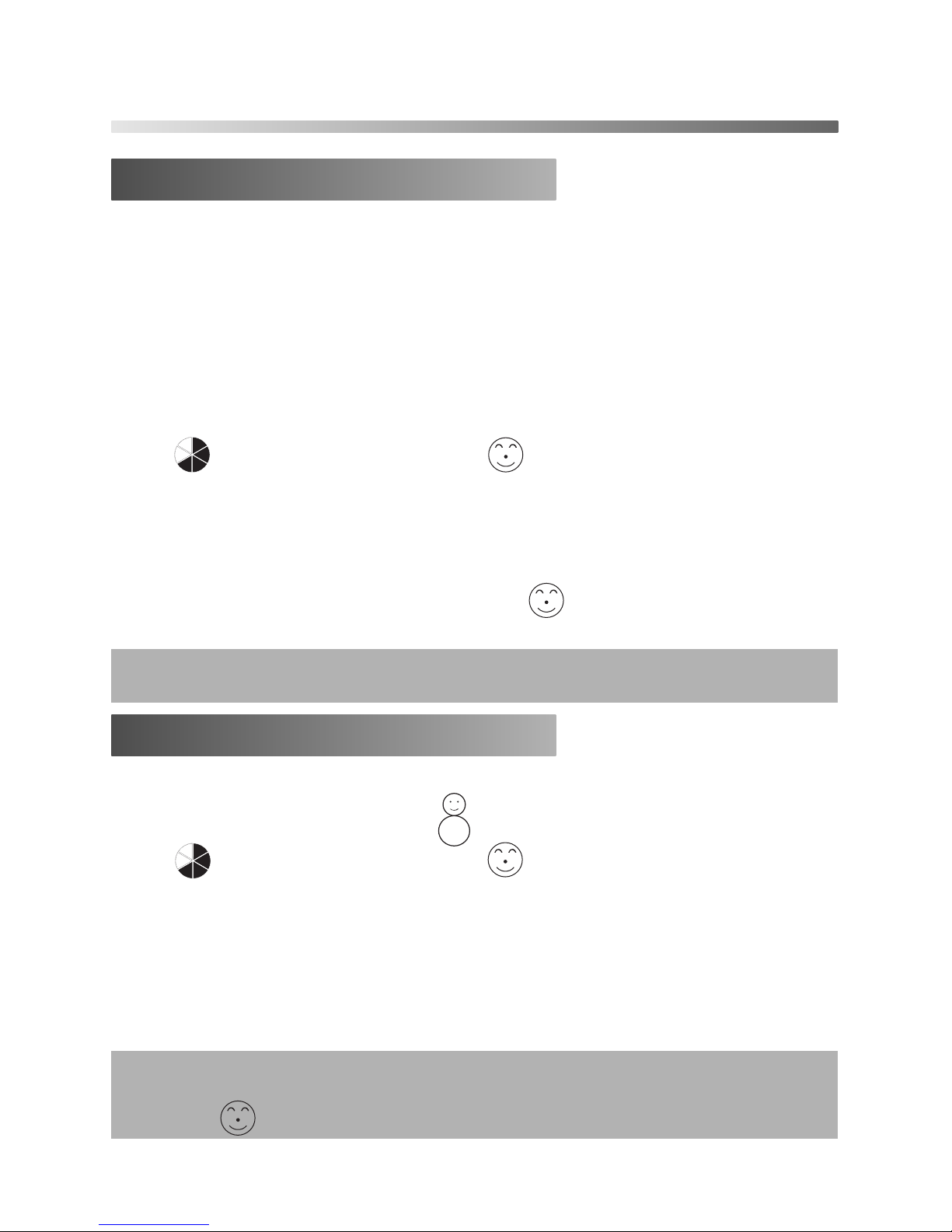

COLD LAMINATING PROCEDURE
1. Make sure the machine is in the cold lamination mode by pressing the
HOT/COLD button. You will see the displayed when the machine
is in the cold temperature mode.
2. The symbol will stop blinking and a symbol will appear when the cold
temperature is met. The machine is now ready for lamination.
3. Place the document to be laminated on the adhesive side of the cold film with the
document face down.
4. Insert the document to be laminated into the front opening of the machine.
5. Remove paper liner from the cold film slowly while the document is being inserted
into the machine.
NOTE: When switching the machine from the hot to cold mode, please
wait until the rollers cool down. It will take approximately 6 minutes.
The symbol will appear and you will hear 3 beeps.
8
1. Make sure that the machine is in the Foil lamination mode by pressing the
PROGRAM buttons up/down until it is in the foil mode.
2. Set the temperature and speed according to the pouch thickness (FOIL).
Please refer to the SPECIFICATIONS section for recommended settings.
3. The symbol will stop blinking and a symbol will appear when the correct
temperature is met. The machine is now ready for lamination.
4. Place the document into the pouch board.
5. Insert the pouch board (sealed side first) into the front opening of the laminator.
6. The finished item will exit out the rear of the machine when completed.
NPH-1200N/900N
COLOR FOIL LAMINATING PROCEDURE
POUCH BOARD LAMINATING PROCEDURE
9
IMPORTANT: Carrier is required for Foil Lamination
1. Make sure that the machine is in the Foil lamination mode by pressing the
PROGRAM buttons up/down until it is in the foil mode.
2. Set the temperature and speed according to the pouch thickness (FOIL).
Please refer to the SPECIFICATIONS section for recommended settings.
3. The symbol will stop blinking and a symbol will appear when the correct
temperature is met. The machine is now ready for lamination.
4. Position the color foil on the document with the color side facing up. When you are
applying the foil to small areas or using different colors, use the tape that’s included
to hold the foil in place.
5. Place the document into the paper carrier.
6. Insert the carrier into the front opening of the machine.
7. The carrier will exit out the rear of the machine when completed.
NOTE: Your laminated item will be hot and can easily bend. To keep your laminated
item flat, place on a flat surface and allow it to cool.
NPH-1200N/900N
MAINTENANCE
TROUBLESHOOTING
When adhesives from the film build up on the rollers the quality of lamination
will decrease and jamming may occur. Please clean the rollers regularly.
1. Turn on the laminator and set the temperature at 100°C(212°F) and set the mil
thickness at 100 mic(4mil).
2. Insert a sheet of clean thick paper (about 0.5 mm or 1/50” thick) into the front
opening of the machine 2-3 times to remove excess adhesive from the rollers.
3. To thoroughly clean the rollers make sure the machine is in the COLD mode and the
rollers are completely cool.
4. Unscrew the 2 screws on the cover using a screwdriver. Once the screws are off,
remove the top cover.
5. Use a cleaning solvent such as Laminex Poly-Off or something equivalent on a lint
free cloth to clean residue on the rollers. (Do not use alcohol or petroleum based
cleaning solvents or abrasives.)
6. Place the cover back on and screw in tightly.
7. Use and store this unit in a dry area, damp areas may damage the machine.
Problem Possible Cause Possible Solution
Motor doesn’t work
- Power cord may not be
plugged in.
- Power switch is off
- If laminating heat sealed
pouches, the machine may
be set in the COLD mode
- The temperature may be
set too low.
- The speed is set too high
- Check and plug in the
power cord.
- Check and turn on the
power.
- Make sure the machine is
in the HOT mode
- Check the temperature is
set according to pouch
thickness.
- Adjust to a lower speed.
Pouches are not
laminating correctly
10
