Rowlett BW001 Manuel utilisateur

Model • Modèle • Modell • Modello • Modelo • Malli:

BW001

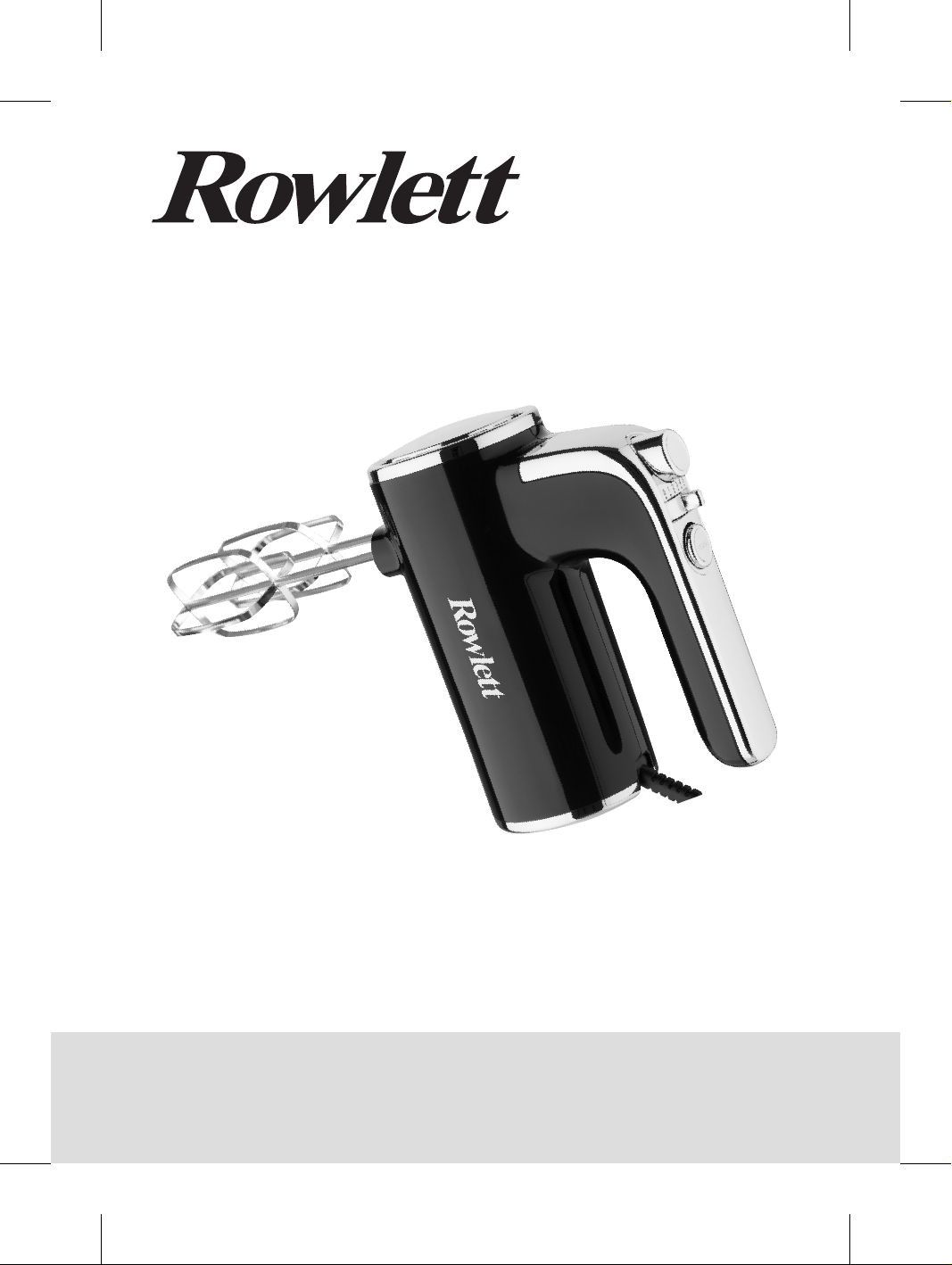

Hand Mixer

Instruction manual

BW001_EN_A5_v1_20220823.indb 1BW001_EN_A5_v1_20220823.indb 1 2022/8/23 15:122022/8/23 15:12

Safety Instructions

• A service agent/qualified technician should carry out

installation and any repairs if required. Do not remove any

components on this product.

• Consult Local and National Standards to comply with the

following:

- Health and Safety at Work Legislation

- BS EN Codes of Practice

- Fire Precautions

- IEE Wiring Regulations

- Building Regulations

• NEVER leave the appliance unattended when in use.

• Do not attempt to defeat the interlock mechanism.

• The use of accessory attachments not recommended or sold

by Rowlett may cause fire, electric shock, or injury, which will

invalidate your guarantee.

• DO NOT remove food from the appliance until the mixing

attachments have come to a complete stop.

• Avoid contacting moving parts. Keep hands, hair, clothing and

utensils away from mixing attachment and container while

operation to prevent the possibility of severe injury to persons

and/or damage to the appliance.

• DO NOT operate the unit if damaged.

• DO NOT use jet/pressure washers to clean the appliance.

• DO NOT attempt to mix items that this machine is not

designed for. This can damage the mixing attachments.

• Always switch off and disconnect the power supply to the

appliance when not in use, before cleaning and before putting

on or taking off parts.

• Not suitable for outdoor use.

BW001_EN_A5_v1_20220823.indb 2BW001_EN_A5_v1_20220823.indb 2 2022/8/23 15:122022/8/23 15:12

• Keep all packaging away from children. Dispose of the

packaging in accordance to the regulations of local authorities.

• If the power cord is damaged, it must be replaced by a

Rowlett agent or a recommended qualified technician in order

to avoid a hazard.

• This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities,

or lack of experience and knowledge, unless they have been

given supervision or instruction concerning the use of the

appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play

with the appliance.

• DO NOT let cord hang over edge of table or counter, or touch

hot surfaces.

• Rowlett recommend that this appliance should be periodically

tested (at least annually) by a Competent Person. Testing

should include, but not be limited to: Visual Inspection,

Polarity Test, Insulation Continuity and Functional Testing.

• Rowlett recommend that this product is connected to a circuit

protected by an appropriate RCD (Residual Current Device).

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of

this machine will provide the best possible performance from your Rowlett product.

This appliance is intended for domestic use only. Do not use for professional purposes, or your guarantee

will be invalidated and any liability caused will be refused.

Pack Contents

The following is included:

• Hand mixer

• Dough hooks x 2

• Beaters x 2

• Balloon whisk x 1

• Storage clip

• Instruction manual

Rowlett prides itself on quality and service, ensuring that at the time of unpacking the contents are

supplied fully functional and free of damage.

Should you find any damage as a result of transit, please contact your Rowlett dealer immediately.

BW001_EN_A5_v1_20220823.indb 3BW001_EN_A5_v1_20220823.indb 3 2022/8/23 15:122022/8/23 15:12

Operation

Eject button

TURBO button

Handle

Dough hooks

Balloon whisk

Speed selector

Beaters

1. Before use clean all mixing attachments. Let them dry well, then mount into the mixer head.

• Note: Both beaters can be inserted in either opening, as they are identical. For the 2 dough hooks,

make sure to insert the one with washer in the large opening and the other in the small opening.

Otherwise, they cannot lock in place.

2. Lower the beaters, dough hooks, or balloon whisk into the foodstuff to be mixed. Then connect the

appliance to the power supply.

3. Set the speed selector to desired setting (1to 5). The table below is for reference only.

Speed Use Remark

1 to 2 • Slow mixing for combining and aerating dry ingredients

without splattering,

• Add ingredients to cookie doughs or cake batters

• Fold creams or egg whites into batters

• Stir sauces and gravies

• Mix muffin or pancake batters

• Add dry ingredients to doughs or batters

Refrigerated ingredients

like butter and eggs

should be set out in

advance, until reaches

room temperature before

mixing.

It is suggested to start

with lower speed then

increase gradually as

necessary

Do not over beat. Only

mix/blend mixtures as

recommended in your

recipe

3 to 4 • Mix cake mixes

• Add eggs to doughs or batters

• Add dry ingredients with liquid ingredients

• Cream softened butter and sugar

• Whip potatoes or squash

• Whip cream

• Beat whole eggs or yolks

• Mix thin batters

5 • Add sugar to whipped egg whites for meringues

• Beat egg yolks until thick and light

• Whip egg whites

• Stir the dough (speed setting 6 is recommended)

BW001_EN_A5_v1_20220823.indb 4BW001_EN_A5_v1_20220823.indb 4 2022/8/23 15:122022/8/23 15:12

Caution:

• Do not let the mixer run continuously for more than 5 minutes to avoid

overheating. Ensure to let the mixer rest for at least 20 minutes between

consecutive cycles.

• During mixing, never let the mixing attachments face towards people or

objects. Risk of damage or injury!

• Never add ingredients into the container during mixing.

4. During operation, you can also press the “TURBO” button to mix with the highest speed. In turbo

mode, do not let the motor run for more than 1 minute.

5. After mixing, turn off the mixer by setting the speed selector to “0”, then disconnect from power

supply and let cool completely.

6. To remove the beaters or dough hooks, hold them with one hand and press the Eject button with the

other hand.

Removing the lodged food

If a piece of food gets lodged onto the attachments, please follow the instructions below:

1. Turn off mixer, disconnect from power supply and let it come to a complete stop.

2. Press the Eject button to release the attachments.

3. Use a rubber/wooden spatula to carefully remove the food lodged.

Cleaning, Care & Maintenance

• Always turn off the mixer and disconnect from power supply before cleaning.

• Never put the mixer body in water or let the body, cord or plug get wet.

• Use warm soapy water to clean the mixing attachments. Do not use abrasive cleaning chemicals as

these can leave harmful residues. The mixing attachments are dishwasher safe.

• Clean the exterior of the appliance with a slightly damp cloth.

• Dry all parts thoroughly after cleaning.

For storage, mixing attachments can be fixed on the storage clip, and the storage clip can be mounted to

the mixer body.

BW001_EN_A5_v1_20220823.indb 5BW001_EN_A5_v1_20220823.indb 5 2022/8/23 15:122022/8/23 15:12

Troubleshooting

A qualified technician must carry out repairs if required.

Fault Probable Cause Solution

The appliance is

not working

The unit is not switched on Check the unit is plugged in correctly and

switched on

Plug or lead is damaged Replace plug or lead

Fuse in the plug has blown Replace the plug fuse

Mains Power supply fault Check Mains Power supply

Mixer slows down Too many contents in the mixing

container, and unit runs at speed

setting 1 for too long time

Turn off the mixer and remove some of the

contents. Adjust the food formula if needed

Wrong mixing attachment used Select suitable attachment

Loud noise Mixing attachments not correctly

fitted

Remove and refit attachments

Mixing attachments deforms Contact a qualified technician

Mixing

attachments will

not drop when

pressing Eject

button

Speed selector is not set to “0”

thus safety protection is activated

Set Speed selector to “0” and wait to let

attachments come to a complete stop.

Afterwards press Eject button to release

attachments

Technical Specifications

Model Voltage Power Current Dimensions

H x W x D mm

Weight

(kg)

BW001 220-240V~

50Hz 400W 3A 190 x 83 x 150 0.93kg

Note: Due to our continuing program of research and development, the specifications herein may subject

to change without notice.

BW001_EN_A5_v1_20220823.indb 6BW001_EN_A5_v1_20220823.indb 6 2022/8/23 15:122022/8/23 15:12

Electrical Wiring

This appliance is supplied with a 3 pin BS1363 plug and lead.

The plug is to be connected to a suitable mains socket.

This appliance is wired as follows:

• Live wire (coloured brown) to terminal marked L

• Neutral wire (coloured blue) to terminal marked N

If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency

disconnection being required they must be readily accessible.

Compliance

The WEEE logo on this product or its documentation indicates that the product must

not be disposed of as household waste. To help prevent possible harm to human

health and/or the environment, the product must be disposed of in an approved and

environmentally safe recycling process. For further information on how to dispose of

this product correctly, contact the product supplier, or the local authority responsible for

waste disposal in your area.

Rowlett parts have undergone strict product testing in order to comply

with regulatory standards and specifications set by international,

independent, and federal authorities.

Rowlett products have been approved to carry the following symbol:

mechanical, photocopying, recording or otherwise, without the prior written permission of Rowlett.

Every effort is made to ensure all details are correct at the time of going to press, however, Rowlett reserve the right to

change specifications without notice.

BW001_EN_A5_v1_20220823.indb 7BW001_EN_A5_v1_20220823.indb 7 2022/8/23 15:122022/8/23 15:12

DECLARATION OF CONFORMITY

• Conformiteitsverklaring • Déclaration de conformité • Konformitätserklärung • Dichiarazione di conformità •

• Declaración de conformidad

Equipment Type • Uitrustingstype • Type d'équipement • Gerätetyp

• Tipo di apparecchiatura • Tipo de equipo

Model • Modèle • Modell • Modello

• Modelo

Hand Blender

BW001 (& -E)

Application of Territory Legislation &

Council Directives(s)

Toepassing van Europese Richtlijn(en)

• Application de la/des directive(s) du

Conseil • Anwendbare EU-Richtlinie(n)

• Applicazione delle Direttive

• Aplicación de la(s) directiva(s) del

consejo

Low Voltage Directive (LVD) - 2014/35/EU

Electrical Equipment (Safety) Regulations 2016

(BS) EN 60335-1:2012 +A11:2014 +A13:2017 +A1:2019 +A14:2019 +A2:2019 +A15:2021

(BS) EN 60335-2-14:2006 +A1: 2008 +A11: 2012 +A12:2016

(BS) EN 62233:2008

Electro-Magnetic Compatibility (EMC) Directive 2014/30/EU - recast of 2004/108/EC

Electromagnetic Compatibility Regulations 2016 (S.I. 2016/1091)

(BS) EN IEC 55014-1:2021

(BS) EN IEC 55014-2:2021

(BS) EN IEC 61000-3-2:2019

(BS) EN 61000-3-3:2013 +A1:2019

Ecodesign energy-related products Directive 2009/125/EC

Regulation (EC) 1275/2008 - Standby and off mode power consumption

EN 50564:2011

Restriction of Hazardous Substances Directive (RoHS) 2015/863 amending Annex II to

Directive 2011/65/EU

Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic

Equipment Regulations 2012 (S.I. 2012/3032)

Producer Name • Naam fabrikant • Nom du producteur • Name des Herstellers

• Nome del produttore • Nombre del fabricante

Rowlett

I, the undersigned, hereby declare that the equipment specified above conforms to the above Territory Legislation, Directive(s)

and Standard(s).

Ik, de ondergetekende, verklaar hierbij dat de hierboven gespecificeerde uitrusting goedgekeurd is volgens de bovenstaande

Richtlijn(en) en Standaard(en).

Je soussigné, confirme la conformité de l'équipement cité dans la présente à la / aux Directive(s) et Norme(s) ci-dessus

Ich, der/die Unterzeichnende, erkläre hiermit, dass das oben angegebene Gerät der/den oben angeführten Richtlinie(n) und

Norm(en) entspricht.

Il sottoscritto dichiara che l'apparecchiatura di sopra specificata è conforme alle Direttive e agli Standard sopra riportati.

El abajo firmante declara por la presente que el equipo arriba especificado está en conformidad con la(s) directiva(s) y

estándar(es) arriba mencionadas.

Date • Data • Date • Datum • Data •

Fecha

12th July 2022

Signature • Handtekening • Signature

• Unterschrift Firma • Firma

Full Name • Volledige naam • Nom et

prénom • Vollständiger Name • Nome

completo • Nombre completo

Ashley Hooper

Eoghan Donnellan

Position • Functie • Fonction • Position

• Qualifica • Posición

Technical & Quality Manager

Commercial Manager/ Importer

Producer Address • Adres fabrikant •

Adresse du producteur • Anschrift des

Herstellers • Indirizzo del produttore •

Dirección del fabricante

Fourth Way,

Avonmouth,

Bristol,

BS11 8TB

United Kingdom

Unit 9003,

Blarney Business

Park,

Blarney,

Co. Cork

Ireland

DocuSign Envelope ID: AA8D2EC1-1C9A-49C7-842B-5D809CEC7436

BW001_EN_A5_v1_20220823.indb 8BW001_EN_A5_v1_20220823.indb 8 2022/8/23 15:122022/8/23 15:12

+44 (0)845 146 2887

Eire

NL 040 – 2628080

FR 01 60 34 28 80

BE-NL 0800-29129

BE-FR 0800-29229

DE 0800 – 1860806

IT N/A

ES 901-100 133

BW001_EN_A5_v1_20220823.indb 9BW001_EN_A5_v1_20220823.indb 9 2022/8/23 15:122022/8/23 15:12

BW001_EN_A5_v1_20220823.indb 10BW001_EN_A5_v1_20220823.indb 10 2022/8/23 15:122022/8/23 15:12

Table des matières

Autres manuels Rowlett Batteur à main

Rowlett

Rowlett CU743-A Manuel utilisateur

Manuels Batteur à main populaires d'autres marques

Philips

Philips Essence 5000 Series Manuel utilisateur

KitchenAid

KitchenAid 5KHM5110 Manuel utilisateur

emerio

emerio HM-110921.1 Manuel utilisateur

KitchenAid

KitchenAid KHMB732 Manuel utilisateur

ARDES

ARDES ARSBAT01 Manuel utilisateur

ECG

ECG RS 840 Manuel utilisateur

TEFAL

TEFAL PREP'LINE HT4111 Manuel utilisateur

Oster

Oster 2534 Manuel utilisateur

Bosch

Bosch CleverMixx Spotlight MFQ25 Series Manuel utilisateur

Grundig

Grundig HM 6280 Manuel utilisateur

Clatronic

Clatronic ProfiCook SM 3044 Manuel utilisateur

Oster

Oster 2574 Manuel utilisateur

DCOOK

DCOOK 5425945 Manuel utilisateur

Gorenje

Gorenje ME510W Manuel utilisateur

Oster

Oster 2534 Manuel utilisateur

Sunbeam

Sunbeam 2484 Manuel utilisateur

Currys

Currys Essentials C12HMW17 Manuel utilisateur

Orbegozo

Orbegozo BA 3250 Manuel utilisateur
