Rover HD TAB 700 Manuel utilisateur

www.roverinstruments.com

TFT 16:10TFT 16:10

USER’S GUIDE

TAB 700TAB 700

HDHD

& TAB 700 Plus& TAB 700 Plus

GET TO KNOW YOUR TAB 700

FRONT PANEL __________________________________

To turn on

press the

‘HOME’ key.

To turn off

press and hold

the ‘HOME’ key

Use the wheel to navigate across the screen and adjust the values

+

With instrument ON,

Keep the “HOME” key

pressed for 10” and

turn on again.

From instrument OFF, Switch

on the meter, immediately

after keep the “VOLUME” key

pressed until a beep is heard.

Rotate to select

a menu item

or to change

a value

Press to select a

menu item or a

numeric field,

Select a menu

item, press and

hold 2” to display

the pop-up menu.

NB: The MENU (functions and Graphics) an be change without advise.

678 9

1. = LAN Eternet RJ45 (only for Plus version)

2. = USB B SW upgrades

3. = USB A memory stick

4. = Power Supply input (12 V DC - 2A)

5. = Fan

6. = Analog video IN (CVBS)

7. = Remote Power Supply switch

DC at RF IN ON/OFF

8. = IF/RF IN “F” 75 Ω

9. = OPTIC IN: SC connector

(only for Plus version)

____________________________________________________

Make work easier by taking advantage of your multi-purpose bag.

Work safely and without restrictions with both hands free.

The sunlight shield flap allows improved visibility

of the high brightness display.

Secure your meter by connecting it to the

antenna mast or in your car using the practical

ring belt with quick attachment.

If you change the configuration of

the shoulder strap, you can easily carry

the meter vertically by your side.

You can also carry your instrument using its practical handle.

MULTI-PURPOSE BAG

You can use the bag’s convenient stand flap for operation on a counter.

Connect the shoulder

strap to the two hooks at the

corners of the bag (top left

and bottom right), so you can

hang your meter around your

neck leaving both hands free.

HOME AND NAVIGATION

Press the ‘HOME’ key to go to the home screen, then rotate the wheel to navigate on ‘SAT’,

‘TV’ or ‘CATV’ icons and press the wheel to select the measurement mode required.

________________________________________________

Press the ‘HOME’ key at any time to

return to the home screen

____________________________________________________

Use the touch screen and the wheel to navigate across the screen and to change values



tuning parameters

live picture

measurements

channel info

transport stream info

context sensitive menu

How to select from the menus and adjust the value:

•฀Rotate the wheel and select from the menu required (fig. 1)

•฀Press the wheel (fig. 2)

•฀Rotate the wheel to adjust the value (fig. 3)

•฀Press the wheel and confirm the selection (fig. 4)

Example of TV/CATV channel selection:

ﬁg. 1

ﬁg. 1 ﬁg. 3ﬁg. 2 ﬁg. 4

ﬁg. 2

ﬁg. 3

Example of SATELLITE transponder selection (TP/TS):

Example of remote TV-CATV power supply selection (DC&RF):

How to select from the menus and change a value using the drop down menus:

•฀Rotate the wheel and select the menu required (fig. 1)

•฀Keep the wheel pressed for 2” to visualized the drop down menu (fig. 2)

•฀Rotate the wheel to adjust the value (fig. 3)

•฀Press the wheel and confirm the selection (fig. 4)

How to select the frequency and set the value using the numerical keyboard:

•฀Rotate the wheel and select frequency (FREQ) (fig. 1)

•฀Keep the wheel pressed for 2” to visualize the keyboard (fig. 2)

•฀Press the relative number keys to digit the frequency value required, rotate the wheel to

navigate within the window (fig. 3)

•฀Finally rotate the wheel and select enter (fig. 4)

•฀Press the wheel and confirm the selection (fig. 5)

Example of TV/CATV channel selection:

Example of SATELLITE transponder selection (TP/TS):

Example of manual frequency (FREQ) selection:

ﬁg. 1

ﬁg. 3

ﬁg. 2

ﬁg. 4

ﬁg. 1

ﬁg. 3ﬁg. 2

ﬁg. 4

ﬁg. 1

ﬁg. 2

•฀Touch a value in the menu (fig. 1)

•฀Rotate the wheel to adjust the value (fig. 3) or touch the value required (fig.2)

•฀Press the wheel and confirm the selection (fig.3)

or touch the monitor outside the drop down menu (fig.3)

ﬁg. 5

ﬁg. 4

ﬁg. 3

Select from the menus and adjust the value using the drop down menu:

•฀Touch a value in the menu to visualize the drop down menu (fig. 1)

•฀Rotate the wheel to adjust the value (fig. 2) or touch the value required (fig. 2)

•฀Press the wheel and confirm the selection (fig. 3), or touch the monitor outside the drop down

menu (fig. 3)

Example of TV channel selection:

ﬁg. 1

Example of SATELLITE transponder selection (TP/TS):

ﬁg. 2

ﬁg. 3

ﬁg. 1

ﬁg. 2

ﬁg. 3

Select the frequency and set the value using the numerical keyboard:

•฀Touch FREQ to show the menu “INSERT FREQ” (fig. 1)

•฀Touch the numbers to digit the required frequency value (fig. 2)

•฀Finally touch enter and confirm the selection (fig. 3)

Example of manual frequency selection (FREQ):

ﬁg. 1

ﬁg. 2

ﬁg. 3

CONFIGURATION

________________________

________________________________________________________

Volume selection is

immediately active, press

“ENTER” for the Display

configuration and other

important settings

Choose “BATTERY SAVING”

from the volume screen. In ON mode,

if no key is pressed, after 30 seconds,

the display brightness is reduced and

after 5 minutes the meter automatically

turns off. press any key to temporarily

reset the battery save mode.

Touch “CONFIGURATION MENU” then

“METER” in the volume screen and set

the “TIMER OFF” value required. The meter

will turn off after 5, 10, 15 or 30 minutes of

inactivity. Press any key to interrupt the

automatic turn-off.

Settings for battery save mode.

“VIDEO IN” (connector 7): Select “EXT” to visualize an external video source.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Rover Instrument de mesure

Rover

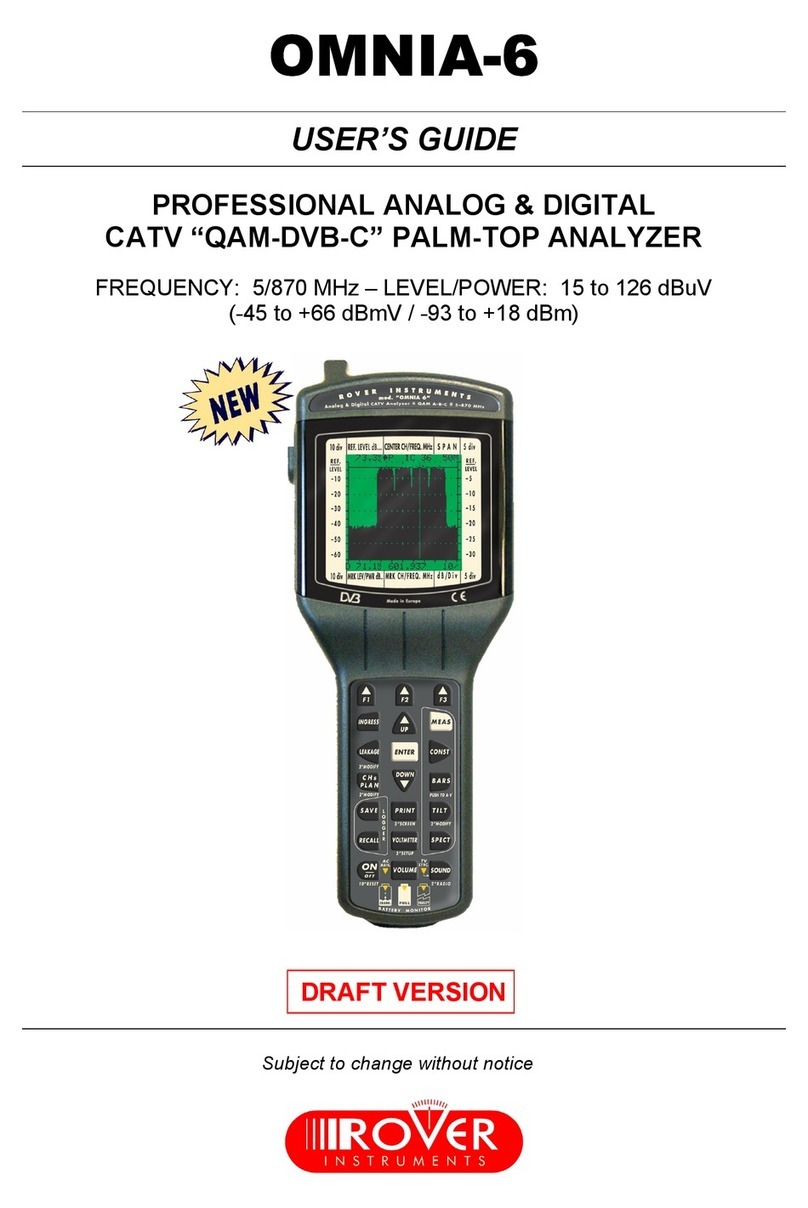

Rover OMNIA-6 Manuel utilisateur
