4 Port Super Speed USB3.0 Hub RHB-620

User Manual

4 Port Super Speed USB3.0 Hub RHB-620 User Manual

- 1 -

Production Instruction:

This USB3.0 HUB is a 4 ports Hub used to bridge the USB3.0

& USB 2.0 interface peripherals to your desktop or laptop by

providing one upstream port and 4 downstream ports. This Hub

complies with USB Spec. V1.1a；V2.0 and v3.0. It offers you

the flexibility of 4 data rates: 1.5Mbps (low-speed), 12Mbps

(full-speed), 480Mbps (high-speed) and 5Gbps for

super-speed devices.

Features:

1. Compliant with USB Specification Rev. 3.0, Backward

Compatible to USB Rev. 2.0 and Rev. 1.1a.

2. 4 (Max.) downstream facing ports super-speed (5Gbps),

high-speed (480Mbps) , full-speed (12Mbps), and low-speed

(1.5Mbps) transaction

3. Support Self-powered mode & Bus power mode.

4. Plug & play and Hot Swapping.

5. No need to install driver.

4 Port Super Speed USB3.0 Hub RHB-620 User Manual

- 2 -

Specifications:

Material

Plastic

Standards

USB3.0/2.0/1.1a

Power Mode

Self-power mode / Bus-power mode

USB Connectors

USB3.0 A/F downstream*4.

USB3.0 Micro B/F upstream*1.

OS supports

USB2.0 Mode:

Windows 2000/XP/Vista/7,

Linux Kernel 2.6.31 + Mac OS 10.0+

USB3.0 Mode: Windows XP/Vista/7

Linux Kernel 2.6.31+

Data Transfer Rate

1.5/12/480Mbps and 5Gbps

USB3.0 BUS Power

DC 5V/900mA

AC Adapter

Input：AC100-240V;Output: DC5V/3.5A

Temperature

Operating: 0℃~ 70℃

Storage: -10℃~ 85℃

Humidity

Operating: 10%~ 90%

Storage: 5% ~ 95%

4 Port Super Speed USB3.0 Hub RHB-620 User Manual

- 3 -

System Requirements:

1. A USB3.0 host controller installed on the computer. You can’t

enjoy the super speed if your PC doesn’t support USB3.0.

2. OS support: Win2000/XP/Vista/7, Linux, and Mac OS 10.0+.

3. Recommend using Intel Pentium 4 or above system.

Installation:

1. Plug the Switching Adapter’s DC plug into “DC 5V” JACK，

LED lighting.

2. Plug the USB3.0 cable’s Micro B/M connector into the

“Upstream”.

3. Plug the USB3.0 cable’s A/M connectors into the PC host

Port., for minute the OS recognize HUB’s hardware.

4. Connect USB devices to the Hub’s downstream ports.

Caution：

1. Please read the User Manual carefully before using the

product.

2. The computer will automatically install the driver at the first

time when connecting to the Hub. Please wait for

4 Port Super Speed USB3.0 Hub RHB-620 User Manual

- 4 -

approximately one minute to allow the installation to

complete automatically.

3. To operate the product smoothly, please make sure that the

AC adapter is plugged in when using the product.

4. In order to enjoy the super speed of 5Gbps, your PC host

and OS must fully support USB3.0; otherwise it can only

reach the speed of USB2.0 standard.

5. Please un-plug the hub and turn the power off if not use it for

a long time.

6. The product is only intended for use in dry, indoor locations.

No part of the product should be allowed to become moist or

wet, never take hold of it if your hands are wet!

PACKAGE CONTENTS:

USB3.0 HUB x1

User Manual x1

USB 3.0 A/M TO Micro B/M cable x1

AC Adapter(5V 3.5A) x1

Table des matières

Autres manuels Rosewill Changer

Rosewill

Rosewill RHUB100 Manuel utilisateur

Rosewill

Rosewill RVHS3-11001 Manuel utilisateur

Rosewill

Rosewill RC-407 Manuel utilisateur

Rosewill

Rosewill RGS-1016 Manuel utilisateur

Rosewill

Rosewill RC-410X Manuel utilisateur

Rosewill

Rosewill RC-416 Manuel utilisateur

Rosewill

Rosewill RNWA-PoE-4065 Manuel utilisateur

Rosewill

Rosewill RHUB-210 Manuel utilisateur

Rosewill

Rosewill RC409 Manuel utilisateur

Rosewill

Rosewill RC-410LX Manuel utilisateur

Rosewill

Rosewill RHUB110 Manuel utilisateur

Rosewill

Rosewill RHB320 Manuel utilisateur

Rosewill

Rosewill RC-GS1024 Manuel utilisateur

Rosewill

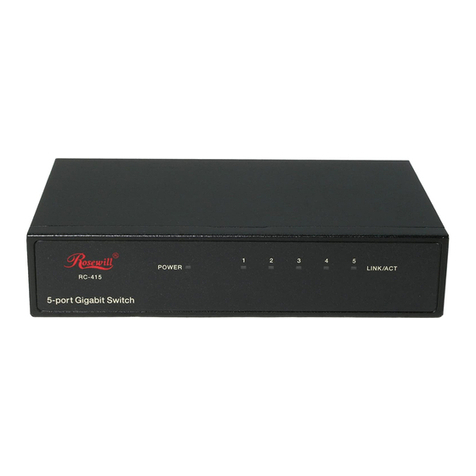

Rosewill RC-415 Manuel utilisateur
