Rosen A10 Installation Guide 1

Installation Guide

A10 DVD Entertainment System

BEFORE YOU START THE INSTALLATION, READ THIS GUIDE!

Rosen “all-in-one” systems are the easiest-to-install DVD entertainment systems available

today. Even though they are very easy to install, we still strongly recommend reading this

guide before starting the installation! Below is an outline of the installation process, showing

the installation sequence we recommend, and the pages that describe each step.

Contents - Steps to a successful installation:

Step One: Make sure you have all the components and tools you’ll need 2

Step Two: Check out the vehicle and plan your work -

console location, harness routing, etc. 3

Step Three: Cut the headliner and mount the Bracket 4-9

Step Four: Route the harnesses and make all wiring connections 10

Connecting the Domelight wires 11

Step Five: Install the main unit 12

Step Six: Test the system, reassemble the vehicle, re-test quickly 13

Step Seven A10 Configuration and Programming 14-16

Frequently Asked Questions 17

A10 Diagnostics 18

Dual Zone and Multi-screen Installations 19

System Diagram 20

A10 Installation Manual Revision A(060204) RES PN 9100390

866-Go Rosen www.rosenentertainment.com

NOTICE OF INTENDED INSTALLATION AND USE

ROSEN ENTERTAINMENT SYSTEMS OVERHEAD VIDEO PRODUCTS ARE NOT INTENDED FOR

VIEWING BY THE DRIVER, AND ARE TO BE INSTALLED ONLY TO BE VIEWED BY REAR-SEAT

OCCUPANTS. IMPROPER INSTALLATION COULD DISTRACT THE DRIVER OR INTERFERE WITH

SAFE OPERATION OF THE VEHICLE, WHICH COULD RESULT IN SERIOUS INJURY OR DEATH,

AND COULD ALSO VIOLATE STATE LAW. ROSEN ENTERTAINMENT SYSTEMS DISCLAIMS ANY

LIABILITY FOR ANY BODILY INJURY OR PROPERTY DAMAGE THAT MAY RESULT FROM ANY

IMPROPER OR UNINTENDED INSTALLATION AND/OR USE.

Rosen A10 Installation Guide 2

1 Make sure you have the tools and components you’ll need

MAKE SURE YOU HAVE THE TOOLS AND PARTS YOU’LL NEED

These common hand tools are needed in almost every installation:

!Phillips #2 screwdriver

!Knife and blades

!Digital multimeter (DMM)

!1/4” drive sockets are often needed for dashboard and trim disassembly.

!3/8” drive sockets are often needed for seat removal and reinstallation.

!Check if Torx or Allen-drive bolts are used on any panels you will be removing.

!You will need a DVD in good condition when testing the system.

Standard installation parts you will need include wire, wire ties, wire crimp connectors or

solder, and electrical insulating tape. Installation of aftermarket automotive electronics

also often requires access to special parts. It is a good idea to have a source for these

common installation parts.

A10 Standard Components: Model # RES Part #

!A10 overhead console in Neutral or Gray AC3300 Neutral 9100321

AC3301 Gray 9100322

!Flush-Mount Trim Ring in Neutral or Gray AC3207 Neutral 9100180-2

AC3208 Gray 9100181-2

!Mounting bracket AC3206 9100270

!Hardware pack AC3104 9100240

!Harnesses and cables: *(if used in the installation)

Black power/domelight harness AC3076 9100371

*Green Aux Input harness AC3081 9100392

!Remote Control AC3074 91002387

!Two (2) Infrared Wireless Headphones AC3003 4007-0158-000

!Game controller AC3169 9100369

!Owner’s Manual 9100389

Optional Components:

!Yellow A/V Out cable AC3192 9100261

!Blue external FM Modulator harness AC3191 9100265

!External FM Modulator AC3195 9100244

!CV4000 TV Tuner kit ( AC3105 TV Tuner, AC3024 harness, AC3035 TV antenna)

!R5001 10-disc DVD Changer (also requires kit w/ AC3024 harness and adapter)

!Rosen AC3007 Dual-Channel Wireless Headphones (for dual-zone applications)

!Rosen external game plate/ harness AC3077

!Rosen 43mm Tall Trim Ring (CV2033 G and N), 60mm Tall Trim Ring (CV2034N),

or Toyota Sienna Trim Ring (CV2035N)

!Wire cutters, strippers,and a crimping tool

!Panel-removing tools

!Marking pen or chalk, and cleaning cloths

Rosen A10 Installation Guide 3

2 Check out the vehicle and plan your work

IMPORTANT!

The vehicle’s roof beam (above the headliner) must support the

weight of the overhead console. The supplied mounting bracket must

be firmly attached to the roof beam. Determine if this is possible to

ensure that the vehicle is suitable for the installation.

CHECK THE BATTERY

Test the battery voltage and inspect battery terminals for tightness and any corrosion. This

takes 30 seconds and can save hours of troubleshooting later.

DECIDE ON A LOCATION FOR THE MAIN UNIT

Location of the main unit varies by vehicle, but is typically on the center line of the vehicle

and is always aft of the front seats. Often, the main unit’s domelights replace the factory

dome light. Always attach the mounting bracket to the existing roof cross beams.

NOTICE OF INTENDED INSTALLATION AND USE

ROSEN ENTERTAINMENT SYSTEMS OVERHEAD VIDEO PRODUCTS ARE NOT INTENDED

FOR VIEWING BY THE DRIVER, AND ARE TO BE INSTALLED ONLY TO BE VIEWED BY REAR-SEAT

OCCUPANTS. IMPROPER INSTALLATION COULD DISTRACT THE DRIVER OR INTERFERE WITH

SAFE OPERATION OF THE VEHICLE, WHICH COULD RESULT IN SERIOUS INJURY OR DEATH,

AND COULD ALSO VIOLATE STATE LAW. ROSEN ENTERTAINMENT SYSTEMS DISCLAIMS

ANY LIABILITY FOR ANY BODILY INJURY OR PROPERTY DAMAGE THAT MAY RESULT

FROM ANY IMPROPER OR UNINTENDED INSTALLATION AND/OR USE.

The main unit requires adequate roof support and a relatively flat headliner. Before you

begin installation, drop the dome light and partially drop the headliner, and verify that you

have sufficient clearance and sufficient support from a roof beam. Inspect the vehicle roof

and headliner area and consider the following questions.

!Does the vehicle have overhead climate controls? Does their location interfere with

installation of the main unit?

!Is the dome light located where it would interfere with your installation of the unit?

The main unit has built-in dome lights which connect to the existing vehicle

domelight wiring, so it can replace the factory dome light.

!Does the vehicle headliner contour require using an optional Tall Trim Ring

and modifying it? (Make sure you have the tools needed).

Rosen A10 Installation Guide 4

3 Cut the headliner and mount the bracket

IMPORTANT!

DO NOT BEGIN THIS STEP UNTIL YOU HAVE INSPECTED THE HEAD-

LINER, THE ROOF BEAM, AND ALL OTHER ESSENTIAL AREAS, AND

VERIFIED THAT THE INSTALLATION CAN BE SUCCESSFULLY COM-

PLETED! IT IS YOUR RESPONSIBILITY TO MAKE SURE THE INSTAL-

LATION IS SAFE, SECURE, AND APPROPRIATE TO THE VEHICLE.

STEP 1: SELECT A MOUNTING METHOD

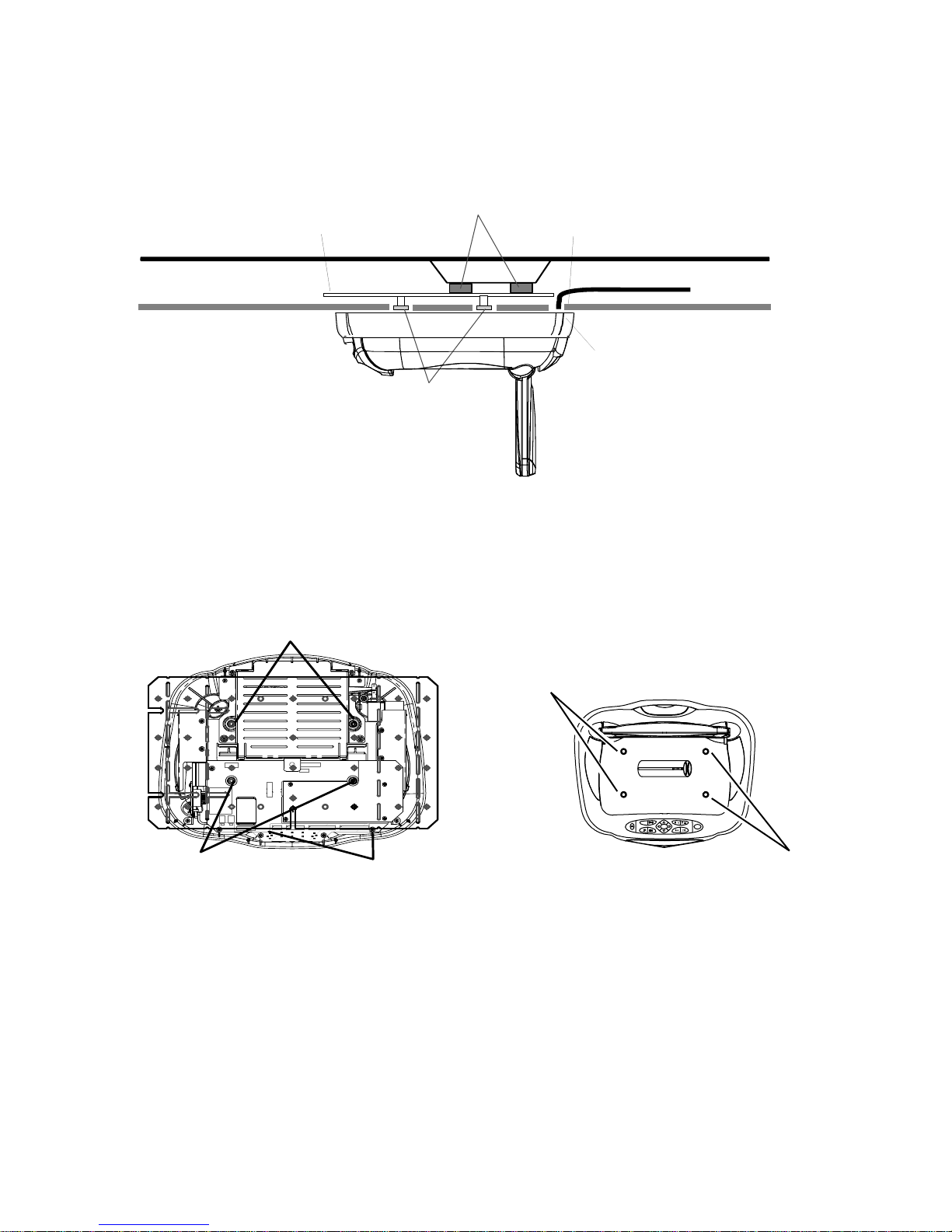

!Standard mounting. You will need to cut the headliner in order to create a path for the

cables and to mount the bracket. Sometimes the headliner has enough contour that

modifications to the included trim ring are needed. (If this contour is severe, you may

need to use one of the optional tall trim rings.) It is critical to modify the trim ring when

working with uneven surfaces, as the uneven pressure can cause various problems

with the unit. The bracket will mount laterally and the mounting screws must be able to

line up with the threaded standoffs on the bracket as shown.

Headliner

Trim

Ring

Cables

Bracket Cable Exit

Bracket oriented laterally

Vehicle Roof

Roof Beam

Front ofVehicle

(Continued)

Connectors

Threaded standoffs

for Mounting Screws

Threaded standoffs

for Mounting Screws

ENTER

OPEN

SOURCE

Driver’s side

mounting holes

Passenger

side

mounting

holes

Rosen A10 Installation Guide 5

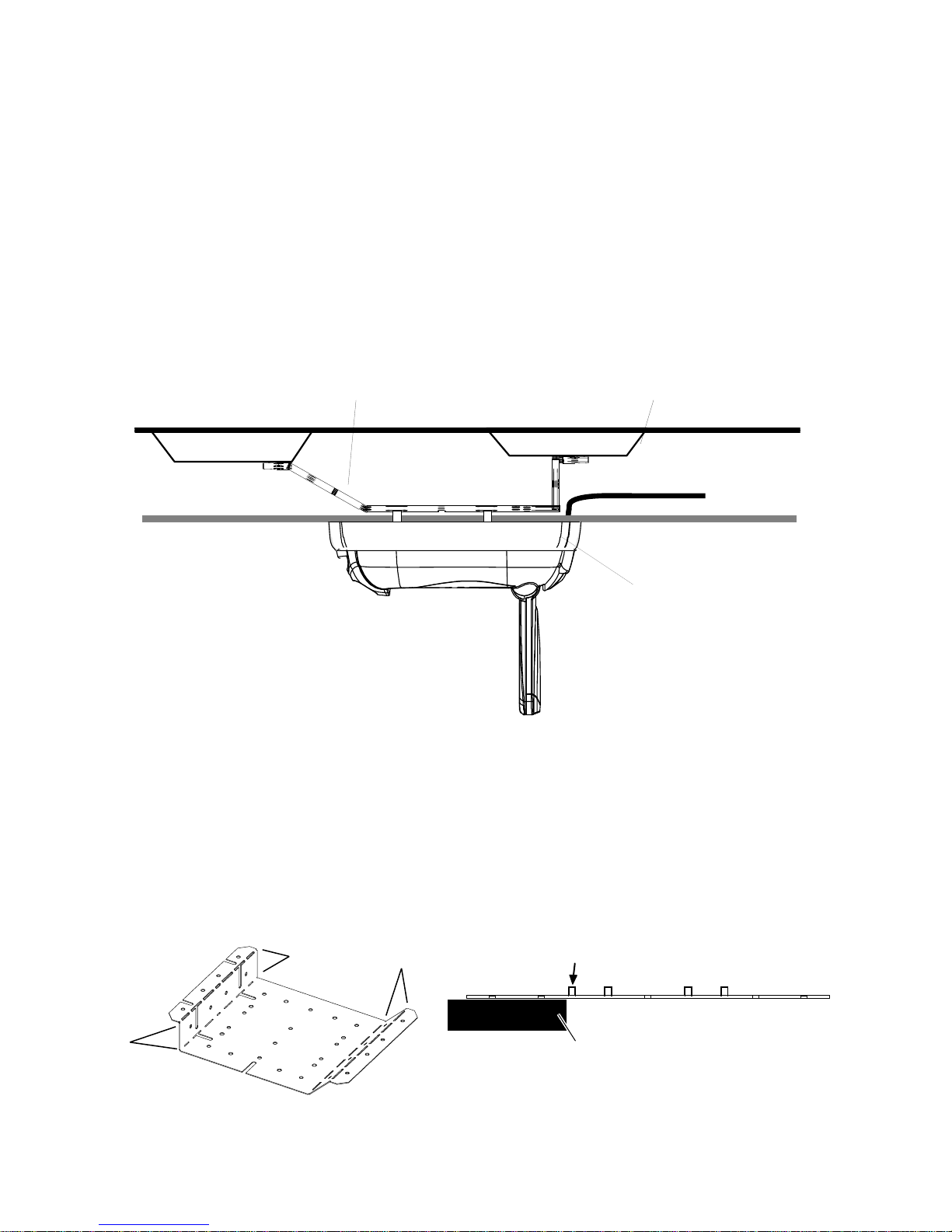

!Standard mounting with a spacer. This is the same as Standard mounting except that

optional spacers are inserted between the Bracket and the beam to allow extra room.

Headliner

Trim

Ring

Cables

Bracket Cable Exit

Bracket oriented laterally

Vehicle Roof

Roof Beam

Front ofVehicle

Optional Spacers

(included in

hardware kit)

Optional Spacer(s)

(not included)

Connectors

Threaded standoffs

for Mounting Screws

Threaded standoffs

for Mounting Screws

ENTER

OPEN

SOURCE

Driver’s side

mounting holes

Passenger

side

mounting

holes

Rosen A10 Installation Guide 6

Headliner

Trim Ring

Cables

Bracket (Bent) Cable Exit

Bracket oriented lengthways

Vehicle Roof

Roof Beam

Front of Vehicle

Roof Beam

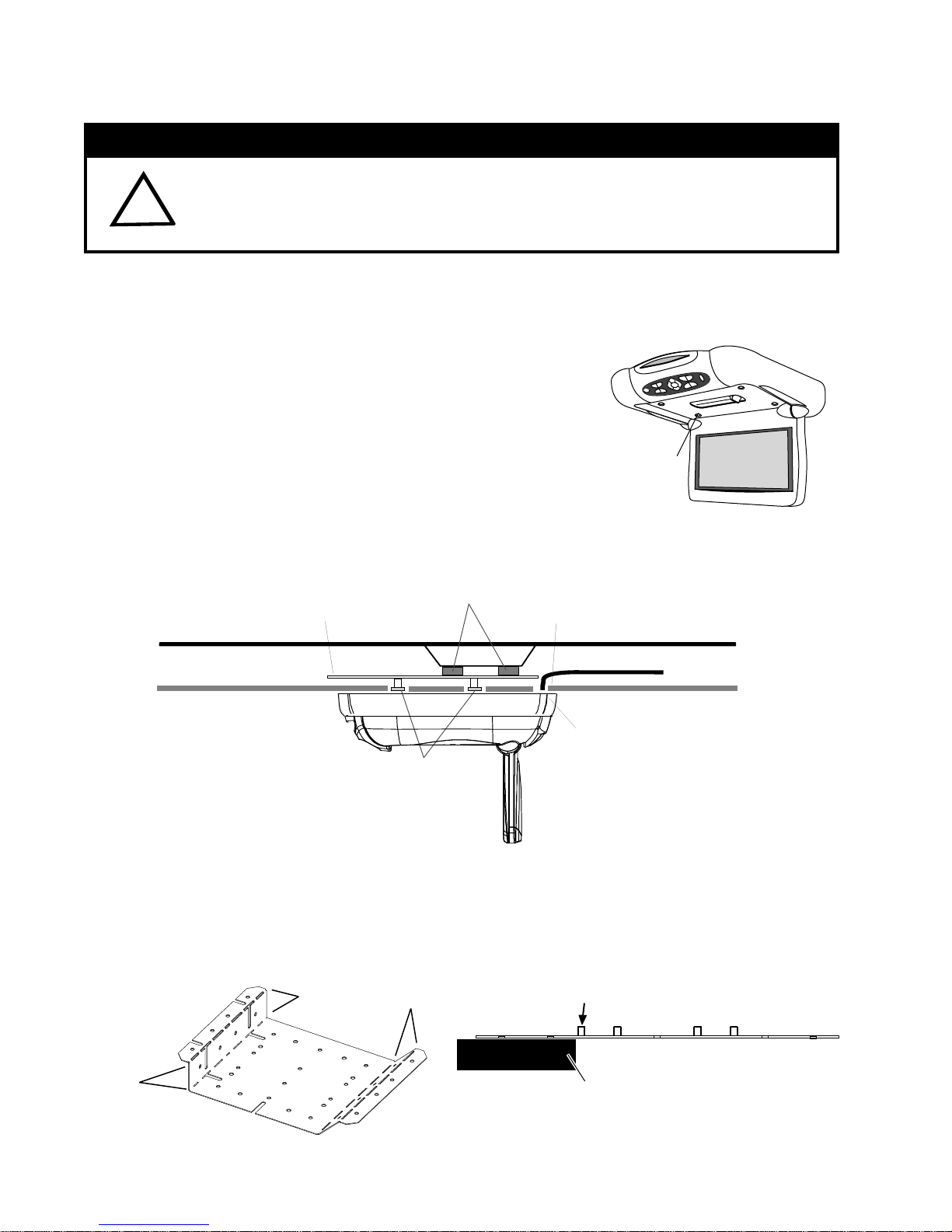

!Custom mounting. This involves modifying the bracket or using appropriate

brackets, and can also involve using a Universal Tall Trim Ring, and modifying it to fit

the vehicle. Again, sometimes the headliner has enough contour that

modifications to the included trim ring are needed. (If this contour is severe, you may

need to use one of the optional tall trim rings.) It is critical to modify the trim ring when

working with uneven surfaces, as the uneven pressure can cause various problems

with the unit.

As with every installation, it is your responsibility to make the installation

safe, secure, and appropriate to the vehicle. RES does not recommend recessed

mounting (without a trim ring) due to possible high-temperature operation issues.

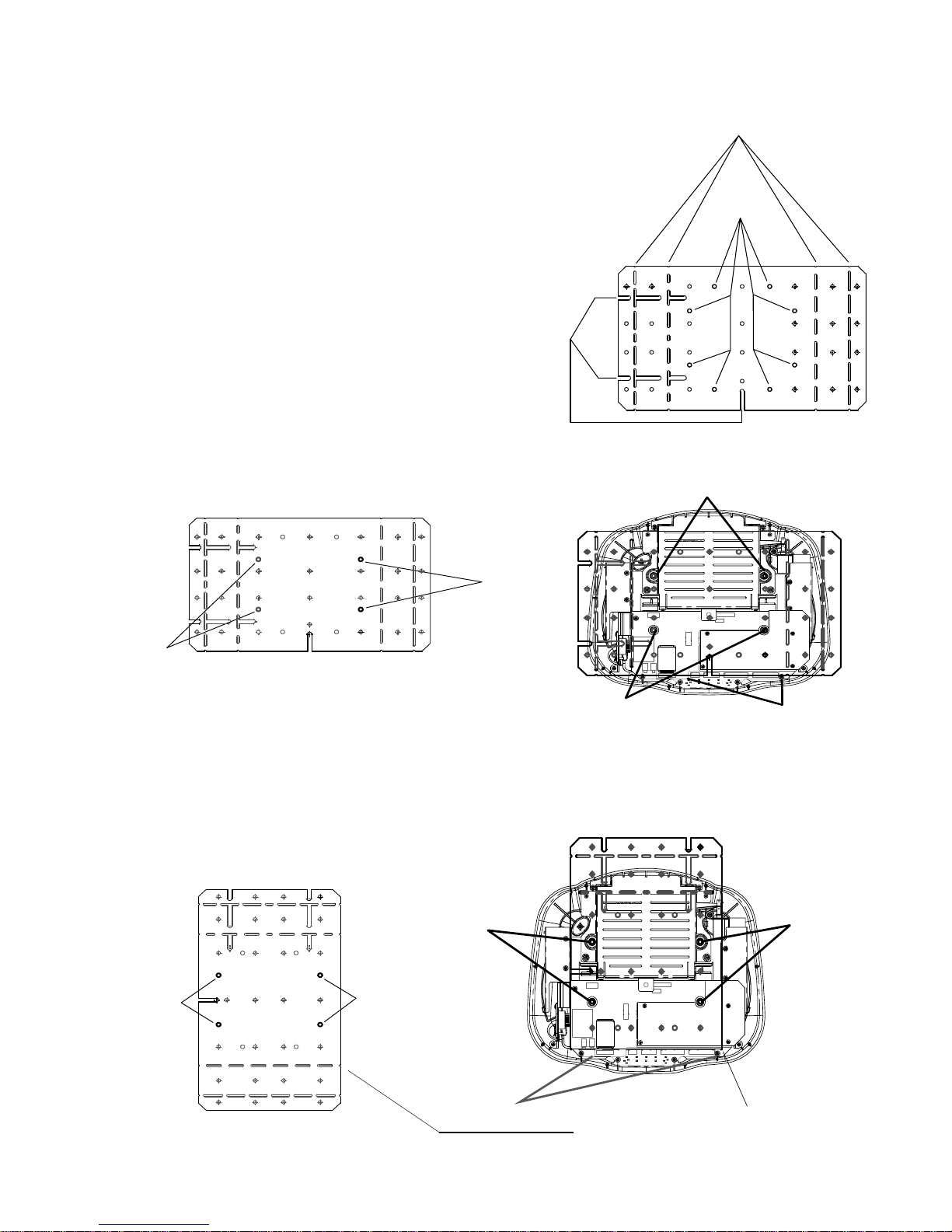

Bending or modifying the bracket

The bracket is designed to be able to be bent or shortened as needed. You may also

want to remove the four unused threaded standoffs with a hammer as shown, but

only when you are certain they will not be needed.

Sturdy workbench

Strike firmly with ball-peen hammer

Bend/

break

lines

Bend/break lines

Rosen A10 Installation Guide 7

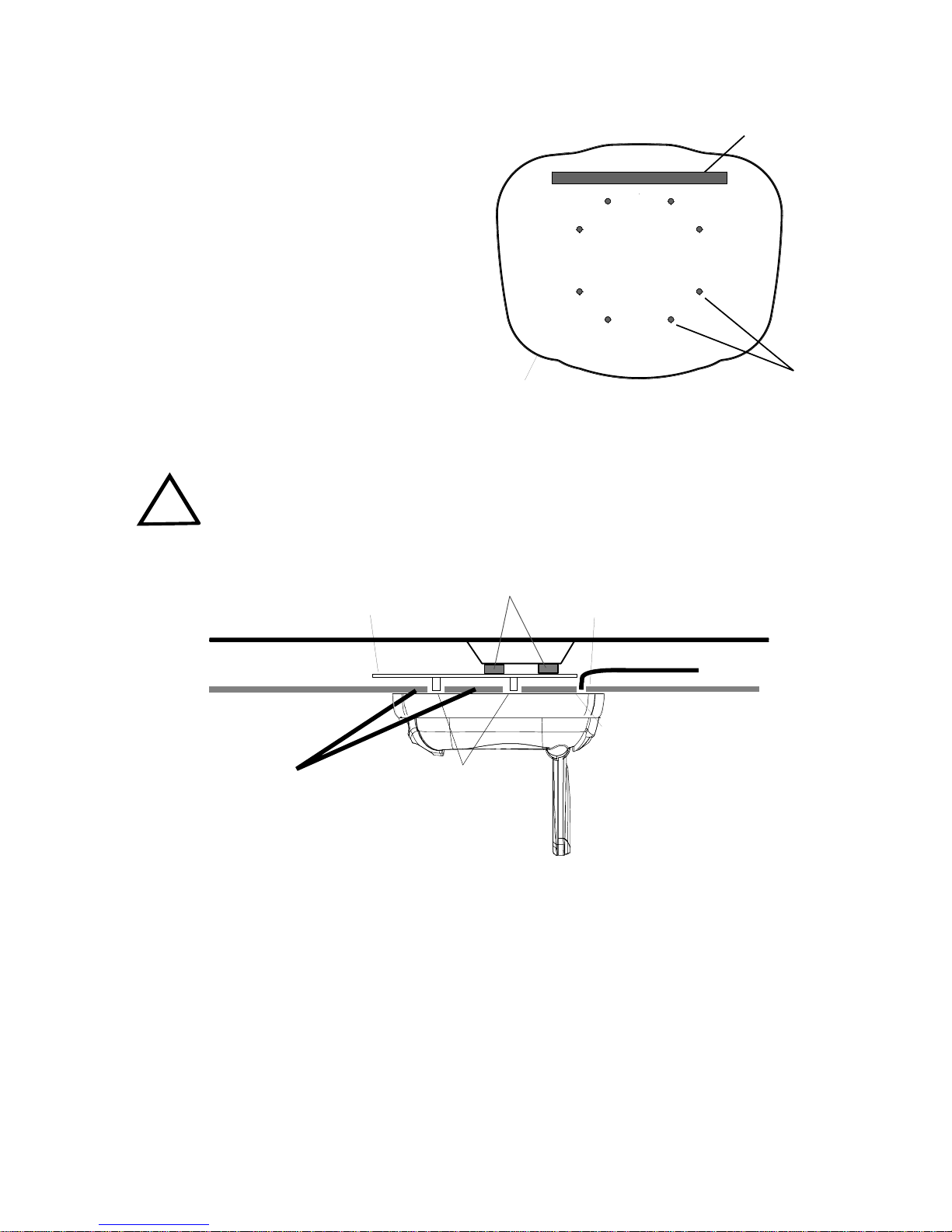

STEP 2: CUT THE HEADLINER

1 Remove the cardboard template (it

is perforated into the inner box). Center

the template on the center line of the

vehicle by measuring the width of the

headliner, dividing by two, and making a

chalk mark on the center line.

Always double-check that the

template is correctly oriented

front-to-rear.

Note: The Trim Ring Footprint

is NOT the cut line!

FRONT ofVehicle

Cable Exit

Mounting screw/

standoff holes

Cardboard template

(

Trim Ring Footprint)

IMPORTANT! If you cut away too much of the headliner, you will cre-

ate a direct path for heat to radiate from the roof of the vehicle into

the DVD drive. On very hot days, this type of installation could trigger

the unit’s temperature protection (the DVD drive shuts down above

140OF). To minimize heat exposure, only cut the headliner as shown.

2Double-check the template’s front/rear orientation and position.

3 Trace the template cut locations onto the headliner with a pencil, marker, or chalk.

4 Using a sharp blade, carefully cut out the headliner. Cut on the inside of your lines. Cut

a rectangle for the cable exit, and small squares for the screw locations. (Cutting

squares makes the alignment process much easier than drilling precise holes).

Note: If you plan on removing unused standoffs from the bracket, you can reduce the

number of holes to cut - see page 8.

5 Test-fit the mounting bracket into the headliner opening from above.

Headliner

Trim

Ring

Cables

Bracket Cable Exit

Vehicle Roof

Roof Beam

Front ofVehicle

Optional Spacer(s)

Threaded

standoffs

Headliner between

DVD drive and roof cavity

Rosen A10 Installation Guide 8

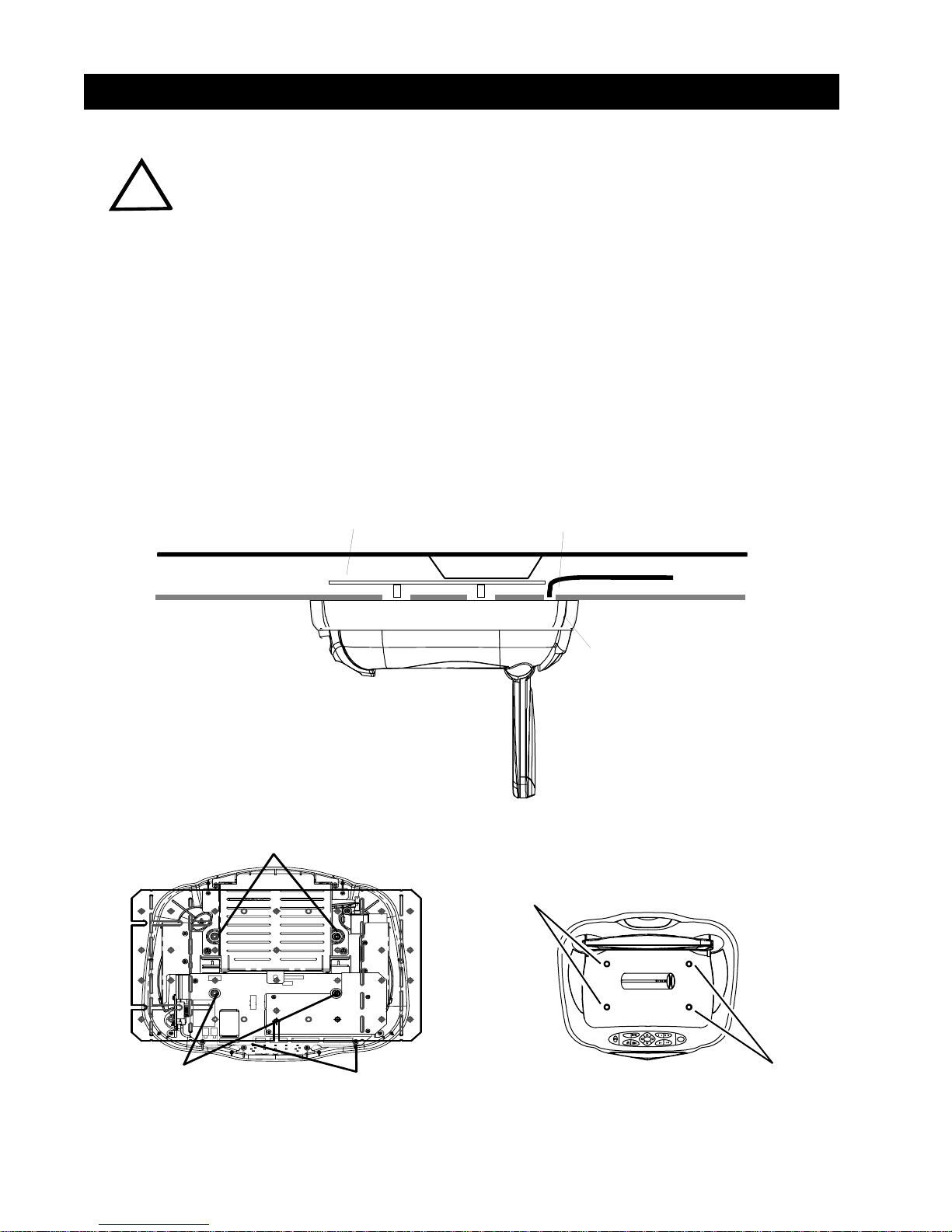

CAUTION!

Make sure that the screws you use to mount the bracket and the main

unit are not too long! If the screws you select are too long, you will

damage the roof of the vehicle. Take great care when planning this

part of your installation.

Optional spacers may be needed

With some vehicle roof beams, you may need to use optional spacers to mount the bracket

to the beam. Some thick headliners require spacers between

the bracket standoffs and the main unit.

If test-fitting indicates that you need to use the

included spacers between the main unit and the bracket standoffs,

pre-insert each mounting screw into the main unit from below

as shown. Then press the spacer over the tip of the screw.

The spacers should hold the screws in place.

After you have pre-inserted all four screws, go to the next step - do not mount the unit yet!

Headliner

Trim

Ring

Cables

Bracket Cable Exit

Bracket oriented laterally

Vehicle Roof

Roof Beam

Front ofVehicle

Optional Spacers

(included in

hardware kit)

Optional Spacer(s)

(not included)

Bending or modifying the bracket

The bracket is designed to be able to be bent or shortened as needed. You may also

want to remove the four unused threaded standoffs with a hammer as shown, but

only when you are certain they will not be needed.

STEP 3: MOUNT THE BRACKET

Stand

Insert

mounting

screw

Sturdy workbench

Strike firmly with ball-peen hammer

Bend/

break

lines

Bend/break lines

Rosen A10 Installation Guide 9

Bend or break Bracket at this point

to create a cable exit! (See Pages 5, 7)

Threaded

standoffs

for

Mounting

Screws

Connectors

Threaded

standoffs

for

Mounting

Screws

Threaded

standoffs

Bend/break lines

Slots for screws or

optional AC3024

stabilizing

mounting feet

Front ofVehicle

Threaded

standoffs

Threaded

standoffs

Long-axis Bracket Positioning

MOUNT THE BRACKET (continued)

Remove the headliner trim and any grab handles

over the rear door frame. Slide the bracket in

between the headliner and the roof. Mount the

bracket to the roof beam through the opening you

made in the headliner. A minimum of four short

screws must be used to mount the bracket.

CAUTION!

Front ofVehicle

Threaded

standoffs

Threaded

standoffs

Lateral Bracket Positioning

Connectors

Threaded standoffs

for Mounting Screws

Threaded standoffs

for Mounting Screws

Rosen A10 Installation Guide 10

4 Route the harnesses and make all wiring connections

Basic connections are described in this section. Also see wiring diagrams starting on p.15.

INSTALLATION PRECAUTIONS

• Use caution to assure that harnesses and cables are protected from sharp

edges. Where necessary, add tape to cover sharp surfaces.

• Avoid sharp bends (always less than 90O, but less than 45O is preferred).

• The locking connectors in this system require that even force be applied to the

release latch when harnesses are disconnected. Failure to use reasonable care

will damage the connector and cause system failure.

CABLE AND HARNESS ROUTING

1 Starting at the headliner cutout, route the black power harness to the underdash area.

Leave about six inches of cable hanging through the cutout. Allow enough slack in the

harnesses above the headliner to allow working room. You may want to leave a short

loop hanging out the side of the headliner until final re-assembly (this makes stuffing

cables into the headliner easier when you mount the unit).

2 You may want to secure the cables with tape so they lie flat. This makes it easier to

reassemble the vehicle trim correctly, especially with sunroof vehicles.

3 If any other optional harnesses are being used, route them from the headliner cutout to

their destination. Remember to leave working slack.

When using optional harnesses, you may need to split the harness paths, routing

some harnesses down one side of the vehicle and the rest down the other.

CONNECTING THE POWER HARNESS

The system requires both constant 12V (+) and switched 12V (+) energized when the key is

in the Accessory position. These can be found at the ignition switch harness. The ground

wire should mount to bare metal, using a factory ground bolt whenever possible.

Power Harness Connections:

Yellow 12V (+) Constant Battery Power (Fused 7.5 A)

Red 12V(+) Switched Accessory (Fused 1 A)

Black Chassis (-) Ground

Orange Vehicle Illumination Input (12V(+) when the parking lights are on)

IMPORTANT:

- Connecting the Red wire to constant 12V(+) causes battery drain

and premature battery failure.

Autres manuels pour A10

Table des matières

Autres manuels Rosen Système vidéo embarqué

Rosen

Rosen 10.2 Manuel utilisateur

Rosen

Rosen AV7950H Manuel utilisateur

Rosen

Rosen Z8 Manuel utilisateur

Rosen

Rosen AV7700 DVD ENTERTAINMENT SYSTEM Manuel utilisateur

Rosen

Rosen Z-Series Manuel utilisateur

Rosen

Rosen ClearVue Overhead Monitor Manuel utilisateur

Rosen

Rosen 10.2” Overhead All-In-One DVD/CD/MP3 System Manuel utilisateur

Rosen

Rosen DS-TY0830-H11 Manuel utilisateur

Rosen

Rosen R5505 Manuel de programmation

Rosen

Rosen DA-7169 Guide de démarrage rapide

Rosen

Rosen DS-TY10B0 Manuel utilisateur

Rosen

Rosen DS-UN0810 Manuel utilisateur

Rosen

Rosen DVD Entertainment System Manuel utilisateur

Rosen

Rosen CV1005 Manuel utilisateur

Rosen

Rosen AV8900H Manuel utilisateur

Rosen

Rosen UN7000 Manuel de programmation

Rosen

Rosen AV7500 Guide de référence

Rosen

Rosen AV-CY0801-G42 Manuel du propriétaire

Rosen

Rosen Dual Mutimedia Headrest Replacement Entertainment... Manuel utilisateur

Rosen

Rosen ClearVue Ultra Manuel utilisateur

Rosen

Rosen DS-TY10A0 Toyota 4-Runner Manuel utilisateur

Rosen

Rosen AV7700 Guide de référence

Rosen

Rosen AV7500 Manuel utilisateur

Rosen

Rosen AV8900H Manuel utilisateur

Manuels Système vidéo embarqué populaires d'autres marques

Stinger

Stinger HEIGH10 RB10RAM13B Manuel utilisateur

Eonon

Eonon E1057 Manuel utilisateur

Milion

Milion D2223 Manuel utilisateur

Metra Electronics

Metra Electronics 99-8153 Manuel utilisateur

Voxx Electronics

Voxx Electronics HR8MA1 Manuel utilisateur

Axxera

Axxera AV604Bi Manuel utilisateur

Clarion

Clarion NX706E Manuel utilisateur

Pyle view

Pyle view PLDN74BTi Manuel utilisateur

Clarion

Clarion NX602 Manuel utilisateur

PowerAcoustik

PowerAcoustik PTID-5850N Manuel utilisateur

RCA

RCA DRC6296 - Twin 9" Mobile DVD System Guide de l'utilisateur

Lanzar

Lanzar SVDVD5 Manuel utilisateur

Kia

Kia MTXM100YPPE Manuel utilisateur

Eonon

Eonon E1060 Manuel utilisateur

Macrom

Macrom M-AN900 Manuel utilisateur

Hyundai

Hyundai BAPE-L3000N Manuel utilisateur

r.LiNK

r.LiNK RL2-UCON8-SM Manuel utilisateur

Blaupunkt

Blaupunkt DVP 01C Manuel utilisateur
