AV7700 System Installation Guide

AV7700 Installation Guide

Lexus RX350/400/400H

NOTICE OF INTENDED INSTALLATION AND USE

ROSEN ENTERTAINMENT SYSTEMS VIDEO PRODUCTS ARE NOT INTENDED FOR VIEWING

BY THE DRIVER, AND ARE TO BE INSTALLED ONLY TO BE VIEWED BY REAR-SEAT

OCCUPANTS.

IMPROPER INSTALLATION COULD DISTRACT THE DRIVER OR INTERFERE WITH SAFE

OPERATION OF THE VEHICLE, WHICH COULD RESULT IN SERIOUS INJURY OR DEATH,

AND COULD ALSO VIOLATE STATE LAW.

ROSEN ENTERTAINMENT SYSTEMS DISCLAIMS ANY LIABILITY FOR ANY BODILY INJURY

OR PROPERTY DAMAGE THAT MAY RESULT FROM ANY IMPROPER OR UNINTENDED

INSTALLATION AND/OR USE.

STOP

Damage to the vehicle may occur

Do not proceed until process has been completed

CAUTION

Process must be carefully observed in order to reduce

the risk of damage to the accessory or vehicle

CRITICAL

Process must be carefully observed in order to ensure a

quality installation

TOOLS and EQUIPMENT

Specific tools and equipment recommended for this

process

SAFETY RISK

Observe safe practices, this process can be dangerous

and there is a risk of personal injury

TESTING and TROUBLESHOOTING

Content specific testing and troubleshooting points

AV7700 Lexus Seat Back Headrest Solution

Installation Guide AV7700

AV7700 System Installation Guide AP2004-LX Rev A

Page 2

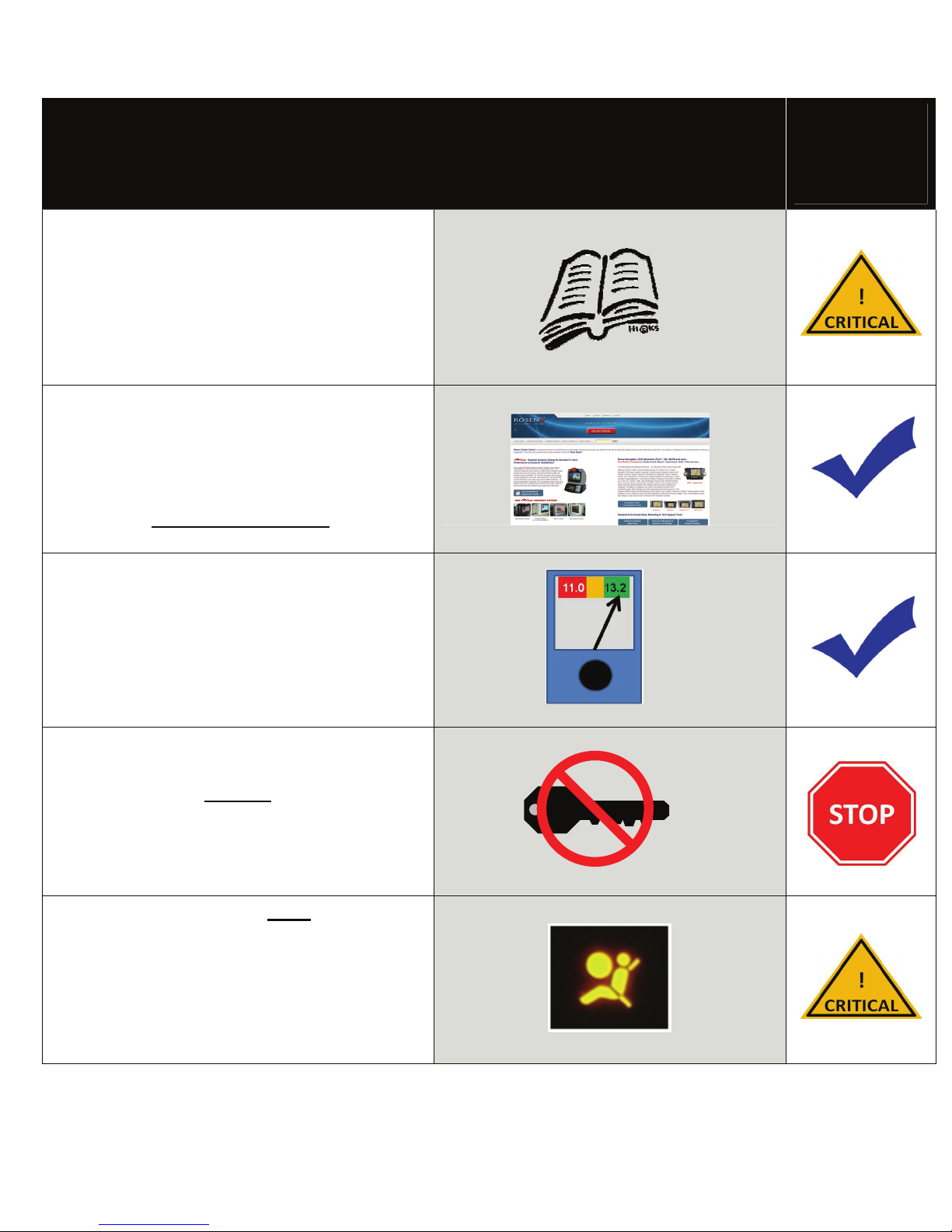

PREPARING FOR THE INSTALLATION

Before you start, please read these critical steps below

STEP

BEFORE YOU START THE

INSTALLATION,

READ THIS GUIDE!

VISIT

Rosen Dealer Central

For the latest Updates, Corrections and

Technical Tips about this product and installation

www.RosenDealerCentral.com

CHECK THE BATTERY

Test the battery voltage to make sure it’s fully

charged to a minimum of 12.8 VDC

This only takes seconds and can save hours of

troubleshooting later.

TURN THE VEHICLE

OFF

Keep the Vehicle Off during the installation to

avoid setting various Vehicle Fault sensors

Keep the Vehicle OFF during the

installation

Failure to follow this may cause the AIRBAG

FAULT SENSOR to become enabled. Dealer

Service Departments charge a significant fee to

reset the Fault Sensor.

Installation Guide AV7700

AV7700 System Installation Guide AP2004-LX Rev A

Page 3

Prepare Mounting Bracket

You will need to assemble the vehicle specific mounting brackets.

The following steps will guide you through this process

STEP

Locate mounting bracket assembly as well as

hardware mounting kit.

Insert AV7700 mounting bracket into cross-

bar as shown

Use included Phillips screws to secure

mounting bracket to cross-bar

Installation Guide AV7700

AV7700 System Installation Guide AP2004-LX Rev A

Page 4

Attaching Mounting Bracket To Electronics

Attach mounting brackets to electronics by using 4 supplied screws

See below for more details

STEP

Place the AV7700 electronics system on clean flat

surface.

Attach mounting bracket using supplied screws.

See below for further details

= Screw Location

Installation Guide AV7700

AV7700 System Installation Guide AP2004-LX Rev A

Page 5

Attach Color-Matched Material

Attach mounting bracket wrap to AV7700 electronic mounting brackets

STEP

Each AV7700 kit is supplied with color-matched

monitor back covers and mounting bracket wrap

based on application ordered.

Route cables underneath wrap material as shown

at right

Align back cover with AV7700 mounting holes

and snap into place as shown at right

Installation Guide AV7700

AV7700 System Installation Guide AP2004-LX Rev A

Page 6

CAUTION

Installing AV7700 Electronics

You will need to install the AV7700 electronics and route the cable through the seat backs. The following

steps will guide you through this process.

STEP

Detach/release seat access cover at bottom of

seat.

This will expose 2 Phillips screws that need to be

unscrewed to release seatback.

Seatback removed



Remove upper J-Clip to expose mounting hole

Installation Guide AV7700

AV7700 System Installation Guide AP2004-LX Rev A

Page 7

CAUTION

Left mounting hole

Remove upper J-Clip on right to expose right

side mounting hole

Unhook J-Clip from crossbar to allow Rosen

mounting bracket to attach.

Insert mounting bracket into seat back and

make sure it does NOT restrict safety cable.

NOTE: Some vehicles are equipped

climate controlled seats which include a

fan inside seatback. Be sure that Rosen

mounting bracket does NOT obstruct fan

functionality

Hook mounting bracket into cross bar

Installation Guide AV7700

AV7700 System Installation Guide AP2004-LX Rev A

Page 8

CAUTION

Attach bracket to LEFT mounting hole using

supplied nuts and bolts

Attach bracket to RIGHT mounting hole using

supplied nuts and bolts.

Repeat this process for each seat. Once

complete, route cables to bottom of seat and

route towards area underneath driver’s seat

Locate interface module underneath driver’s

seat.

Locate proper power source at driver’s kick panel

Yellow = 12Volt Accessory

OEM Ground = Ground

Test with digital multimeter before connecting

Install complete

Installation Guide AV7700

AV7700 System Installation Guide AP2004-LX Rev A

Page 9

Routing Harnesses and Making Connections

You will need to route the harnesses and make the power connections to the vehicle.

Proper routing of cables is crucial to making sure cables do not get damaged

STEP

This system requires a minimum of 12V (+) ACC Switched and Ground (-) to operate. The 12V (+)

ACC Switched source must be capable of supplying a minimum of 7A.

Wiring Diagram STEP

Installation Guide AV7700

AV7700 System Installation Guide AP2004-LX Rev A

Page 10

Initial Test, Reassembly, and Pre-delivery Re-test

You will need to fully test the system to ensure it is working and connected to the vehicle properly.

The following steps will guide you through this process

STEP

Step 1: INITIAL TEST (Do this BEFORE you reassemble any trim panels)

a. Reconnect the vehicle battery if needed

b. Install batteries into the remote control, headphones and game controllers

c. Start the vehicle (ensure that it is safe to do so, there are no tools or people under

the hood)

d. Perform the following steps on each headrest to ensure proper operation:

•Close and re-open the unit several times

•With the display open, insert a DVD (in good condition) and select play

•Check the audio on the IR headphones

•Press the Speaker button and adjust the vehicle radio frequency as needed to

check the audio

•Select and play the internal games

•Eject the disc

•Turn off the vehicle and wait for the unit to turn off

e. If the system does not function properly, reset the system by pressing and holding

the reset

button located near the eject button

Step 2: REINSTALL all trim panels removed during the installation using care not to damage

any harnesses

Step 3: PRE-DELIVERY AND RE-TEST

a. Start the vehicle (ensure that it is safe to do so, there are no tools or people under

the hood)

b. Perform the following steps

•Insert a DVD (in good condition) and select play

•Re-check IR headphones and FMT audio

•Eject the disc

•Remove the protective films and clean the unit as needed

c. Place the Owners Information package in the glove compartment

d. Place the IR headphones, remote control and game controller in a convenient location
