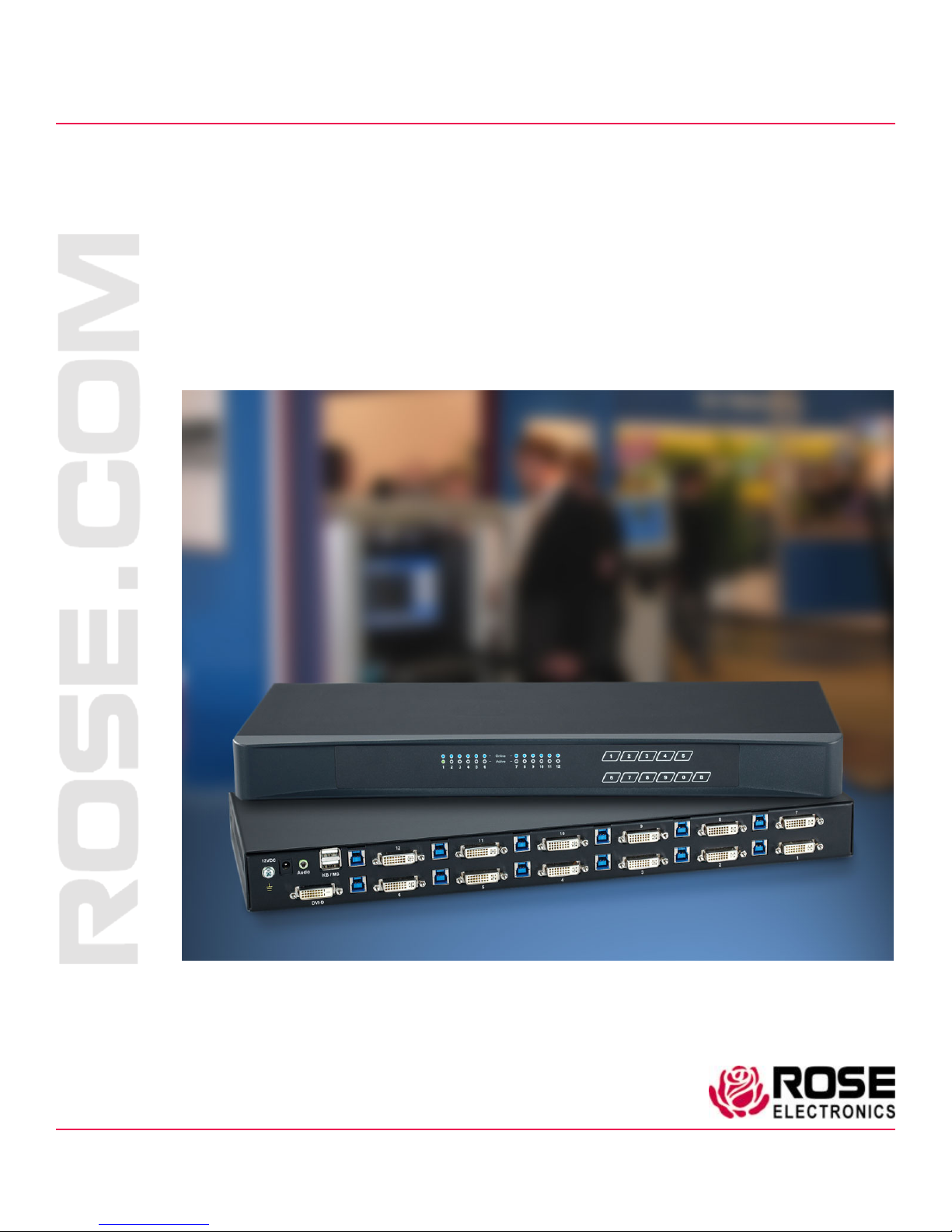

Rose electronics Vista LC DVI Manuel utilisateur

Vista LC DVI

-Port DVI/USB/Audio KVM Switch

Installation

and

Operation Manual

10707 Stancliff Road

Houston, Texas 77099

Phone: (281) 933-7673

tech-

[email protected]

LIMITED WARRANTY

No part of this manual may be reproduced, stored in a retrieval system, or transcribed in any form or any means, electronic or mechanical, including photocopying and

recording, without the prior written permission of Rose Electronics.

manual-vista-lc-dvi-2018-03-02

Rose Electronics®warrants the Vista LC DVI KVM Switch to be in good working order for one year from the

date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working

order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the

Unit as set forth below. Repair parts and replacement units will be either reconditioned or new. All replaced

parts become the property of Rose Electronics. This limited warranty does not include service to repair

damage to the Unit resulting from accident, disaster, abuse, or unauthorized modification of the Unit, including

static discharge and power surges.

Limited Warranty service may be obtained by delivering this unit during the one-year warranty period to Rose

Electronics or an authorized repair center providing a proof of purchase date. If this Unit is delivered by mail,

you agree to insure the Unit or assume the risk of loss or damage in transit, to prepay shipping charges to the

warranty service location, and to use the original shipping container or its equivalent. You must call for a return

authorization number first. Under no circumstances will a unit be accepted without a return authorization

number. Contact an authorized repair center or Rose Electronics for further information.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT INCLUDING THE WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO A

PERIOD OF ONE YEAR FROM THE DATE OF PURCHASE, AND NO WARRANTIES, WHETHER EXPRESS

OR IMPLIED, WILL APPLY AFTER THIS PERIOD. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW

LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

IF THIS PRODUCT IS NOT IN GOOD WORKING ORDER AS WARRANTIED ABOVE, YOUR SOLE

REMEDY SHALL BE REPLACEMENT OR REPAIR AS PROVIDED ABOVE. IN NO EVENT WILL ROSE

ELECTRONICS BE LIABLE TO YOU FOR ANY DAMAGES INCLUDING ANY LOST PROFITS, LOST

SAVINGS OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF OR

THE INABILITY TO USE SUCH PRODUCT, EVEN IF ROSE ELECTRONICS OR AN AUTHORIZED DEALER

HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, OR FOR ANY CLAIM BY ANY OTHER

PARTY.

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR

CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS, SO THE ABOVE MAY NOT APPLY TO YOU.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS

WHICH MAY VARY FROM STATE TO STATE.

DECLARATIONS OF CONFORMITY

This is to certify that, when installed and used according to the instructions in this manual, the units listed and

described here are shielded against the generation of radio interferences in accordance with the application of

Council Directives 2014/30/EU and 2014/30/EU.

This equipment has been found to comply with the limits for a Class A digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the

equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is likely to cause

harmful interference in which case the user will be required to correct the interference at their own expense.

This equipment fully complies with the requirements of European Union Regulation (EC) 1907/2006

concerning the Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) :

These devices comply with Directive 2011/65/EU of the European Parliament and of the council of 8 June

2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment

(RoHS 2, RoHS II). The device labels carry a respective marking.

TABLE OF CONTENTS

Contents

Disclaimer 1

System Introduction 1

Features 1

Package Contents 2

Additional Items required 2

Installing the Vista LC/DVI Switch 3

Back Panel Connectors 3

Back Panel – Cable Connectivity 4

Front Panel – Buttons and LED’s 4

PC Port LED’s 5

Keyboard Hotkey Switching 5

Safety 6

Maintenance and Repair 7

Technical Support 7

Figures

Figure 1. Vista DVI LC – DVI/USB/Audio combo cable 2

Figure 2. Vista LC DVI Switch showing the rackmount bracket assembly 3

Figure 3. Vista LC DVI Switch – back panel connectors 3

Figure 4. Vista LC DVI Switch - back panel cable connectivity 4

Figure 5. Vista LC DVI Switch – front panel buttons and LED’s 4

Figure 6. Vista LC DVI Switch – hotkey label 5

Tables

Table 1. Vista LC DVI Switch – keyboard hotkey commands .............................................................. 5

Appendices

Appendix A —Specifications 8

INTRODUCTION

Vista LC DVI KVM Switch Manual 1

Disclaimer

While every precaution has been taken in the preparation of this manual, the manufacturer assumes no

responsibility for errors or omissions. Neither does the manufacturer assume any liability for damages resulting

from the use of the information contained herein. The manufacturer reserves the right to change the

specifications, functions, circuitry of the product, and manual content at any time without notice.

The manufacturer cannot accept liability for damages due to misuse of the product or other circumstances

outside the manufacturer’s control. The manufacturer will not be responsible for any loss, damage, or injury

arising directly or indirectly from the use of this product (See limited warranty).

System Introduction

Thank you for choosing the Rose Electronics Vista LC DVI KVM Switch, a compact and high performance

KVM Switch, connecting up to 12 PC’s with a DVI/USB/Audio interface.

Supporting DVI video resolutions up to 1920x1200@60Hz, the Vista LC DVI uses either

keyboard hot-keys or front panel buttons to switch between the connected PC’s. The supported keyboard and

mouse is the USB-HID type.

The instructions in this manual assume a general knowledge of computer installation procedures, familiarity

with cabling requirements, and some familiarity with DVI and USB device operation.

Features

■DVI/USB and analog audio KVM Switch in 1U chassis

■Supports 1920x1200 video resolution

■12 CPU ports, with DVI-D and USB-HID interface

■USB-HID for keyboard and mouse

■Multiplatform for PC, server, blade server SUN and MAC

■Port switching via front panel button and keyboard hotkeys

■Hot pluggable switch, no software

■Audio speaker supported

■Supports SUN 1152x900 resolution

Vista LC DVI KVM Switch Manual 2

Package Contents

The package contents consist of the following items:

■Vista LC DVI Switch

■Quantity 6 of 6ft (2.0m) DVI/USB/Audio cables

■Mounting kit and screws

■External power supply

■Power cable

■Installation & Operation Manual

Additional Items required

■DVI/USB/Audio cables – 6ft (2.0m)

■DVI/USB/Audio cables – 10ft (3.0m)

All references to DVI and USB cables in this document refer to the maximum recommended distances for each cable

type. Maximum recommended cable distances should not be exceeded.

Example of a DVI/USB/Audio Combo Cable for the Switch to PC interface

The included combo cables are terminated with

DVI/USB connectors at the switch end, and

DVI/USB/Audio connectors at the PC end

Figure 1. Vista DVI LC – DVI/USB/Audio combo cable

INSTALLATION

Vista LC DVI KVM Switch Manual 3

Installing the Vista LC DVI Switch

Unpack the Vista LC DVI switch and check the contents of the package.

If the switch is to be rackmounted, then attach a rackmount bracket to either side of the switch using the

provided screw-set.

Before installing the switch into the rack, connect two PC’s using the included DVI/USB/Audio cables, and then

connect a monitor, keyboard and mouse to the user port.

Power on the monitor, then the switch, followed by the PC’s. Check to confirm the PC’s can be switched (via

front panel or keyboard hotkey) and that full operation of the switch is confirmed.

Once this operation has been confirmed, the switch can then be fully installed into the rack. Connect the

remainder of the DVI/USB/Audio cables to the Vista LC DVI switch

Figure 2. Vista LC DVI Switch showing the rackmount bracket assembly

Back Panel Connectors

The Vista LC DVI switch has 12 CPU ports and a single user console port. Each of the 12 CPU ports has a

DVI and a USB-B type connector.

The local port consists of a DVI-D connector, two USB-A type connectors for USB keyboard and mouse, an

audio output port and a DC power jack.

Figure 3. Vista LC DVI Switch – back panel connectors

INSTALLATION

Vista LC DVI KVM Switch Manual 4

Back Panel – Cable Connectivity

Connecting PC’s to the switch is easy. Simply connect a CPU cable to the DVI/USB ports on the switch by

locking the cables in place, and the other end of the cable direct to the PC.

It is advisable to use only 6ft/10ft (2.0/3.0m) CPU cables as longer cables may result in DVI video defects or

intermittent USB keyboard/mouse performance.

Figure 4. Vista LC DVI Switch - back panel cable connectivity

Front Panel – Buttons and LED’s

The PC Port LED’s indicate whether a PC is Online or Active.

The PC Port buttons can be used for PC port selection. Alternatively, keyboard hotkeys can also be used for

PC port selection.

Figure 5. Vista LC DVI Switch – front panel buttons and LED’s

INSTALLATION

Vista LC DVI KVM Switch Manual 5

PC Port LED’s

Online -A blue LED indicates a PC is connected to the port

Active -A green LED indicates the selected/active channel

Keyboard Hotkey Switching

Hotkey Description Function

Scroll Lock + Scroll Lock + Switch to previous port

Scroll Lock + Scroll Lock + Switch to next port

Scroll Lock + Scroll Lock + Port Number Switch to specific port

Scroll Lock + Scroll Lock + SAuto scan for powered on PC’s

Scroll Lock + Scroll Lock + BEnable/Disable beeper sound

Table 1. Vista LC DVI Switch – keyboard hotkey commands

Example: Switch to Port #4. Scroll Lock + Scroll Lock + 0 + 4

Switch to Port #12. Scroll Lock + Scroll Lock + 1 + 2

You must press the hotkey within 2 seconds

A beep sound will be heard when you successfully enter a hotkey command

Figure 6. Vista LC DVI Switch – hotkey label

PRODUCT SAFETY

Vista LC DVI KVM Switch Manual 6

Safety

The Vista LC DVI KVM Switch, like all electronic equipment, should be used with care. To protect yourself from

possible injury and to minimize the risk of damage to the Unit, read and follow these safety instructions.



Follow all instructions and warnings marked on this Unit.



Except where explained in this manual, do not attempt to service this Unit yourself.



Do not use this Unit near water.



Assure that the placement of this Unit is on a stable surface.



Provide proper ventilation and air circulation.



Keep connection cables clear of obstructions that might cause damage to them.



Use only power cords, power adapter and connection cables designed for this Unit.



Keep objects that might damage this Unit and liquids that may spill, clear from this Unit. Liquids and

foreign objects might come in contact with voltage points that could create a risk of fire or electrical

shock.



Do not use liquid or aerosol cleaners to clean this Unit. Always unplug this Unit from the power source

before cleaning.

Remove power from the unit and refer servicing to a qualified service center if any of the

following conditions occur:



The connection cables are damaged or frayed.



The Unit has been exposed to any liquids.



The Unit does not operate normally when all operating instructions have been followed.



The Unit has been dropped or the case has been damaged.



The Unit exhibits a distinct change in performance, indicating a need for service.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Rose electronics Changer

Rose electronics

Rose electronics Station Master Manuel utilisateur

Rose electronics

Rose electronics UltraMatrix Remote 2 Manuel utilisateur

Rose electronics

Rose electronics ORION lc Manuel utilisateur

Rose electronics

Rose electronics Porter PO-4P Manuel utilisateur

Rose electronics

Rose electronics Vista KM III/A1 Manuel utilisateur

Rose electronics

Rose electronics MultiVideo MEB-4U2V Manuel utilisateur

Rose electronics

Rose electronics SuperSwitch SS-9 Manuel utilisateur

Rose electronics

Rose electronics MultiVideo Manuel du propriétaire

Rose electronics

Rose electronics B - Chassis Manuel du propriétaire

Rose electronics

Rose electronics Vista L SERIES Manuel utilisateur

Rose electronics

Rose electronics VISTA DVI Manuel utilisateur

Rose electronics

Rose electronics Orion XC OXS-XC080-TP Manuel utilisateur

Rose electronics

Rose electronics MasterSwitch MS-5P Manuel utilisateur

Rose electronics

Rose electronics Vista DVI Plus Manuel utilisateur

Rose electronics

Rose electronics MultiStation ML-2U Manuel utilisateur

Rose electronics

Rose electronics Caretaker Plus Automatic Switch Manuel utilisateur

Rose electronics

Rose electronics ORION lc Manuel utilisateur

Rose electronics

Rose electronics Ultraview Pro KVM SWITCH WITH ON-SCREEN... Manuel utilisateur

Rose electronics

Rose electronics Vista KVL-4PCA Manuel utilisateur

Rose electronics

Rose electronics UltraMatrix EE2-1X16U/E Manuel utilisateur

Rose electronics

Rose electronics UltraLink Lite UL-LV3 Manuel utilisateur

Rose electronics

Rose electronics UltraConsole UC1-1X16U Manuel utilisateur

Rose electronics

Rose electronics MultiVideo Manuel utilisateur

Rose electronics

Rose electronics CTP-4P Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
