Rose electronics KVM-4THD/4K Manuel utilisateur

Vista

HDMI 4K

4K Ultra HD

KVM Switch with USB2.0 and Audio

Installation

and

Operation Manual

10707 Stancliff Road

Houston, Texas 77099

Phone: (281) 933-7673

tech-

[email protected]

LIMITED WARRANTY

No part of this manual may be reproduced, stored in a retrieval system, or transcribed in any form or any means, electronic or mechanical, including photocopying and

recording, without the prior written permission of Rose Electronics.

manual-vista-hdmi-4k-2018-03-14

Rose Electronics®warrants the Vista HDMI 4K KVM Switch to be in good working order for one year from the

date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good working

order at any time during this one-year warranty period, Rose Electronics will, at its option, repair or replace the

Unit as set forth below. Repair parts and replacement units will be either reconditioned or new. All replaced

parts become the property of Rose Electronics. This limited warranty does not include service to repair

damage to the Unit resulting from accident, disaster, abuse, or unauthorized modification of the Unit, including

static discharge and power surges.

Limited Warranty service may be obtained by delivering this unit during the one-year warranty period to Rose

Electronics or an authorized repair center providing a proof of purchase date. If this Unit is delivered by mail,

you agree to insure the Unit or assume the risk of loss or damage in transit, to prepay shipping charges to the

warranty service location, and to use the original shipping container or its equivalent. You must call for a return

authorization number first. Under no circumstances will a unit be accepted without a return authorization

number. Contact an authorized repair center or Rose Electronics for further information.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT INCLUDING THE WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO A

PERIOD OF ONE YEAR FROM THE DATE OF PURCHASE, AND NO WARRANTIES, WHETHER EXPRESS

OR IMPLIED, WILL APPLY AFTER THIS PERIOD. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW

LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

IF THIS PRODUCT IS NOT IN GOOD WORKING ORDER AS WARRANTIED ABOVE, YOUR SOLE

REMEDY SHALL BE REPLACEMENT OR REPAIR AS PROVIDED ABOVE. IN NO EVENT WILL ROSE

ELECTRONICS BE LIABLE TO YOU FOR ANY DAMAGES INCLUDING ANY LOST PROFITS, LOST

SAVINGS OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF OR

THE INABILITY TO USE SUCH PRODUCT, EVEN IF ROSE ELECTRONICS OR AN AUTHORIZED DEALER

HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, OR FOR ANY CLAIM BY ANY OTHER

PARTY.

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR

CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS, SO THE ABOVE MAY NOT APPLY TO YOU.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS

WHICH MAY VARY FROM STATE TO STATE.

DECLARATIONS OF CONFORMITY

This is to certify that, when installed and used according to the instructions in this manual, the units listed and

described here are shielded against the generation of radio interferences in accordance with the application of

Council Directives 2014/30/EU and 2014/30/EU.

This equipment has been found to comply with the limits for a Class A digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the

equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is likely to cause

harmful interference in which case the user will be required to correct the interference at their own expense.

These devices comply with Directive 2011/65/EU of the European Parliament and of the council of 8 June

2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment

(RoHS 2, RoHS II). The device labels carry a respective marking.

TABLE OF CONTENTS

Contents

Disclaimer 1

System Introduction 1

Features 1

Package Contents 2

Additional Items that may be required 2

Installing the Vista HDMI 4K Switch 3

Installing the Vista HDMI 4K 4

Controlling the Vista HDMI 4K 5

Control using the RS-232 port 6

Safety 7

Maintenance and Repair 8

Technical Support 8

Figures

Figure 1. Vista HDMI 4K cabling layout diagram 3

Figure 2. Vista HDMI 4K back panel layout 4

Figure 3. Examples of 9 pin RS-232 Straight Through and Crossed Cables 6

Tables

Table 1. Keyboard hotkey and RS-232 serial port commands ............................................................ 5

Appendices

Appendix A —Specifications 9

INTRODUCTION

Vista HDMI 4K KVM Switch Manual 1

Disclaimer

While every precaution has been taken in the preparation of this manual, the manufacturer assumes no

responsibility for errors or omissions. Neither does the manufacturer assume any liability for damages resulting

from the use of the information contained herein. The manufacturer reserves the right to change the

specifications, functions, circuitry of the product, and manual content at any time without notice.

The manufacturer cannot accept liability for damages due to misuse of the product or other circumstances

outside the manufacturer’s control. The manufacturer will not be responsible for any loss, damage, or injury

arising directly or indirectly from the use of this product (See limited warranty).

System Introduction

Thank you for choosing the Rose Electronics Vista HDMI 4K KVM Switch. The Vista HDMI 4K is a 2K/4K,

HDMI/USB/Audio Switch with USB2.0 sharing. The switch provides access and control to four 4K Ultra HD

computers, using a USB keyboard/mouse and HDMI monitor.

Video resolutions supported include 1080p, 1080 3D and 3480x2160@30Hz (4K/30).

USB2.0 devices can be connected to the switch and shared between the 4 connected workstations. Digital

audio output is supported.

The instructions in this manual assume a general knowledge of computer installation procedures, familiarity

with cabling requirements, and some familiarity with HDMI and USB device operation.

Features

■Supports 1080p, 1080p 3D and 4K Ultra-HD, 36-bit color (3840×2160) @30Hz

■HDMI 1.4 (with audio) and HDCP compliant.

■Fully supported with Mac, PC, Linux, Sun Mac OS, Sun OS and Unix

■Supports USB2.0 devices, and USB-HID keyboard/mouse

■HDMI audio support, LPCM7.1, Dolby True HD, Dolby Digital Plus and DTS-HD Master Audio

■Access and control the switch via front panel (2 x 20) LCD and push buttons, keyboard hot-keys, RS-232

serial or optional TCP/IP (using TCP/IP over serial)

■Serial control interface via the DB9 serial port using the Rose RCS-4RS/D9 4-port remote control switch

■EDID learning and programming for all ports

■Zero-pixel loss with TMDS signal correction

■Independent switching and operation of the KVM station and USB2.0 ports

■Complete keyboard emulation for error free booting of connected PC’s and servers

Vista HDMI 4K KVM Switch Manual 2

Package Contents

The package contents consist of the following items:

■Vista HDMI 4K Switch

■External power supply

■Power cable

■User Manual

Additional Items that may be required

■HDMI cable CAB-HDMIMM006 6ft (2.0 meter)

CAB-HDMIMM010 10ft (3.0 meter)

■USB-AB cable CAB-USBAB006 6ft (2.0 meter)

CAB-USBAB010 10ft (3.0 meter)

■Audio cable CAB-SPMM006 6ft (2.0 meter)

CAB-SPMM010 10ft (3.0 meter)

These items may be ordered separately from Rose Electronics

All references to HDMI and USB cables in this document refer to the maximum recommended distances for each cable

type. Maximum recommended cable distances should not be exceeded.

INSTALLATION and OPERATION

Vista HDMI 4K KVM Switch Manual 3

Installing the Vista HDMI 4K Switch

Unpack the Vista HDMI 4K switch and check the contents of the package.

If the switch is to be rackmounted, then attach a rackmount bracket (not included) to either side of the switch

using the provided screw-set.

Before installing the switch into the rack, connect two PC’s using the included HDMI/USB/Audio cables, and

then connect a monitor, keyboard and mouse to the user port.

Power on the monitor, then the switch, followed by the PC’s. Check to confirm the PC’s can be switched (via

front panel or keyboard hotkey) and that full operation of the switch is confirmed.

Once this operation has been confirmed, the switch can then be fully installed into the rack. Connect the

remainder of the HDMI/USB/Audio cables to the Vista HDMI 4K switch

Vista HDMI 4K – Cabling schematic

Figure 1. Vista HDMI 4K cabling layout diagram

INSTALLATION and OPERATION

Vista HDMI 4K KVM Switch Manual 4

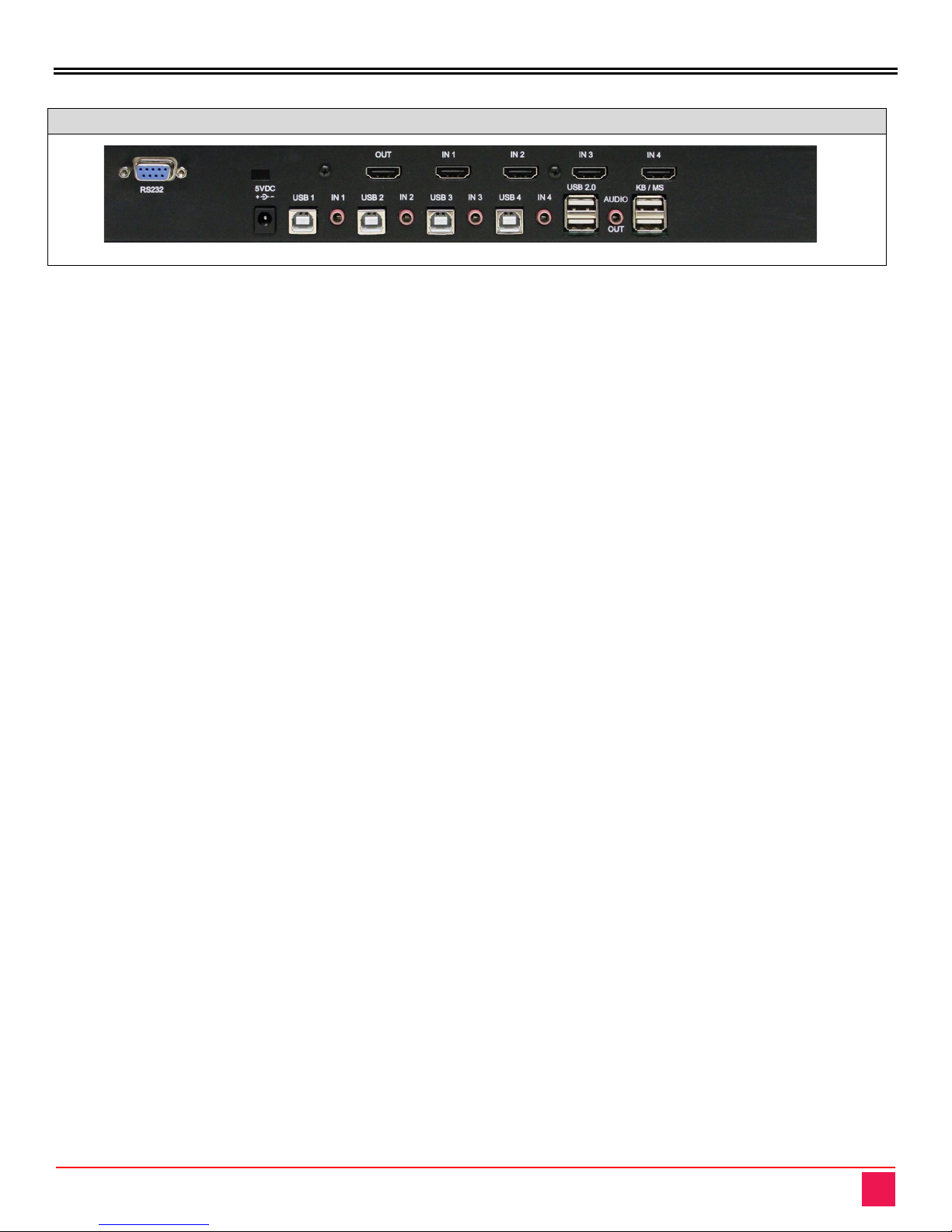

Vista HDMI 4K – back panel layout

Figure 2. Vista HDMI 4K back panel layout

Installing the Vista HDMI 4K

1. Ensure that power is disconnected from the Vista HDMI 4K.

2. Connect the HDMI cables and USB cables (male-A to male-B) from the computers to the respective

ports on the Vista HDMI 4K. Connect the audio cables if required.

3. Connect the USB keyboard and mouse on the two USB ports on the right labelled “KB/MS”. The two

USB ports on the right are dedicated for keyboard and mouse emulation only. The two USB ports on

the left are for other USB 2.0 peripherals (flash drives, printers, etc.)

4. Optionally connect speakers to the Audio-Out port located between the USB connectors and a serial

port controller to the serial port.

5. Connect the display monitor to the HDMI OUT connector on the Vista HDMI 4K.

6. Connect the external 5V power supply and power on the Vista HDMI 4K.

Vista HDMI 4K KVM Switch Manual 5

Controlling the Vista HDMI 4K

Front Panel Control: To switch ports using the front panel, press the UP button to navigate up and DOWN

button for down.

RS-232 Control:Use a male-to-female serial cable to connect a computer to the RS-232 port of the Vista

HDMI 4K. Use terminal client software such as the HyperTerminal to connect to the Vista HDMI 4K.

Make sure to use the standard communication mode of 9600 bps, 8, N, 1. This port can also be used for

software upgrade.

Hotkey Commands:The Hotkey command is a keyboard sequence used to trigger an action on the Vista

HDMI 4K through the use of the keyboard connected on the USB port of the Vista HDMI 4K. To activate the

hotkey sequence, press the CTRL key twice and then enter the desired hotkey commands.

Commands Hotkeys RS-232 Control

Switch all devices (KVM, USB 2.0, and

Audio) [CTRL] [CTRL] m [port#] [ENTER] //m[port #][ENTER]

Switch KVM only [CTRL] [CTRL] c [port#] [ENTER] //c[port #][ENTER]

Switch audio only [CTRL] [CTRL] a [port#] [ENTER] //a[port #][ENTER]

Switch USB2.0 only [CTRL] [CTRL] u [port#] [ENTER] //u[port #][ENTER]

EDID learning [CTRL] [CTRL] e [ENTER] //e[ENTER]

Same as front panel 1 button [CTRL] [CTRL] n/a

Same as front panel 2 button [CTRL] [CTRL] n/a

SmartPreview [CTRL] [CTRL] p //p

Reset [CTRL] [CTRL] r //r

Reset to factory defaults [CTRL] [CTRL] f //f

Table 1. Keyboard hotkey and RS-232 serial port commands

SmartPreview PiP: The Vista HDMI 4K features SmartPreview technology, which enables simultaneous

picture-in-picture monitoring of the other sources connected to the switch. This technology allows users to

monitor the other connected video sources without constantly needing to switch back and forth.

EDID Learning and Programming: The Vista HDMI 4K features plug-and-play EDID, making the switch easy

to implement in virtually any application. As soon as a user plugs in a monitor, the switch automatically learns

and copies the EDID to all ports. The plug-and-play EDID helps make switching hassle free and simple.

Keyboard and Mouse Emulation: The Vista HDMI 4K features USB keyboard and mouse emulation for

faster and reliable switching through the use of hotkey sequence commands.

Rackmount Kit:

The Vista HDMI 4K can be mounted on a 19” rack shelf, fitting only 1 unit per shelf.

Vista HDMI 4K KVM Switch Manual 6

Control using the RS-232 port

Controlling the Vista HDMI 4K via RS-232 requires an RS-232 card installed on your computer or a USB to

RS-232 adapter. Below are instructions on how to create an RS-232 connection between a PC and the Vista

HDMI 4K switch

Use a terminal client software to connect the host PC or notebook to the switch. Make sure to use

communication settings 9600 bps, N, 8, 1 No flow control.

Check the device and your PC to determine if you need a male to male or a male to female cable and how long

it needs to be. The Vista HDMI 4K requires a straight through cable. You can use a Null Modem Adapter to

convert a crossed cable to a straight through cable. Examples of crossed and straight thorough cable pin-outs

are shown below. The standard maximum length for an RS-232 cable is 50 feet (15 meters).

Figure 3. Examples of 9 pin RS-232 Straight Through and Crossed Cables

Establish a connection to the Vista HDMI 4K switch:



Connect an RS-232 cable to the RS-232 connector

on the PC.



Connect the other end of the cable to the RS-232

port of the Smart-AVI device.



Use Windows Control Panel / Device Manager to

identify the Com port number. See instructions and

Figure 7-2 below.



Power on the device.

If you are using a USB to COM port adapter on a

Windows PC and need to identify the COM port used, do

the following:



Click on the start button.



Click on Control Panel.



Click on Device Manager.



Click on the arrow next to Ports (COM & LPT).

You should see the name of your adapter and the COM port number in use.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Rose electronics Changer

Rose electronics

Rose electronics Vista KVL-4PCA Manuel utilisateur

Rose electronics

Rose electronics Vista KVL-4PCA Instructions d'utilisation et de sécurité

Rose electronics

Rose electronics Vista Mini Manuel utilisateur

Rose electronics

Rose electronics UltraConsole UC1-1X4U Manuel utilisateur

Rose electronics

Rose electronics UltraMatrix UM16-0X16U/E2 Manuel utilisateur

Rose electronics

Rose electronics Vista DVI Plus Manuel utilisateur

Rose electronics

Rose electronics ORION lc Manuel utilisateur

Rose electronics

Rose electronics UltraMatrix EE4-4X16U Guide d'installation

Rose electronics

Rose electronics MultiStation ML-2U Manuel utilisateur

Rose electronics

Rose electronics Ultraview Pro UKT-KVM-1U08-Z Manuel utilisateur

Rose electronics

Rose electronics Ultraview Pro KVM SWITCH WITH ON-SCREEN... Manuel utilisateur

Rose electronics

Rose electronics switch/hub Manuel utilisateur

Rose electronics

Rose electronics UltraLink 2 Manuel utilisateur

Rose electronics

Rose electronics Orion XC OXS-XC080-TP Manuel utilisateur

Rose electronics

Rose electronics ServeView Pro SEB-8UB Manuel utilisateur

Rose electronics

Rose electronics VISTA DVI Manuel utilisateur

Rose electronics

Rose electronics MasterSwitch MS-5P Manuel utilisateur

Rose electronics

Rose electronics UltraMatrix EE2-1X16U/E Instructions d'utilisation et de sécurité

Rose electronics

Rose electronics UltraConsole Remote UCR-1R1X04U Manuel utilisateur

Rose electronics

Rose electronics MultiVideo HDMI MDM-4T2HD-A1MultiVideo HDMI... Manuel utilisateur

Rose electronics

Rose electronics Vista KVL-4PCA Manuel utilisateur

Rose electronics

Rose electronics VISTA DVI Manuel utilisateur

Rose electronics

Rose electronics B - Chassis Manuel du propriétaire

Rose electronics

Rose electronics UEB-8UB Manuel

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
