CrystalView™DVI CATx

DIGITAL CATx KVM EXTENDER

10707 Stancliff Road Phone: (281) 933-7673

Houston, Texas 77099 WWW.ROSE.COM

INSTALLATION AND OPERATIONS

MANUAL

LIMITED WARRANTY

No part of this manual may be reproduced, stored in a retrieval system, or transcribed in any form or any

means, electronic or mechanical, including photocopying and recording, without the prior written permission of

Rose Electronics.

Rose Electronics Part # MAN-CRVDVIX

Printed In the United States of America – Revision 2.0

Rose Electronics warrants the CrystalView DVI CATx to be in good working order for one year from the

date of purchase from Rose Electronics or an authorized dealer. Should this product fail to be in good

working order at any time during this one-year warranty period, Rose Electronics will, at its option, repair

or replace the Unit as set forth below. Repair parts and replacement units will be either reconditioned or

new. All replaced parts become the property of Rose Electronics. This limited warranty does not include

service to repair damage to the Unit resulting from accident, disaster, abuse, or unauthorized

modification of the Unit, including static discharge and power surges.

Limited Warranty service may be obtained by delivering this unit during the one-year warranty period to

Rose Electronics or an authorized repair center providing a proof of purchase date. If this Unit is

delivered by mail, you agree to insure the Unit or assume the risk of loss or damage in transit, to prepay

shipping charges to the warranty service location, and to use the original shipping container or its

equivalent. You must call for a return authorization number first. Under no circumstances will a unit be

accepted without a return authorization number. Contact an authorized repair center or Rose

Electronics for further information.

ALL EXPRESS AND IMPLIED WARRANTIES FOR THIS PRODUCT INCLUDING THE WARRANTIES

OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN

DURATION TO A PERIOD OF ONE YEAR FROM THE DATE OF PURCHASE, AND NO

WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THIS PERIOD. SOME

STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE

ABOVE LIMITATION MAY NOT APPLY TO YOU.

IF THIS PRODUCT IS NOT IN GOOD WORKING ORDER AS WARRANTED ABOVE, YOUR SOLE

REMEDY SHALL BE REPLACEMENT OR REPAIR AS PROVIDED ABOVE. IN NO EVENTWILL

ROSE ELECTRONICS BE LIABLE TO YOU FOR ANY DAMAGES INCLUDING ANY LOST PROFITS,

LOST SAVINGS OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE

USE OF OR THE INABILITY TO USE SUCH PRODUCT, EVEN IF ROSE ELECTRONICS OR AN

AUTHORIZED DEALER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, OR FOR

ANY CLAIM BY ANY OTHER PARTY.

SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR

CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS, SO THE ABOVE MAY NOT APPLY

TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE

OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case the

user will be required to correct the interference at his own expense.

IBM, AT, and PS/2 are trademarks of International Business Machines Corp. Microsoft and Microsoft

Windows are registered trademarks of Microsoft Corp. Any other trademarks mentioned in this manual

are acknowledged to be the property of the trademark owner.

FCC/IC STATEMENTS, EU DECLARATION OF CONFORMITY

FEDERAL COMMUNICATIONS COMMISSION

AND INDUSTRY CANADA

RADIO-FREQUENCY INTERFERENCE STATEMENTS

This equipment generates, uses and can radiate radio frequency energy and

if not installed and used properly, that is in strict accordance with the

manufacturer’s instructions may cause interference to radio communication.

It has been tested and found to comply with the limits for a Class B digital

device in accordance with the specifications of Part 15 of FCC rules, which

are designed to provide reasonable protection against such interference when

the equipment is operated in a commercial environment. Operation of this

equipment in a residential area is likely to cause interference, in which case

the user at his own expense will be required to take whatever measures may

be necessary to correct the interference.

Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

This digital apparatus does not exceed the Class B limits for radio noise

emission from digital apparatus set out in the Radio Interference Regulation of

Industry Canada.

Le présent appareil numérique n’émet pas de bruits radioélectriques

dépassant les limites applicables aux appareils numériques de la classe A

prescrites dans le Règlement sur le brouillage radioélectrique publié par

Industrie Canada.

CE DECLARATION OF CONFORMITY

This equipment is in conformity with the

Council Directives 89/336/EEC

The Declaration of Conformity is based upon

compliance of the product with the following

standards:

EN55022 1999 class B

EN55024 1999

IEC61000-4-2: 2001

IEC61000-4-3: 2001

IEC61000-4.4: 2001

IEC61000-4-5: 2001

EN61000-3-2 2001

EN61000-3-3 2002

TABLE of CONTENTS

Contents

Disclaimer.........................................................................................................1

System introduction..........................................................................................1

Features............................................................................................................2

Compatibility.....................................................................................................2

Package contents.............................................................................................2

Models (Single Video).......................................................................................3

Models (Dual Video) .........................................................................................4

Cables...............................................................................................................5

Installation.........................................................................................................6

Applying power............................................................................................8

Operating instructions – Local KVM access...................................................11

DDC Information.............................................................................................11

Reset DDC table to default values .................................................................13

Color Depth Selection.....................................................................................13

Selecting moment of switching to next frame.................................................13

Figures

Figure 1. Typical cabling configurations ...........................................................6

Tables

Table 1.transmitter to receiver cabling .............................................................7

Appendices

Appendix A. General specifications................................................................18

Appendix B. Parts and cables ........................................................................19

INTRODUCTION

CRYSTALVIEW DVI CATx INSTALLATION AND OPERATIONS MANUAL 1

Disclaimer

While every precaution has been taken in the preparation of this manual, the

manufacturer assumes no responsibility for errors or omissions. Neither does

the manufacturer assume any liability for damages resulting from the use of

the information contained herein. The manufacturer reserves the right to

change the specifications, functions, or circuitry of the product without notice.

The manufacturer cannot accept liability for damages due to misuse of the

product or other circumstances outside the manufacturer’s control. The

manufacturer will not be responsible for any loss, damage, or injury arising

directly or indirectly from the use of this product.

System introduction

Thank you for choosing the Rose ElectronicsCrystalView DVICATx KVM

station extender. The CrystalView DVI CATx is a very versatile CATx KVM

extender. It supports the latest digital DVI video. All combinations of DVI

monitors and video cards are supported.

The system consists of two Units, a transmitter and a receiver. The

transmitter connects to your CPUs keyboard, DVI monitor, and mouse

connectors, or to a Rose KVM switch. The receiver connects to a keyboard,

DVI video monitor and mouse or KVM station. The transmitter and receiver

are connected together with CATx industry standard cable. The receiver can

be up to 450 feet from the transmitter using CAT5, 5e, 6, or 7 cables.

All models are available with transmitter and receiver KVM access. With

transmitter KVM access an additional KVM station to be connected to the

transmitter unit. Serial and full stereo audio support is optional on all models.

Using the CrystalView DVI CATx to remotely access your computer has

several advantages over conventional extenders. The CrystalView DVI CATx

transmits data digitally which provides a clear, sharp picture. Computers

used in hazardous industrial environments can be accessed remotely,

keeping the users safe and unexposed to any hazards.

CRYSTALVIEW DVI CATx INSTALLATION AND OPERATIONS MANUAL

Features

Perfect image quality at resolutions up to 1920 x 1200 @ 60Hz using

CAT5, 5e, 6, or 7 cable

Extend a KVM station from a CPU up to 450 feet (140m)

Supports PS/2 or USB keyboards and mouse (Depending on model)

Supports all DVI-D graphic cards

Single and dual video models available

Serial and full stereo audio option

All models provide local KVM access to the computer

The CrystalView DVI CATx uses a microprocessor to emulate the

keyboard and mouse. The keyboard and mouse on the receiver do not

have to be connected for the PC to boot; only the transmitter Unit must be

connected to the PC

Compatible with Rose Electronics family of KVM switches such as

ServeView, UltraView and UltraMatrix (DVI to VGA converter required)

Compatible with all operating systems

Fully automatic KVM sharing on a first-come first-serve basis using the

dual access model

The computer’s video is displayed on both KVM stations monitors.

Rack mount kits available

Compatibility

Computers

PCs (all operating systems)

Monitors

Digital DVI-D

Keyboards

PS/2 or USB type keyboards

Mouse

PS/2 or USB

Serial

Compatible devices up to 19.2KBaud

Audio

Bi-directional CD quality stereo audio

Package contents

The package contents consist of the following:

The transmitter and receiver Units

Power adapter for transmitter and receiver units.

Transmitter to computer cable (DVI – PS/2 – PS/2 to DVI)

“Y” cable (1-PS/2 to 2-PS/2)

Installation and operations manual.

CPU adapter cables, CATX cables, and DVI to VGA converters are usually

ordered separately. If the package contents are not correct, contact Rose

Electronics or your reseller, so the problem can be quickly resolved.

MODELS

CRYSTALVIEW DVI CATx INSTALLATION AND OPERATIONS MANUAL 3

Models (Single Video)

PS/2 Transmitter

PS/2 Receiver

USB Transmitter

USB Receiver

PS/2 Transmitter w/Serial/Audio

PS/2 Receiver w/Serial/Audio

USB Transmitter w/Serial/Audio

USB Receiver w/Serial/Audio

Receiver / Transmitter –All Single Video models

4CRYSTALVIEW DVI CATx INSTALLATION AND OPERATIONS MANUAL

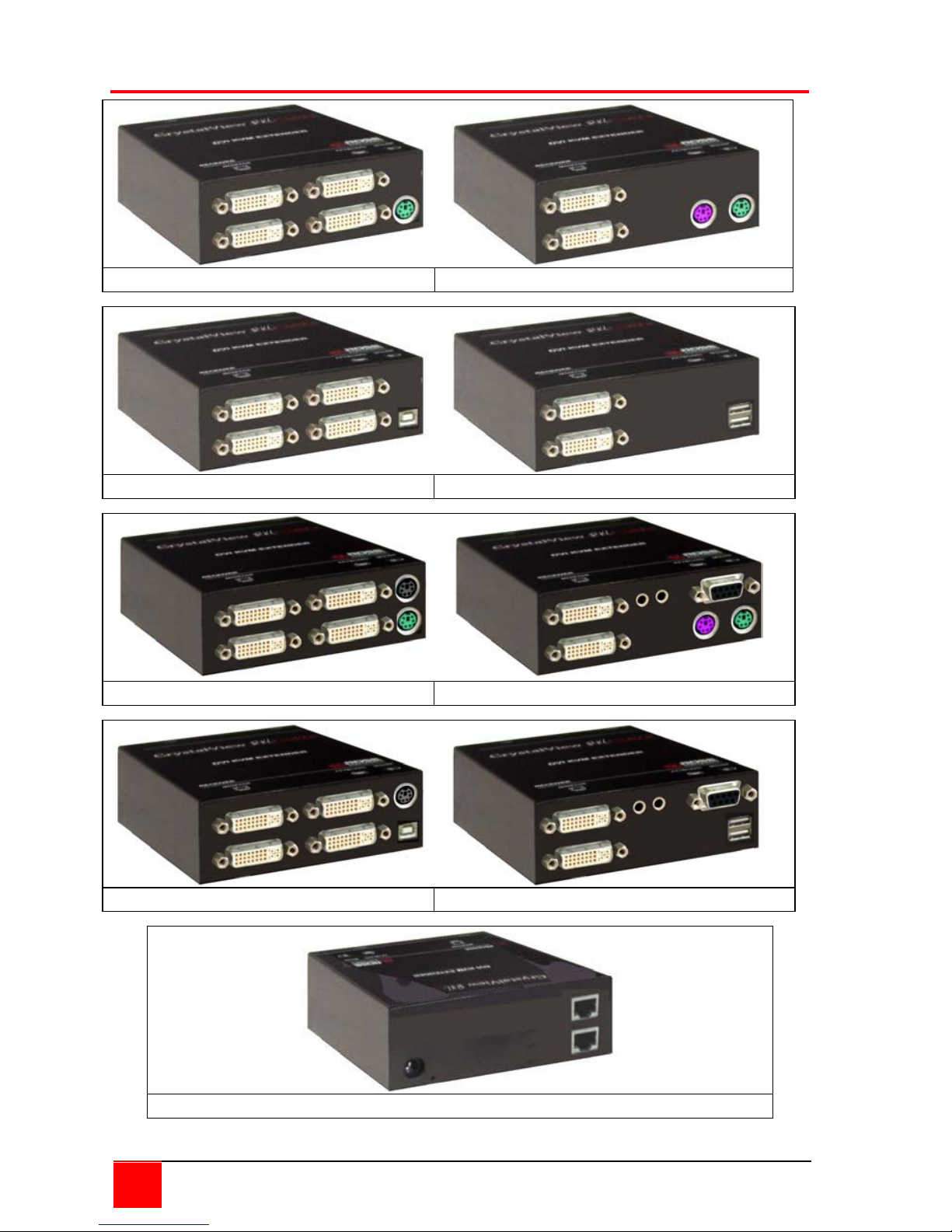

Models (Dual Video)

PS/2 Transmitter

PS/2 Receiver

USB Transmitter

USB Receiver

PS/2 Transmitter w/Serial/Audio

PS/2 Receiver w/Serial/Audio

USB Transmitter w/Serial/Audio

USB Receiver w/Serial/Audio

Receiver / Transmitter –All Dual Video models

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Rose electronics Extenseur

Rose electronics

Rose electronics CrystalView CAT5 Rack CRV-12SLP Manuel utilisateur

Rose electronics

Rose electronics CrystalView DVI CAT Series Manuel utilisateur

Rose electronics

Rose electronics CRK-2DTPPDVI Manuel utilisateur

Rose electronics

Rose electronics CLK-4U2FM-500M Manuel utilisateur

Rose electronics

Rose electronics CrystalView Plus Manuel utilisateur

Rose electronics

Rose electronics CrystalView CrystalView TWISTED PAIR KVM... Manuel utilisateur

Rose electronics

Rose electronics CRK-T1DFXDM-DLT Manuel utilisateur

Rose electronics

Rose electronics CrystalLink USB Fiber Manuel utilisateur

Rose electronics

Rose electronics CrystalLink USB2.0 CATx Manuel utilisateur

Rose electronics

Rose electronics CrystalView fiber CRK-1DFM/SUN Manuel utilisateur

Rose electronics

Rose electronics CrystalView Rack CRV-12SLP Manuel du propriétaire

Rose electronics

Rose electronics CrystalView EX5 Manuel utilisateur

Rose electronics

Rose electronics CRK-1DFMPDVI/SF Manuel utilisateur

Rose electronics

Rose electronics CrystalView fiber CRK-1DFM/SUN Manuel du propriétaire

Rose electronics

Rose electronics CrystalView fiber CRK-1DFM/SUN Manuel utilisateur

Rose electronics

Rose electronics CrystalLink CAT5 Serial Manuel utilisateur

Rose electronics

Rose electronics CrystalView Plus Manuel utilisateur

Rose electronics

Rose electronics CrystalView USB2 Manuel utilisateur

Rose electronics

Rose electronics CrystalView HDT Manuel utilisateur

Rose electronics

Rose electronics CrystalView DVI Multi Manuel utilisateur

Rose electronics

Rose electronics CrystalView CAB-MD6M2MD6F Manuel utilisateur

Rose electronics

Rose electronics RJ45 Manuel utilisateur

Rose electronics

Rose electronics CrystalView Micro LT Manuel utilisateur

Rose electronics

Rose electronics CrystalView EX DVI Multi CRK-1DTXT2DM-2T-EX6 Manuel utilisateur

Manuels Extenseur populaires d'autres marques

SY HDBT-60T Manuel utilisateur

Appsys ProAudio

Appsys ProAudio ADX-16 Manuel utilisateur

Atlona

Atlona RS232 Manuel utilisateur

IDK

IDK OPF-TH1000-A Manuel utilisateur

Enable-IT

Enable-IT 824WP Manuel utilisateur

Worx

Worx Landroid RadioLink WA0864 Fiche technique

TP-Link

TP-Link TL-WA730RE Manuel utilisateur

Camplex

Camplex CMX-HDMI-SFPL Manuel utilisateur

SC&T

SC&T HE03-4K Manuel utilisateur

Marmitek

Marmitek MegaView70 Manuel utilisateur

Samsung

Samsung SCS-26UC4 Manuel utilisateur

Foxun

Foxun SX-GES24 Manuel utilisateur

MuxLab

MuxLab 500771 Manuel utilisateur

foxunhd

foxunhd SX-AEX01 Manuel utilisateur

TERK Technologies

TERK Technologies LFIRX2 Manuel utilisateur

Devolo

Devolo Audio Extender Manuel

Edimax

Edimax EW-7438RPn V2 Manuel utilisateur

Shinybow USA

Shinybow USA SB-6335T5 Manuel utilisateur
