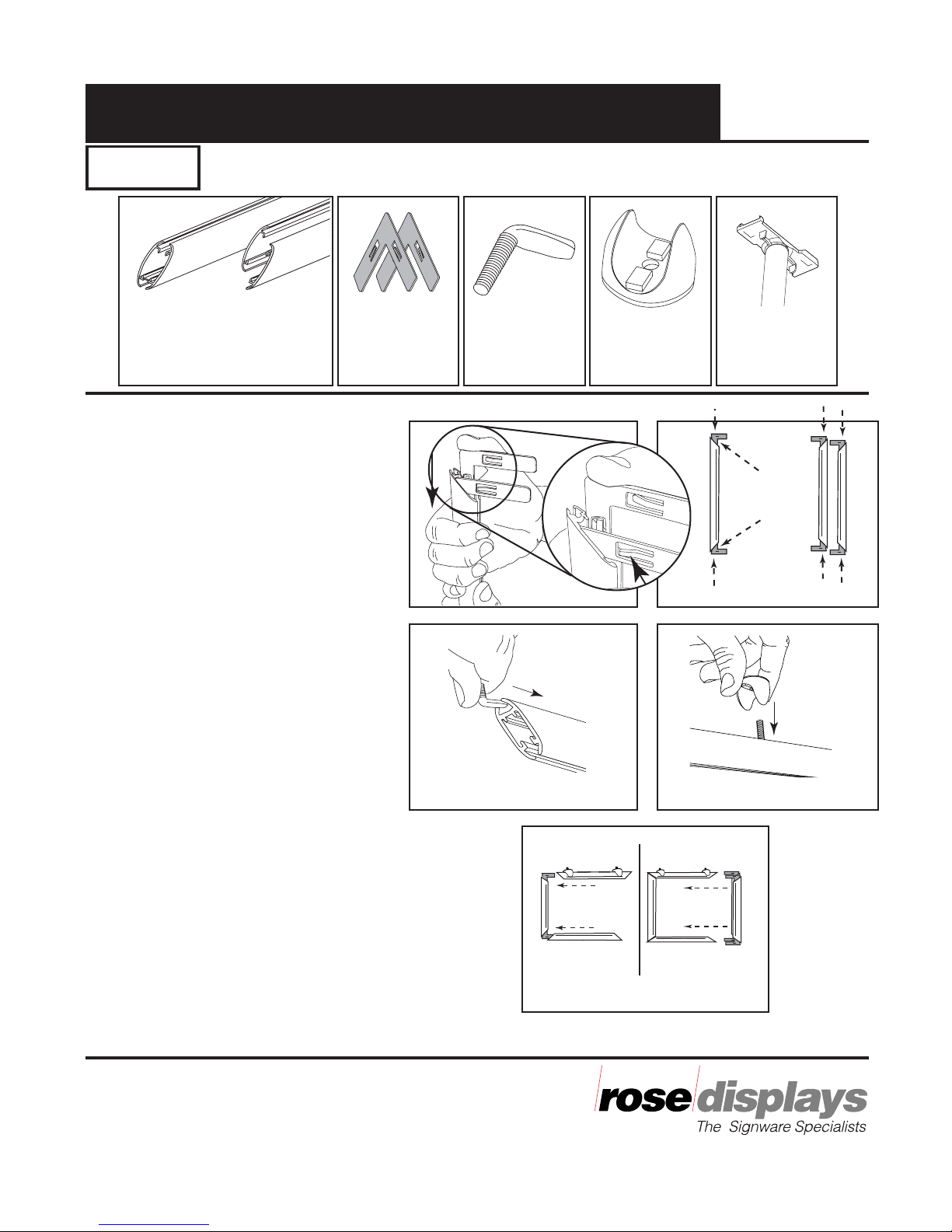

ROSE DISPLAYS ANOFRAME VERSAMOUNT CEILING ANCHORS Manuel utilisateur

Parts

35 Congress Street, Salem MA 01970

Tel# 1-800-631-9707 Fax# 1-800-560-2890

e-mail:signware@rosedisplays.com

AnoFrame VersaMount

Ceiling Anchors

split rails

solid rail

Incept-9.6.02

Figure 1

The AnoFrame VersaMount is a trademark of Rose Displays, Ltd. Neither

the manufacturer nor any sales agent may be held liable for injury, loss

or damage resulting from the use of these products.

Part #02INSVersaMountCeiling Anchors

Figure 3

Corner

Brackets

AnoFrame

Rails

AnoFrame

Split Rails

Figure 2

Figure 4

Screw Tabs Transitional

Collars

Instruction Sheet (page 1 of 2)

#97-0441

solid rail

split rails

Figure 5

Vertical

Posts with

Ceiling Anchors

Instructions For Assembly

Step 1

Locate the two split rails and the solid

rail that is the same length as the split

rails.

Insert two corner brackets into each

end of the solid side Ano rail. Insert

one corner bracket into each end of

each split side Ano rail.

Fig. 1 & Fig. 2

Note: Tension tabs on corner

brackets face towards outside of

frame.

Step 2

Slide both screw tabs into channel of

top Ano rail. Fig. 3.

Place one near each end of frame.

Step 3

Place one transitional collar over each

screw tab and push onto frame. Fig. 4.

Step 4

Finish assembling frame following the

sequence in Fig. 5.

Parts

Step 5

Screw vertical posts with ceiling

anchors onto screw tabs on frame.

Tighten. Fig. 6

Step 6

Slide your graphic into the AnoFrame.

Fig. 7

Step 7

With your hand, twist ceiling anchors

onto ceiling grid. Fig 8

You will hear the ceiling anchors snap

into place.

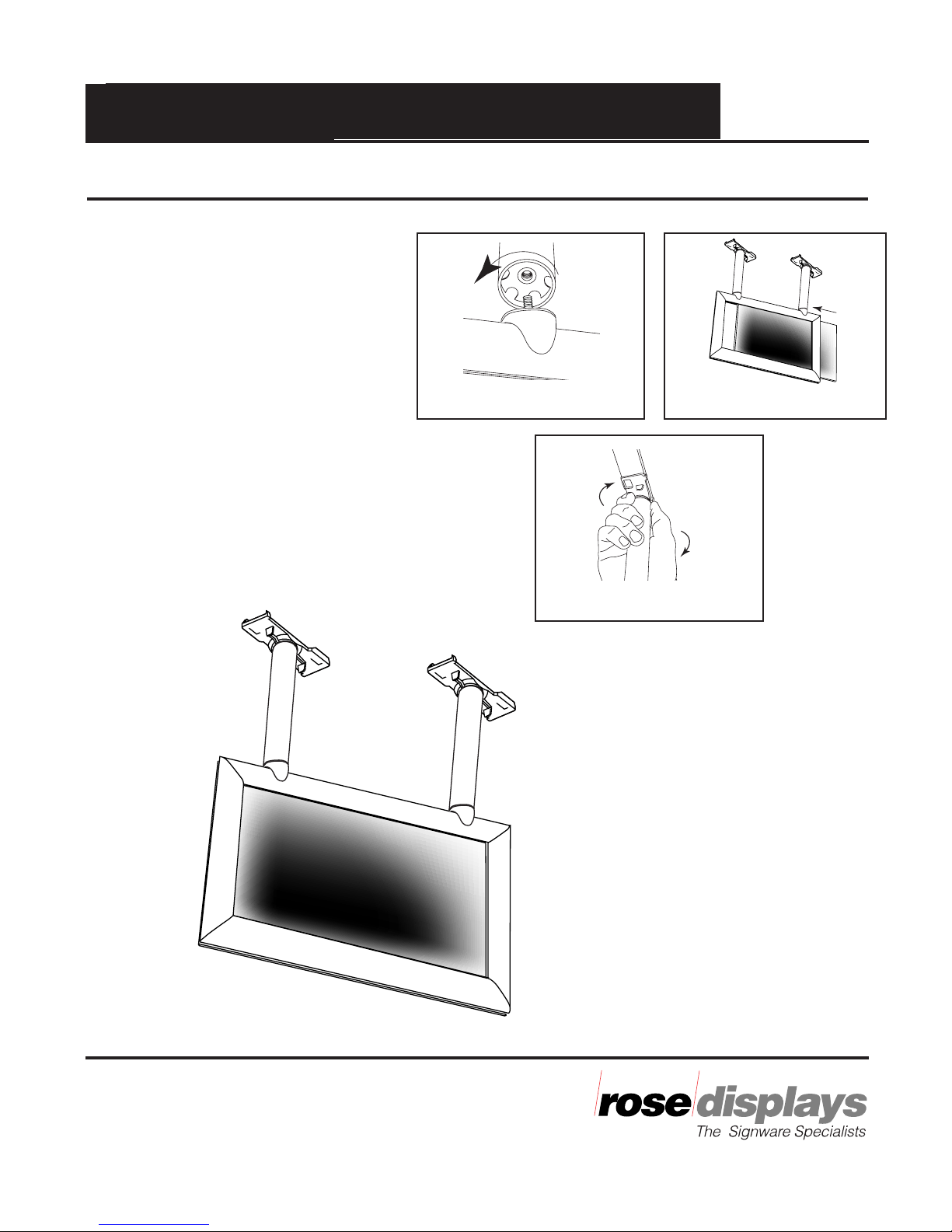

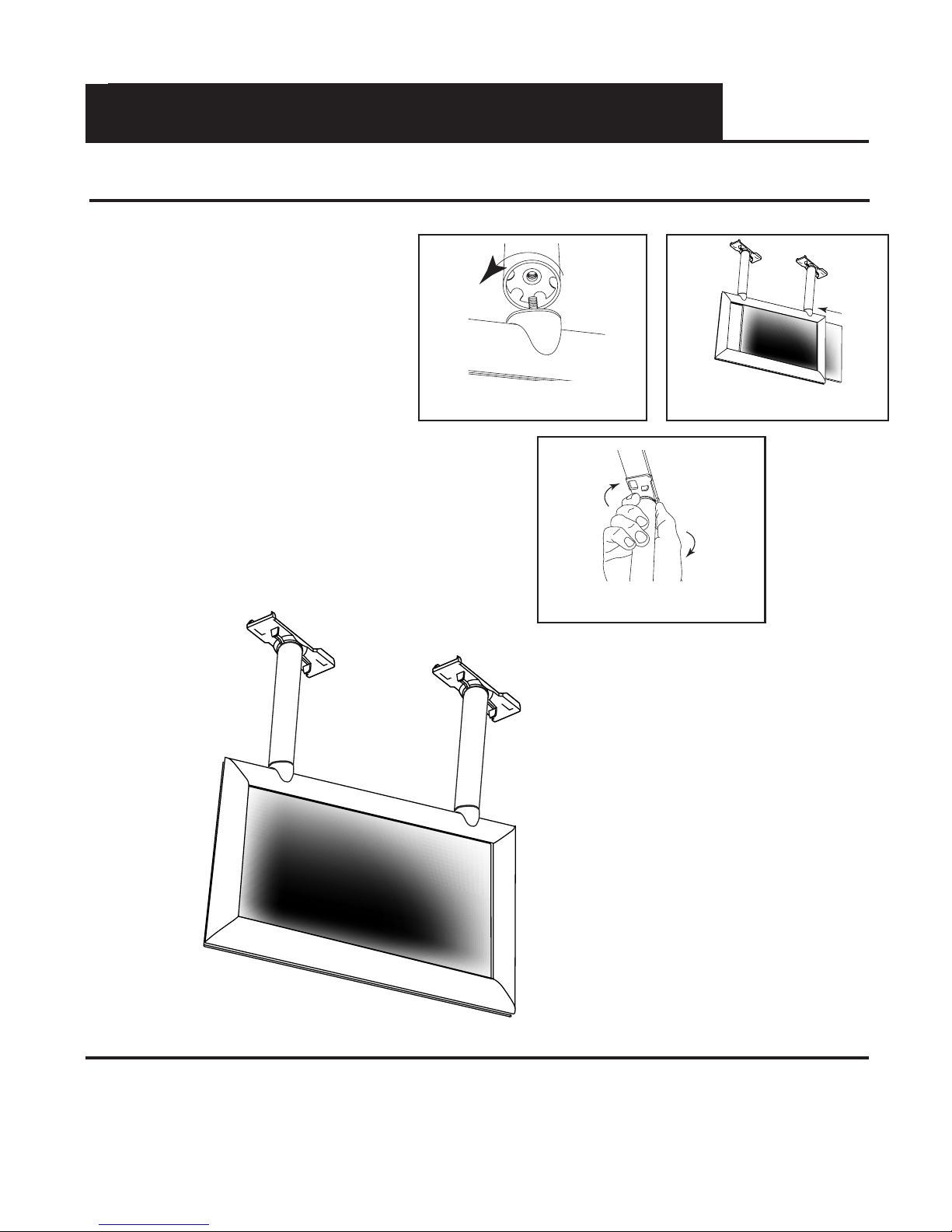

Instructions For assembly

Incept-9.6.02

Figure 6

The AnoFrame VersaMount is a trademark of Rose Displays, Ltd. Neither

the manufacturer nor any sales agent may be held liable for injury, loss

or damage resulting from the use of these products.

Part #02INSVersaMountCeilingAnchors

Figure 8

Figure 7

Finished Look

35 Congress Street, Salem, MA 01970

Tel# 1- 800 631-9707 Fax# 1-800-560-2890

e-mail:signware@rosedisplays.com

#97-0441

Instruction Sheet (page 2 of 2)

AnoFrame VersaMount

Ceiling Anchors

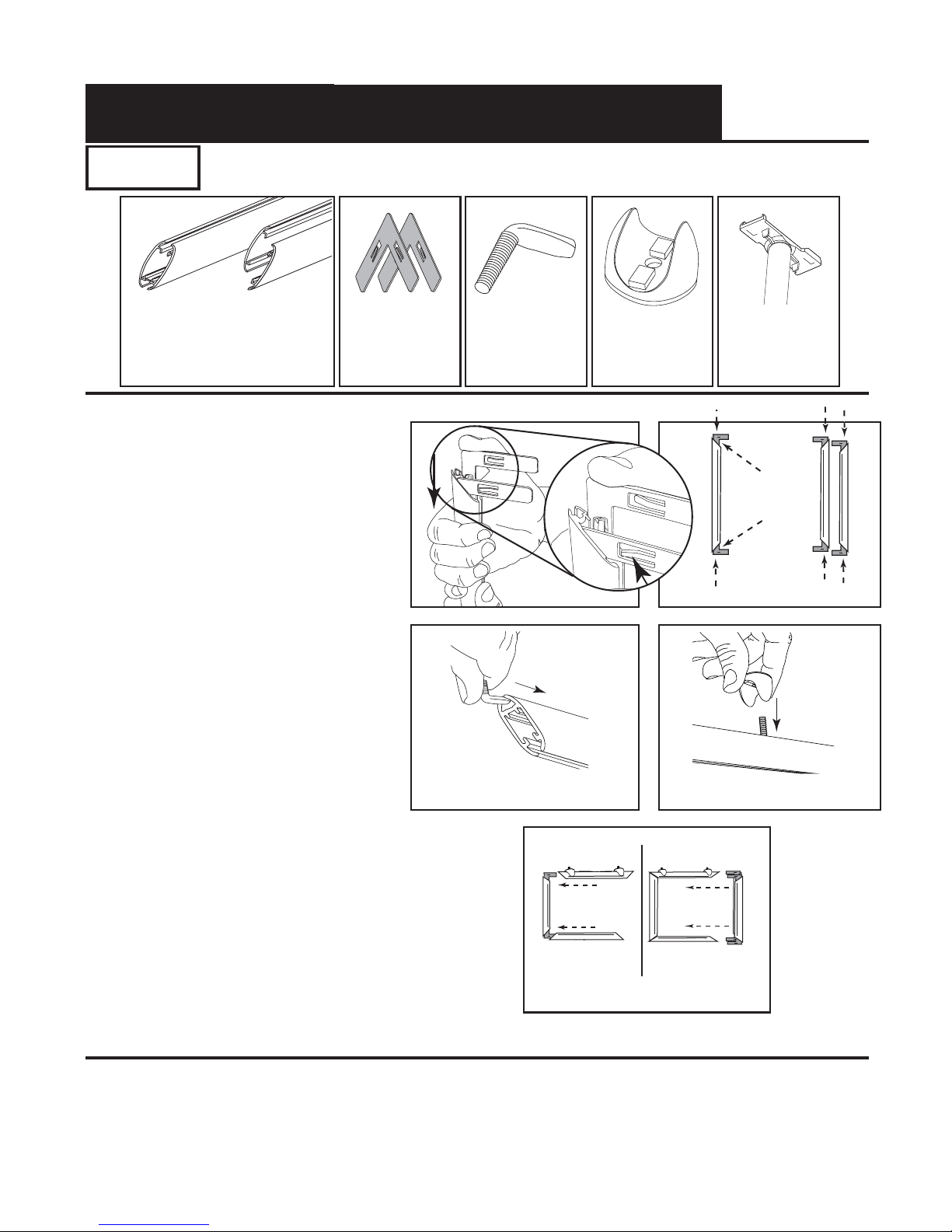

Parts

AnoFrame VersaMount

Ceiling Anchors

split rails

solid rail

Instructions For Assembly

Incept-9.6.02

Figure 1

The AnoFrame VersaMount is a trademark of Rose Displays, Ltd. Neither

the manufacturer nor any sales agent may be held liable for injury, loss

or damage resulting from the use of these products.

Part #02INSVersaMountCeiling Anchors

Figure 3

Corner

Brackets

AnoFrame

Rails

AnoFrame

Split Rails

Figure 2

Figure 4

Screw Tabs Transitional

Collars

Instruction Sheet (page 1 of 2)

#97-0441

solid rail

split rails

Figure 5

Vertical

Posts with

Ceiling Anchors

Step 1

Locate the two split rails and the solid

rail that is the same length as the split

rails.

Insert two corner brackets into each

end of the solid side Ano rail. Insert

one corner bracket into each end of

each split side Ano rail.

Fig. 1 & Fig. 2

Note: Tension tabs on corner

brackets face towards outside of

frame.

Step 2

Slide both screw tabs into channel of

top Ano rail. Fig. 3.

Place one near each end of frame.

Step 3

Place one transitional collar over each

screw tab and push onto frame. Fig. 4.

Step 4

Finish assembling frame following the

sequence in Fig. 5.

Parts

Step 5

Screw vertical posts with ceiling

anchors onto screw tabs on frame.

Tighten. Fig. 6

Step 6

Slide your graphic into the AnoFrame.

Fig. 7

Step 7

With your hand, twist ceiling anchors

onto ceiling grid. Fig 8

You will hear the ceiling anchors snap

into place.

Instructions For assembly

Incept-9.6.02

Figure 6

The AnoFrame VersaMount is a trademark of Rose Displays, Ltd. Neither

the manufacturer nor any sales agent may be held liable for injury, loss

or damage resulting from the use of these products.

Part #02INSVersaMountCeilingAnchors

Figure 8

Figure 7

Finished Look

#97-0441

Instruction Sheet (page 2 of 2)

AnoFrame VersaMount

Ceiling Anchors
