LitePad Loop™
User’s Manual
Model 1008
2
3
Languages
English........................................................
Spanish....................................................
German.....................................................
French.......................................................
Japanese................................................
Italian....................................................
Pages 4 - 27
Pages 28 - 51
Pages 52 - 75
Pages 76 - 99
Pages 100 - 123
Pages 124 - 147
4
In the Box........................................................
In the Pro Kit....................................................
Parts Diagram.............................................
Troubleshooting..............................................
CE...................................................................
RoHS..............................................................
Warranty.........................................................
Installing the Safety Thumb Screw..................
Attaching the Safety Cord..............................
AA Battery Holder............................................
Color Filters.....................................................
4” L-Bracket....................................................
8” Rods............................................................
Light Stand Plate.............................................
Using AC Mains Power....................................
Using Battery Power.......................................
Dimming Control.............................................
Attaching Loop to the Camera........................
Adjusting Loop Position...........................
Support
Safety Connections
Using Optional Accessories
Powering Up
Setting Up Your Loop
Your LitePad Loop™
24
25
26
27
G
Parts and Accessories List........................21, 22
Technical Data...................................................23
F
19
20
E
14
15
16
17
18
D
12
13
13
C
9
10, 11
B
5
6
7, 8
A
Table of Contents - English
5
A
In the Box
Your LitePad Loop
[1] - LitePad Loop
[2] - Mounting Assembly
[3] - AC Transformer and Blades
[4] - 10’ Extension Cord
[5] - Safety Cord
[6] - Safety Thumb Screw
[7] - Allen Key
[8] - Storage Pouch
[2]
[3] [4]
[5]
[7]
[6]
[8]
[1]
6
A
In the Pro Kit
Your LitePad Loop
[1]
[2]
[1] - LitePad Loop
[2] - Mounting Assembly
[3] - AA Battery Bracket
[4] - Battery Mounting Adapter
[5] - Safety Cord
[6] - Allen Key
[7] - 8” Rods
[3]
[4]
[9]
[8]
[6]
[5]
[7]
[8] - Light Stand Plate
[9] - Safety Thumb Screw
[10] - Color Filter Pack (8 Filters)
[11] - AC Transformer and Blades
[12] - 10’ Extension Cord
[13] - AA Battery Holder
[14] - Single Fader Dimmer
[10]
[11]
[12] [13] [14]
7
LITEPAD LOOP A
Parts Diagram
Your LitePad Loop
Safety Screw
Nut [2]
Magnets [3] Power Switch [5]
Safety Cord Hole [1] Power Connector [4]
8
Mag. Plate
Wing Nut [10]
Safety Cord Hole [14]
Sled [8]
(2) 4” Rods [9]
Main Block [7]
Mag. Plate [13]
Thumb Screws [6] 2” L-Bracket [12]
Knob [11]
ALITEPAD MOUNTING ASSEMBLY
Parts Diagram
Your LitePad Loop
9
1) Attach the Mounting Assembly to your camera by
screwing the Knob [11] into the threaded socket in the
bottom of the camera. Align the camera so the lens is
parallel with the L-Bracket [12]. Tighten the Knob to
ensure the camera will not move during use.
B
Attaching Loop to the Camera
Setting Up Your Loop
2) Attach the Loop to the L-Bracket [12] by bringing the
Magnets [3] into contact with the Magnet Plate [13].
10
Loosen the thumb screw and slide the Loop up or down.
B

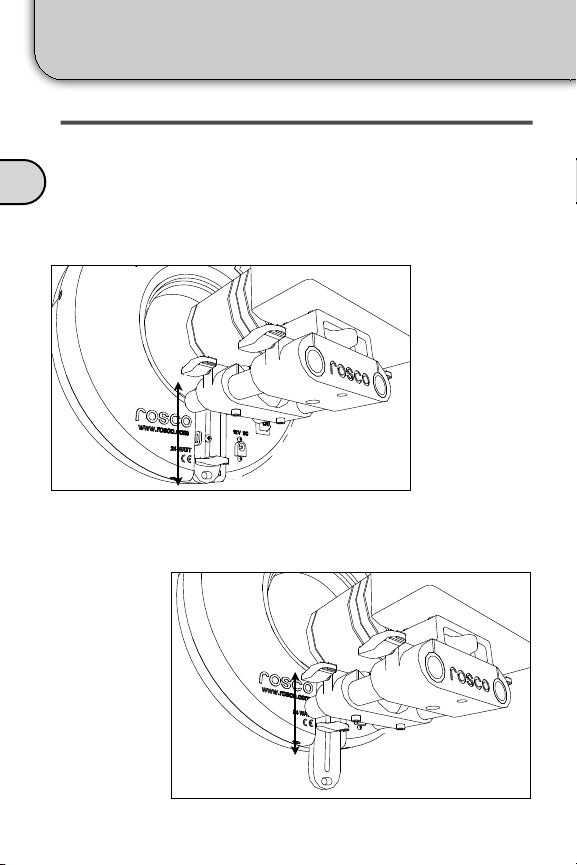

The camera lens should be centered within the LitePad
Loop. To adjust the Loop vertically, loosen the Mag. Plate
Thumb Screw [10] and move the Loop up or down until
the camera lens is centered then tighten securely.
VERTICAL POSITION
Adjusting Loop Position
Setting Up Your Loop
Center the camera lens vertically.
