Ronix RNP-AH2NPD2812-IRM Manuel utilisateur
Preliminary
Full-HD, Multi Video format
Vari-focal lens Indoor Dome
Operating Instruction
Before installing and using this product,
please read the instruction fully and keep it handy for use later on.
1080P
Safety Precaution
03
ULTRA CLEAR RESOLUTION CAMERA
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
To prevent electric shocks and risk of fire hazards, do NOT use other than
specific power source.
The symbol is intended to alert the user to the presence of important
operating and maintenance(servicing) instructions in the literature
accompanying the unit.
The symbol is intended to alert the user to the presence of uninsulated
"dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
Warning :
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
Caution :
Any changes or modifications in construction of this device which are not expressly
approved by the party responsible for compliance could void the user's authority
to operate the equipment.
Mains power quality should be that of a typical commercial environment. If the user
of the model requires continued operation during power mains interruptions, it is
recommended that the model be powered from an uninterruptible power supply
(UPS) or a battery.
ULTRA CLEAR RESOLUTION CAMERA
Safety Precaution
04
NOTICE
The image used in this instruction manual are processed to help comprehension
and may differ from actual video of the camera.
Avoid installing areas where has shock or vibration which results in the problems.
Pay attention to safety when laying the connection cable and observe that the cable
is not subjected to heavy loads, kinks or damage and no moisture can get in.
Never open the device such as boards or lens.
The warranty becomes void if repairs are undertaken by unauthorized persons.
Maintenance and repair have to be carried out only by authorized service centers.
Use only a mild detergent to clean the housing.
The camera should never be operated beyond the technical specifications.
This can lead to destruction.
The camera should never be operated in water.
ULTRA CLEAR RESOLUTION CAMERA
Contents
05
Safety Precaution
p.03~04
Contents
p.05
Features
p.06
Composition
p.07
Dimensions
p.08
Part Names
p.09
Installation Instructions
p.10~12
Operating Instructions
p.13~29
Specifications
p.30~31
ULTRA CLEAR RESOLUTION CAMERA
Features
Key Features
06
• 1/2.8” SONY Exmor CMOS sensor
• 1080p/720p THD, AHD, CHD Video or 960H CVBS Video Selectable
• THD/AHD/CHD Video Transmission Distance over Coax.; 500M
• Automatically removable IR Cut filter by Dual filter switcher
• Built-in f=2.8~12mm F1.4 Mega pixel DC Auto Iris Vari-focal lens
• Sensitivity of 0.002 Lux (BW@IRE 40, Sens-up On/ IR Off)
• D-WDR (Wide Dynamic Range)
• Improved noise reduction 2D+3D-NR(THD/AHD/CHD), 2DNR(960H)
• FOCUS ASSIST for Error free focus adjustment
• 2 Auto(AE/AWB) control
• LSC (Lens Shading Compensation)
• DPC (Defective Pixel Compensation)
• Motion detection, Privacy mask, BLC/HSBLC, Defog, Sens-up(~x30),
Mirror/Flip, Freeze, Negative Image, IR Smart, Cam Title
• Built-in 2pcs High power SMD LED
• OSD MENU & Video Sub-out port for easy installation & maintenance
• Circuit protection against faulty connection in power polarity
• Zoom & Focus Adjustment on 3-Axis gimbal
• Double side Anti-scratch Hard coated bubble dome
• Quick installation with Easy Adaptor (Flat or Tilted Adaptor)
• Power: 12VDC
07
Composition
ULTRA CLEAR RESOLUTION CAMERA
Mounting Template Operating Instruction
Video Sub-out Cable
(LED type)
Mounting Screw:
3.5 x 25mm (3pcs)
Plastic Anchor:
6 x 30mm (3pcs)
Dome Camera
Easy Adaptor
(Flat type) Open & Adjust
Driver (1pc)
Easy Adaptor
(Tilted type)
(unit : mm)
ULTRA CLEAR RESOLUTION CAMERA
Dimensions
08
• Extreme care should be taken NOT to scratch the bubble dome surface while
the camera installing or adjusting.
• Care should be taken the cable is NOT to be damaged, kinked or exposed in
the hazardous area.
• Do not expose the camera directly to a strong light source such as the sun or
spot light.
CAUTION
Tilted adaptor
Ø116
Ø80
94 (with Flat adaptor)
52.5
116.3 (with Tilted adaptor)
ULTRA CLEAR RESOLUTION CAMERA
Part Names
09
Dome Cover
Lens
Bubble Shield
Bubble
Dome Base
Easy Adaptor
Flat type
OSD Control &
Video format Switch
SMD LEDs
Video Sub-out
connector
Focus & Zoom
adjustment
Light
Sensor
Power Cable
3-Axis Gimbal
Tilted Easy Adaptor
ULTRA CLEAR RESOLUTION CAMERA
Installation Instructions
10
Mounting Screw
(3.5x25mm)
Plastic Anchor
(6x30mm)
OPEN
LOCK

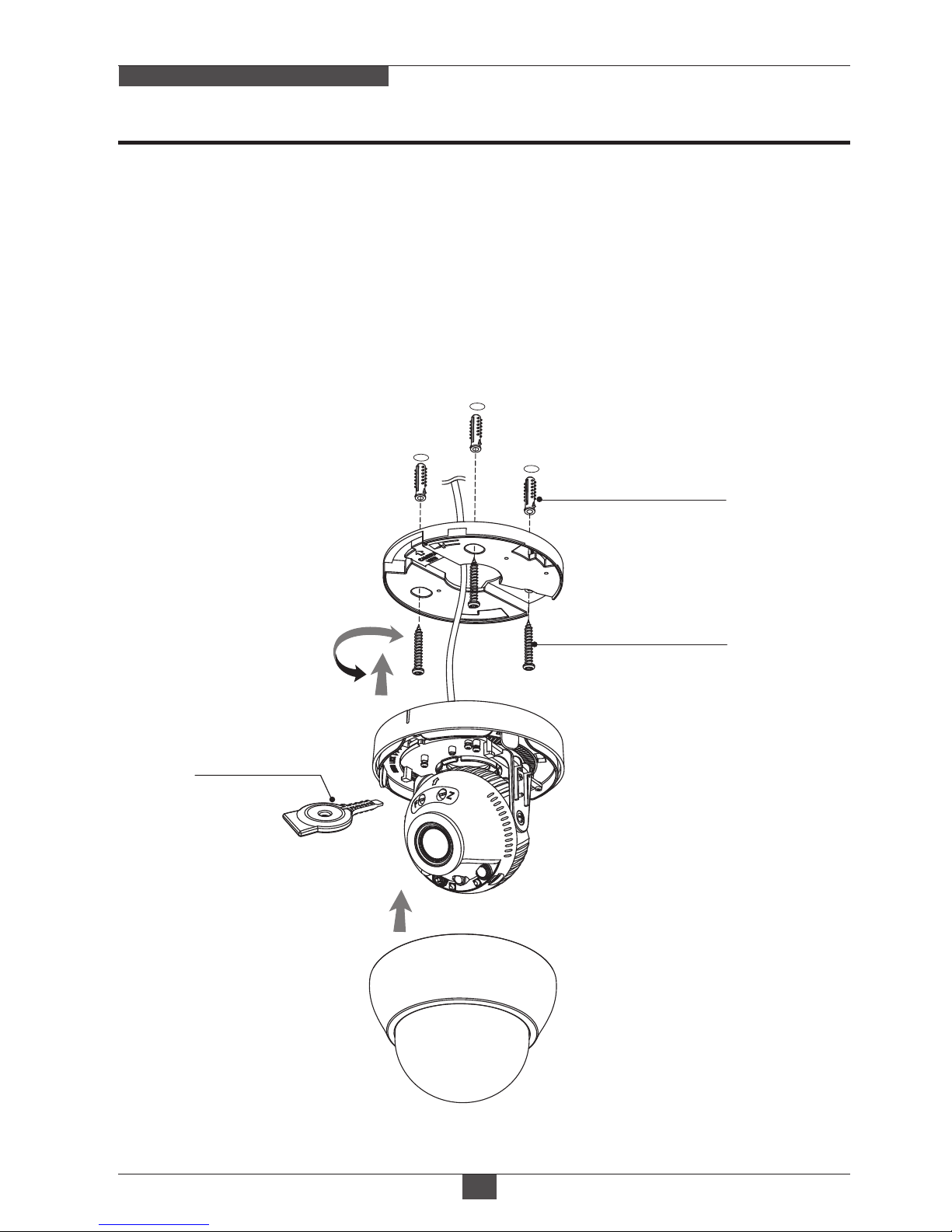

1. Drill three holes for mounting on the ceiling or wall.
2. Place the Easy Adaptors at the pre-drilled installation position and fix it by
using mounting screws.
3. Route the power/video cable to the connecting place.
4. Attach the dome base assembly to the Easy Adaptor.
5. Adjust the camera’s viewing angle (Pan, Tilt, Rotation)
(Then remove the caution sticker. Refer to p.14)
6. Assemble the dome cover to the dome base unit.
Open & Adjust
Driver
