Rollplay 5F62B5D Manuel utilisateur
1
6V MINI e-Scooter (5F62B5D)
Customer Service Guide
MMXIV © Copyright ROLLPLAY
2
Customer Service Guide
Contents
I) Check Battery …………………………............................................. 3
II) Check Wiring Condition ……………………………..………………………. 6
III) Handlebar Replacement ……………………………………………..….…. 9
IV) Gearbox Replacement ……………………………………………………… 10
V) Warning Stickers ……………………………………………..…….………… 16
VI) Schematic diagram ……………..…………….…..….………..…………. 22
VII) Exploded View ………………………....…....….……….……..……..…23
CAUTION :
Disconnect the battery before proceeding
with the below steps
3
Customer Service Guide
I) Check Battery
Operation: Use a Flat head screwdriver, unlock and remove the seat. Locate the battery
harness, unplug the connector then use a volt-meter to check the battery.
Step (1)
Turn and unlock this plastic knob
Unlock position
Step (2)
4
Customer Service Guide
I) Check Battery
Step (3)
Unplug the battery connector underneath the seat
Step (4)
12
Customer Service Guide
IV)Gearbox Replacement

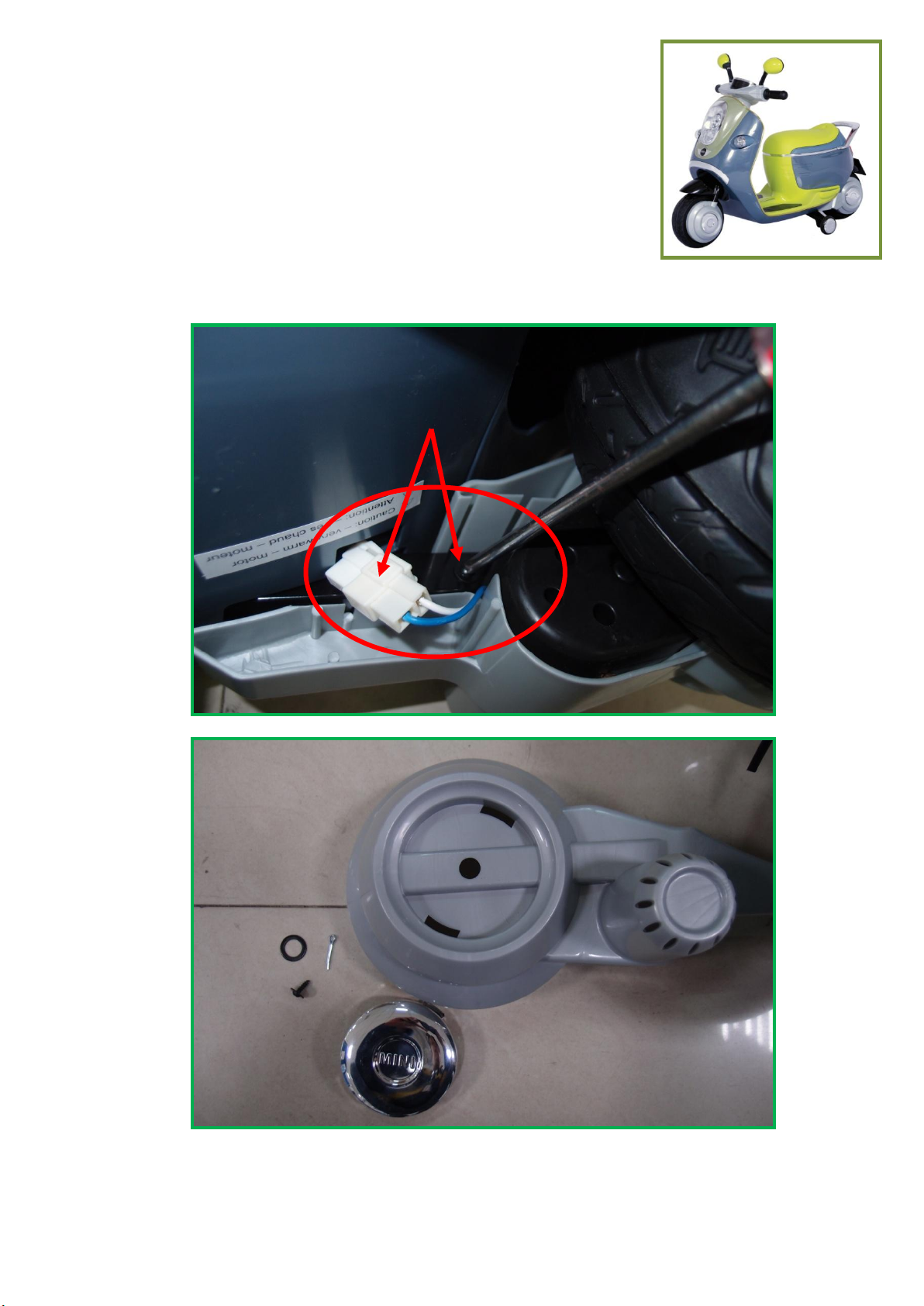

Unscrew the gearbox cover at the right inner side
then unplug the gearbox connector (white)
Step (5)
Keep components organized for re-assembly
Step (6)
13
Customer Service Guide
IV)Gearbox Replacement
Use a screwdriver to pushout the axle from metal frame
Step (7)
Pull the rear axle half way out from the
other side, no need to remove it completely
Step (8)
14
Customer Service Guide
IV)Gearbox Replacement
Step (9)
Take out the rear wheel together with the gearbox
Step (10)
Replace the gearbox with a new/good one
15
Customer Service Guide
IV)Gearbox Replacement
Step (11)
Match the gears on the rear wheel and new gearbox
Step (12)
Put the parts in place then align and slide the axle back to frame
Reverse above procedures to re-assemble the vehicle
16
Customer Service Guide
V)Warning Stickers
Operation: Check and re-put the damaged warning stickers after repairing.
(1) At left inner side of front car body
17
Customer Service Guide
V)Warning Stickers
(2) At right inner side of front car body
