Before using, be sure

to read this.

The User’s Manual has been partially modied. Be sure to read this document as well as the

User’s Manual before using the machine.

This menu enables you to make a series of required minimum settings by the

interactive method so that you can optimize the output to suit the size and the

type of the media. All the settings made through the [MEDIA SETTING] menu

can also be made individually.

For details, see P. 3, “Setup of Media ([MEDIA SETTING] menu).”

By the addition of the [Media Setting] menu, the main menu system has been

modied.

For details, see P. 14, “Modication of the Main Menu.”

This is one of the menus to be selected when the media take-up system is used.

With [TU2] selected, you can use the media take-up system for the output

involving the pullback movement.

For details, see P. 15,“When Performing Output Involving Pullback Movement

(or When [TU2] Is Selected).”

The [MEDIA SETTING] menu has been added.

MEDIA SETTING

[TU2] is added to the [SETUP SHEET] menu.

SETUP SHEET

TU2

R2-101012

Contents

Company names and product names are trademarks or registered trademarks of their respective holders.

Contents

Performing the Initial Adjustment (Correcting for Misalignment in Bidirectional Printing

More Precisely) ..................................................................................................................1

Setup of Media ([MEDIA SETTING] menu) .......................................................................3

Modication of the Main Menu .......................................................................................14

When Performing Output Involving Pullback Movement (or When [TU2] Is Select-

ed)

....................................................................................................................................15

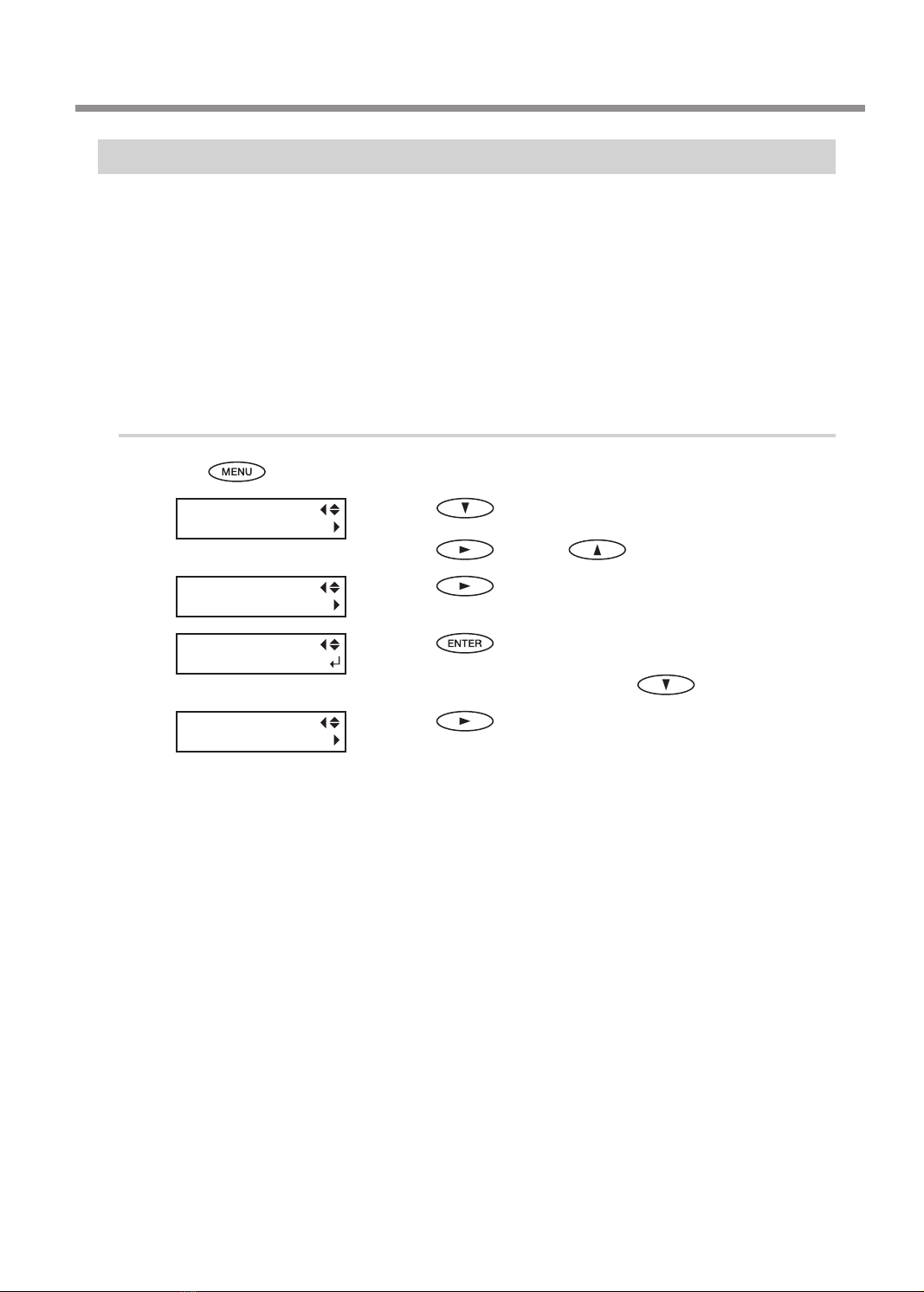

Performing the Initial Adjustment (Correcting for Misalignment in Bidirectional Printing More Precisely)

Perform the initial adjustment (correction for misalignment in bidirectional printing more precisely) of this

machine.This adjustment is necessary in the following cases. If the thickness of the media is over 0.5mm, raise

the head height before performing this adjustment.

User’s Manual, “Adjusting Head Height to Match Media Thickness”

 When using this machine for the rst time

 When changing the media to use

 When the printing is not improved after performing the simplied correction of the bidirec-

tional printing (described in the User’s Manual, “Correcting for Misalignment in Bidirectional

Printing”)

Procedure



Press .



Press several times until the screen shown on

the left appears.

Press and then .



Press .



Press .

A test pattern is printed.

When printing ends, then press .



Press .

Continued on the next page

ADJUST BI-DIR

DETAIL SETTING

DETAIL SETING

TEST PRINT

DETAIL SETTING

SETTING NO.1

Performing the Initial Adjustment (Correcting for Misalignment in Bidirectional Printing More Precisely)



Press to select from H1 to H3 (or from H1

to H6 for LEC-330).

Press to select a correction value from

H1 to H3 (or from H1 to H6 for LEC-330).

Press to nish making the settings for [SETTING

NO.1].

If the Printing-test Results Are Difcult to Interpret

Examine the results from dierent angles in a well-lighted location. Take advantage of reected light to en-

able visual checking.



Press .



In the same manner as performed for [SETTING NO.1], set

the correction values for the other items from [SETTING

NO.2] to [SETTING NO.4].



When correction value settings end, press .



Press in this order to go back to the

original screen.

H4 H5 H6

0 0 0

H1 H2 H3

0 0 0

To decide a Correction Value

Choose the value that produces the least misalignment of 2lines.

NO.1

NO.2

NO.3

NO.4

NO.1

NO.2

NO.3

NO.4

NO.1

DETAIL SETTING

SETTING NO.1

DETAIL SETTING

SETTING NO.2

H4 H5 H6

0 0 0

H1 H2 H3

0 0 0

W 736mm

SETUP SHEET

ROLL

Correction-value scale

Choose the value that produces

the least misalignment.

Current correction value

Only LEC-330

Test pattern

LEC-300 / 300A

LEC-330

Setup of Media ( [MEDIA SETTING] menu )

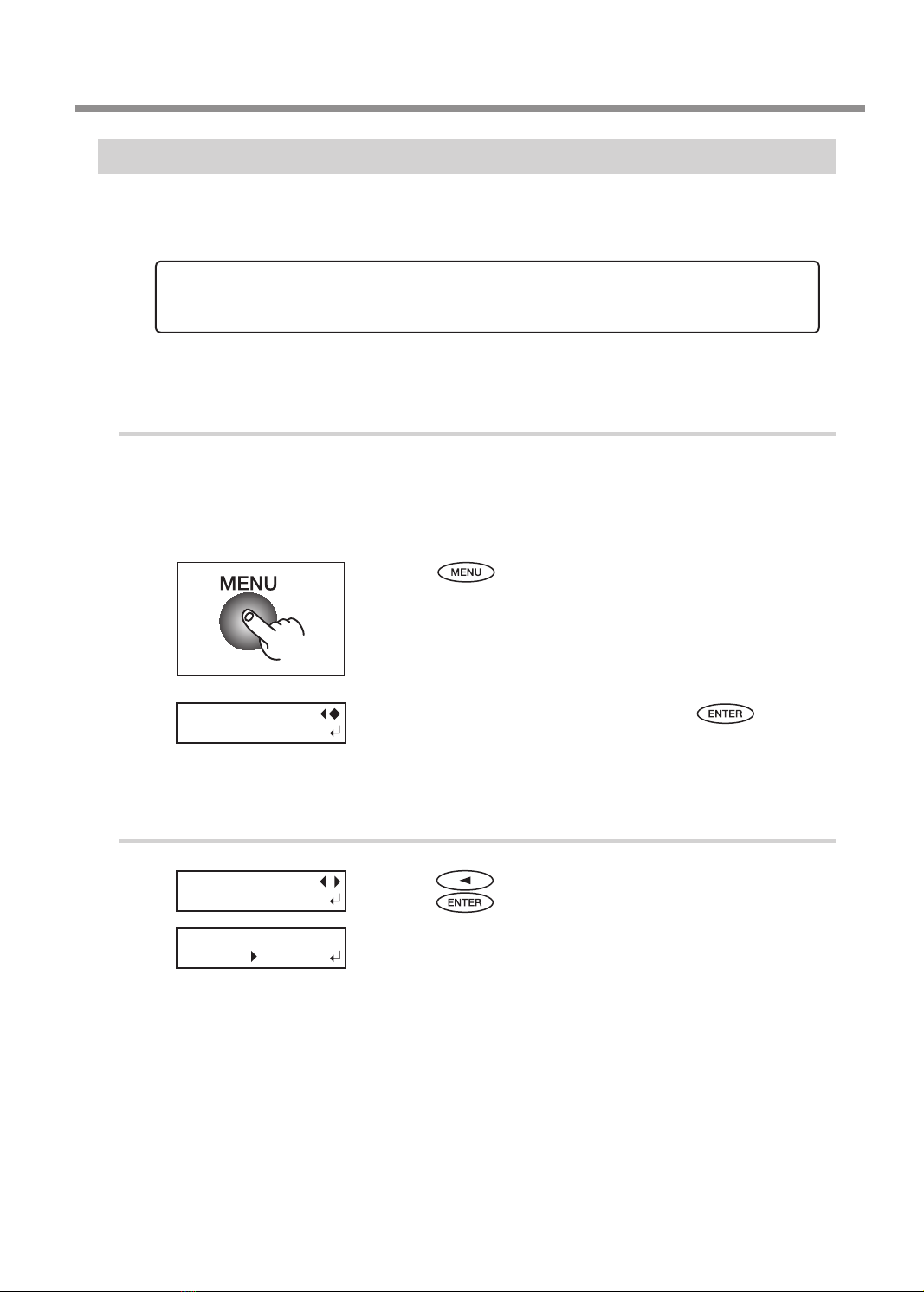

Setup of Media ([MEDIA SETTING] menu)

Start the [MEDIA SETTING] menu after performing the initial adjustment.

P.1, "Performing the Initial Adjustment (Correcting for Misalignment in Bidirectional Printing More Precisely)"

Note: If any setting is not needed for each setting item, you can go to the next menu by selecting [NEXT].

Starting the [MEDIA SETTING] menu.



Load media.

Check that no sagging is found on the media. If any sagging exists, the followed correction value settings

do not work eectively.

User’s Manual, “Loading Media”



Press .



When the left gure is displayed, press .

Adjusting the Print Head Height.



Press to select [CHANGE].

Press to enable the setting.



When the left gure is displayed, open the front cover.

Continued on the next page

Only Printing: Perform the procedure

, and

Print & Cut: Perform all the procedure

MEDIA SETTING

HEAD HGT LOW

[CHANGE] NEXT

HEAD HEIGHT

HIGH LOW

Setup of Media ( [MEDIA SETTING] menu )



Move the height-adjustment lever to adjust the head height.

When moving to the [High] direction, the buzzer sounds twice, and to the [Low] direction, the buzzer

sounds once.



Close the front cover.

For the separate setting method and descriptions for this item, see here. User’s Manual, “Adjusting Head

Height to Match Media Thickness”

Normally set to [Low]. However, when the media is over 0.5mm thick, set to [High].

To cancel the setting

Procedure



Press during the setting.



Press to select [YES].

Press .

The screen returns to the screen shown at the left.

By selecting [NO], the screen returns to the screen dis-

played when you pressed .

QUIT SETTING?

[YES] NO

MEDIA SETTING

High

Low

Height-adjustment lever

Move rmly, until it stops.

High

Low

Height-adjustment lever

Move rmly, until it stops.

LEC-300 / 300A LEC-330

Setup of Media ( [MEDIA SETTING] menu )

Perform the position correction of feed direction (Alleviate Horizontal Stripes).



Press to select [SET].

Press to enable the setting.

The test pattern of feed correction is output.



When the left gure is displayed, press .



Use to set the correction value.

Press to enable the setting.



[To conrm again/To adjust again]

Press to select [YES].

Press to enable the setting.

The test pattern of feed correction is output again. Go back to the

procedure



and set again.

[To go to the next after correction is completed]

Press to select [DONE].

Press to enable the setting.

For the separate setting method and descriptions for this item, see here. User’s Manual, “Performing Feed

Correction to Alleviate Horizontal Bands and the Like”

Feed direction means the feed direction of the media. Perform the correction adjusting to the media

in advance because horizontal stripes are more likely to occur during printing when the movement

distance of the media changes subtly depending on the kind or thickness of the media..

CALIBRATION

[SET] NEXT

INPUT

ADJ. VALUES

CALIBRATION

0.10% -0.10%

To decide a Correction Value

Select the value to make the upper/lower rectangular gap and overlap smallest.

REDO ADJ. ?

YES [DONE]

Current correction

value

Value to be set

Gap present Overlap

Smallest gap and overlap

Current correction

value

Setup of Media ( [MEDIA SETTING] menu )

Performing the correction for misalignment in bidirectional printing



Press to select [SET].

Press to enable the setting.

The test pattern of bidirectional correction is output.



When the left gure is displayed, press .



Use to set the correction value.

Press to enable the setting.



[To conrm again/adjust again]

Press to select [YES].

Press to enable the setting.

The test pattern of bidirectional correction is output again. Go back

to the procedure



and set again.

[To go to the next after correction is completed]

Press to select [DONE].

Press to enable the setting.

For the separate setting method and descriptions for this item, see here. User’s Manual, “Correcting for

Misalignment in Bidirectional Printing”

This machine prints by the bidirectional mode (in which the heads perform printing during both

their outbound pass and return pass). This printing method is called “Bidirectional Printing.” This

method oers the advantage of being able to shorten output times, but subtle misalignment occurs

during the outbound and return passes. The procedure to correct this and eliminate misalignment

is “Bidirectional Correction.”

ADJUST BI-DIR

[SET] NEXT

INPUT

ADJ. VALUES

ADJUST BI-DIR

0 -6

To decide a Correction Value

Choose the value that produces the least misalignment of 2lines.

REDO ADJ. ?

YES [DONE]

Current correction

value

Value to be set

Correction value scale Current cor-

rection value

The least misalignment.

Setup of Media ( [MEDIA SETTING] menu )

Deciding to perform the setting for cutting or not

[Only Printing]

Press to select [NEXT].

Press to enable the setting.

Go to Procedure

[Print & Cut]

Press to select [SET].

Press to enable the setting.

Go to Procedure

Setting the blade force



Press to select [SET].

Press to enable the setting.

The test pattern is cut. Circle and rectangle are cut. Peel o the

two shapes.

Continued on the next page

CUT CONFIG

[SET] NEXT

For high-quality cutting, perform a cutting test to check the cutting quality for the media and adjust

the blade force.

When Cutting the Printed Surface

Hardened ink is thick. When cutting a printed surface, rst perform a cutting test on the actual

surface that has been printed.

The end of the cap for the blade holder may scrape or damage the printed surface. If this happens,

increase the amount of blade extension.

User’s Manual, “Adjusting the Cutting-in Amount” and“Adjusting for When Cutting the Printed Surface”

CUT FORCE

[SET] NEXT

Circle

Rectangle

Setup of Media ( [MEDIA SETTING] menu )



[Two shapes are peeled off separately]

Press to select [DONE].

Press to enable the setting.

Go to Procedure

[Two shapes are peeled off together/backing paper is

also cut]

Press to select [YES].

Press to enable the setting.

Go to Procedure



Press to adjust the blade force.

If two shapes are peeled o together raise the blade force.

If backing paper is cut too reduce the blade force.

Press to enable the setting.

Cut the test pattern again. Check the result.



[Two shapes are peeled off separately]

Press to select [DONE].

Press to enable the setting.

Go to Procedure

[Two shapes are peeled off together]

Press to select [YES].

Press to enable the setting.

Cut the test pattern again. Go back to the procedure



and set

again.

For the separate setting method and descriptions for this item, see here. User’s Manual, “Fine-tuning the

Cutting Conditions”

CONTINUE ADJ. ?

[YES] DONE

CUT FORCE

50gf 50gf

REDO ADJ. ?

YES [DONE]

Current correction

value

Value to be set

Autres manuels pour LEC-300

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Roland Traceur

Roland

Roland CX-300 Manuel

Roland

Roland VersaUv LEF - 12i Manuel utilisateur

Roland

Roland Camm-1 CX-24/12 Manuel utilisateur

Roland

Roland VersaEXPRESS RF-640 Manuel utilisateur

Roland

Roland IU-1000F Manuel utilisateur

Roland

Roland soljet pro4 xf 640 Manuel utilisateur

Roland

Roland PNS-401 Manuel utilisateur

Roland

Roland Camm-1 GR2-640 Manuel utilisateur

Roland

Roland DXY_1350 Manuel utilisateur

Roland

Roland SOLJET PRO4 XF-640 Manuel utilisateur

Roland

Roland TrueVIS Series Caractéristiques techniques

Roland

Roland CAMM-1 PRO Manuel utilisateur

Roland

Roland LEC-300 Manuel utilisateur

Roland

Roland VP Series Manuel utilisateur

Roland

Roland CAMM-1 PRO CM-500 Manuel d'utilisation et d'entretien

Roland

Roland GX-24 Manuel utilisateur

Roland

Roland VersaStudio BN-20 Manuel utilisateur

Roland

Roland DPX-3700A Manuel utilisateur

Roland

Roland VersaArt RE-640 Manuel utilisateur

Roland

Roland TrueVIS VG-640 Manuel du propriétaire

Roland

Roland VersaUV LEF-200 Instructions de fonctionnement

Roland

Roland CAMM-1 GS-24 Manuel utilisateur

Roland

Roland Color Camm Pro PC-60 Manuel d'utilisation et d'entretien

Roland

Roland VersaCamm SP-540V Manuel utilisateur

Manuels Traceur populaires d'autres marques

MUTOH

MUTOH Kona 760 Manuel utilisateur

HP 7475a Manuel utilisateur

Vulcan-Hart

Vulcan-Hart FC-500VC Manuel utilisateur

Furuno

Furuno RP-180 Manuel utilisateur

MIMAKI

MIMAKI CF2 Series Manuel utilisateur

Ioline

Ioline Summit Manuel utilisateur

Summa

Summa S CLASS Manuel utilisateur

Gerber Technology

Gerber Technology GERBERplotter MP Series Manuel utilisateur

Furuno

Furuno RP-17 Manuel utilisateur

HP 7470A Manuel utilisateur

SII

SII LP-1010 Manuel utilisateur

Great Computer

Great Computer JII-61 Manuel utilisateur

Lectra

Lectra Alys 120 Manuel utilisateur

MUTOH

MUTOH Ultima SC-850D Manuel utilisateur

Skycut

Skycut D Series Manuel utilisateur

Commodore

Commodore 1520 Manuel utilisateur

Esko

Esko Kongsberg XE Manuel utilisateur

MUTOH

MUTOH Blizzard Manuel utilisateur
