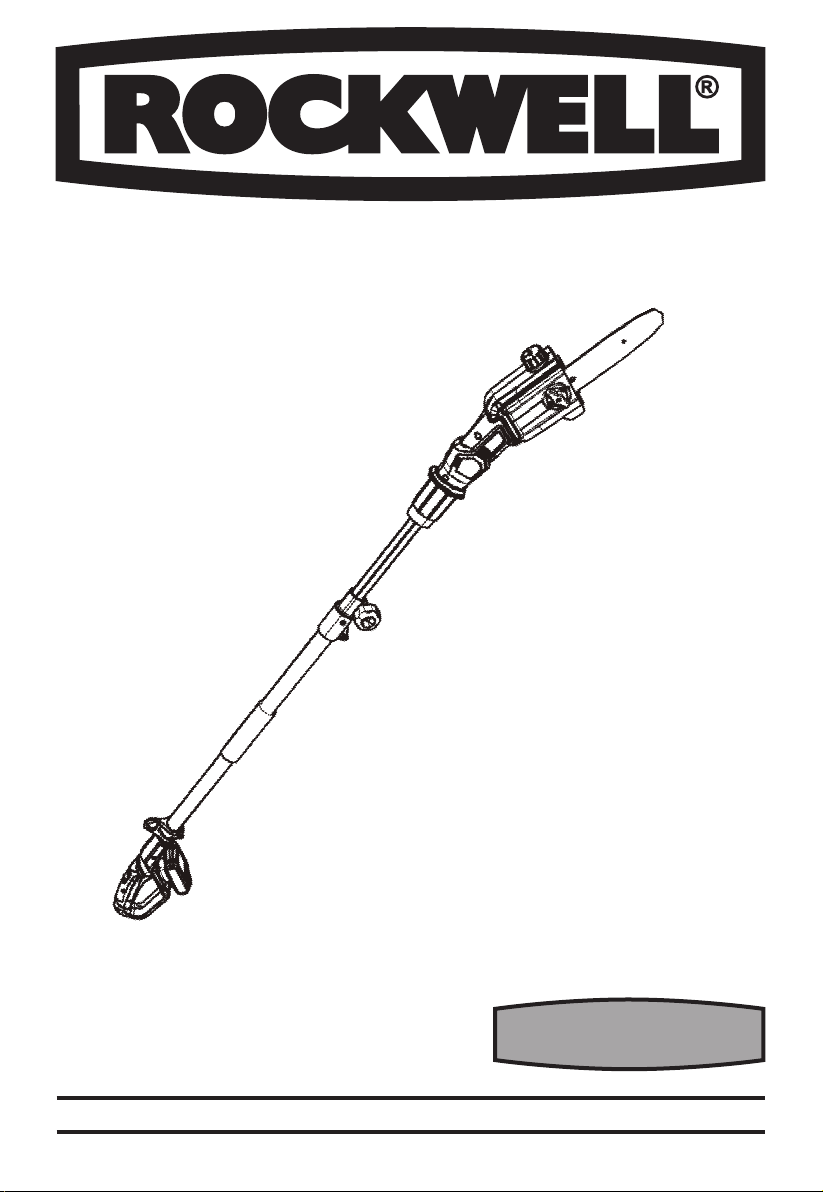

Rockwell RG8356.9 Manuel utilisateur
RG8356.9
18V POLE CHAIN SAW EN
1
2
3
4
5
9
8
7
10
6
RG8356.9
f
a
a
5
b
b
dc
g
A1 A2 A3
A4 A5 A6
B1 B2 B3
C1 C2 C3
RG8356.9
f
h
12
15
14
13
16
1
2
Red lightGreen light
C4 C5 C6
C7 D E1
E2 E3 F1
F2 G H1
Z
Y
kg
Z
Y
2’’ to 4’’
(5 a 10cm)
(15 cm)
6’’
W
Y
ZX
Y
1/3
H2 H3 H4
H5 H6 I
J K L
RG8356.9
7
18V POLE CHAIN SAW EN
COMPONENT LIST
ACCESSORIES
Bar And Chain Storage/Transportation Cover 1
Oregon chain 1
Oregon bar 1
Shoulder strap 1
We recommend that you purchase your accessories
listed in the above list from the same store that sold
you the tool. Refer to the accessory packaging for
further details. Store personnel can assist you and offer
advice.
PRODUCT SAFETY
GENERAL POWER TOOL SAFETY
WARNINGS
WARNING! Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in electric shock, re and/or
serious injury.
Save all warnings and instructions for future
reference.
The term “power tool” in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
1Oil Filler Cap
2Chain
3Guide Bar
4Chain Tensioning Knob
5Chain Cover
6Bar And Chain Storage/Transportation Cover
7Locking collar
8Inner pole
9Clampingknob
Rear handle
Shoulder strap
12 Oil Level Window(See Fig. D)
13 On/Off Switch(See Fig. G)
14 Lock-Off Button(See Fig. G)
15 Battery pack*(See Fig. F1)
16 Battery pack release button*(See Fig. F1)
* Not all the accessories illustrated or described are included in standard delivery.
10
11
8
18V POLE CHAIN SAW EN
1) WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
ammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can cause you
to lose control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools.
Unmodied plugs and matching outlets will reduce
risk of electric shock.
b) Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
f) If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
3) PERSONAL SAFETY
a) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the inuence of drugs, alcohol or medication. A
moment of inattention while operating power tools
may result in serious personal injury.
b) Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will
reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your nger on the
switch or energising power tools that have the switch
on invites accidents.
d) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
e) Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long
hair can be caught in moving parts.
g) If devices are provided for the connection of dust
extraction and collection facilities, ensure these
are connected and properly used. Use of these
devices can reduce dust-related hazards.
4) POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
b) Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be
repaired.
c) Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures
reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
users.
e) Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and
any other condition that may affect the power
tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by
poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
9
18V POLE CHAIN SAW EN
g) Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to
be performed. Use of the power tool for operations
different from those intended could result in a
hazardous situation.
5) BATTERY TOOL USE AND CARE
a) Recharge only with the charger specied by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of re when used
with another battery pack.
b) Use power tools only with specically designated
battery packs. Use of any other battery packs may
create a risk of injury and re.
c) When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects, that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause
burns or a re.
d)
Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, ush with water. If liquid
contacts eyes, additionally seek medical help. Liquid
ejected from the battery may cause irritation or burns.
6) SERVICE
a) Have your power tool serviced by a qualied repair
person using only identical replacement parts.
This will ensure that the safety of the power tool is
maintained.
CHAIN SAW SAFETY WARNINGS
1. Keep all parts of the body away from the saw chain
when the chain saw is operating. Before you start
the chain saw, make sure the saw chain is not
contacting anything. A moment of inattention while
operating chain saws may cause entanglement of
your clothing or body with the saw chain.
2. Always hold the chain saw with your right hand
on the rear handle and your left hand on the front
handle. Holding the chain saw with a reversed hand
conguration increases the risk of personal injury
and should never be done.
3. Hold the power tool by insulated gripping surfaces
only, because the saw chain may contact hidden
wiring. Saw chains contacting a “live” wire may make
exposed metal parts of the power tool “live” and
could give the operator an electric shock.
4. Wear safety glasses and hearing protection.
Further protective equipment for head, hands, legs
and feet is recommended. Adequate protective
clothing will reduce personal injury by ying debris
or accidental contact with the saw chain.
5. Do not operate a chain saw in a tree. Operation of a
chain saw while up in a tree may result in personal
injury.
6. Always keep proper footing and operate the chain
saw only when standing on xed, secure and level
surface. Slippery or unstable surfaces such as
ladders may cause a loss of balance or control of the
chain saw.
7. When cutting a limb that is under tension be alert
for spring back. When the tension in the wood bres
is released the spring loaded limb may strike the
operator and/or throw the chain saw out of control.
8. Use extreme caution when cutting brush and
saplings. The slender material may catch the saw
chain and be whipped toward you or pull you off
balance.
9. Carry the chain saw by the front handle with the
chain saw switched off and away from your body.
When transporting or storing the chain saw always
t the guide bar cover. Proper handling of the chain
saw will reduce the likelihood of accidental contact
with the moving saw chain.
10. Follow instructions for lubricating, chain
tensioning and changing accessories. Improperly
tensioned or lubricated chain may either break or
increase the chance for kickback.
11. Keep handles dry, clean, and free from oil and
grease. Greasy, oily handles are slippery causing
loss of control.
12.
Cut wood only. Do not use chain saw for purposes
not intended. For example: do not use chain saw
for cutting plastic, masonry or non-wood building
materials. Use of the chain saw for operations different
than intended could result in a hazardous situation.
CAUSES AND OPERATOR
PREVENTION OF KICKBACK:
Kickback may occur when the nose or tip of the guide
bar touches an object, or when the wood closes in
and pinches the saw chain in the cut.
Tip contact in some cases may cause a sudden reverse
reaction, kicking the guide bar up and back
10
18V POLE CHAIN SAW EN
towards the operator.
Pinching the saw chain along the top of the guide
bar may push the guide bar rapidly back towards the
operator.
Either of these reactions may cause you to lose control
of the saw which could result in serious personal
injury. Do not rely exclusively upon the safety devices
built into your saw. As a chain saw user, you should
take several steps to keep your cutting jobs free from
accident or injury.
Kickback is the result of tool misuse and/or incorrect
operating procedures or conditions and can be
avoided by taking proper precautions as given below:
-Maintain a rm grip, with thumbs and ngers
encircling the chain saw handles, with both hands
on the saw and position your body and arm to allow
you to resist kickback forces. Kickback forces can be
controlled by the operator, if proper precautions are
taken. Do not let go of the chain saw.
-Do not overreach and do not cut above shoulder height.
This helps prevent unintended tip contact and enables
better control of the chain saw in unexpected situations.
-Only use replacement bars and chains specied
by the manufacturer. Incorrect replacement bars and
chains may cause chain breakage and/or kickback.
-Follow the manufacturer’s sharpening and
maintenance instructions for the saw chain.
Decreasing the depth gauge height can lead to increased
kickback.
FOR CHAIN SAW WITH THE
EXTENDED POLE SAFETY WARNINGS
1. Do not use the machine when the operator is tired, ill
or under the inuence of alcohol or other drugs.
2. To reduce the risk, please keep bystanders at a safe
distance from the machine during its operation.
3. Be aware of the dangers of operating positions,the
operator may be struck by falling branches or by
those that rebound after hitting the ground. Remove
the branches in sections.
4. Keep a rm footing and balance during operating.
Use the harness provided.
5. Keep the machine a sufcient distance away from
overhead electrical power lines.
SAFETY WARNINGS FOR BATTERY
PACK
a) Do not dismantle, open or shred cells or battery
pack.
b) Do not short-circuit a battery pack. Do not store
battery packs haphazardly in a box or drawer
where they may short-circuit each other or be
short-circuited by conductive materials. When
battery pack is not in use, keep it away from other
metal objects, like paper clips, coins, keys, nails,
screws or other small metal objects, that can make
a connection from one terminal to another. Shorting
the battery terminals together may cause burns or a
re.
c) Do not expose battery pack to heat or re. Avoid
storage in direct sunlight.
d) Do not subject battery pack to mechanical shock.
e)
In the event of battery leaking, do not allow the
liquid to come into contact with the skin or eyes. If
contact has been made, wash the affected area with
copious amounts of water and seek medical advice.
f) Seek medical advice immediately if a cell or
battery pack has been swallowed.
g) Keep battery pack clean and dry.
h) Wipe the battery pack terminals with a clean dry
cloth if they become dirty.
i) Battery pack needs to be charged before use.
Always refer to this instruction and use the correct
charging procedure.
j) Do not maintain battery pack on charge when not in
use.
k) After extended periods of storage, it may
be necessary to charge and discharge the
battery pack several times to obtain maximum
performance.
l)
Battery pack gives its best performance when it is
operated at normal room temperature (20 °C ± 5 °C).
m) When disposing of battery packs, keep battery
packs of different electrochemical systems
separate from each other.
n) Recharge only with the charger specied by
POSITEC. Do not use any charger other than that
specically provided for use with the equipment.
A charger that is suitable for one type of battery pack
may create a risk of re when used with another
battery pack.
o) Do not use any battery pack which is not designed
for use with the equipment.
p) Keep battery pack out of the reach of children.
Table des matières
