Rocket Fish RF-GUV1201 Manuel utilisateur

Gaming Headset with 3D Sound

RF-GUV1201

User Guide

Gaming Headset with 3D Sound

Contents

Important safety instructions .................................................................................... 3

Features.............................................................................................................................. 4

Package contents..................................................................................................... 5

Headset jacks and controls................................................................................... 6

In-line control unit ................................................................................................... 7

Connecting to a PlayStation 3 (PS3) ........................................................................ 8

Using a headphone jack or AV cable................................................................. 8

Using an HDMI connection ................................................................................12

Connecting to an Xbox 360 ......................................................................................16

Using a headphone jack or AV cable...............................................................16

Using an HDMI connection with a headphone jack or audio adapter19

Connecting to a computer........................................................................................22

Windows 7, Windows Vista, or Windows XP.................................................22

Mac OS X v10.2.8 and above..............................................................................25

Connecting to a portable audio device ...............................................................27

Troubleshooting ...........................................................................................................28

Specifications.................................................................................................................29

Legal notices ..................................................................................................................29

One-year limited warranty........................................................................................30

RF-GUV1201

Important safety instructions

1Read these instructions.

2Keep these instructions.

3Heed all warnings.

4Follow all instructions.

5Do not use this apparatus near water.

6Clean only with dry cloth.

7Do not store near any heat sources such as radiators, heat

registers, stoves, or other apparatus (including amplifiers)

that produce heat.

8Unplug this apparatus during lightning storms or when

unused for long periods of time.

9To reduce the risk of fire or electric shock, do not expose this

device to rain, moisture, dripping, or splashing.

Features

• Compatible with:

• PlayStation®3 (PS3™)

• Xbox 360® and Xbox LIVE®

• PC running Windows® 7, Windows Vista®, or Windows® XP

• Mac® computer running OS X v10.2.8 and above

• Stereo audio devices

• Incorporates SRS WOW® with SRS® TruBass®, and FOCUS®

technologies to create 3D sound for the exciting, lifelike

sound that gamers crave

• Light-weight and comfortable

• Unique rotating earcups provide a comfortable fit and flip

up inside the headband for compact storage

• Versatile, noise-canceling, boom microphone that is flexible,

and removable and fits in either earcup

• Thick, soft, breathable padding for hours of comfort

• Convenient in-line controls

• Separate volume controls for game and chat

• “All-mute” button on the headset instantly mutes all audio

and chat

RF-GUV1201

Package contents

Note: If your Xbox 360 is connected to a TV, monitor, or receiver

using an HDMI cable, you may need the Microsoft HDMI audio

adapter (sold separately). Some models of the Xbox 360 include

this adapter.

Gaming Headset

with 3D sound

Black 3.5mm

audio cable

2.5mm Xbox chat

cable

Microphone

In-line headset control unit with

green 3.5mm audio cable and

USB cable connectors

10 ft. (3 m) RCA piggyback

to 3.5mm audio cable

Headset jacks and controls

#Component Description

1Right microphone

jack (MIC)

Plug the microphone into this jack.

2Left microphone

jack (MIC)

Plug the microphone into this jack.

Line In jack Plug the black 3.5mm cable into this jack and into

the 3.5mm jack on the in-line control unit, TV

headphone jack, or other audio device.

4MUTE ALL button Press to mute all audio and chat. Press again to

un-mute the audio and chat.

Right side Left side

RF-GUV1201

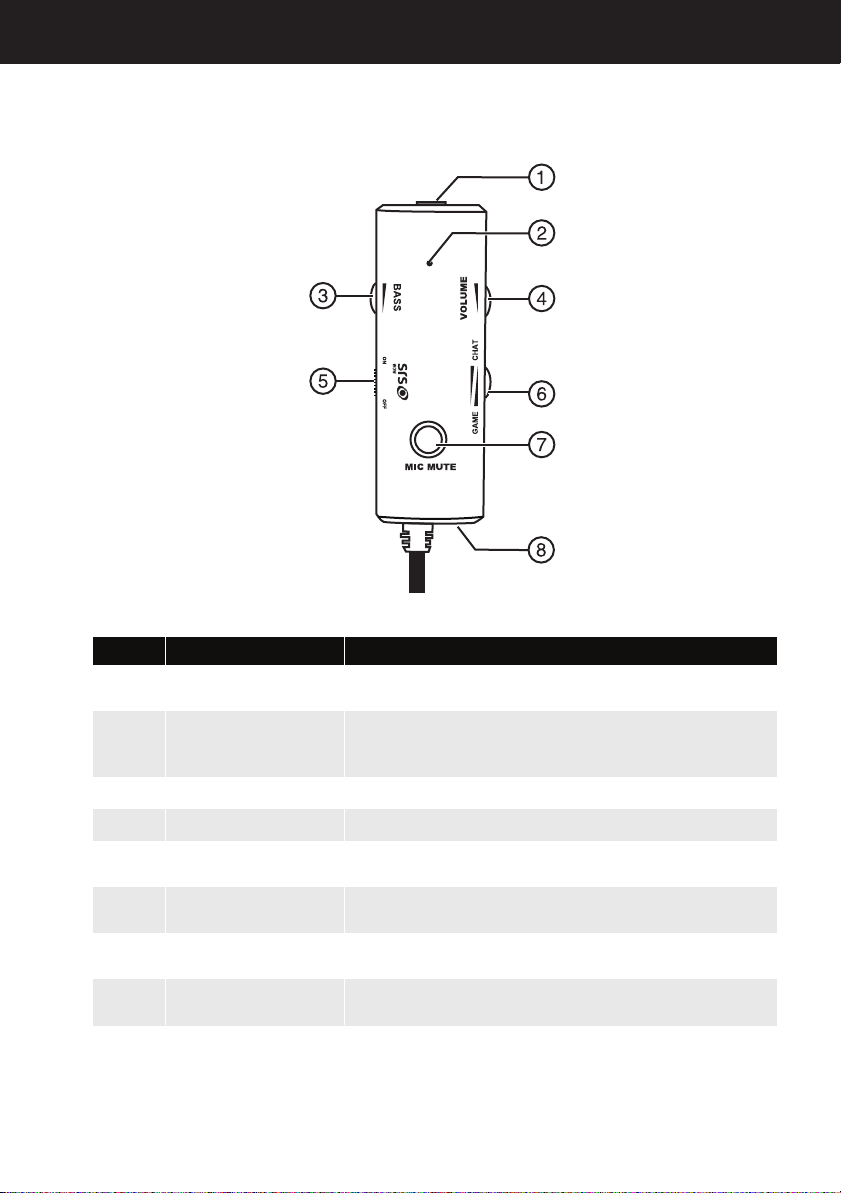

In-line control unit

#Component Description

13.5mm cable jack Plug the black 3.5mm cable into this jack and into

the LINE IN jack on your headset.

Mute indicator Lights red when all audio and chat is muted. (The

ALL MUTE button is on the headset.) Lights yellow

when the microphone is muted.

3BASS Rotate to adjust the bass.

4VOLUME Rotate to adjust the overall volume.

5SRS switch Slide this switch to turn the SRS sound feature on or

off.

6CHAT/GAME

VOLUME balance

Rotate to adjust the balance between the chat and

game volume.

7MIC MUTE Press to mute the microphone. Press again to

un-mute the microphone.

8Xbox 360 chat cable

jack

Plug the 2.5mm Xbox 360 chat cable into this jack

and into the jack on the Xbox 360 controller.

Connecting to a PlayStation 3 (PS3)

You can connect your headset to your PS3 in a variety of ways

to receive PS3 audio:

• TV headphone jack or AV cable (see “Using a headphone

jack or AV cable” on page 8)

• HDMI connection (see “Using an HDMI connection” on

page 12)

Using a headphone jack or AV cable

To connect to a PS3 using a headphone jack or AV

cable:

1Plug the microphone into the left or right MIC jack on your

headset. Twist the tip of the microphone so the sound holes

face your mouth.

Microphone

Left sideRight side

Connect the microphone to

either the left or right MIC jack.

RF-GUV1201

2Choose your connection method.

If you want to connect the audio using a headphone jack on

a TV, monitor, or receiver, complete the instructions in

“Option A: Headphone jack connection method.”

If you want to connect the audio using the PS3 AV cable,

complete the instructions in “Option B: AV cable connection

method” on the next page.

Option A: Headphone jack connection method

3Make the connections shown in the following illustration.

Go to “Setting up the Chat function” on page 11.

SOURCE

Black 3.5mm

cable

In-line control

unit green

3.5mm cable

connector

In-line control unit

USB cable connector

PS3 AV cable

Yellow (video)

Red (right audio)

White (left audio)

Option B: AV cable connection method

Step 3 (continued)

Make the connections shown in the following illustration.

4Turn on your PS3, then open the PS3 Settings menu.

5Select Sound Settings, then select Audio Output Settings.

The Audio Output Settings menu opens.

SOURCE

Black 3.5mm

cable

RCA piggyback cable

In-line control

unit USB cable

connector

PS3 AV cable

Yellow (video)

Red (audio right)

White (audio left)

In-line control

unit green

3.5mm cable

connector

In-line

control

unit
