Robustel EV8100 Hardware Manual

RT126_HM_EV8100 1/11

EV8100

Hardware Manual

Version: 1.0.0

Date: Oct. 18, 2023

Robustel EV8100 Hardware Manual

RT126_HM_EV8100 2/11

Regulatory and Type Approval Information

Table 1: Toxic or Hazardous Substances or Elements with Defined Concentration Limits

Radio Specifications for Europe

RF technologies

2G, 3G, 4G, GNSS*, Wi-Fi*, BLE*

Cellular Frequency

4G: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28

LTE TDD: B38/B39/B40/B41

3G: WCDMA: B1/B2/B4/B5/B6/B8/B19

2G: GSM: B2/B3/B5/B8

Wi-Fi Frequency*

2.4 GHz: 2.412 ~ 2.484 GHz

5 GHz: 5.18 ~ 5.825 GHz

BLE Frequency*

2402 ~ 2480 MHz

Max RF power

33 dBm±2dB@GSM, 24 dBm+1/-3dB@WCDMA, 23 dBm±2dB@LTE, 17 dBm ±2 dB

@2.4GHz Wi-Fi, 13 dBm ±2 dB@5GHz Wi-Fi, 4 dBm@BLE

*May vary on difference models.

Note: The 5150 to 5350 MHz frequency range is restricted to indoor use only in.

電波法の規定により 5GHz 帯は屋内使用に限ります。

Name of

the Part

Hazardous Substances

(Pb)

(Hg)

(Cd)

(Cr(VI))

(PBB)

(PBDE)

(DEHP)

(BBP)

(DBP)

(DIBP)

Metal

parts

Circuit

modules

Cables and

cable

assemblies

Plastic and

polymeric

parts

Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is

below the limit requirement in RoHS2.0.

Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials for this

part might exceed the limit requirement in RoHS2.0.

Indicates that it does not contain the toxic or hazardous substance.

Robustel EV8100 Hardware Manual

RT126_HM_EV8100 3/11

Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate the equipment.

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic

Development Canada’s licence-exempt RSS(s) and Part 15 of the FCC Rules. Operation is subject to the following two

conditions:

(1) This device may not cause interference.

(2) This device must accept any interference, including interference that may cause undesired operation of the

device.

L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation,

Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation

est autorisée aux deux conditions suivantes :

(1) L’appareil ne doit pas produire de brouillage;

(2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en

compromettre le fonctionnement.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for help.

FCC& IC Radiation Exposure Statement

This equipment complies with FCC and Canada radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your

body.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Déclaration d’IC sur l’exposition aux radiations

Cet équipement est conforme aux limites d’exposition aux radiations définies par le Canada pour des

environnements non contrôlés. Cet équipement doit être installé et utilisé à une distance minimum de 20 cm entre

l’antenne et votre corps.

Cet émetteur ne doit pas être installé au même endroit ni utilisé avec une autre antenne ou un autre émetteur.

Robustel EV8100 Hardware Manual

RT126_HM_EV8100 4/11

Simplified EU & UK Declaration of Conformity

We, Guangzhou Robustel Co., Ltd. are located at 501, Building #2, 63 Yongan Road, Huangpu District, Guangzhou,

China, declare that this radio equipment complies with EU Radio Equipment Directive (RED) 2014/53/EU, Low

Voltage Directive (LVD) 2014/35/EU, EMC Directive 2014/30/EU, UK Radio Equipment Regulations 2017, EMC

Regulations 2016, Electrical Equipment (Safety) Regulations 2016. The full text of the EU& UK DoC is available at the

following internet address:

www.robustel.com/certifications/

Safety Information

General

- The router generates radio frequency (RF) power. When using the router, care must be taken on safety issues

related to RF interference as well as regulations of RF equipment.

- Do not use your router in aircraft, hospitals, petrol stations or in places where using cellular products is prohibited.

- Be sure that the router will not be interfering with nearby equipment. For example: pacemakers or medical

equipment. The antenna of the router should be away from computers, office equipment, home appliance, etc.

- An external antenna must be connected to the router for proper operation. Only uses approved antenna with the

router. Please contact authorized distributor on finding an approved antenna.

RF Exposure

- This device meets the official requirements for exposure to radio waves. This device is designed and manufactured

not to exceed the emission limits for exposure to radio frequency (RF) energy set by authorized agencies.

- The device must be used with a minimum separation of 20 cm from a person’s body to ensure compliance with RF

exposure guidelines. Failure to observe these instructions could result in your RF exposure exceeding the applicable

limits.

Note: Some airlines may permit the use of cellular phones while the aircraft is on the ground and the door is open.

Router may be used at this time.

The symbol indicates that the product should not be mixed with general household waste but must be sent to

separate collection facilities for recovery and recycling.

The symbol indicates that the product meets the requirements of the applicable EU directives.

The symbol indicates that the product meets the requirements of the relevant UK legislation.

Related download link

Find more product documents or tools at:

www.robustel.com/documentation/

Robustel EV8100 Hardware Manual

RT126_HM_EV8100 5/11

Technical Support

Tel: +86-20-82321505

Email: support@robustel.com

Web: www.robustel.com

Document History

Updates between document versions are cumulative. Therefore, the latest document version contains all updates

made to previous versions.

Date

Firmware Version

Document Version

Change Description

Oct. 18, 2023

2.1.1.3

1.0.0

Initial release.

Robustel EV8100 Hardware Manual

RT126_HM_EV8100 6/11

Overview

EV8100 is an advanced elevator voice gateway that supports voice transmission over VoIP and VoLTE, enabling

seamless communication between a cellular network and the elevator's intercom system, with latest Linux Debian

bullseye based router OS with enhanced cybersecurity, advanced GUI and a myriad of software features.

Package Checklist

Before commencing installation ensure your package has the following components:

Device

2PIN Terminal

Block with Lock

3x2PIN Terminal

Block

4x2PIN Terminal

Block

2PIN 5.08mm

Terminal Block

RCMS Card

Quick Start Guide

Card

Mounting Kit

SIM Card Sticker

Caution Card

Magnet Button

(Optional)

Ethernet Cable

(Optional)

Power Supply

(Optional)

Cellular Antenna

(Optional)

Mounting Kit

(Optional)

Wi-Fi Antenna

(Optional)

Note: The accessories could be different on specific order.

Robustel EV8100 Hardware Manual

RT126_HM_EV8100 7/11

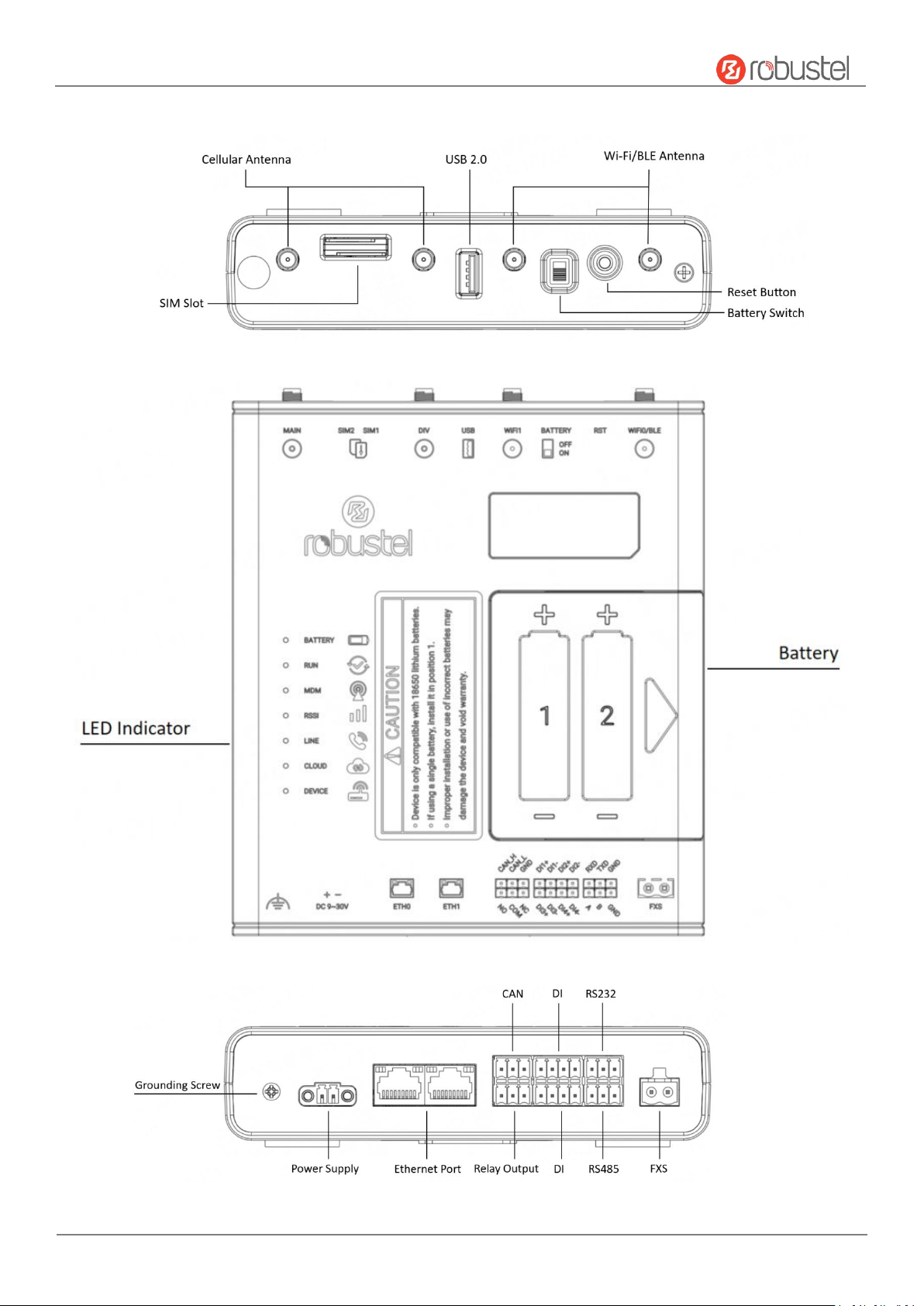

Panel Layout

Top View

Front View

Bottom View

Robustel EV8100 Hardware Manual

RT126_HM_EV8100 8/11

Interface Descriptions

1. Serial Ports.

Name

Description

CANL

For transmitting low-level signals

CANH

For transmitting high-level signals

GND

Ground

Name

RS232 Mode

RS485 Mode

TXD/A

data sending

RS485_A

RXD/B

data receiving

RS485_B

GND

Ground

2. Ethernet Ports. Two Ethernet ports, both of them

could be configured as WAN or LAN.

LED

Description

Activity

On, blinking

Transmitting data

Off

No activity

Link

Off

Link off

Link on

3. Reset Button.

Function

Operation

Reboot

Press and hold the RST button for 2~5

seconds under the operating status.

Restore to

default

configuration

Press and hold the RST button for 5 ~10

seconds under the operating status.

The RUN light flashes quickly, and then

release the RST button,

and the device will restore to the

default configuration.

Restore to

factory

configuration

Once the operation of restoring the

default configuration is performed twice

within one minute, the device will

restore to the factory default settings.

4. Digital Input and Relay Outpurt. Four sets of digital

inputs and a set of relay output.

Name

Type

Description

DI1+

Digital I/O

Digital Input positive

DI1-

Digital Input negative

DI2+

Digital Input positive

DI2-

Digital Input negative

DI3+

Digital Input positive

DI3-

Digital Input negative

DI4+

Digital Input positive

DI4-

Digital Input negative

Relay Output

Normally Closed

COM

Common

Normally Open

Note: When the relay is off, NC is connected to COM, and NO is

disconnected. The external power supply input voltage range is DC

5-48V, with a maximum load current of 300mA.

5. LED Indicators.

LED

Description

RUN

On, solid

Gateway system is initializing

On,blinking

Gateway starts operating

Off

Gateway is powered off

Note: The RUN LED’s color is green

Line

Color

SIP: Green,VoLTE: Yellow,

Other: Red

In a call

On,blinking

On-hook

Off

Dialing/Incoming call

MDM

Color

2G: Red,3G: Yellow,4G: Green

On, blinking

Link connection is working

Off

Link connection is not working

Green

Strong signal

Yellow

Medium signal

Red

Weak or no signal

Cloud

On, solid

Connected successfully

On,blinking

In communication

Off

Disconnected

Device

On, solid

Connected successfully

On,blinking

In communication

Off

Disconnected

Battery

On,blinking

1. Battery Powered:

Low battery level

2. AC Powered:

Battery malfunction or Battery

anomaly

Off

Non-battery power supply

6. FXS

Name

Description

TIP

Connect to the RING lead of the

subscriber loop.

RING

Connect to the TlP lead of the subscriber

loop。

Robustel EV8100 Hardware Manual

RT126_HM_EV8100 9/11

Lithium-ion Battery Instructions

1. Device is only compatible with 18650 lithium batteries.

2. If using a single battery, install it in position 1.

3. Improper installation or use of incorrect batteries may damage the device and void warranty.

Hardware Installation

1. SIM Card Installation. Insert the SIM cards into the device and paste SIM card cover sticker if needed.

2. Antenna Installation. Rotate the antenna into the antenna connector accordingly.

3. Terminal Block Installation. Insert the 2x3PIN and 2x4PIN terminal blocks into the interfaces connector, then

can connect the devices or sensors to the gateway with wires via corresponding interfaces e.g. RS232, RS485,

DIDO, CAN,FXS...

4. Power Supply installation. Insert the power supply cord into the corresponding terminal block if needed, then

insert the terminal block into the power connector.

Robustel EV8100 Hardware Manual

RT126_HM_EV8100 10/11

5. DIN Rail Mounting. Use 2 M3 screws to fix the DIN rail to the device, then hang the DIN rail on the

mounting bracket.

6. Wall Mounting. Use 4 M3 screws to fix the Wall mounting to the device.

7. Magnetic Mounting. Use 4 magnet buttons to attach in the corresponding positions behind the device

with screws.

Table des matières

Autres manuels Robustel Routeur réseau

Robustel

Robustel GoRugged R3000 Lite Manuel utilisateur

Robustel

Robustel GoRugged R2000 Manuel utilisateur

Robustel

Robustel R2110 Manuel utilisateur

Robustel

Robustel R3000-Q3PA Manuel utilisateur

Robustel

Robustel R1510 Manuel utilisateur

Robustel

Robustel GoRugged R2000 Manuel

Robustel

Robustel R5010 Manuel utilisateur

Robustel

Robustel GoRugged R3000-3P-GPS Manuel utilisateur

Robustel

Robustel R5020 Manuel utilisateur

Robustel

Robustel GoRugged R3000 Lite Manuel utilisateur

Robustel

Robustel R5020 Manuel utilisateur

Robustel

Robustel GoRugged R2000 Manuel utilisateur

Robustel

Robustel GoRugged R3000 Lite Manuel utilisateur

Robustel

Robustel R2000 Ent Manuel utilisateur

Robustel

Robustel GoRugged R2000 Manuel utilisateur

Robustel

Robustel GoRugged R3000 Lite Manuel utilisateur

Robustel

Robustel GoRugged R3000 Lite Manuel utilisateur

Robustel

Robustel GoRugged R3000 Lite Manuel utilisateur

Robustel

Robustel EG5200 Manuel utilisateur

Robustel

Robustel GoRugged R2000 Manuel de l'opérateur

Robustel

Robustel R2110 Manuel utilisateur

Robustel

Robustel GoFixed W800 Manuel utilisateur

Robustel

Robustel GoRugged R2000 Manuel utilisateur

Robustel

Robustel GoRugged R2000 Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité
