Robustel TPH6700 Manuel utilisateur

-1-

TPH6700 IP67 PC/ABS Housing

Installation and Configuration Quick Guide

For R2000/R2000 Ent/R3000/R3000 Lite

-2-

About This Document

This document provides hardware information of the Robustel TPH6700 Housing, including introduction and installation.

Trademarks and Permissions

, are trademarks of Guangzhou Robustel Technologies Co., Ltd. All other trademarks and trade names mentioned in this

document are the property of their respective owners.

Disclaimer

No part of this document may be reproduced in any form without the written permission of the copyright owner. The contents of this document are subject

to change without notice due to continued progress in methodology, design and manufacturing. Robustel shall have no liability for any error or damage of

any kind resulting from the use of this document.

Technical Support

Tel: 086-20-29019902

Fax: 086-20-82321505

Email: [email protected]om

Web: www.robustel.com

Introduction

-3-

Package Contents

Before installing your TPH6700 housing, please verify the kit contents as

following.

1 x Robustel TPH6700 IP67 PC/ABS Housing

Optional Accessories (sold separately)

*If any of the above items is missing or damaged, please contact your

Robustel sales representative.

AC power supply board

(not apply to R2000 Ent)

Input: 100-240 VAC, 0.5 A MAX, 50-60 Hz

Output voltage: +14 V@2 A

Output power: 28 W

Operating temperature: -40~+85 °C

3G/4G antenna

Frequency range: 800-2700 MHZ

Impedance: 50 ohm

Weight: 0.2 kg

GPS antenna

Impedance: 50 ohm

Length: 3 m

Power supply cable (3/5 pin)

Transmission rate: 100 Mbps

Length: 2 m

Wall mounting kit

Material: Aluminum

Dimensions: 185 x 180 x 30 mm

Wi-Fi antenna

Frequency range: 2400-2483/5725-5850 MHZ

Impedance: 50 ohm

Weight: 0.2 kg

Ethernet cable (4/8 pin)

Transmission rate: 100 Mbps

Length: 2 m

Serial port cable (8 pin)

Transmission rate: 100 Mbps

Length: 2 m

Pole mounting kit

Material: Stainless steel

Width: 12 mm

-4-

Product Overview

Item

Description

Metal

PC/ABS

Weight

1010 g

Dimensions

310 x 245 x 93.4 mm

Ingress protection

IP67

Standards for the housing

Fully detachable

Performance requirement for high and low temperature

Aging-resistance level (UL746C)

Flame-retardant level (grade 2 of UL746C)

Standard requirement for environment protection

Core plug—seal up these

unneeded interfaces for

protecting

Vent plug—applied to balance

differential pressure, protect

from dust and water, and

ventilate the enclosure

-5-

The interface of each housing model is slightly different. For more details in each model, see the following views.

R2000：R2000 Ent：

-6-

R3000：R3000 Lite：

-7-

You need to remove the installed device when you install.

1. Remove the detachable cover of TPH6700 housing with a screwdriver.

Note: Your device has been installed into the enclosure before delivery.

2. Disconnect all cables or wires of the router and take it out.

SIM Card Installation

-8-

3. Make sure the router is powered off. Find the SIM slot, insert the SIM card correctly, and press the card with finger until you hear a click. If you need to

remove the card push inward again and the card will pop out.

Note: For more details about inserting or removing SIM card, please contact your Robustel sales representative for relevant user guide.

4. Put back the router and reconnect its cables or wires according to the original way.

5. Place the detachable cover back on and tighten its screws to ensure it is protected from water and dust.

-9-

1. Remove the protective caps from the cellular and Wi-Fi connectors. Here take Wi-Fi connector as an installation example.

2. Connect the antenna to the corresponding antenna connector by holding onto the metal part of the antenna and rotating it clockwise.

Note: Each antenna is labeled as 3G, 4G or WiFi for easy installation.

Antenna Installation

-10-

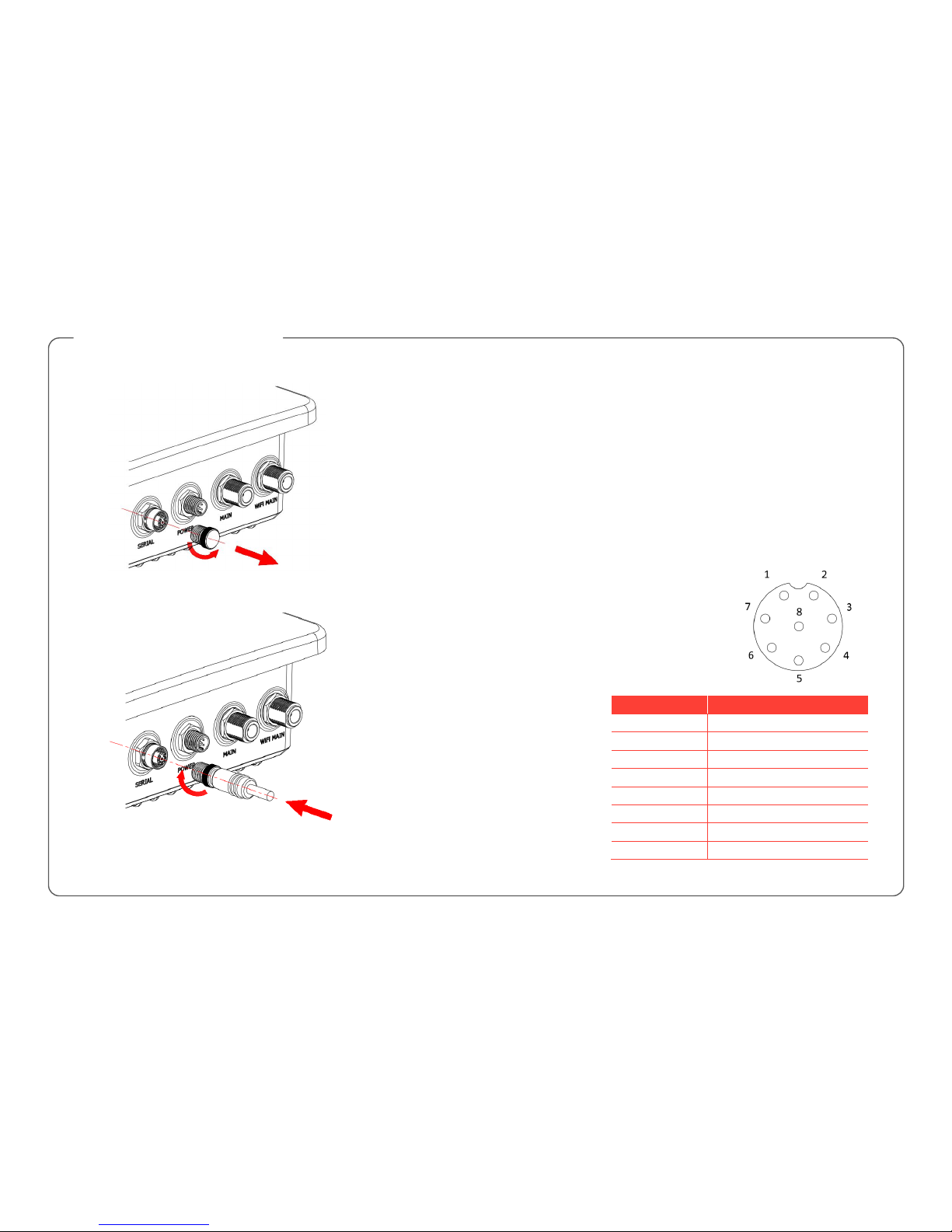

1. Remove the protective cap from the serial port connector labeled SERIAL.

2. Connect a serial port cable to the serial connector at the top of the enclosure, and rotate it clockwise.

3. Connect the other end of the cable to your serial device.

Serial Port Connection

Description

CTS

RTS

RXD

TXD

GND
