Roberts RD-10 Manuel utilisateur
RD-10
FM RDS/DAB digital radio
Please read this manual before use
ROBERTS
Sound for Generations
Controls...........................................................................2-3
Battery operation ...............................................................4
Mains operation .................................................................4
Operating your radio - DAB...............................................5
Selecting a station - DAB .................................................6
Secondary services - DAB................................................7
Display modes - DAB........................................................7
Finding new stations - DAB ..............................................8
Autoselect - DAB ..............................................................8
Manual tuning - DAB .........................................................9
Signal strength display - DAB ..........................................9
Operating your radio - FM ...............................................10
Manual tuning - FM..........................................................11
Display modes - FM ........................................................12
FM stereo/mono ..............................................................12
System reset ...................................................................13
Headphone socket ..........................................................14
Display backlight.............................................................14
General ............................................................................15
Specifications..................................................................15
Circuit features ................................................................15
Notes ..........................................................................16-17
Contents
Guarantee........................................................................18
1
If you need any further advice, please call our Technical Helpline on :-
020 8758 0338 (Mon-Fri) 2
Controls
1. Volume control
2. Headphone socket
3. Power button
4. FM/DABbutton
5. Auto Tune button
(Top)
1
2
3567
8
6. Info button
7. Telescopic aerial
8. Tuning control
9. LCD display
4
9
3
Controls
(Rear)
10. DC in socket
11. Line output socket
11
10
If you need any further advice, please call our Technical Helpline on :-
020 8758 0338 (Mon-Fri) 4
Battery operation
1. Release the catch securing the rear door of your radio.
2. Insert four LR20 (D size) batteries into the spaces in the compart-
ment. Take care to ensure all batteries are inserted with the correct
polarity as shown inside the battery compartment. Close the rear
door and secure the catch
3. Reduced power, distortion and a ‘stuttering’ sound are all signs that
the batteries may need replacing.
4. If the radio is not to be used for any extended period of time it is
recommended that the batteries are removed from the radio.
We would recommend for economy that the RD-10 is used via the
AC adaptor whenever possible with battery operation for occasional
or stand-by use only.
Using the AC adaptor
1. InserttheadaptorplugintotheDCinsocket ontherearofyourradio.
2. Plugthe adaptor into a standard 13A mains socketoutlet. Whenever
the adaptor is used the batteries are automatically disconnected.
The AC adaptor should be disconnected from the mains supply and
the radio when not in use.
1
5
Operating your radio - DAB
1. Carefully extend the telescopic aerial.
2. Press the On/Off button to switch on your radio. The display will
show "Roberts DAB digital radio" for a few seconds.
3. IfthisisthefirsttimetheradioisusedaquickscanofUKBandIIIDAB
channels will be carried out. The display will show "Autotune Quick
scan". If the radio has been used before the last used station will be
selected.
4. DuringAutotuneaseachgroupofstationsisdetectedthebottomline
ofthedisplaywillshowitsnameandthestationcountwillbeupdated.
The top line of the display shows a bargraph indicating progress of
the Autotune.
5. When the Autotune is completed the first station (in numeric-alpha
order 0...9...A....Z) will be selected.
6. Ifthestationlistisstill emptyaftertheAutotuneyourradiowilldisplay
"No Signal".
7. If no signals are found it may be necessary to relocate your radio
to a position giving better reception.
2
If you need any further advice, please call our Technical Helpline on :-
020 8758 0338 (Mon-Fri) 6
Selecting a station - DAB
1. The top line of the display shows the name of the station currently
selected.
2. Rotate the Tuning control to scroll through the list of available
stations. Stop rotating the Tuning control when you find the station
that you wish to hear.
3. Press and release the Tuning control to select the station. The
display may show "Tuning" while your radio finds the new station.
4. Adjust the Volume control to the required setting.
Note: If after selecting a station the display shows "Not Available"
it may be necessary to relocate your radio to a position giving better
reception.
2
4
7
Display modes - DAB
Your radio has five display modes:-
1. Press the Info button to cycle through the various modes.
a. Scrolling text Displays scrolling text messages such
as artist/track name, phone in number,
etc.
b. Programme type Displaystypeofstation beinglistenedto
e.g. Pop, Classic, News, etc.
c. Multiplex Name Displays name of multiplex to which
current station belongs.
d. Signal strength Displayssignalstrengthforstationbeing
listened to.
e. Time and date Displays current time and date.
Secondary services - DAB
1. Certainradiostationshaveoneormoresecondaryservicesassociated
with them. If a station has a secondary service associated with it the
display will show ">" next to the station name on the station list. The
secondary service will then appear immediately after the primary
service as you rotate the tuning control clockwise.
a
b
c
d
e
1
If you need any further advice, please call our Technical Helpline on :-
020 8758 0338 (Mon-Fri) 8
Finding new stations - DAB
Astimepassesnewstationsmay becomeavailable.Tofindnew stations
proceed as follows:-
1. Press and release the AutoTune button, the display will show
"AutotuneQuickScan".YourradiowillperformascanoftheUK DAB
frequencies. As new stations are found the station counter on the
right-handside of the display will increaseandstations will be added
to the list
2. To carry out a full scan of the entire DAB Band III frequencies press
and hold down the AutoTune button for more than 2 seconds and
then release. The display will show "Autotune Full scan". As new
stations are found the station counter on the right-hand side of the
display will increase and stations will be added to the list
Autoselect - DAB
As an alternative to pressing the tuning control to select a station your
radio can be set to automatically select a station.
1. Rotate the Tuning control a few clicks in either direction, imme-
diately press and hold in the tuning control until the display shows
"Autoselect ON".
2. Rotate the Tuning control until the station you require is visible on
the display, after a few seconds your radio will automatically select
the station shown on the display.
3. To switch off Autoselect rotate the Tuning control a few clicks in
either direction, immediately press and hold in the Tuning control
until the display shows "Autoselect OFF".
1
2
1
9

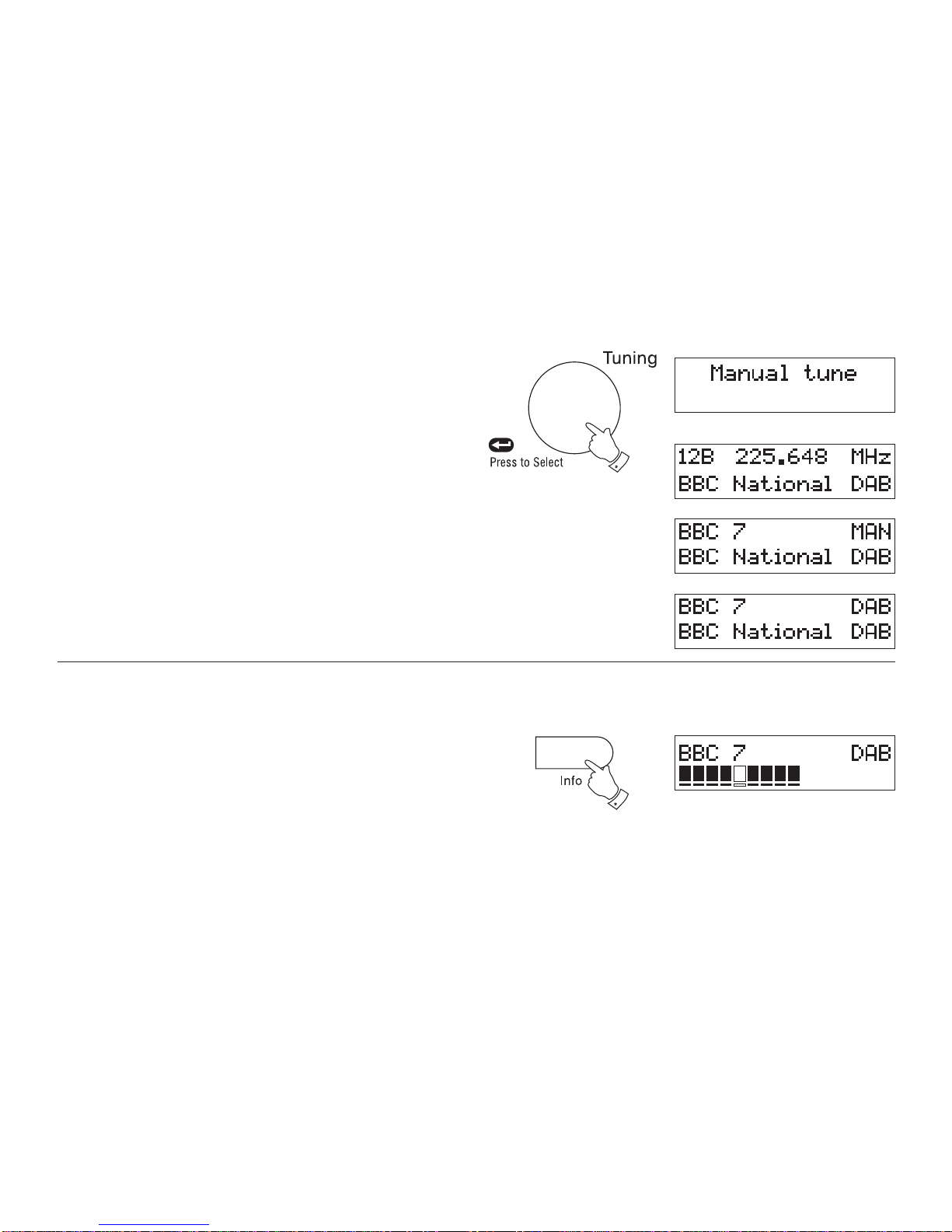

Manual Tuning - DAB
Manual tuning allows you to tune directly to the various DAB Band III
channels. UK DAB stations located in the range 11B to 12D.
1. Press and hold in the Tuning control until the display shows
"Manual tune".
2. Rotate the Tuning control to select the required DAB channel.
3. Press and release the Tuning control to select the channel.
4. Rotate the Tuning control to select the stations contained within
the Multiplex (group of stations) for the selected DAB channel.
5. Press and release the Tuning control to return to normal tuning
mode.
Signal strength display - DAB
1. Repeatedly press and release the Info button until the lower line
of the display shows signal strength.
2. Position your radio and carefully angle the telescopic aerial for best
reception using the signal strength display as a guide. Move your
radio around and position so as to give maximum number of black
rectangles on signal strength display.
3. The clear unfilled rectangle indicates minimum signal level required
for satisfactory reception.
1
1
