Roberts R871 Manuel utilisateur

ROBERTS

Sound for Generations

R871

15 Band FM/SW1-12/MW/LW

Travel Alarm World Radio

Please read this manual before use

123456789

1213

1. Clock display

2. Forward button

3. Reverse button

4. Sleep button

5. Mode button

6. Alarm button

7. Summer button

8. Power button

9. Tuning indicator

10. Tuning control

11. Volume control

12. Waveband selector

13. Shortwave selector

14. Battery compartment (on rear)

15. DC input socket

16. Headphone socket

Controls

14 (on rear)

abc d

ghijk

17 1918

17. Telescopic aerial

18. Snooze button

19. Key lock switch

a. Summer time indicator

b. Time display

c. Snooze indicator

d. Day indicator

e. Month indicator

f. Date display

g. Buzzer alarm indicator

h. Radio alarm indicator

i. Key lock indicator

j. Sleep indicator

k. Dual time indicator

Controls

Clock display

IMPORTANT

The radio will not operate until the clock time and date are set.

Ensure that the “Lock” switch is set to the left hand “Unlocked”

position before operation.

General

Do not allow this radio to be exposed to water, steam, or sand.

Do not leave the radio where excessive heat could cause

damage such as in a parked car where the heat from the sun

can build up even though the outside temperature may not

seem too high.

Key Lock

The“KeyLock”switchisusedtopreventunintentionalopera-

tion of the radio.

1. Slide the "Key Lock" switch located on the top of the radio

to the right, the symbol will appear in the display.

The"Power" and all other buttons will be disabled. This will

prevent accidental operation when the radio is packed in a

suitcase or carrying pouch.

2. To releasethe"KeyLock"switchslide the switchtothe left,

the symbol will be removed from the display.

Batteries

For Clock Operation

1. Open the battery compartment (14) by sliding the cover in

the direction of the arrow.

2. Insert 1 x IEC LR6 (AA size) battery with polarity as shown

on the rear of the radio into the clock battery compartment.

The clock time will then appear on the Clock Display (1).

The need to replace the clock battery is indicated by a fading

clock display.

For Radio Operation

1. Open the battery compartment (14) by sliding the cover in

the direction of the arrow.

2. Insert 3 x IEC LR6 AA size batteries with polarity as shown

on the rear of the radio into the radio battery compartment.

Refit the cover.

The need to replace the batteries will be indicated by reduced

power and distortion.

Iftheradioisnottobeusedforalongperiod,removetheradio

batteries to avoid possible damage from battery leakage.

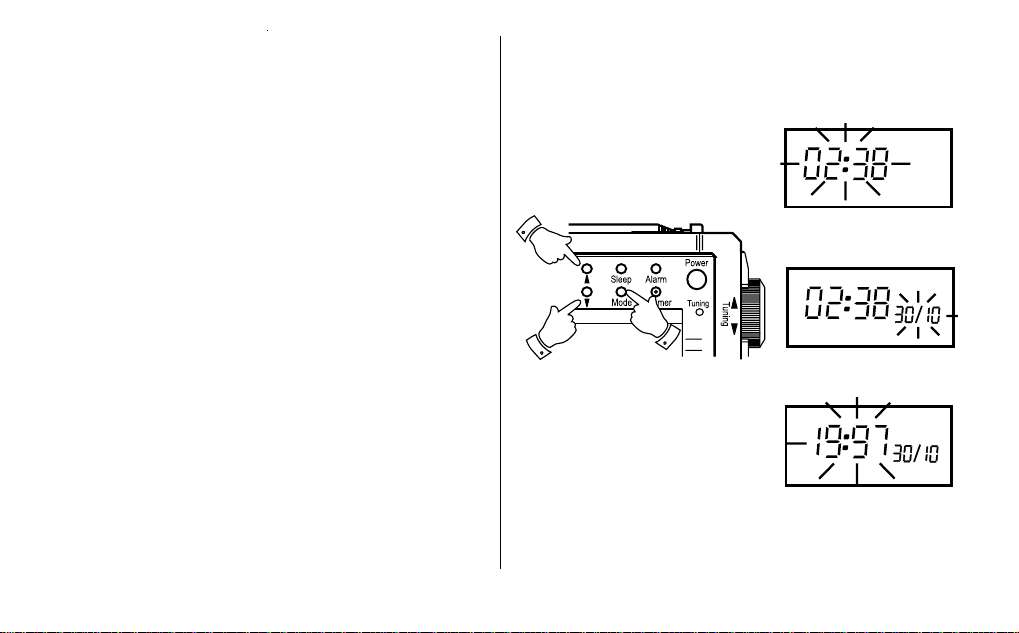

Setting the local time and date

When the clock battery is first inserted the Hours and Minutes

will flash in the clock display ready to be set. In this case

proceed to step 2 below. If the clock time or date needs to be

changedafter theinitial settinghas taken place, start at step 1.

1. Pressandholdthe“Mode”buttonforatleast5seconds.The

Hours and Minutes will flash in the clock display indicating

that the Local time can be adjusted.

2. Press the “Forward” or “Reverse” button until the correct

Hour and Minute are shown. The clock starts running as

soon as the “Forward or “Reverse” button has been

released.

3. Whilst the display is flashing (within 8 seconds), press and

release the“Mode” button, the Month and Date will flash in

thecalendardisplayindicatingthatthedateoftheLocal time

can be adjusted. Press the“Forward”or“Reverse”button

until the correct Month and Date are shown.

4. Whilst the display is flashing (within 8 seconds), press and

release the “Mode” button, the Year will flash on the time

displayindicatingthatitcanbeadjusted.Pressthe“Forward”

or “Reverse” button until the correct Year is shown.

5. Press and release the “Mode” button to finish the Local

Time setting process. The day of week is set automatically

after the above procedure is carried out.

Setting the dual time and date

1. Pressandreleasethe“Mode”buttontoselecttheDualTime

mode. The Dual Time indicator will appear in the display.

2. Pressandholdthe“Mode”buttonforatleast5seconds.The

Hoursand Minutes willflash in thedisplay indicatingthat the

Dual time can be adjusted.

3. Press the “Forward” or “Reverse” button until the correct

Hour and Minute are shown.

4. Whilst the display is flashing (within 8 seconds), press and

release the“Mode” button, the Month and Date will flash in

the calendar display indicating that the date of the Dual time

can be adjusted.

5. Press the “Forward” or “Reverse” button until the correct

Month and Date are shown.

6. Whilst the display is flashing (within 8 seconds), press and

release the “Mode” button, the Year will flash on the time

displayindicatingthatitcanbeadjusted.Pressthe“Forward”

or “Reverse” button until the correct Year is shown.

7. Pressand releasethe“Mode”buttontofinishtheDualTime

setting process. The day of week is set automatically after

the above procedure is carried out.

If you need any further advice, please call our

Technical Helpline on 0181 758 0338 (Mon-Fri)

Switching between local and dual time

1. Repeatedpresseson the“Mode”buttonwillcausetheclock

tocycle betweenlocalanddualtimemodes.Dualtimemode

is indicated by the word “DUAL” in the clock display.

Switching between summer and winter time

1. Pressthe“Summer”buttonbrieflytoswitchbetweensummer

time and winter time.

2. When Summer time is set, the Summer indicator appears in

the display and one hour is added to the time.

3. Summer time can be set for Local time and Dual time

separately.

Setting the alarm time

1. Press and hold the “Alarm” button for at least 5 seconds.

The Alarm time will flash in the display indicating that the

alarm time can be set.

2. Pressthe“Forward” or“Reverse” buttonsuntilthedesired

alarm time is displayed.

3. Brieflypress the“Alarm”buttontofinishthesettingprocess.

Setting the alarm mode

The alarm can be set so as to wake to Radio or Buzzer.

Repeatedly press and release the “Alarm” button to cycle

through the alarm modes.

!Radio Alarm !Buzzer Alarm !Alarm Off !

Ifthealarmisnotrequired,setthealarmtoAlarmoffmode.The

alarm indicators and will disappear from the

display.

Note: the alarm will only operate on Local time.

Snooze control

1. TheRadioorBuzzer alarmscan besilenced for5 minutesby

pressing the “Snooze” button. This sequence can be

repeated within the 60 minute alarm period.

2. The Snooze indicator will flash in the display during snooze

operation.

3. To turnoff the radioor buzzeralarm untilthe next day,press

and release the “Power” button.

If you need any further advice, please call our

Technical Helpline on 0181 758 0338 (Mon-Fri)

Operating the Radio

1. Press the “Power” button to turn on the radio.

2. Select the required waveband (SW/LW/MW/FM) with the

“Waveband” selector.

3. Use the “Shortwave” selector to switch between the 12

shortwave bands (SW1 - SW12).

4. Rotate the “Tuning” control to select the desired station.

The tuning indicator (4) will light up when the station is

correctly tuned.

5. On FM and SW the “Telescopic Aerial” should be fully

extended. Angle and rotate the telescopic aerial for best

reception.OnMWandLWrotatetheradioforbestreception.

7. To switch off the radio press the “Power” button.

Sleep Timer

1. Pressthe“Sleep”buttononcetoturnonthesleeptimer.The

radio will turn on and the maximum sleep time (90 minutes)

will be shown in the display. The sleep time indicator will be

shown in the display.

2. The sleep time can be reduced in 10 minute increments by

further presses of the “Sleep” button.

3. To cancel the sleep timer press the “Power” button.

Headphones (not included)

A “Headphone Socket” is provided for use with either head-

phones or an earpiece. Inserting a plug automatically mutes

the internal loudspeaker.

Mains adaptor (not included)

The AC adaptor for use with the R871 should provide 4.5 volts

DC output at 300mA centre pin negative. Plug the adaptor into

a mains outlet. Plug the lead from the adaptor into the “DC

Socket”. The battery will be automatically disconnected.

The mains adaptor should be disconnected from the mains

supply when not in use.

Imported by:-

ROBERTS RADIO LIMITED

PO BOX 130

MEXBOROUGH

SOUTH YORKSHIRE

S64 8YT
