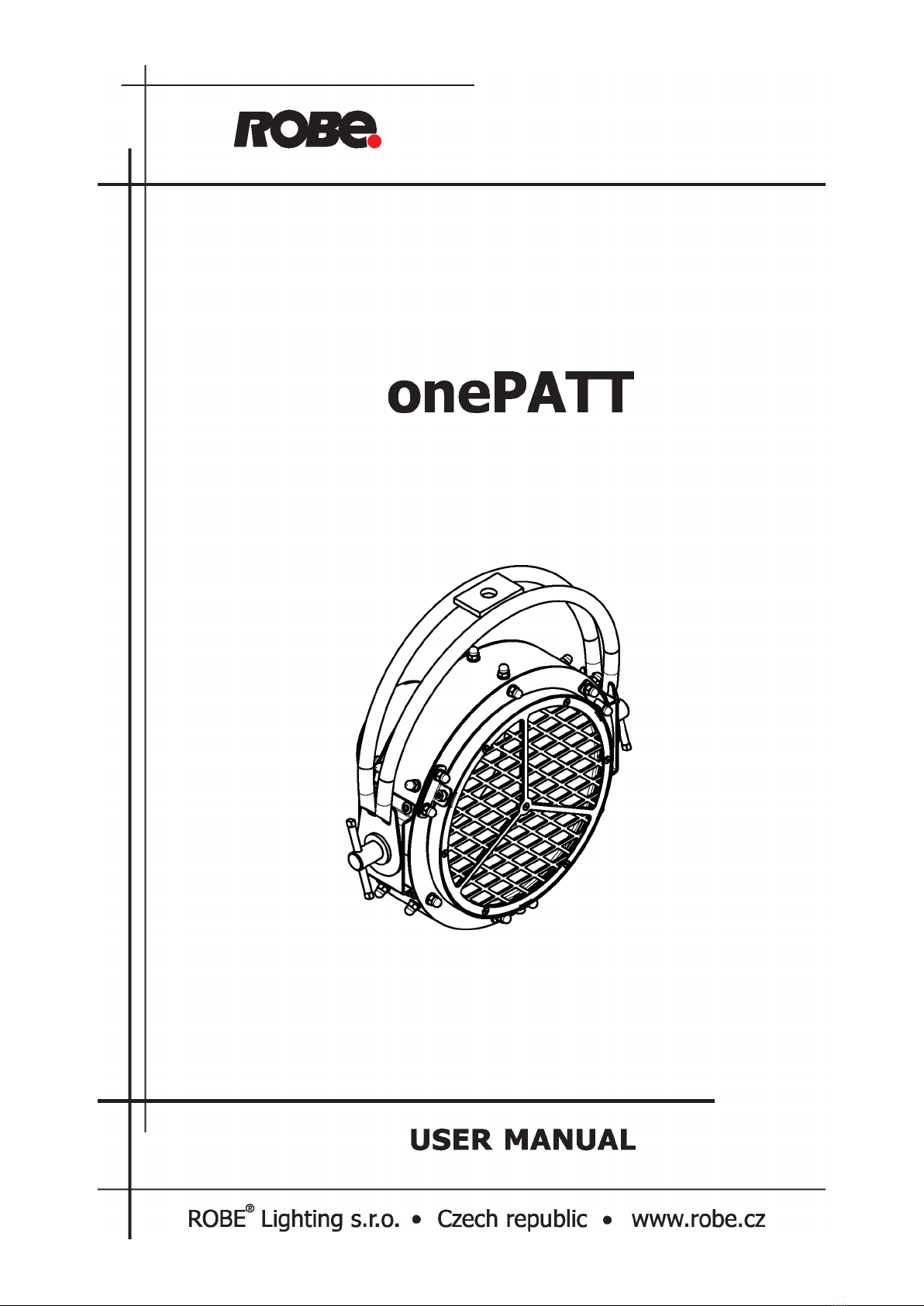

Robe OnePATT Manuel utilisateur

Version 1.4

Table of contents

1. Safety instructions ......................................................................................................... 3

2. Description of the xture .............................................................................................. 4

3. Installation....................................................................................................................... 5

3.1 Mounting the onelPATT ............................................................................................. 5

3.2 Connecting the pixelPATT with the PATT Driver ........................................................ 5

4. Technical specications ................................................................................................ 7

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE INSTALLING THE PRODUCT .

1. Safety instructions

CAUTION!

The onePATT was designed for indoor use only.

The product is for professional use only, it is not for household use.

This product has left our premises in absolutely perfect condition. In order to maintain this condition and to

ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning

notes written in this manual.

The manufacturer will not accept liability for any resulting damages caused by the non-observance of this

manual or any unauthorized modication to the product.

If the device has been exposed to drastic temperature uctuation (e.g. after transportation), do not switch it on

immediately. The arising condensation water might damage your device. Leave the device switched o󰀨 until

it has reached room temperature.

The onePATT should be operated with the PATT Driver only.

The onePATT becomes hot during its operation, a

llow it to cool prior

to manipulation.

The onePATT unit never must be covered with cloth or other materials during

operation.

Refer servicing to qualied service personnel.

Warning! Risk Group 2 LED product according to EN 62471

LED light emission. Risk of eye injury. Do not look into the beam at short distance of

the of the product. Do not view the light output with optical instruments or any

device that may conncentrate the beam.

The light source contains blue LEDs.

When choosing the installation spot, please make sure that the onePATT are not exposed to extreme heat,

moisture or dust.

Operate the onePATT only after having familiarized with its functions. Do not permit operation by persons not

qualied for operating the onePATT. Most damages are the result of unprofessional operation!

Please use the original packaging if the onePATT is to be transported.

Please consider that unauthorized modications on the xture are forbidden due to safety reasons!

2. Description of the xture

1 - Yoke with mounting hole

2 - Tilt lock

3 - Front net cover

4 - Control Output (4-pin XLR)

5 - Control Input (4-pin XLR)

6 - Parabolic aluminium reector Control

3. Installation

The onePatt must be installed by a qualied electrician in accordance with all

national and local electrical and construction codes and regulations.

3.1 Mounting the onePATT

The xture can be rigged to the truss or fastened to the oor stand via a mounting yoke. The hole of diameter

of 13 mm in the yoke serves for fastening of a clamp (or a spigot) to the yoke.

Note: the spigot has to be inserted into the oor stand and always secured.

For overhead installation the onePATT has to be always secured to the truss by means of a safety wire (that

can hold at least 10 times the weight of the xture) which is fastened to the truss and around mounting yoke

of the onePATT.

3.2 Connecting the onePATTs with the PATT Driver

1. Disconnect the PATT Driver from mains.

2. Connect the onePATT to the PATT Driver by means of the 4-pin data cable.

3. Connect next 6 onePATTs to the onePATTs chain. The rst xture connected to the PATT Driver is

a pixel 1, the second xture connected to the xture 2 behaves as a pixel 2.....

Up to 7 xtures can be connected to one PATT Driver.

4. Connect the PATT Driver to mains and make desired setting of it.

ALWAYS DISCONNECT THE PATT DRIVER FROM MAINS BEFORE CONNECTING/DISCONNECTING

THE onePATT.

For CE only: If you do not use the original Robe Data Cable 4-pin XLR for connection between onePATT and

PATT Driver, the ferrite RRC 17-11-28-M-K5B (Robe P/N 13051799) should be installed on the 4-pin XLR cable

closely to the onePATT (the rst onePATT connected to the PATT Driver) as shown on the picture bellow.

If you use the original Robe 4-pin XLR cable, this ferrite is part of the cable and you do not need to install

another ferrite on the cable.

Ferrite RRC 17-11-28-M-K5B

4. Technical specications

Input voltage: 48V

Max. power consumption: 30W

Compatible control driver: PATT Driver (max. 7 onePATTs can be connected to the driver)

Light source: RGBW LED multichip

LED life expectancy: min. 20 000 hours

Typical lumen maintenance: 70% @ 20 000 hours

Optical System: 200 mm parabolic aluminium reector with high reectivity coating

Control input/output: Locking 4-pin XLR (male/female)

Mounting Points: Mounting horizontally or vertically via mounting yoke (360° tilt range)

Rigging: M12 mounting for clamp or spigot.

Operation position: any

Ingress protection: IP20 (for dry location only)

Weight: 162 kg

Max. surface temperature: 70°C (at 45°C ambient)

Maximum ambient temperature: 45 °C

Total heat dissipation (calculated):102 BTU

Min. distance from ammable surfaces: 0.2 m

Min. distance of illuminated objects: 0.2 m

Dimensions (mm)

Wiring of control input/output:

Optional accessories

(P/N 13052797) Data cable 4 pin XLR 10m, ferrite, EU

(P/N 13052798) Data cable 4 pin XLR 5m, ferrite, EU

(P/N 13052799) Data cable 4 pin XLR 10m, US

(P/N13052800) Data cable 4 pin XLR 5m, US

(P/N 17030386) Doughty Trigger Clamp

(P/N 99011963) Safety wire 35 kg

(P/N 13051799) Ferite RRC 17-11-28-M-K5B

(P/N 10055002) PATT Driver

1 - 0V

2 - Signal -

3- Signal +

4- +48V

Beam distribution

Specications are subject to change without notice.

January 19, 2018

Made in ROBE Lighting s.r.o., Palackého 416, 757 01 Valašské Meziříčí, Czech Republic
