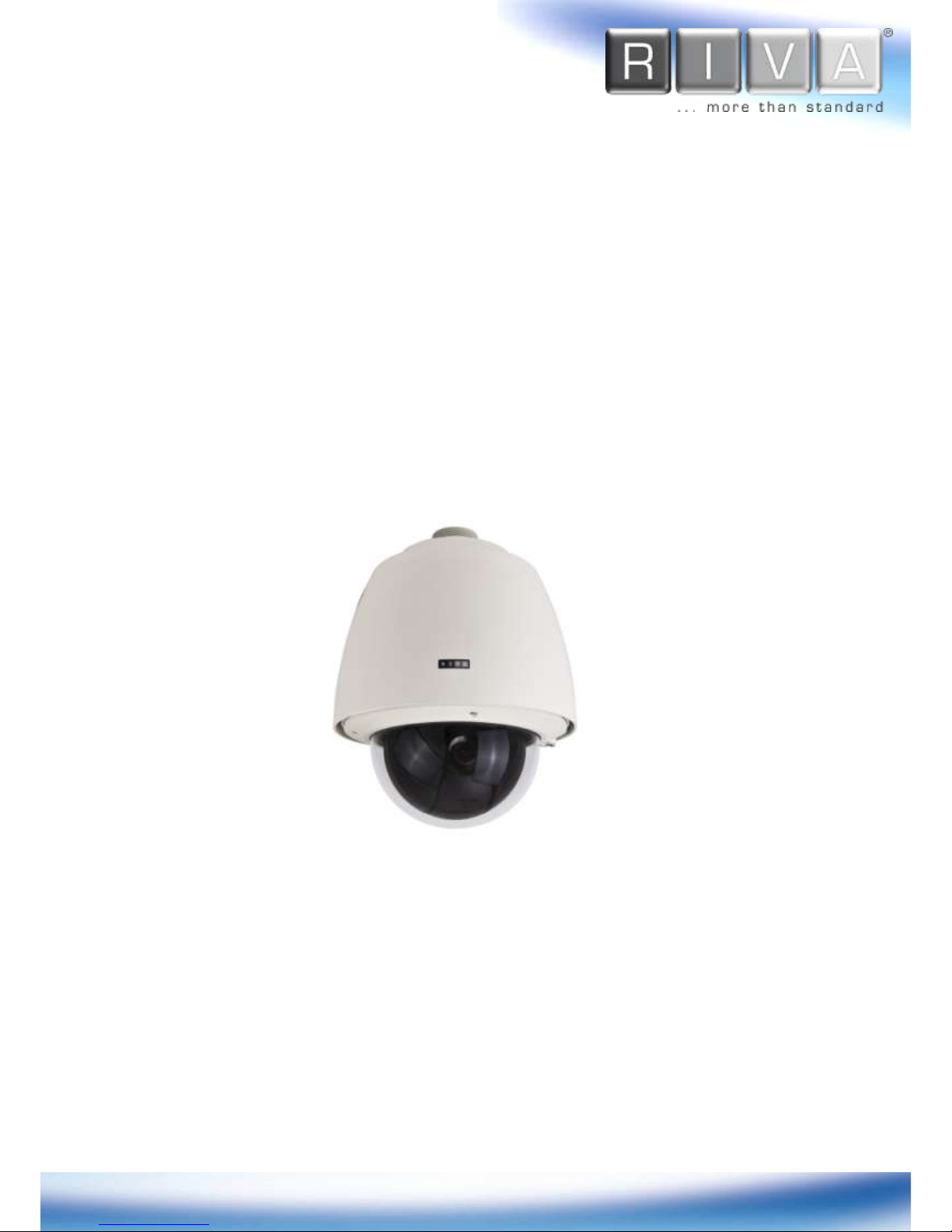

Quick Installation Guide

RC 4602HD

This manual provides instructions for quick installation and basic configuration of

your IP device.

RC4602 Ver1.1

www.rivatech.de

Step1. Connect cables to IP device

Connect required cables to the device including the power cable and LAN cable. To see the

correct positions of all connectors, refer to the following image below.

Incorrect connection may cause malfunction or damage to the IP device.

Caution

* Model design and appearance are subject to change without any prior notice

6-pin

Terminal

Connect

(Digital Out)

3.5 mm Microphone

Stereo Jack

3.5 mm Speaker

Stereo Jack

Video Out

32-pin socket

microSD slot

Main Camera Body Top View

PCB Top View

LAN Cable

3-pin Power

Terminal Connect

③

8-pin

Terminal

Connect

(Digital In)

RC4602 Ver1.1

www.rivatech.de

Step2. Install IP device

1) Secure three screws in top of

camera’s main body as three unit holders

with metal rings attached in the end.

2) Connect all necessary cables to a PCB

board in a cover shield before conjoining

the shield to a camera’s main body.

3) Under the PCB board has a 32-pin

connector which matches the main

camera body’s 32-pin socket; The shield’s

three unit holder holes also align with the

main camera body’s three unit holders.

4) Once cable connect is complete

along with brackets and poles on an

installation spot, align the connector (of

the cover shield) and socket (of the main

body), and then push the main body to

conjoin together.

5) Once two units are attached, rotate

the main camera body counterclockwise

to secure the lock.

6) Insert three screws on top cover shield

and tighten them up.

Caution

To prevent products from damaging, place the camera on stable and non-

vibrating surfaces. If the stability is in doubt, consult with safety personnel for

reinforcements, and then proceed with the installation.

RC4602 Ver1.1

www.rivatech.de

Step3. Set the lens position

The device is 360° rotating camera and fully controlled by web user interface. Once the

unit’s installation is complete and connected properly, please refer to IPXIPN Web User’s

Manual for the device’s camera configuration instructions.

Step4. Set up network environment

The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of

the device from converting the MAC address’s hexadecimal numbers, which is attached to the

device. Be sure that the device and PC are on a same area network before running the

installation.

Generic IP Environment

In case of generic private network environment where IP address 192.168.XXX.XXX are

used, users may view the live streaming images on a web page using the device’s default IP

address:

1. Convert the device’s MAC address to the IP address. Refer to the Hexadecimal-Decimal

Conversion Chart at the end of the manual.

(The MAC address of the device is attached on the side or bottom of the device.)

2. Start the Microsoft® Internet Explorer web browser and enter the IP address of the device.

3. Web streaming and device configurations are supported through ActiveX program. When

the ActiveX installation pop-up window appears, authorize and install the ActiveX setup.exe,

MAC address = 00-13-23-01-14-B1 →IP address = 192.168.20.177

Convert the last two set of hexadecimal numbers to decimal

numbers.

RC4602 Ver1.1

www.rivatech.de

Custom IP Environment

IPAdminTool and the manual are provided on www.rivatech.de homepage.

IPAdminTool is a management tool, which automatically scans all of the network products for

users to perform administrative tasks, which includes network configurations, firmware update,

device reboot, and device organizations.

To modify the device’s default IP address for customized network area;

1. Find the device from the IPAdminTool’s list and highlight the device’s name.

2. Right-click the mouse and select “IP Address”; IP Setup window appears.

PC environment Info

Give new unique IP address in

last two sets and mirror other

information in other boxes

RC4602 Ver1.1

www.rivatech.de

3. In the IP Setup’s window, information under ‘Local Network information’ displays the

user/PC’s network area information. Those information need to be incorporated to the IP

Address, Subnet Mask, Gateway, and DNS boxes, except the last 2 sets of IP Address,

which are to be the unique numbers for the device. Refer to the image above for the

setting

4. Click ‘Setup’ to complete the modification. When the dialog box appears to request user

name and password, enter the default value for the administrator account (case-sensitive)

as:

ID:

root

Password:

pass

RC4602 Ver1.1

www.rivatech.de

Step5. View video on web page

Once the device’s proper IP address has been identified, type the URL in a web browser to

access the camera. At first time access, installation window may pop up. The default

username and password is

root / pass

1. When the browser asks to install the AxUMF software, click Install to proceed.

2. When Setup installation pop-up window appears, click install to proceed with rest of

installations.

Note

Depends on system OS and Internet Explorer version, Installation experience may

differ from one another. Figures described above are from Windows 7, Internet

Explorer 9 environment.

RC4602 Ver1.1

www.rivatech.de

Rebooting

Perform the following procedures to reset your device:

1. Press the Reset button for 2 seconds.

2. Wait for the system to reboot.

Resetting to the Factory Default Settings

Resetting the device back to the factory default will initialize all parameters including the IP

address back to the factory defaults. To reset back to the factory default;

1. Press reset button and hold.

2. Release the button after 5 seconds.

3. Wait for the system to reboot.

The factory default settings can be inferred as follows:

More Information

To learn more about using other features of your devices, refer to the manuals as “RIVA Web

Interface Manual Full HD Series” or “VCAsys Online Help”, which is available on

www.rivatech.de homepage.

Reset Button Location

IP address: 192.168.xx.yy

Network mask:255.255.0.0

Gateway: 192.168.0.1

User ID: root

Password: pass

RC4602 Ver1.1

www.rivatech.de

Hexadecimal-Decimal Conversion Table

Refer to the following table when you convert the MAC address of your device to IP address.

Hex

Dec

Hex

Dec

Hex

Dec

Hex

Dec

Hex

Dec

Hex

Dec

Hex

Dec

111

148

185

222

112

149

186

223

113

150

187

224

114

151

188

225

115

152

189

226

116

153

190

227

117

154

191

228

118

155

192

229

119

156

193

230

120

157

194

231

121

158

195

232

122

159

196

233

123

160

197

234

124

161

198

235

125

162

199

236

126

163

200

237

127

164

201

238

128

165

202

239

129

166

203

240

130

167

204

241

131

168

205

242

132

169

206

243

133

170

207

244

134

171

208

245

135

172

209

246

136

173

210

247

100

137

174

211

248

101

138

175

212

249

102

139

176

213

250

103

140

177

214

251

104

141

178

215

252

105

142

179

216

253

106

143

180

217

254

107

144

181

218

255

RC4602 Ver1.1

www.rivatech.de

108

145

182

219

109

146

183

220

110

147

184

221
