Install guide 8010

Customer Support: 888-515-2585 or

Visit our webiste www.ritetemp-thermostats.com

50 60 70 80 90

ENGLISH

Install guide 8010

1 Location

Caution

Tools

To avoid electrical shock and to prevent damage to the furnace, air conditioner,

and thermostat, disconnect the power supply before beginningwork.

This can be done at the circuit breaker, or at the appliance.

C A U T I O N

ï Your thermostat is a precise instrument.

Please handle it with care.

ï Turn off electricity to the appliance before installing or

servicing thermostat or any part of the system. Do not

turn electricity back on until work is completed.

ï Do not short (jumper) across electric terminals at control

on furnace or air conditioner to test the system. This will

damage the thermostat and void your warranty.

ï All wiring must conform to local codes and ordinances.

ï This thermostat is designed for use with 24 volt AC and

millivolt systems. The thermostat should be limited to a

maximum of 1.0 amps; higher amperage may cause

damage to the thermostat.

ï On replacement installations, mount the new thermostat in place of the old

one if possible.

ï Locate the thermostat on an inside wall, about 5 ft. (1.5m)above the floor,

and in a room that is used often.

ï Do not install it where there are unusual heating conditions, such as: in

direct sunlight; near a lamp, radio, television, radiator register, or fireplace;

near hot water pipes in a wall; near a stove on the other side

of a wall

ï Do not locate in unusual cooling conditions, such as: on awall separating

an unheated room; or in a draft from a stairwell, door, or window.

ï On new Installations, follow the guidelines listed below.

ï Do not locate in a damp area. This can lead to corrosion that will shorten

thermostat life.

ï Do not locate where air circulation is poor, such as: in acorner or an

alcove; or behind an open door.

ï Do not install the unit until all construction work and painting has been

completed.

ï This thermostat does not require leveling.

You will need #1 Phillips screwdriver (small) and

Drill with 3/16-in. (4.8mm) bit for this installation.

Good

5ft.

(1.5m)

PG 1

PG 2

Remove old unit

2 Label Wires to Old Unit

3 Mount the 8010

ï Separate front from back of unit. Grasp the front of the

unit and the back of the unit and pull apart. The

thermostat body away from the base.

ï Hold the base against the wall, with the wires coming

through the opening below the terminal block.

ï Position the base for best appearance

ï Attach the base to the wall with the two

screws provided.

ï If you are mounting the base to sheet

rock or if you are using the old

mounting holes, use the plastic

anchors provided.

Drill a 3/16-in.(4.8mm) hole

for the insert at each screw

location, then mount the base.

PG 3

PG 4

Terminals

Wires in wall come from

Furnace and AC unit

ï Switch electricity to the furnace and air conditioner OFF;

then proceed with the following steps.

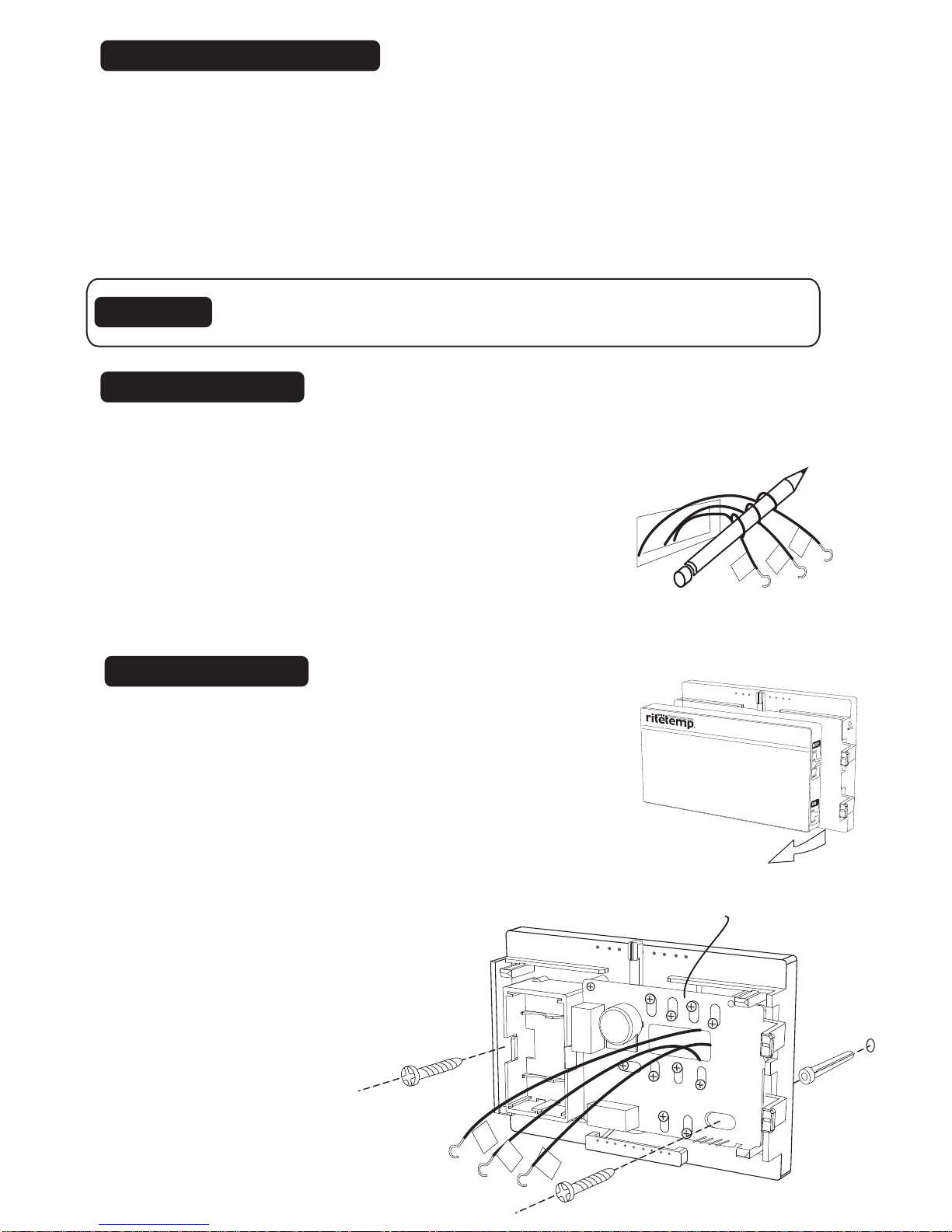

ï Remove cover from old thermostat. Most are snap-on types and simply pull

off. Some have locking screws on the side or front. These must be loosened.

ï Note the letters printed near the terminals.

ï Carefully attach labels (enclosed) to each wire.

Label the wires one at a time.

You must have all the wires labeled before you proceed.

Remove the wires from the terminals of the old thermostat.

Make sure the wiresdo not fall back insidethe wall.

Wind them around a pencil tokeep them from falling.

Remove the old thermostat from the wall. Fill wall

opening with fiber glass insulation to prevent drafts.

Caution

DO NOT REMOVE WIRES FROM OLD THERMOSTAT UNTIL YOU HAVE

CAREFULLY LABELED THEM, WITH LABELS PROVIDED.

THERE IS NO STANDARD COLOR CODE FOR THESE WIRES.

50 60 70 80 90

RC ORH B

GAS ELECT

PG 5

Please be aware of the following power options

1) The 8010 can run on batteries only. (2AA Alkaline) 

The batteries will last well over 1 year. If the batteries are not replaced the thermostat will

stop working.

2) The 8010 can run on the C wire if available. 

As shown in the wiring diagrams, The C wire is the other sid e of the 24VAC heating

transformer. If the C wire is used, the batteries are not n eeded.

5 Install Batteries

The 8010 requires batteries to operate your system.

Switch MODE switch to OFF and the FAN switch to

AUTO.

ï Insert 2 AA alkaline batteries according to the

polarity noted in the compartment.

NOTE: Replace the batteries when this

LOW battery indicator appears on the

display or once a year.

4 Gas-Electric Selection

6 Power Options

Gas/ Electric

jumper

Circuit

Board

PG6

ï If you have Electric Heat or a Heat Pump you must

place the Gas/Electric jumper in the ELECT position

(thermostat controls the Fan).

ï If you have Gas Heat the

Gas/Electric Jumper should be

in the GAS position (furnace

controls the Fan ).

50 60 70 80 90

RC ORH B

GAS ELECT

50 60 70 80 90

RC ORH B

GAS ELECT

PG 7

PG 8

Please refer back to these guidelines for safe and secure wire

connections.

Take carenot to damage the labelsfor each wire in handling.

Strip insulation 3/8 in. (9.5mm) from wire ends.

Connect labeled wires only to a terminal with correspondingletter.

Bend the wire slightly, insert the wire under the contact plate and

tighten the screw down onto the wire.

The Wire Label List shows wire

labels used on Ritetemp thermostats.

Please determine what wires you

have and select the correct wiring

diagram to "go to" on pages 8-9.

If you have a HEAT PUMP select a

wiring diagram on pg 9.

Before you Connect Wires

Caution

Do not allow

wires to touch

each other or parts on unit.

Wires must be routed through

the hole in the back plate, below

the terminal block, or they will

hit parts on the cover.

Make sure your wires are labeled . This is necessary to determine which step-by-step

wiring diagram you should use. This may require you to find the 'other end' connection for

each wire on your heating or air conditioning equipment and read the label there. 

If you have a Zoned Heating/Cooling system with multipl e thermostats, please refer to

our website at www.ritetemp-thermostats.com for installation notes or call 1-888-515-2585.

7 Wire Connections

What Wires Do You Have?

From Furnace

And AC unit

From Furnace

And AC unit

Go To Page 13 Go To Page 14

WIRE LABEL LIST

R- Single source power for heat/cool (R connected to

RC and RH using the jumper wire)

RH or R - Heating Power

RC - Cooling Power

W - Heating return

G- Fan return

Y- Compressor return

H - Humidifier (built into the furnace)

W2 -

2nd stage heat in NORMAL, auxiliary heat in PUMP mode.

A- For 3 wire zoned heating systems 

C- AC power for the thermostat if available

O- Damper control (Zoned heating) or heat pump

changeover valve (powered in COOL)

B- Damper control (Zoned heating) or heat pump

changeover valve (powered in HEAT) NOTE: Do

not connect both O and B on a heat pump. Connect O

to O & tape off B.

X - Tape off X

E - Tape off E

From Furnace

Go To Page 11

Go To Page 12

From Furnace

50 60 70 80 90

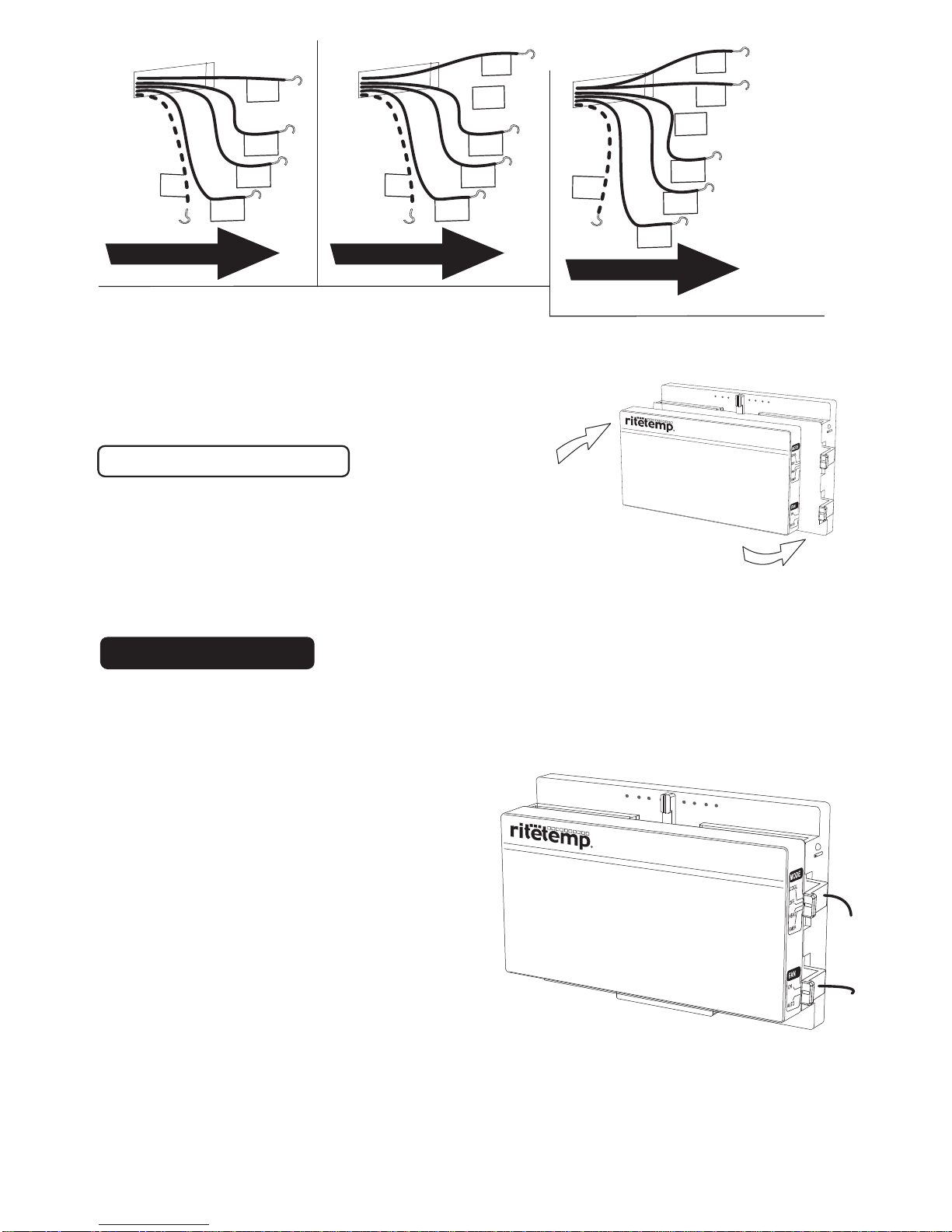

7 Wire Connections cont

When you have finished connecting the wires attach

control unit to wall unit. Hook the top of the body

onto the base, swing the body down, and snap the

body onto the base.

If you do not find the wiring information for 

your system try our webistewww.ritetemp-thermostats.com

for more information or call our customer service 

hotline at 888-515-2585.

8 Check Unit

Follow these procedures to verify you have correctly

installed the unit.

To check HEAT mode:

ï Set the mode switch to HEAT. Set the fan switch AUTO.

ï Adjust the temperature control to raise the target temp to 90o. 

ï Wait 5 min.

ï Verify that heat is blowing from the system.

To check COOL mode:

ï Set the mode switch to COOL.

ï Adjust the temperature control to 5o

below the room temperature. 

ï Wait 5 min.

ï Verify that cool air is blowing from the

system.

To check Fan: (If you connected the G wire)

ï Switch Mode to OFF during fan test.

ï Switch the FAN switch to the ON position. Verify air is blowing from

vents. 

ï After test, return to Fan switch to AUTO, and Mode to HEAT or COOL

Congratulations, you have successfully installed your unit. Please proceed to

the OPERATING Guide to initialize the new thermostat.

REMEMBER, Mode Switch must be in HEAT or COOL to operate.

PG 9

PG 10

Mode

Switch

Fan

Switch

From Normal

two stage system

Go To Page 15

From heat pump

w/o Aux heat

Go To Page 16

From heat pump

with Aux heat

W or W2

Go To Page 17

PG11

PG12

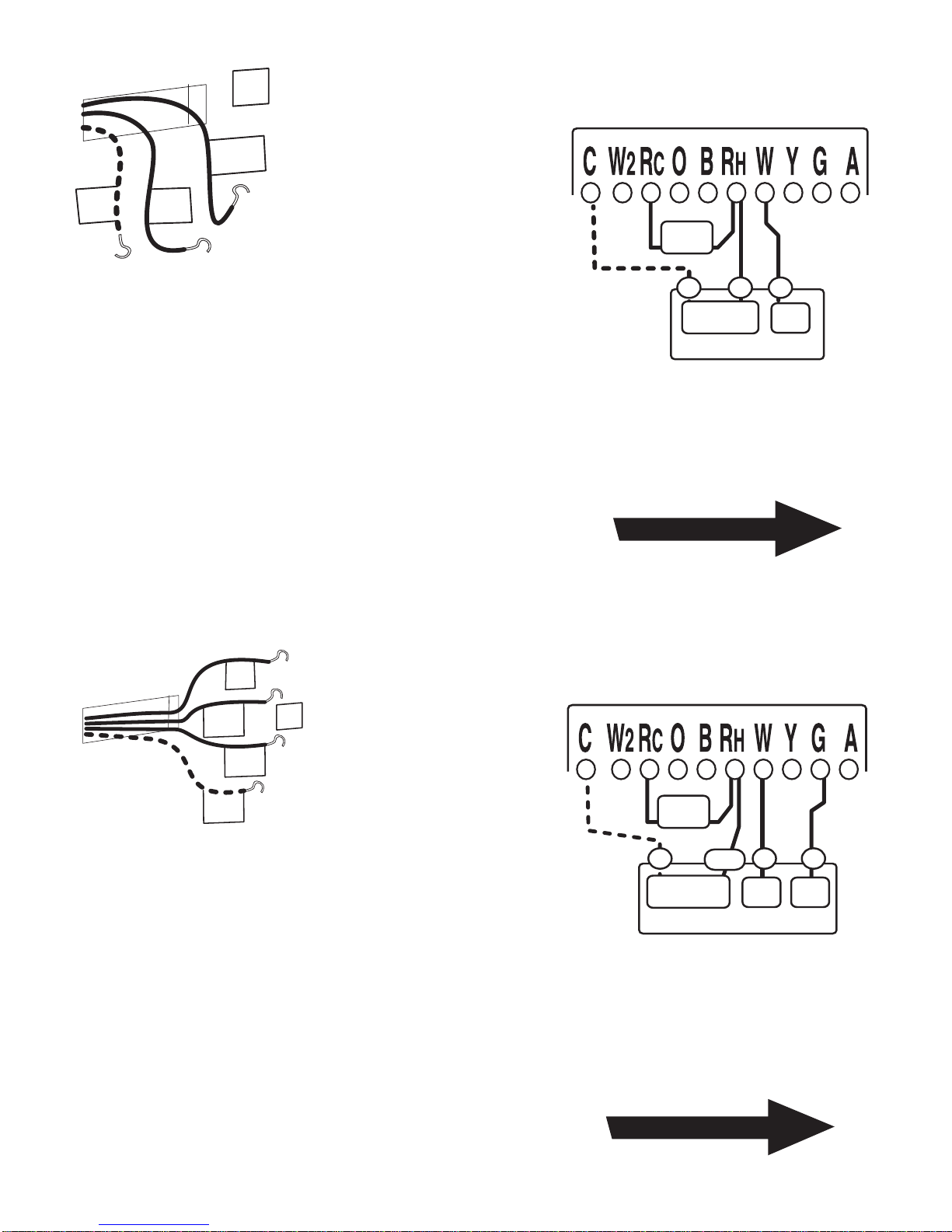

STEP 1 -Connect theR(or

RH) wire to theRHterminal

on the thermostat.

This connects the Heater

Power to the thermostat.

STEP 2 -Connect theWwire

to theWterminal on the

thermostat.

This connects the heater control line to the

thermostat.

Your Heater is now connected to the thermostat.

STEP 1 -Connect theR(or RH)

wire to theRHterminal on the

thermostat. This

connects to the

Heater Power .

STEP 2 -Connect the

Wwire to theW

terminal on the thermostat.

This connects the heater control line to

the thermostat.

STEP 3 -Connect theGwire to theGterminal on

the thermostat.

This connects the Fan to the thermostat.

Your system is now connected to the thermostat.

Return To Page 9

2 WIRE Heating

(GAS MILLIVOLT or 24vac

NOTE: Wires marked with

the dotted line are optional.

NOTE: Wires marked with

the dotted line are optional.

3 WIRE

From Furnace

or R

jumper

wire

FURNACE

HEAT

Thermostat

CHEAT

Power

FURNACE

jumper

wire

Heat

Power Heat

W G

FAN

Thermostat

PG14

PG13

From Furnace

and AC unit

From Furnace

and AC unit

STEP 1 -Connect theY wire to

the Yterminal on the thermostat.

This connects to the Cooler

compressor.

STEP 2 -Connect theRH or R

wire to theRH terminal on the

thermostat.

This connects the Heater/Cooler

Power.

STEP 3 -Connect theWwire to theW

terminal on the thermostat.

This connects to the heater control line.

STEP 4 -Connect theG wire to theGterminal on the Thermostat.

This connects to the Fan.

Your HVAC system is now connected to the thermostat.

STEP 1 -Remove the Jumper wire.

STEP 2 -Connect theY wire

to theYterminal on the

thermostat. This connects to

the Cooler compressor.

STEP 3 -Connect theRH wire to theRH

terminal on the thermostat. This connects to the

Heater Power .

STEP 4 -Connect theRC wire to theRC terminal

on the thermostat. This connects to the Cooling

Power .

STEP 5 -Connect theWwire to theWterminal on the thermostat.

This connects to the heater control line.

STEP 6 -Connect theG wire to theGterminal on the Thermostat.

This connects to the Fan.

Your HVAC system is now connected to the thermostat.

Return To Page 9

5 WIRENON_HEAT PUMP

4 WIRENON_HEAT PUMP

NOTE: Wires marked with

the dotted line are optional.

NOTE: Wires marked with

the dotted line are optional.

HVAC SYSTEM

jumper

wire

Heat

Power Heat

FAN

Cool

Comp

Thermostat

HVAC SYSTEM

Remove

jumper

wire

HEAT

Power

Heat

RHRC

FAN

Cool

Comp

COOL

Power

Thermostat

PG16

PG15

STEP 1 -Connect theG wire to

the Gterminal on the thermostat.

This connects the Fan.

STEP 2 -Add a jumper wire

betweenWandY.

STEP 3 -Connect theYwire to

the Y terminal on the thermostat.

This connects the Compressor.

STEP 4 -Connect theO or B wire

to theO or B terminal on the thermostat. (If you have

bothOandB contact Ritetemp or your local HVAC

contractor for further help) This connects the change

over valve.

STEP 5 -Connect theR wire to theRC terminal on the

Thermostat. This connects to the 24vac power.

Your HVAC system is now connected to the thermostat.

Return To Page 9

HEAT PUMP

w/o Auxiliary Heat

NOTE: Wires marked with

the dotted line are optional.

NOTE: Wires marked with

the dotted line are optional.

From Furnace

and AC unit

O or B

Single Stage HEAT PUMP

Change

Over

O or B

FAN

Comp

24VAC

Power

jumper

wire

jumper

wire

Thermostat

STEP 1 -Connect theG wire to

the Gterminal on the thermostat.

This connects the Fan.

STEP 2 -Connect the

betweenW wire toW. This

connects the 1st stage heat.

STEP 3 -Connect the between

W2 wire toW2. This connects the 2nd stage heat.

STEP 4 -Connect theR wire to theRH terminal on

the Thermostat. This connects to the 24vac power.

Your HVAC system is now connected to the

thermostat. (If the system also has AC, connect it per

instructions forRC andY on pg 14)

Return To Page 9

NORMAL 2 Stage 

Heat System

Two Stage Heat System

RW2

FAN

Two Stage

Furnace

jumper

wire

Thermostat

From Normal

two stage system

50 60 70 80 90

The 8010 can be used with most 24 volt gas, oil or electricheating and air

conditioning systems, heat pump systems with or without auxiliary heat, Normal 2

Stage systems, Zoned Hot-Water, Zoned Forced air systems,or gas millivolt

heating systems. It cannot be used with 120 volt heating systems or. Ask The

Home Depot for other thermostats to control those systems.

The 8010 is digital. You can program your desired Heat

and cool temperature by setting the dial. The unit uses

no harmful mercury.

A 5-minute minimum off time in COOL protects your air

conditioning system from being damaged.

Two "AA" batteries (not included) are used to run the

thermostat in some installation. "C" wire installations can

make batteries last many times longer.

8010 Features

PG18

PG17

STEP 1 -Connect theG wire to

the Gterminal on the thermostat.

This connects the Fan.

STEP 2 -Add a jumper wire

betweenWandY.

STEP 3 -Connect theYwire to

the Y terminal on the thermostat.

This connects the Compressor.

STEP 4 -Connect theO or B wire to the

O or B terminal on the thermostat. (If you haveboth

OandB wires, use theOand tape off theB).

This connects the change over valve.

STEP 5 -Connect theR wire to theRC terminal on

the Thermostat. This connects to the 24vac power.

STEP 6 -ConnectW or W2 to W2 on the thermostat.

This connects the AUX heat.

Your HVAC system is now connected to the thermostat.

Return To Page 9

HEAT PUMP

with Auxiliary Heat

NOTE: Wires marked with

the dotted line are optional.

O or B

(not both)

HEAT PUMP

Change

Over

AUX

Heat

O or B

FAN

Comp

24VAC

Power

jumper

wire

jumper

wire

Thermostat

From heat pump

with Aux heat

Autres manuels pour 8010

Autres manuels ritetemp Thermostat

ritetemp

ritetemp 8085 Manuel utilisateur

ritetemp

ritetemp 8050C Manuel utilisateur

ritetemp

ritetemp 8095 Manuel utilisateur

ritetemp

ritetemp 6036 Manuel utilisateur

ritetemp

ritetemp 8030 Manuel utilisateur

ritetemp

ritetemp 8085c Manuel utilisateur

ritetemp

ritetemp 8029 Manuel utilisateur

ritetemp

ritetemp 8029B Manuel utilisateur

ritetemp

ritetemp 8022 Mode d’emploi

ritetemp

ritetemp 8082C Manuel utilisateur

ritetemp

ritetemp 6010 Manuel utilisateur

ritetemp

ritetemp 6008 Manuel utilisateur

ritetemp

ritetemp 8022C Manuel utilisateur

ritetemp

ritetemp 6022 Manuel utilisateur

ritetemp

ritetemp 8010 Manuel utilisateur

ritetemp

ritetemp 8050 Manuel utilisateur

ritetemp

ritetemp 6004 Manuel utilisateur

ritetemp

ritetemp 8085c Manuel utilisateur

ritetemp

ritetemp 6030 Manuel utilisateur

ritetemp

ritetemp 8030C Manuel utilisateur

ritetemp

ritetemp 8035C Manuel utilisateur

ritetemp

ritetemp 8050C Manuel utilisateur

ritetemp

ritetemp 8022 Manuel utilisateur

ritetemp

ritetemp 6005 Manuel utilisateur

Manuels Thermostat populaires d'autres marques

EWELLY

EWELLY EW-181 Manuel utilisateur

Prolon

Prolon T1100 Instructions d'installation

Computherm

Computherm Q20 Manuel utilisateur

Heatmiser

Heatmiser neoStat Manuel utilisateur

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manuel utilisateur

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manuel utilisateur

Saswell

Saswell SAS920XWHB-7-S-RF Mode d’emploi

Aircalo

Aircalo TFP1-ET85P2 Manuel utilisateur

Honeywell

Honeywell CM721 Manuel utilisateur

Carrier

Carrier DEBONAIR 33CS Manuel utilisateur

Lennox

Lennox iHarmony Zone Thermostat Instructions de montage

Gemtech

Gemtech GT7000 Mode d’emploi

Rollei

Rollei Smartes 45000 Manuel utilisateur

Sinope

Sinope TH1300RF Manuel utilisateur

Honeywell

Honeywell RLV4305 Manuel utilisateur

Honeywell

Honeywell Prestige 2.0 THX9421 Manuel utilisateur

NuTone

NuTone NTBZ48 Instructions d'utilisation d'origine

Stelpro

Stelpro MAESTRO ASMT402AD Manuel utilisateur
