Riso RN SERIES Manuel utilisateur

RISO INTERNATIONAL GROUP

RISO KAGAKU CORPORATION (JAPAN) RISO DEUTSCHLAND GMBH (GERMANY)

RISO, INC. (U.S.A.) RISO FRANCE (FRANCE)

RISO EUROPE LIMITED (U.K.) RISO IBERICA (SPAIN)

RISO HONG KONG (HONG KONG) RISO CANADA (CANADA)

RISO UK (U.K.) RISO ZHUHAI (HONG KONG)

RISO THAILAND LIMITED (THAILAND) RISO AFRICA (SOUTH AFRICA)

and written for the exclusive use of RISO International Group

Certified Dealers. Reproduction and/or transmittal of this

material in any form or by any means, including photocopying

or recording of the information is strictly prohibited without the

consent of a member of RISO International Group.

VERSION 1.0

JULY, 2000

SERIES

TECHNICAL MANUAL

IndeInde

Indexx

Chapter 1 Maintenance

Chapter 2 Machine Summary

Chapter 3 Machine Drive Section

Chapter 4 First Paper Feed Section

Chapter 5 Second Paper Feed Section

Chapter 6 Press Section

Chapter 7 Paper Ejection System

Chapter 8 Print Drum Section

Chapter 9 Master Clamp Section

Chapter 10 Master Removal Section

Chapter 11 F.B. Original Scanning Section

Chapter 12 A.D.F. Original Scanning Section

Chapter 13 Master Making Section

Chapter 14 Timing Charts

Chapter 15 Panel Messages

Chapter 16 Test Modes

Chapter 17 User Mode Settings

Chapter 18 Miscellaneous Precautions

Chapter 19 Description of P.C.B’s

1 – 1

RN (Version 1.0)

CHAPTER 1: MAINTENANCE

Contents

1. Preface ......................................................................................................................1-2

CAUTION...................................................................................................................1-3

WARNING .................................................................................................................1-4

2. Work Precautions .....................................................................................................1-5

3. Exterior Cover Removal ............................................................................................1-8

4. Controller (RISORINC2) and System PCB ........................................................... 1-13

1 – 2

RN (Version 1.0)

CHAPTER 1. MAINTENANCE

1. Preface

This manual provides Technical Service Information for the RISOGRAPH model RN series.

This manual is published as a reference guide for use by RISO Group (RISO Kagaku Corp./

RISO,INC./RISO EUROPE Ltd.) Certified Technical Representatives experienced in duplicator repair

andservice.

This manual also provides procedures for removing and installing major components. Following these

procedures will minimize machine malfunctions. This information and format will also increase

technical representatives' awareness and experience regarding repairs necessary to insure end-user

satisfaction.

PREFACE

1 – 3

RN (Version 1.0)

CHAPTER 1. MAINTENANCE

[Handling of Lithium Battery]

- Never fail to follow the following instructions when you discard the used

lithium battery.

1. Never let the battery short-circuited.

If the (+) and (-) terminals contact each other or metal materials, the battery will

be short-circuited. If the batteries are collected and stored inorderly or one upon

another, the above-mentioned case will occur.

- DANGER -

If the battery is short-circuited, it will heat up and may in some cases explode into

fire.

2. Never heat up the battery.

- DANGER -

If you heat the battery up to more than 100°C or put it into the fire, it may burn

dangerously or explode.

3. Never disassemble the battery or press it into deformation.

- DANGER -

If you disassemble the battery, the gas pouring out of the inside may hurt your

throat or the negative lithium may heat up into fire.

If the battery is pressed into deformation, the liquid inside may leak out of the

sealed part or the battery may be short-circuited inside an explode.

4. Never fail to keep the battery out of reach of children.

If you put the battery within reach of children, they may swallow it down.

Should they swallow the battery, immediately consult the doctor.

[Replacement of the Lithium Battery]

1. The lithium battery must be replaced by a trained and authorized service

technician.

2. The battery must be replaced only with the same or equivalent type

recom- mended by the manufacturer.

3. Discard used batteries according to the manufacturer’s instructions.

CAUTION

1 – 4

RN (Version 1.0)

CHAPTER 1. MAINTENANCE

!! WARNING !!

Important Safety Precautions

1. Always disconnect electrical supply before placing hands in the

machine.

I. To avoid injuries:

Be sure to disconnect the electrical power before disassembling, assembling,or when

making adjustments on the machine.

II. Protection of the machine:

Make sure to turn OFF the power to the machine before plugging or unplugging the

electrical connectors, or when connecting a Meter.

2. Always connect electrical connectors firmly.

I. To avoid electrical failure:

The connectors must be connected firmly together and onto the PCBs.

Press on the ends of the connectors and then on the middle to ensure a firm fit.

II. Protection of the electrical components:

The electrical components may be damaged due to short circuits caused by a loose

connector.

Wire harness connector

FIRST

THEN

Press the ends.

Pressthecenter,firmly.

WARNING

1 – 5

RN (Version 1.0)

CHAPTER 1. MAINTENANCE

WORK PRECAUTIONS

2. Work Precautions

Inspection

If you discover any defects or problems during an inspection, fix the problems or if necessary take

steps such as replacing a part.

Removal

Check the problem area. At the same time, examine the cause of the problem and determine

whether the part needs to be removed or disassembled. Next proceed according to the proce-

dures presented in the Technical Manual. In cases where, for example, it is necessary to disas-

semble areas with large numbers of parts, parts which are similar to each other, or parts which are

the same on the left and right, sort the parts so that you do not mix them up during reassembly.

(1) Carefully sort the removed parts.

(2) Distinguish between parts which are being replaced and those which will be reused.

(3) When replacing screws, etc., be sure to use the

specified sizes.

Assembly and Installation

Unless specified otherwise, perform the removal proce-

dures in reverse during assembly and installation. In

cases where protrusions or holes are provided to assist

in positioning parts, use them for accurate positioning

and securing.

(Protrusions and holes for positioning parts Half

pierce section)

Tools

Using tools other than those specified can lead to injury

or damage screws and parts. Have all the tools neces-

sary for the work available.

Type Tip size Shaft length, etc.

No. 2 (250mm)

No. 2 (100 mm-150 mm)

No. 2 (stubby type)

No. 1 (75 mm-100 mm)

6 mm (100 mm-150 mm)

3 mm (100 mm-150 mm)

1.8 mm (precision type)

8 mm (100 mm-150 mm)

7 mm (100 mm-150 mm)

2.5 mm

5 mm 5.5 mm 7 mm

8 mm 10 mm 13 mm

Monkey

5.0 mm

4.0 mm

3.0 mm

2.5 mm

2.0 mm

1.5 mm

Phillipsscrewdriver

Standardscrewdriver

Nutdriver

(boxdriver)

Highfrequencydriver

Spanners

(maybedouble-ended)

Hex wrenches

Type Remarks

Steel scale 150 mm

Feelergauge

Radial cutting pliers

Pliers

Nipper

Small flashlight

Multimeter

Solderingiron 20 W-30 W

File Flat, round

- ( 2 pieces required )

1 – 6

RN (Version 1.0)

CHAPTER 1. MAINTENANCE

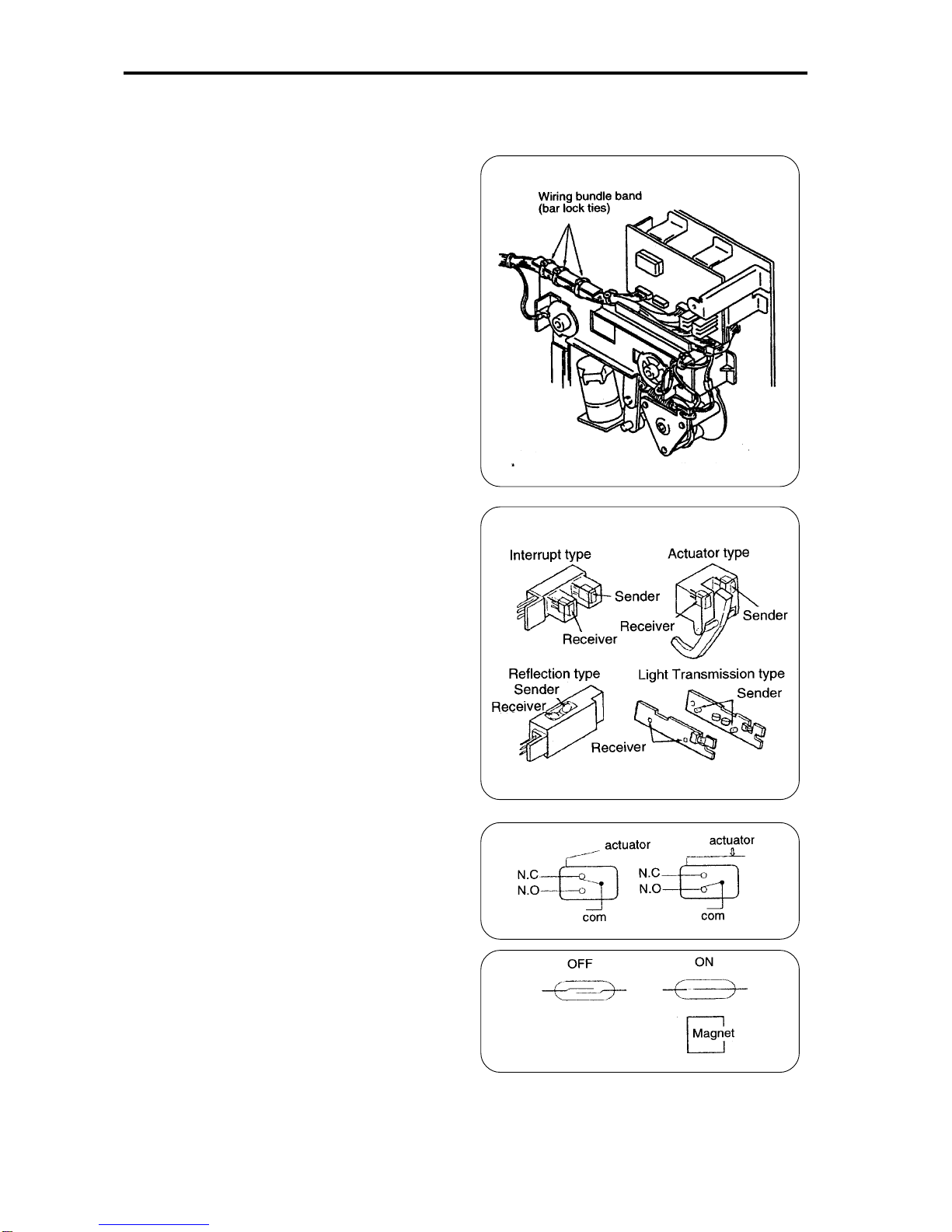

Electrical system work

• Afterremovingwirebundles,fastenthem

with wire bundle bands (bar lock ties) so

that they will not sag.

• When installing parts, be careful to avoid

pinching or damaging the wire bundles.

• Ifa fuse blows, alwaysreplaceitwith one

with the specified capacity. Using a fuse

with a larger capacity can not only dam-

age parts, but may cause fires.

• Be careful not to drop image scanners,

thermal print heads, and other sensors

as they can be easily damaged.

Switch types

• Microswitchesmaybedividedbetweennor-

mallyopen(NO)typesandnormallyclosed

(NC) types.

With an NO connection, an internal con-

tact is connected when the switch actua-

tor is pressed.

With an NC connection, an internal con-

tact is disconnected when the switch ac-

tuator is pressed.

• Magnetic lead switches are switches in

which an internal contact is connected

in reaction to the magnetic force of a

magnet.

Sensor types

• Photo-electric sensors may be broadly

divided into the following four types: in-

terrupttypes (U-shaped), actuator types,

reflective types, and transmittive types.

• Magneticsensors use Hall ICs, whichre-

act to the magnetic force in magnets.

• Alwaysturnoffthepowerbeforeplugging

or unplugging sensor connectors.

WORK PRECAUTIONS

1 – 7

RN (Version 1.0)

CHAPTER 1. MAINTENANCE

Installation location

• Do not install the machine in any of the following locations.

(1) Those subject to direct sunlight or any bright location such as by a window (If you must

install in such a location, put a curtain or the like over the window.)

(2) Those where the temperature changes drastically

(3) Those that are too hot, cold, humid, or dry

RECOMMENDED:

Temperaturerange:15° centigrade - 30° centigrade

Humidity range: 40% - 70% No condensation allowed

(4) Those with radiant heat sources and any locations in the direct path of air from air condition-

ers, heaters

(5) Any poorly ventilated location

(6) Dusty atmosphere

(7) Any tilted location

(Installation height difference: 10 mm max. front - rear, 10 mm max. left - right)

Electrical connection

• Plug the plug securely into the socket so that there is no problem with the contact in the power

supply plug section.

• Do not use any triplets or extension cords.

• Do not allow any other machine to stand on or crush the power cord.

Ground connection

• Always ground this machine to prevent electrical shock in the unlikely event of electrical

leakage.

WORK PRECAUTIONS

1 – 8

RN (Version 1.0)

CHAPTER 1. MAINTENANCE

3. Exterior Cover Removal

1. Bring the Print Cylinder to Position-A and remove the Print Cylinder from the machine.

2. Turn off the power and remove the power cord from the machine.

FRONTCOVER

Remove mounting screws (M4x8: 2 pcs) from the Hinge, and remove the Hinge.

The Front Cover comes off the machine.

Frontcover Hinge

FRONTFRAMECOVER

Remove mounting screws (M4x8: 7 pcs) and remove the Front Frame Cover.

Frontframecover

EXTERIOR COVER REMOVAL

Table des matières

Autres manuels Riso Imprimante

Riso

Riso Comcolor X1 Series Manuel utilisateur

Riso

Riso HC5000T Manuel utilisateur

Riso

Riso ComColor 9150 Guide de l'utilisateur

Riso

Riso HC FINISHER Manuel de service

Riso

Riso CZ180 Series Manuel utilisateur

Riso

Riso VALEZUS T2100 Manuel utilisateur

Riso

Riso Comcolor X1 Series Manuel utilisateur

Riso

Riso HC5500 Manuel utilisateur

Riso

Riso Print Gocco Arts Manuel utilisateur

Riso

Riso MZ970 Manuel utilisateur

Riso

Riso ComColor FT Series Manuel utilisateur

Riso

Riso ComColor FW Series Instructions originales

Riso

Riso GOCCOPRO QS200 Manuel utilisateur

Riso

Riso ComColor FW5230 Manuel utilisateur

Riso

Riso RZ Series Manuel utilisateur

Riso

Riso HC Series Mode d'emploi

Riso

Riso VALEZUS T1200 Manuel utilisateur

Riso

Riso RISOGRAPH RN2000 Manuel utilisateur

Riso

Riso SF Series Manuel utilisateur

Riso

Riso GOCCOPRO QS200 Manuel utilisateur

Riso

Riso ComColor FT Series Manuel utilisateur

Riso

Riso CV1200W Manuel utilisateur

Riso

Riso HC5500 Manuel utilisateur

Riso

Riso ComColor FW Series Manuel utilisateur

Manuels Imprimante populaires d'autres marques

Lexmark

Lexmark 1400 Series Manuel

Canon

Canon i70 Series Manuel utilisateur

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Canon

Canon LASER SHOT LBP-1210 Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Canon

Canon PIXMA PRO-1 Series Manuel utilisateur

Canon

Canon PIXMA G3560 Guide de configuration

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Epson

Epson ET-7750 Mode d'emploi

Canon

Canon CLBR 460ps Manuel utilisateur

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Epson

Epson SC-F7100 series Manuel utilisateur

Epson

Epson Stylus C40UX Manuel utilisateur

Canon

Canon imagePASS-A2 Manuel utilisateur

Canon

Canon S820D Manuel utilisateur
