Ring Pro Power Instructions d'utilisation et de sécurité

Video Doorbell Pro

Download the Ring app

The Ring app will walk you through setting up

and managing your Ring Video Doorbell Pro

and your Chime Pro.

Search for “Ring” in one of the app stores

below, or visit: ring.com/app

Download from

Windows Store

Your Wi-Fi password

Grab your Wi-Fi password

It’s required for the in-app setup. Write it

down below so it’s handy when you need it:

Plug in your

Chime Pro

It serves as a Wi-Fi

extender for your Ring

Doorbell Pro, so set

Chime Pro up first.

Plug Chime Pro in

somewhere between

your Wi-Fi router, and

the location where

you’ll be installing Ring

Doorbell Pro.

Set up your Chime Pro

In the Ring app, select Set Up Device.

When prompted, select Chime Pro, and follow

the in-app instructions.

4 Faceplates

Pick the one that best

matches your home…

or your mood.

Change it any time.

Terminals

Attach the

power wires

here.

Use the

included wire-

extensions if

necessary.

Back

Front

Setup

button

Mounting

holes

Meet your Ring Doorbell Pro

Ring Doorbell Pro

installation components

1 Screwdriver - Use the Phillips end for the mounting

screws and star-shaped end for the security screw.

3 Anchors - Use 2 for installing on concrete, stucco,

brick or any other masonry surface.

1 Drill Bit - To drill holes for the (optional) anchors.

3 Mounting Screws - Use two to mount your Ring.

2 Security Screws - Use one to secure the faceplate.

2 Extra Wires - To attach the power wires to your Ring

if necessary.

2 Wire Connectors - To connect the extra wires

(above) to the power wires.

1 Power Adapter - Plug it into an outlet to power your

Ring Doorbell Pro.

If you have an

existing doorbell…

If connected to a 16–24VAC

transformer, you can

connect Ring Pro directly to

your existing wiring.

Note: you’ll need a Pro

Power Kit, which you can

order on our website.

If you don’t have an

existing doorbell…

Follow the instructions on

the following pages to use

the plug-in adapter that

we’ve provided.

Ring Pro requires a 16–24VAC transformer. If you have a

doorbell with a transformer that’s rated lower than 16VAC,

hire a licenced electrician to upgrade your existing doorbell and

transformer and install a Pro Power Kit which you can order at ring.

com, or use the provided plug-in adapter. Before touching live wires,

always shut off power at the fusebox.

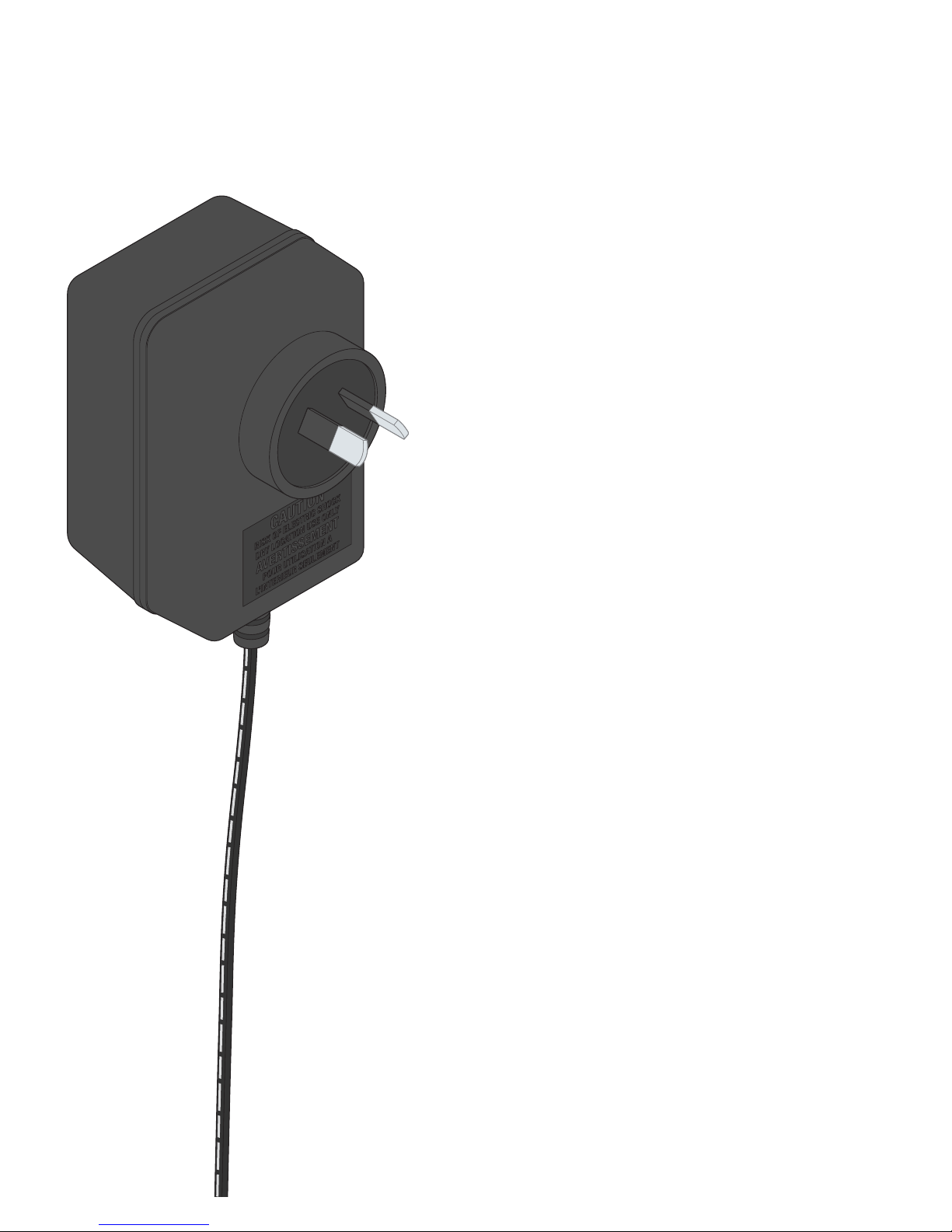

Locate a

power outlet

Locate an outlet as

close to your door

as possible.

NOTE: DON’T PLUG

THE ADAPTER IN

YET!

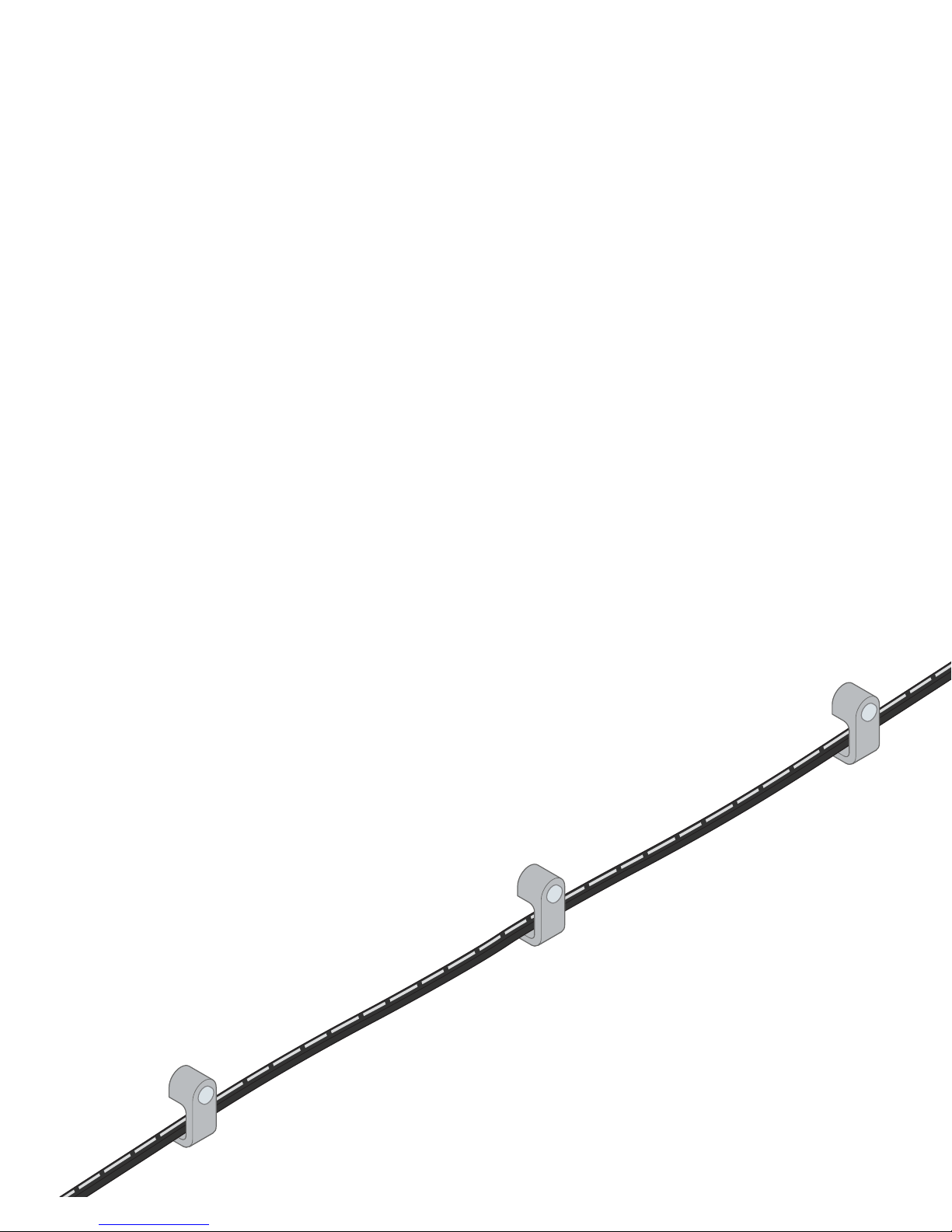

Run the wires

Run the wires to the location you’ll be

installing your Ring Pro.

Run the wires down the wall from the outlet,

and along your moulding.

To get the wires outside, run them through

the wall behind your Ring Pro, through a

doorway or out a window.

NOTE: ALWAYS BE CAREFUL OF EXISTING

ELECTRICAL WIRING AND PIPES IF

DRILLING THROUGH WALLS.

Install anchors

(optional)

On stucco, brick, or

concrete, use the

provided bit to drill

two holes in your

wall, and install the

anchors.

If you’re installing on

wood or siding, put

the anchors in that

drawer of stuff you

never use and skip this

step.
