Blue Wave

Toileting System

E806 & E808 Product Manual

E806 & E808

Contents

Warnings and important information 4

Recommended use 5

Check your order 6

User and item dimensions 7

Basic item

Seat 8

Armrests 9

Hip strap and hip strap clips 9

Frame 10

Casters 10

Mounting bar 10

Accessories

Backs 11

Anterior support 13

Footboard 13

Abductor and pan 14

Operation 15

Maintenance and cleaning 18

Materials, user modiﬁcations and warranty 19

Key for EU users

Use this key to determine which sections of this product manual

apply to you.

Technical Users For professionals who order and set up

Rifton products.

Home Users For caregivers who use Rifton products on a

regular basis.

Maintenance Personnel For anyone who is responsible

for service or reordering of Rifton products and parts.

WARNINGS

• Thoroughly read and understand the information in this product

manual before attempting to use this product. If the procedures and

instructions in this product manual are not followed, serious injury

could occur.

• A qualiﬁed professional must assess the appropriateness and safety of

all equipment for each user.

• This product is intended for use by clients of unreliable judgment.

Adult supervision is required at all times.

• Do not use this product on rough and uneven terrain, around

swimming pools, or near stairways.

• All mobility equipment may become unstable when used improperly.

• Straps and supports are provided for the safety of the user and must

be carefully adjusted for comfort and security. The use of straps and

supports must be supervised at all times.

• Restraints – Using straps, trays or supports to restrict a client’s

movement is considered behavioral restraint, which may raise ethical

and legal issues for your facility. Rifton Equipment is not intended for

this use.

IMPORTANT

• Please save this product manual. Additional copies are available

at www.rifton.com

Recommended use

The Rifton Toileting System is a Class 1 medical device. The toilet seat is

recommended for use in conjunction with domestic or institutional toilets of sturdy

construction* and in good condition.

* Equipment should comply with the following standards: ANSI A112.19.2M

(Toilet bowls, USA), and ANSI Z124.5 (Toilet seats, USA), or BS 5503 (Toilet

bowls, UK), and BS 1254 (Toilet seats, UK)

WARNING

• Check your toilet bowl and seat bolts for age or wear before attaching the

mounting bar. Replace parts if necessary. Make periodic checks.

• Always check that the seat is attached ﬁrmly before placing the user in the

seat

Mounted on the toilet, with

or without backrest

Over the toilet Free standing unit and

as a shower chair

Check your order

The Blue Wave toileting system has been shipped according to your speciﬁcations.

It will require some tool-free assembly. Follow these instructions to insure

that your item is put together and used correctly. This product manual is

comprehensive and may discuss features not included in your item.

If your shipment is incomplete or in any way damaged on

arrival, please call Customer Service, 800.571.8198.

User dimensions - inches (cm) small large

Height 30-50 (76-127) 48-72 (122-183)

Key user dimension: height

The user’s overall height is a general guide to help you select the appropriate chair. Choose the

model that allows for growth.

Important: Make sure that seat width, depth, and height are adequate for each individual user and

that the user’s weight does not exceed the maximum weight recommended.

Item dimensions - inches (cm) small large

Frame width 20½ (52) 20½ (52)

Seat height above ﬂoor 10-20 (25-51) 15½-20 (39-51)

Seat width 12 (30) front 16 (41)

rear 12 (30)

Seat depth 9, 11 (23, 28) 11½, 13¾ (29, 35)

Armrest height above seat 5½ (14) 7 (18)

Hole size 3 x 9 (8 x 23) 4 x 10 (10 x 25)

Hole size (with deﬂector) 2¾ x 8½ (7 x 22) 3½ x 9½ (9 x 24)

Clearance to ﬂoor (for over toilet) 19 (48) 19 (48)

Back height 24 (61) Low back 18 (46)

High back 34 (86)

Max. working load - lbs (kg) 180 (82) 180 (82)

User and item dimensions

Basic item

Seat

Seat depth

The Rifton toilet seat has two settings of

seat depth (A and B): 11½" (29 cm) and

13¾" (35 cm) for the large seat, and 9"

(23 cm) and 11" (28 cm) for the small seat.

To alter the setting, remove the back and

place it in the other set of holes (see

Figure 8a).

Deﬂector and large seat cover

The deﬂector (C) and seat cover (D) insert

into the seat aperture and can be removed

for cleaning. The deﬂector for the large

seat is separate from the seat cover, and is

inserted into the front of the seat cover. It

should be removed prior to the user being

moved off the toilet

(see Figure 8b).

Small seat cover

The small seat cover with deﬂector is one

item. It can be removed for cleaning

(see Figure 8c).

The seat cover (E) should not be used

without the Rifton toilet seat.

Figure 8b. Large seat cover with deﬂector

being inserted.

Figure 8c. Small seat cover.

Figure 8a. Two settings of the seat depth help

you position the user close to the deﬂector for

best function.

Notice: The armrests for the small

seat and those for the large seat are

not interchangeable.

Figure 9a

Armrests

The armrests ﬁt into the oval slots on the

side of the seat (see Figure 9a). They should

be pushed down and clipped in securely. To

release, squeeze the black clips under the

seat. To get more support at the elbows,

swap and rotate positions of the right and

left armrests. Keep the four armrest slots

(A) facing in.

1 (Front) 2 (Rear)

Figure 9c

Hip strap and hip strap clips

To remove the hip strap (B), reach under

the seat to release each clip. Push the front

half of the clip ﬁrst, then the rear half. To

reinsert, push down ﬁrmly until it clicks into

place. Pull on the strap to check that it is

secure (see Figures 9b and 9c).

Figure 9b

Frame

The inside of the frame has several sets of

slots (A) to adjust the height for the seat

and the footboard. The seat assembly

slides into one set of slots. Do not use the

seat unless completely latched in place.

To attach seat, press blue latches (B) on

outside of frame, and slide seat into place

until both black hooks at front are snug

against frame legs (see Figure 10a).

To remove the seat, press both latches and

pull seat out.

Casters

The corrosion-proof casters lock by

depressing lever (C) on the caster

(see Figure 10a).

Mounting bar

Attach the mounting bar (see Figure 10b)

permanently to the toilet. This will not

affect normal use of the toilet. It facilitates

quick, secure, tool-free attachment and

removal of the Rifton toilet seat.

Additional mounting bars may be

purchased for use on other toilets.

Figure 10a

Figure 10b

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Rifton Aide à la mobilité

Rifton

Rifton R123 Manuel utilisateur

Rifton

Rifton R840 Manuel utilisateur

Rifton

Rifton HTS Manuel utilisateur

Rifton

Rifton Blue Wave E541 Manuel utilisateur

Rifton

Rifton K503 Manuel utilisateur

Rifton

Rifton K589 Manuel utilisateur

Rifton

Rifton E-Pacer K660 Manuel utilisateur

Rifton

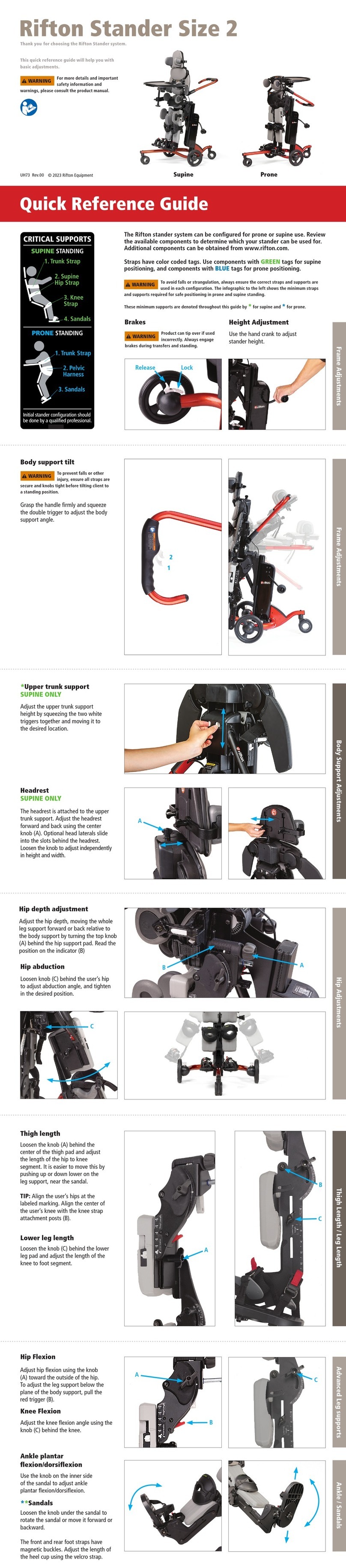

Rifton Stander Size 2 Manuel utilisateur
