Luminaris 200 Quick Start Guide

2Luminaris 200 Quick Start Guide 3

TABLE OF CONTENTS

LUMINARIS 200 WHITE TONER TRANSFER PRINTER ...................................................................................................

MACHINE GUIDE................................................................................................................................................................

Exterior: Front View ............................................................................................................................................ 4

Exterior: Rear View.............................................................................................................................................. 5

Interior ................................................................................................................................................................. 6

Control Panel ...................................................................................................................................................... 7

UNPACKING AND INSTALLING CONSUMABLES ..................................................................................................... 

LOADING PAPER ......................................................................................................................................................

BYPASS TRAY OPERATION .....................................................................................................................................

CABLE CONNECTIONS ............................................................................................................................................

WIRELESS SETUP ....................................................................................................................................................

Easy Setup Using the Wi-Fi Setup Wizard ....................................................................................................... 14

Easy Setup Using the WPS Button................................................................................................................... 17

Easy Setup Using a PIN Code .......................................................................................................................... 19

LUMINRIP SOFTWARE INTRODUCTION........................................................................................................................

USING THE LUMINRIP SOFTWARE (SUMMARY)..........................................................................................................

Queues .............................................................................................................................................................. 27

PRINTING OVERSIZED IMAGES?.............................................................................................................................

LUMINRIP SOFTWARE INSTALLATION...................................................................................................................

For Mac ............................................................................................................................................................. 29

For Windows ..................................................................................................................................................... 30

Activating the LuminRIP Software................................................................................................................... 31

FIRST TIME SETUP .................................................................................................................................................. 

TONER CARTRIDGE REPLACEMENT GUIDE ........................................................................................................... 

MAINTAINING YOUR PRINTER................................................................................................................................ 

Replacing the Print Cartridges......................................................................................................................... 34

Replacing the Waste Toner Bottle ................................................................................................................... 38

Cleaning the Toner Density Sensor and the LD Unit Dust Shield................................................................... 42

Cleaning the Registration Roller ...................................................................................................................... 43

Remove Paper Jams ........................................................................................................................................ 45

LUMINARIS 200 SYSTEM SPECIFICATIONS ...........................................................................................................















What makes the Luminaris 200 White Toner Transfer Printer

unique?

• 

• 

• 

• 

• 

LUMINARIS 200 WHITE TONER

TRANSFER PRINTER

Luminaris 200 Quick Start Guide

4Luminaris 200 Quick Start Guide 5

No. Name Description

Control Panel 

Top Cover An extension that helps support prints that come out curled.



pushing down on the end of the tray near the rear of the machine.

Standard Tray

Extension





rear of the machine.

Stop Fences This fence prevents printed paper from falling down when you print



Legal-size paper.

Standard Tray Finished prints are placed here with the print side down.

Top Cover Open Lever Push this lever to open the top cover and replace the print

cartridges.

Front Cover 



Front Cover Open Lever Lever on the right side of machine used to open the front cover.

End Fence 

  

 Bypass Tray 

 Side Fence 

No. Name Description

Front Cover Open Lever Lever on the right side of the machine that is used to open the

front cover of the printer.

 

Rear Cover 



 



Ethernet Port 

USB Port Port used to connect your printer to a computer.

Exterior: Rear View

Exterior: Front View

MACHINE GUIDE

Luminaris 200 Quick Start Guide

6Luminaris 200 Quick Start Guide 7

No. Name Description

Print Cartridge Where cartridges are placed inside the printer.

Fusing Unit Area where toner is fused to the paper.

Waste Toner Bottle Bottle that collects toner that is wasted during the printing

process.

Transfer Unit Unit that moves paper out of the printer as it is printed.

Interior Control Panel

No. Name Description

 





Direct function is active.

 Starts or stops receiving incoming data from the computer your printer

is connected to.

 

 Accesses the printer’s settings.

Display Where you can see the current status of the printer and any important

messages.

 Moves the cursor on the printer’s display.

 

NFC Connects the printer with a smart device that also has NFC.

  



  Cancels the last operation or returns to a previous page on the main

menu.

 Alert Indicator 

means your toner is low.

 Data In Indicator 

and is receiving data. If the indicator light stays on, that means there is



Luminaris 200 Quick Start Guide

8Luminaris 200 Quick Start Guide 9

4. Remove the white toner cartridge from the front of the machine.

• 

5. Be careful not to touch the drum of the contracts on the side of the cartridge.

• 



6. 



• 

• 

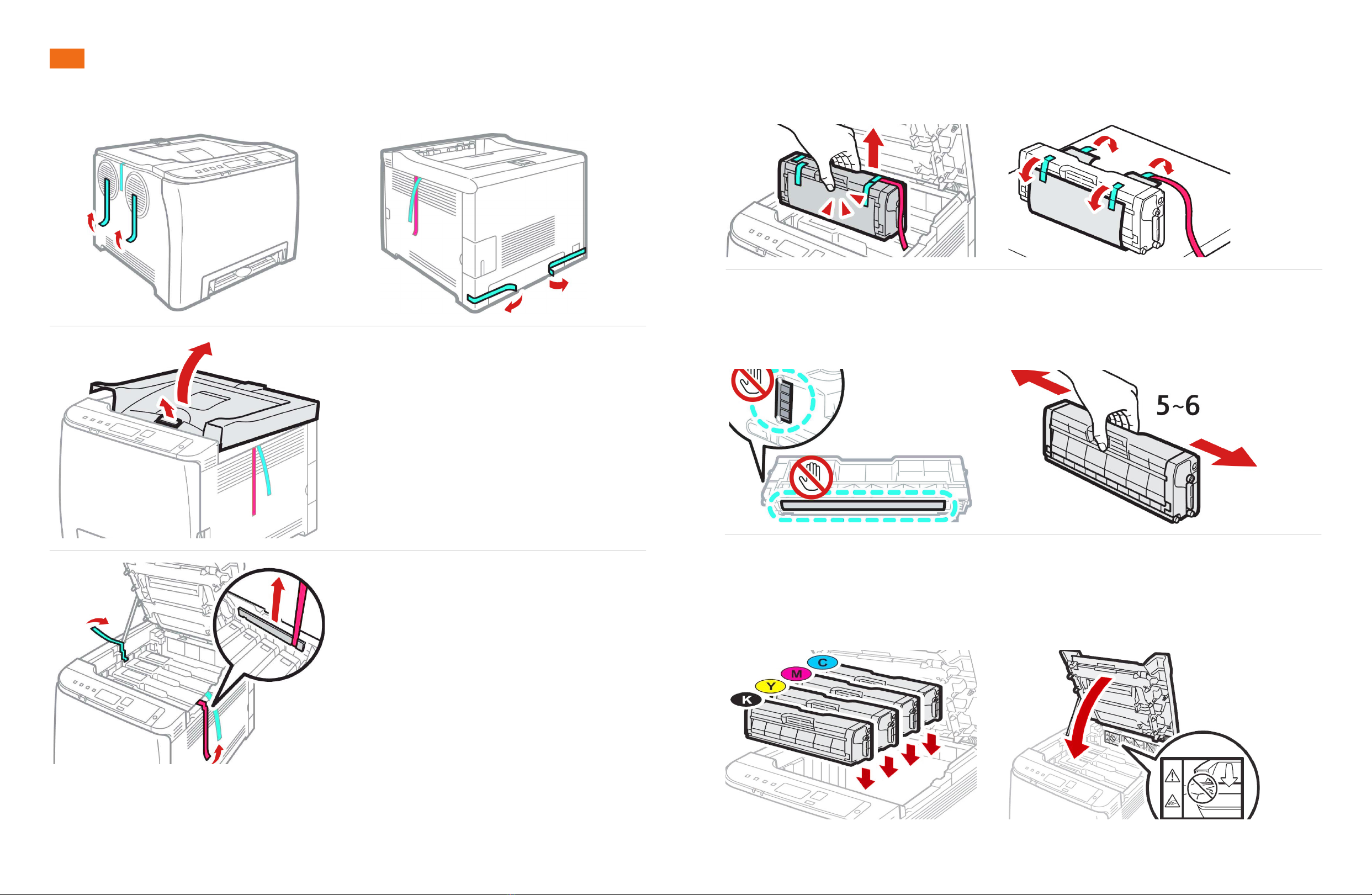

UNPACKING AND INSTALLING CONSUMABLES

1. 

2. Open top lid.

3. 

materials from inside the printer.

Luminaris 200 Quick Start Guide

10 Luminaris 200 Quick Start Guide 11

Incorrect transfer media should NOT be used at any time.

LOADING PAPER

• 

• 

• Squeeze the clips on the paper guides and slide them to match the paper size. Do not move the paper

guides forcefully. Doing so may damage the tray.

• 



• 

• 

• Close the paper tray.



• 

• 

• 

inches long.

• 

Luminaris 200 Quick Start Guide

12 Luminaris 200 Quick Start Guide 13

• 

• To reinsert the extender, you might have to push it with moderate force.

• 



NOTE:DonotextendthistraywhenloadingA4orlettersizepaper.Otherwise,apaperjammayoccur.

• 

• 

• 

until it stops.

• 

• 

• 

• 

• 

BYPASS TRAY OPERATION

• Pull up the retainer to prevent Legal-size prints from falling out.

• Open the side panel to reveal the communication ports.

• 

printer.

• 

NOTE:IfyouareconnectingviaWi-Fi,itisnotnecessarytoconnecteithertheUSBorEthernetcable.

CABLE CONNECTIONS

• 

• Insert power cord and power on the printer.

Luminaris 200 Quick Start Guide

14 Luminaris 200 Quick Start Guide 15



Note:

• Thefollowingitemisnecessarytosetupawirelessconnection.

• Router(accesspoint)

Checking the SSID and Encryption key







SSID: 

WIRELESS SETUP

Easy Setup Using the Wi-Fi Setup Wizard

Conguring Settings Using the Control Panel

Important

• MakesuretheEthernetcableisnotconnectedtothemachine.

1. Checkthattherouter(accesspoint)isworkingcorrectly.

2. Pressthe[]or[]keytoselect[Wireless(Wi-Fi)],andthenthe[OK]key.

3. Pressthe[]or[]keytoselectSSIDoftherouter(accesspoint)fromthesearchedSSIDlist,and

thenpressthe[OK]key.

4. Pressthe[]or[]keytoselecttheauthenticationmethod,andthenpressthe[OK]key.

The next steps differ depending on the authentication method that you have selected. Proceed to Step



• 

• 









Wi-Fi Setup Wizard









Connecting to devices using the WPA2-PSK or Mix Mode WPA2/WPA authentication

Entertheencryptionkeyusingthe[]or[]key,andthenpressthe[OK]key.





Pressthe[OK]key.

Password







Are you sure to connect?



Checktheresults.

Connection was successful:

Connection has failed:

Connect succeed!

Connect failed!

Luminaris 200 Quick Start Guide

16 Luminaris 200 Quick Start Guide 17

Connecting to the devices using the Open system or Shared Key authentication

Pressthe[]or[]keytoselecttheencryptionmethod,andthenpressthe[OK]key.



encryption method settings.

Note

• Donotselect[None]exceptinspecialcircumstances.Ifselected,thesecuritysystemwillnot

work.

Entertheencryptionkeyusingthe[]or[]key,andthenpressthe[OK]key.



EntertheIDusingthe[]or[]key,andthenpressthe[OK]key.



Enterthepassword.

Pressthe[OK]key.

Checktheresults.

Connection was successful:

Connection has failed:

Pressthe []or[]keytoselect[QuitSetup],andthenthe[OK]key.

ConguringtheWi-Fisettingsiscomplete.

Are you sure to connect?



Connect succeed!

Connect failed!

Encryption

None









Password

Open system

Password



10.

11.

12.

Easy Setup Using the WPS Button

Important:

• MakesuretheEthernetcableisnotconnectedtothemachine.

• InSteps10to12,congureeachsettingwithintwominutes.

Note:

• Thefollowingitemisnecessarytosetupawirelessconnection.

• Router(accesspoint)

1. Checkthattherouter(accsesspoint)isworkingcorrectly.

2. Pressthe[]or[]keytoselect[Wired(Ethernet)],andthenthe[OK]key.

3. Pressthe[]or[]keytoselect[QuitSetup],andthenthe[OK]key.

















Quit Setup

Luminaris 200 Quick Start Guide

18 Luminaris 200 Quick Start Guide 19

10.After“Connecting...”appears,presstheWPSbuttonontherouter(accesspoint)withintwominutes.

• 

11. Checktheresults.

Connection was successful:

• 

to the initial screen.

Connection has failed:

• 



12.ConguringtheWi-Fisettingsiscomplete.

4. Pressthe[Menu]key.

5. Pressthe []or[]keytoselect[NetworkSettings],andthenpressthe[OK]key.

6. Pressthe []or[]keytoselect[Wireless(Wi-Fi)],andthenpressthe[OK]key.

7. Pressthe []or[]keytoselect[WPS],andthenpressthe[OK]key.

8. Pressthe []or[]keytoselect[PBC],andthenpressthe[OK]key.

9. Pressthe []or[]keytoselect[Yes],andthenpressthe[OK]key.

Settings



Wi-Fi Setup Wizard











WPS



Current Connection

Input SSID

WPS Type 

PBC

WPS PBC Connect?

PBC

No

Connection to AP

has Succeeded

PBC

E X I T

Connection to AP

has Failed

PBC

E X I T

Easy Setup Using a PIN Code

Important:

• MakesuretheEthernetcableisnotconnectedtothemachine.

• InSteps11to13,congureeachsettingwithintwominutes.
