Ricoh Leo-C2/P2 Manuel de service

Technical Bulletin PAGE: 1/18

Reissued: 23-Apr-18

Model: Leo-C2/P2 Date: 5-Mar-18 No.: RD0A5001

RTB Reissue

The items in bold italics were corrected or added.

Revised Procedure for Replacing the Special Color Using the 5th

Station Replacement Kit Type S9

•When using the EFI color controller, EFI 5th Station Hardware Upgrade Kit Type S9 is

required to print in Special color.

•Although customers who purchase this optional kit can replace the toner color

themselves, a service technician has to fill the developer and initialize the settings at

the first installation.

Subject: Revised Procedure for Replacing the Special Color Prepared by: S. Katoh

From: Sales Strategy Section，1st CP Business Department

Classification: Troubleshooting

Mechanical

Paper path

Part information

Electrical

Transmit/receive

Action required

Service manual revision

Retrofit information

Product Safety Other ( ) Tier 2 Tier 0.5

Technical Bulletin PAGE: 2/18

Reissued: 23-Apr-18

Model: Leo-C2/P2 Date: 5-Mar-18 No.: RD0A5001

Accessories

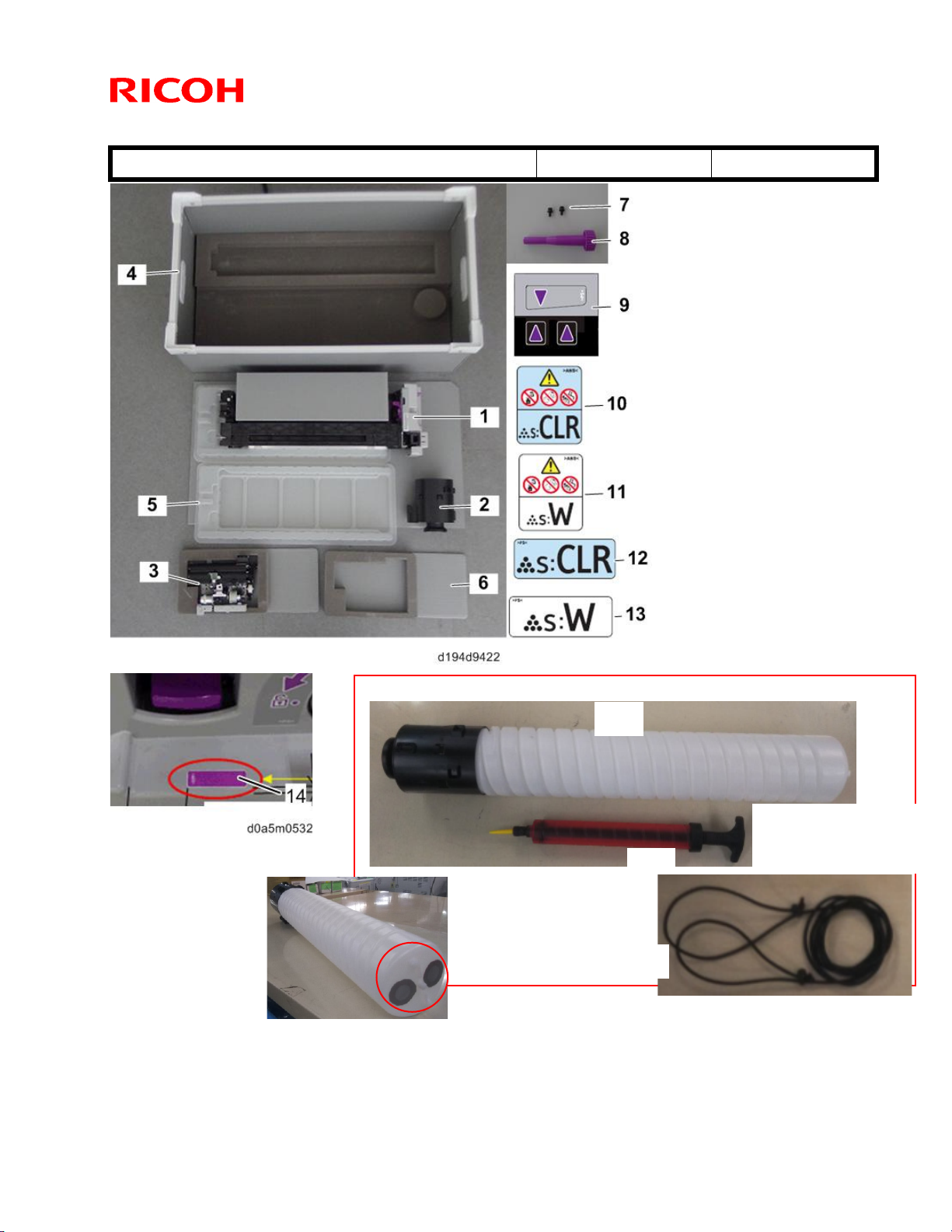

No.

Description

Q'ty

Development Unit

5th Station Toner Cartridge Replacement Tool

Toner Supply Unit (Sub hopper)

Storage Case

Development plate

Toner Supply Unit Plate

TCRU Screw

Hex screwdriver

TCRU decal (for 5th Development Unit)

Color Identification Decal_ S:CLR (for Toner Supply Unit)

Color Identification Decal_ S:W (for Toner Supply Unit)

Color Identification Decal_ S:CLR (for PCDU)

Color Identification Decal_ S:W (for PCDU)

Handle Decal

Toner Collection Bottle for Tube Cleaning

Air Pump

Rubber cord

Technical Bulletin PAGE: 3/18

Reissued: 23-Apr-18

Model: Leo-C2/P2 Date: 5-Mar-18 No.: RD0A5001

The Toner Collection Bottle for Tube

Cleaning is attached with two filters at

the bottom and can be easily

distinguished from the normal bottles.

The rubber cord was added to avoid

forgetting to insert the toner collection

bottle for tube cleaning with the

airpump.

There are two color

variations for the air

pump; pink and blue.

Technical Bulletin PAGE: 4/18

Reissued: 23-Apr-18

Model: Leo-C2/P2 Date: 5-Mar-18 No.: RD0A5001

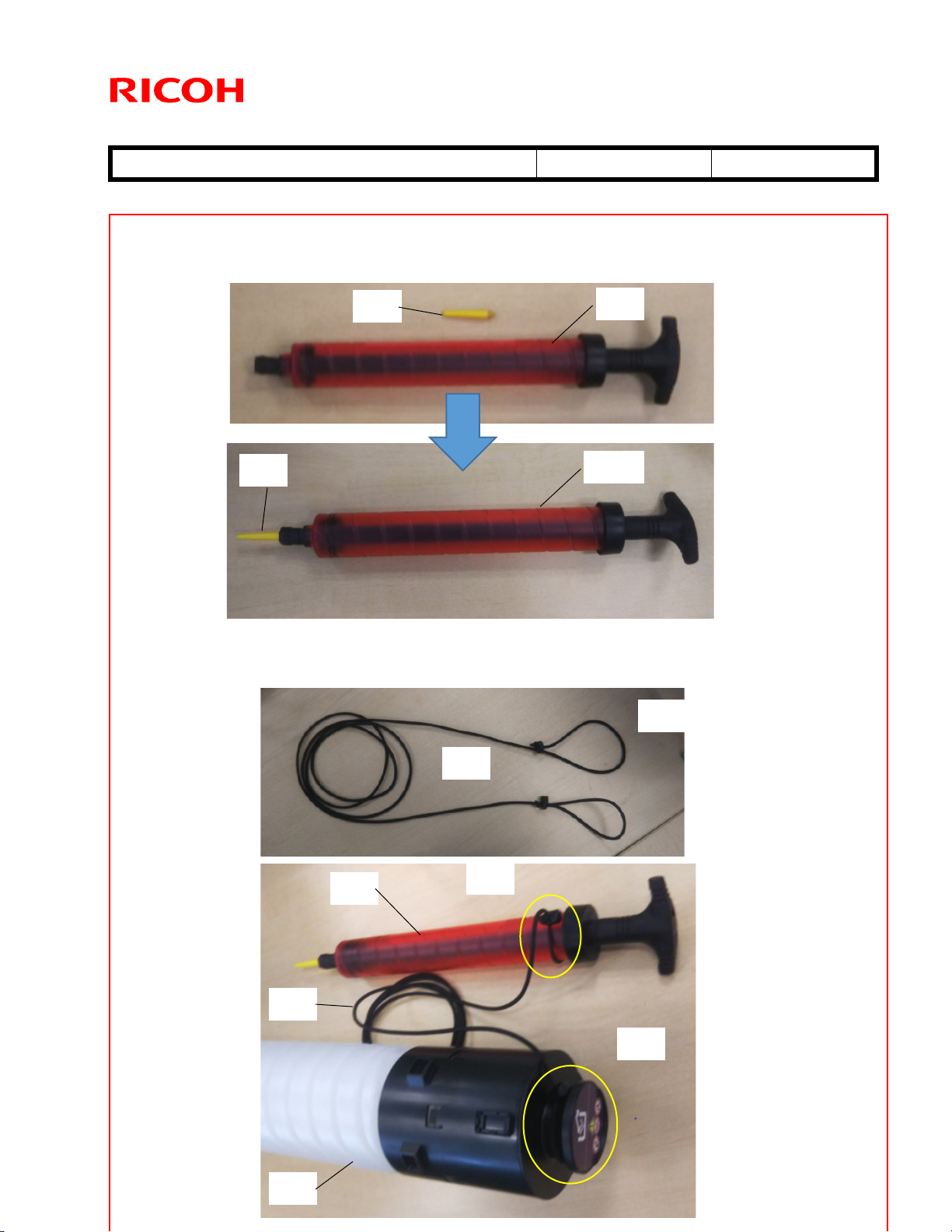

Attach the nozzle [B] to the air pump [A].

[A]

[B]

[A]

[B]

Connect the air pump [C] and toner collection bottle [D] with the loops [B] on both

ends of the rubber cord [A].

[A]

[B]

[A]

[B]

[C]

[D]

[B]

Technical Bulletin PAGE: 5/18

Reissued: 23-Apr-18

Model: Leo-C2/P2 Date: 5-Mar-18 No.: RD0A5001

Installation

•The machine must be connected to a power source that is nearby and easily

accessible.

•Make sure that the main power switch and AC power switch are turned to OFF, and

that the power cord is disconnected before performing the following procedure.

Prepare developers as necessary. Make sure that you bring it along with you to the customer

site.

•Developer Clear

•Developer White

•Developer Neon Pink

•Developer Neon Yellow

•Developer Invisible Red

Color identification decals other than those for the white and clear colors must be supplied by

a service technician.

1. Turn the main power ON.

2. Log in as the machine administrator.

3. Access the Adjustment Settings for Operators menu.

4. Press [Machine: Maintenance] > [0516: Change Special Toner].

•Do not press [Set] yet. That is done in Step 7.

5. Open the toner bank door. Remove the special toner bottle currently being used.

•Pull out the toner bottle as it is. Unlike with CMYK bottles, you do not have to

open the bottle cap in the SP mode.

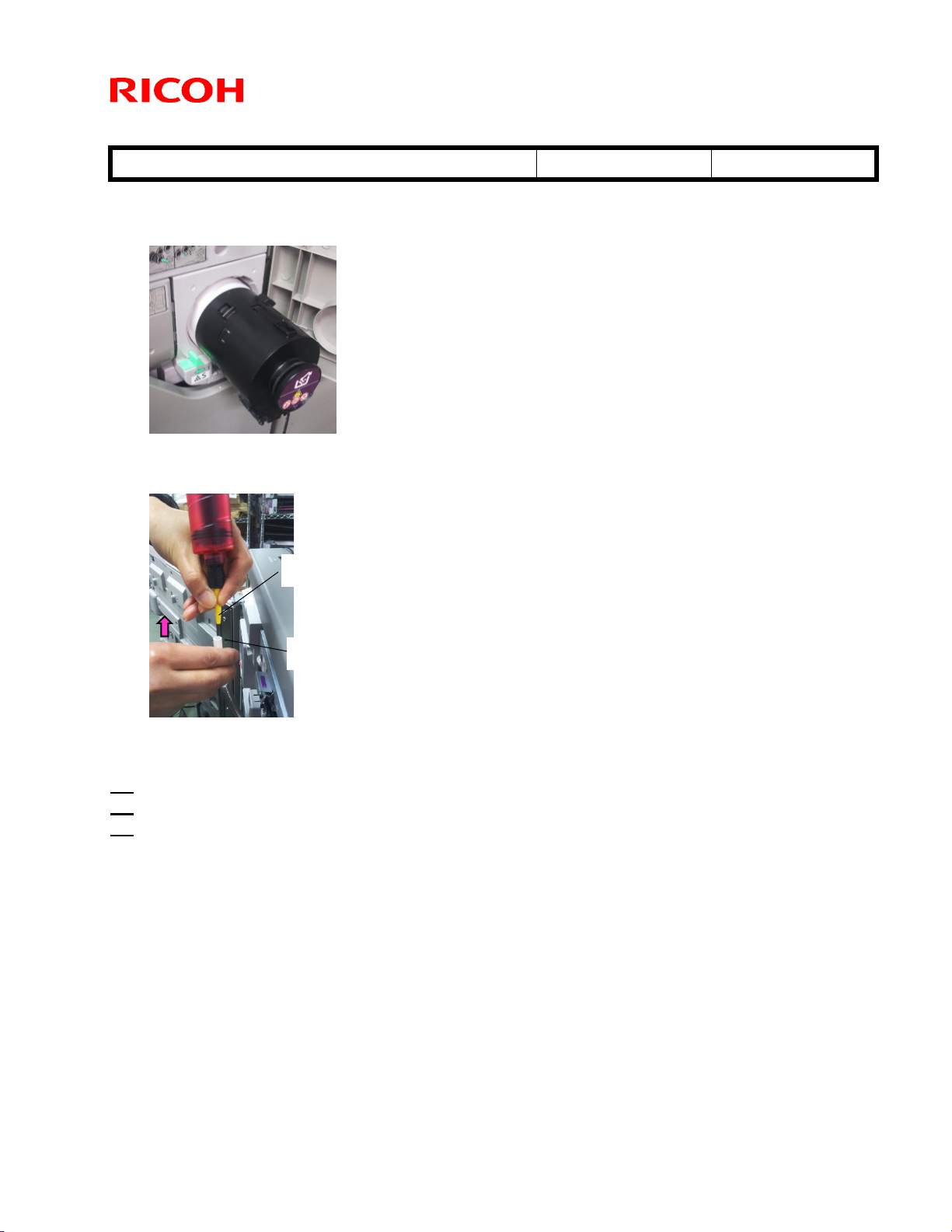

6. Attach the 5th station toner cartridge replacement tool [A] provided with this option, and

then close the toner bank door.

Technical Bulletin PAGE: 6/18

Reissued: 23-Apr-18

Model: Leo-C2/P2 Date: 5-Mar-18 No.: RD0A5001

7. Press [Set].

•Tube cleaning is carried out automatically by executing this setting.

•After tube cleaning, color information about toner bottle will be set when you

attach a new toner bottle.

8. After cleaning is completed, press [Check] to close the message window.

9. Open the toner bank door. Remove the 5th station toner cartridge replacement tool.

A. Remove the sub-hopper cover [A].

B. If the Toner Collection Bottle for Tube Cleaning has been used and contains any toner,

shake it 5 or 6 times.

Technical Bulletin PAGE: 7/18

Reissued: 23-Apr-18

Model: Leo-C2/P2 Date: 5-Mar-18 No.: RD0A5001

C. Hold the Toner Collection Bottle for Tube Cleaning in an upright position so that collected

toner, if any, gathers at the bottom, and then install the bottle.

D. Remove the hook [A], and disconnect the clip [B].

E. Disconnect the toner supply tube [A] from the sub-hopper and connect it to the air pump

[B].

Upright position

Keep the bottom of the bottle facing

down as you set the bottle.

[A]

[B]

Technical Bulletin PAGE: 8/18

Reissued: 23-Apr-18

Model: Leo-C2/P2 Date: 5-Mar-18 No.: RD0A5001

F. Cover the tip of the toner supply tube with a piece of cloth [A] and grip it together with the

air pump.

[A]

Technical Bulletin PAGE: 9/18

Reissued: 23-Apr-18

Model: Leo-C2/P2 Date: 5-Mar-18 No.: RD0A5001

G. Press in air 3 times by making 3 full strokes in about 3 seconds; one full stroke refers to

the action of pulling and pressing one time each, and 1 stroke should be made

within 1 second.

H. Remove the Toner Collection Bottle for Tube Cleaning.

I. Disconnect the toner supply tube from the air pump.

1 stroke within 1 second x3

NOTE:

If you take more than a

second to make one full

stroke, toner may not be

successfully ejected from

the toner supply tube.

Start

Pull

Press

Technical Bulletin PAGE: 10/18

Reissued: 23-Apr-18

Model: Leo-C2/P2 Date: 5-Mar-18 No.: RD0A5001

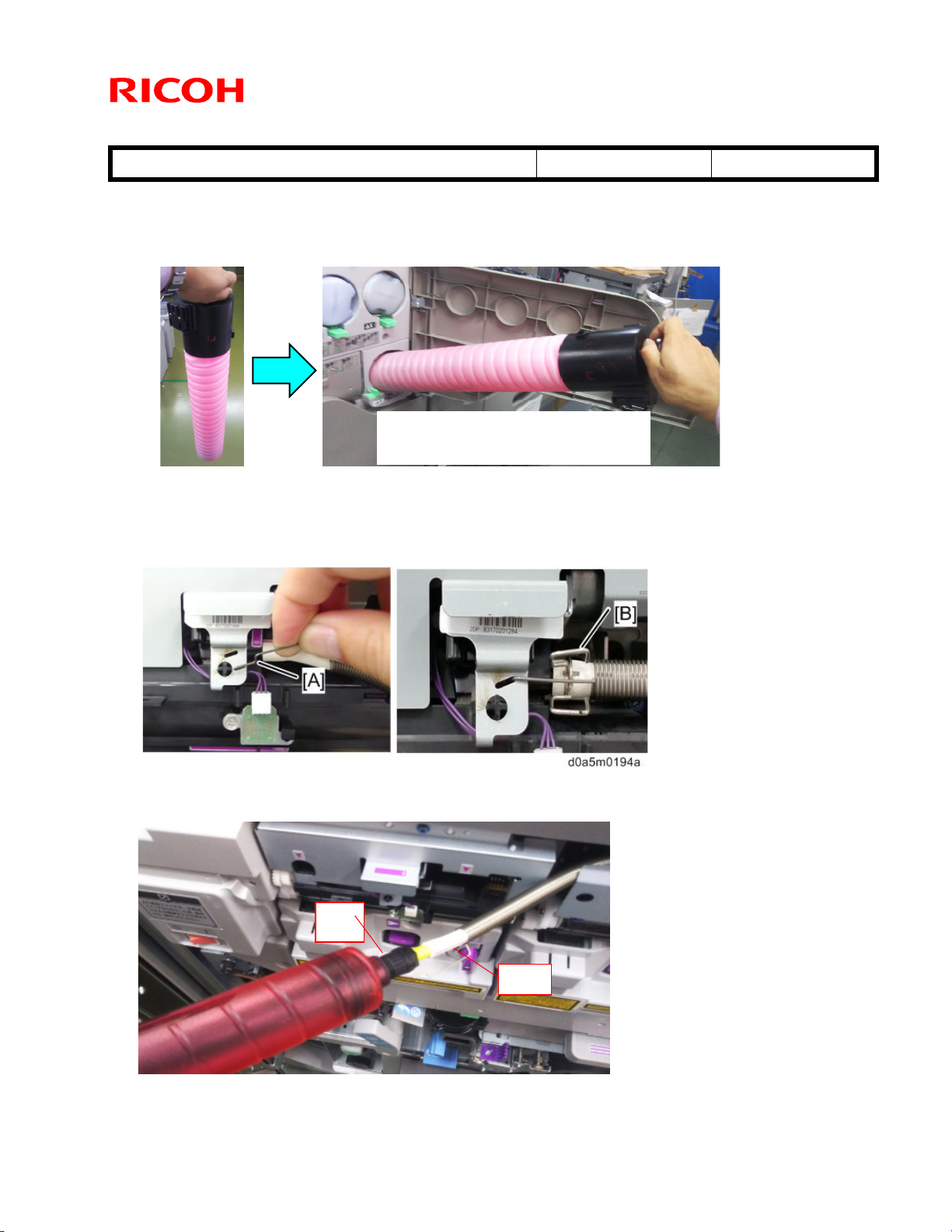

J. Pull out the toner collection bottle until the black cap is fully exposed.

K. With the aperture of the toner supply tube [A] facing up, disconnect the air pump

[B] from the toner supply tube.

L. Remove the toner collection bottle.

10. Insert the new color toner bottle.

11. Turn OFF the main power of the main machine and the DFE.

12. Open both front doors.

[A]

[B]
